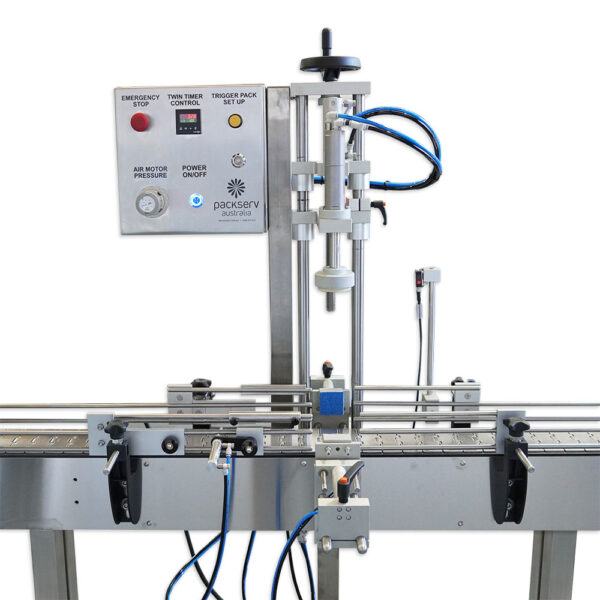

Our PCM-1A-E Auto Capper Electronic Timer is an automatic cap tightener designed to mount onto a continuously running slat-type conveyor. The PCM-1A-E is capable of tightening a range of closures at rates of up to 60UPM (units per minute). It is capable of tightening any kind of screw-on or push-on closure. When utilised with our PT-7 trigger-pack unit the equipment can additionally tighten trigger-packs, pump and mist-spray closures.

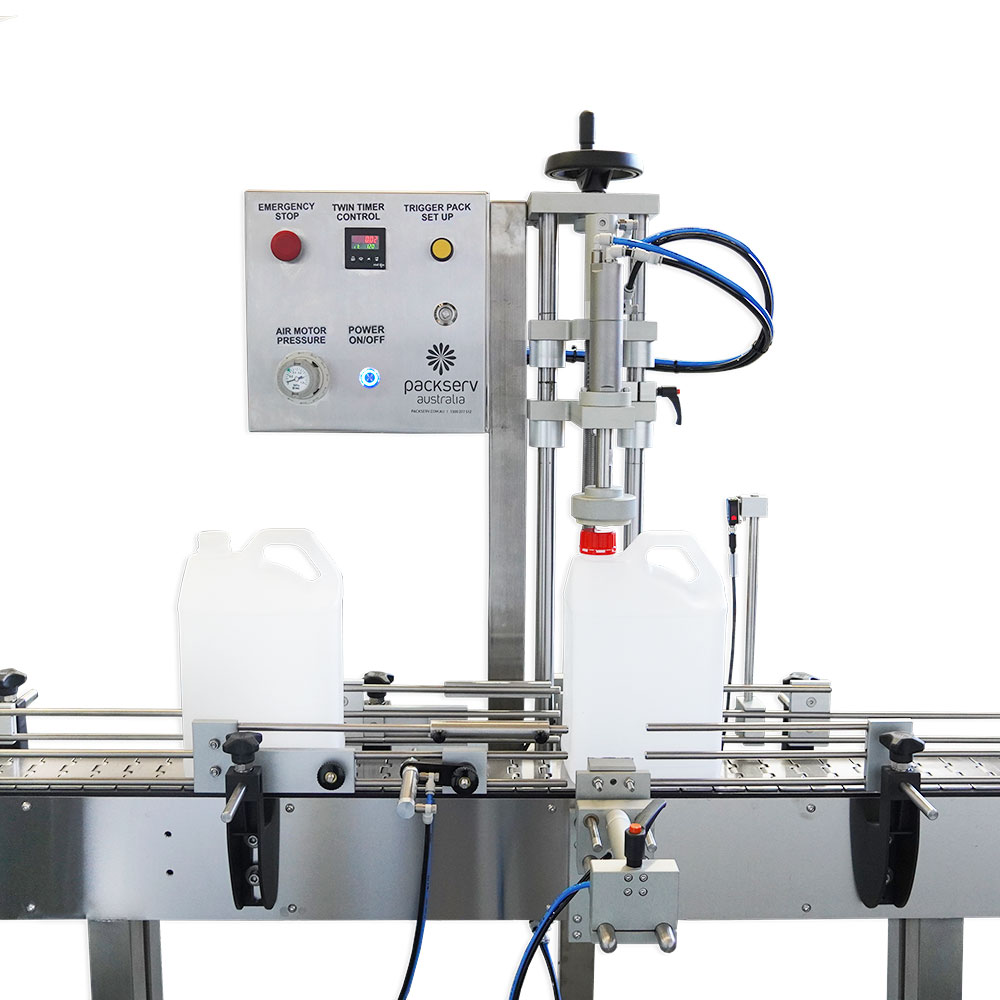

During operation, containers will arrive at the Auto Capper by an inline conveyor, with caps pre-positioned upstream either manually or by automatic cap placement equipment. A photo- electric sensor or whisker switch detects the presence of a container and initiates the machine operation through an electronic timer control unit which in turn activates the tightening head, jaws and gates system.

The control unit provides a comprehensive yet simple control of all the different elements. This ensures any container and closure type can be adequately and efficiently tightened while still offering fast set-ups and container changeovers. The pneumatic controls ensure optimal ease of use for the operator.

The PCM-1A-E Auto Capper is supplied with a conveyor or conveyor mounting frame, container gating and clamping, and jaws (non-marking). This can be contoured to the individual container profile or one of our existing templates can be used to ensure universal container application. Jaws for glass containers come with plastic slippers to prevent the container from scoring the conveyor during the bottling process.

*Rent: Brand and model may vary. The machine will be identical in function.

See Also: Packserv Capping Machines | Packserv Australia

Weight	40 kilograms (88 lbs)
Length	500mm (20 in)
Width	400mm (16 in)
Height	1800mm (5.9 ft)
Power Supply	Air compression
Construction Type	316 stainless steel and aluminium construction
Container Type	Suitable for all container types capable of standing on a moving conveyor
Mounting	Mounts to a conveyor
Industries	Food, cosmetic, pharmaceutical
Motor	Deprag Air Motor Drive
Air Pressure	600kpa (80psi) pressure requirement
Additional Power Supply	Single Phase, 10 AMP
Units Per Minute	Cap 20-60 units per minute
Noise	Medium
Capping Chucks	10-130mm standard chucks (0.4 in – 5 in)
Custom Capping Chucks	Supplied on request
Closure Type	Screw, pump, mist, trigger, push and snap closures
Torque	Torque adjustable
Conveyor	Stand-alone bolt on machine, or supplied with various conveyor options
Flameproof	No
Setting Adjustments	No tools required
Timer Control	Electronic timer control
Changeover Speed	Fast changeover of bottles/containers
Caps Size	10mm to 130mm caps (0.4 in – 5 in)

Make	Packserv
Automatic Function	Yes
Mounting	Conveyor Mounted

Utilises an electronic digital timer
Features container height adjustment hand-wheel and locking ring
Quick container and cap size changeover with limited tools
High quality Deprag air motor drive
Precise torque setting via pressure regulator and gauge
Sturdy low maintenance construction
Dual direction air motor
Special tightening chucks and clamping jaws
Various chuck liner materials
Trigger pack attachment PT-7 available
Chuck sizes from 10mm-130mm

1 x base machine
1 x chuck (10-130mm sizes available)
1 x liner
2 x jaw assemblies (including flat or v-jaws)
1 x gate, bracket and clamp
1 x height adjusting clamp
1 x air motor
1 x power cord
1 x sensor, rod and block
