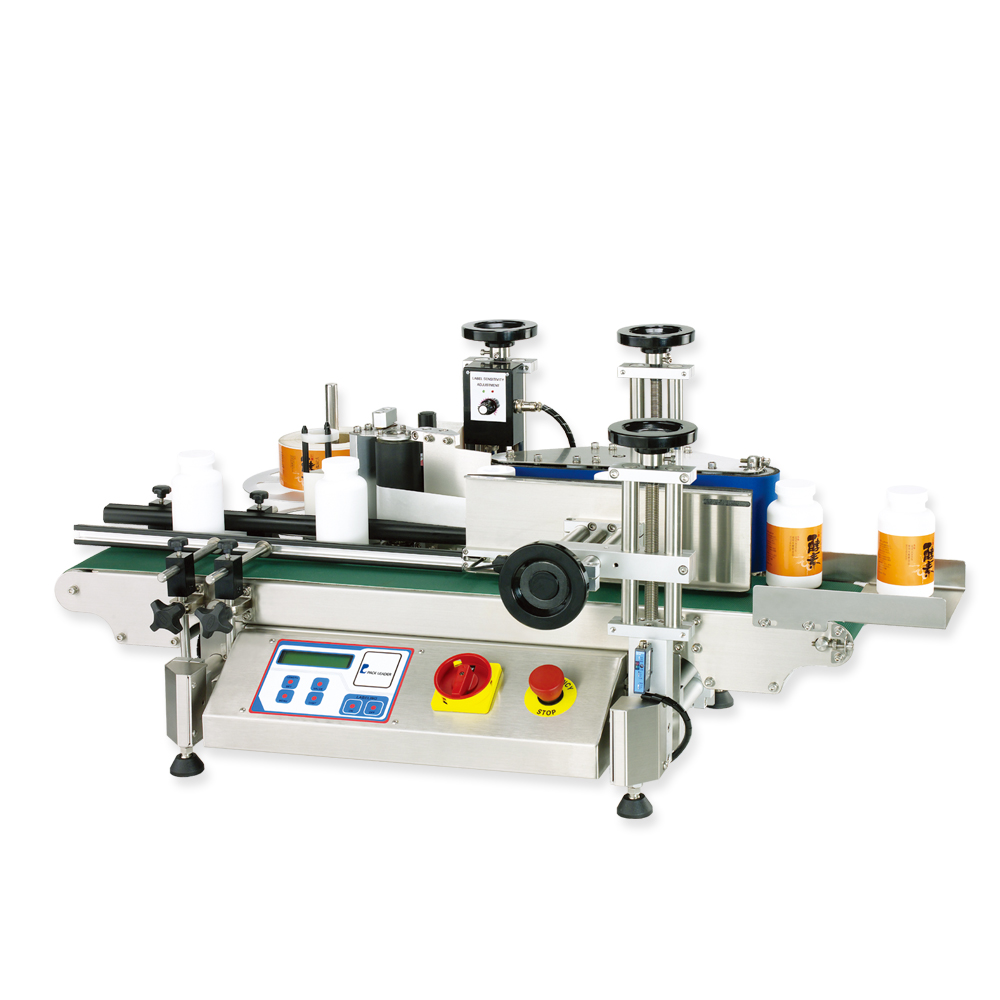

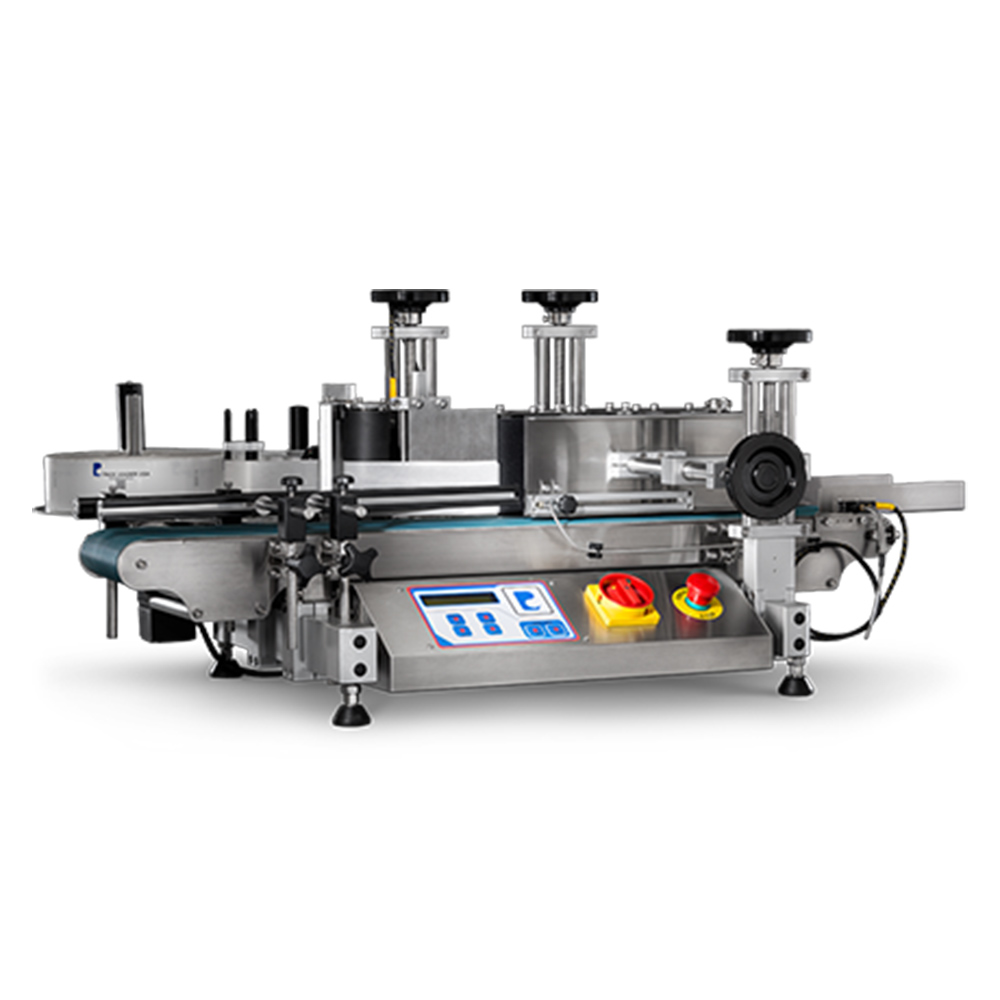

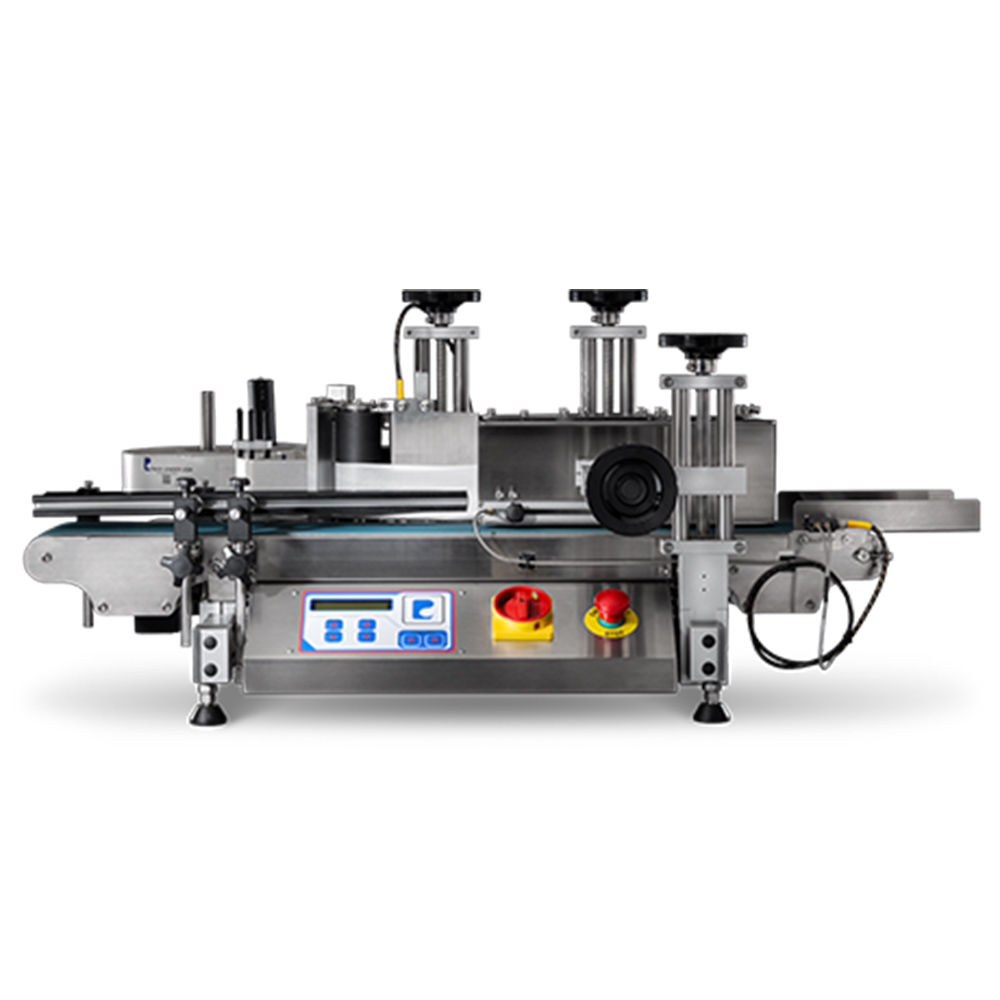

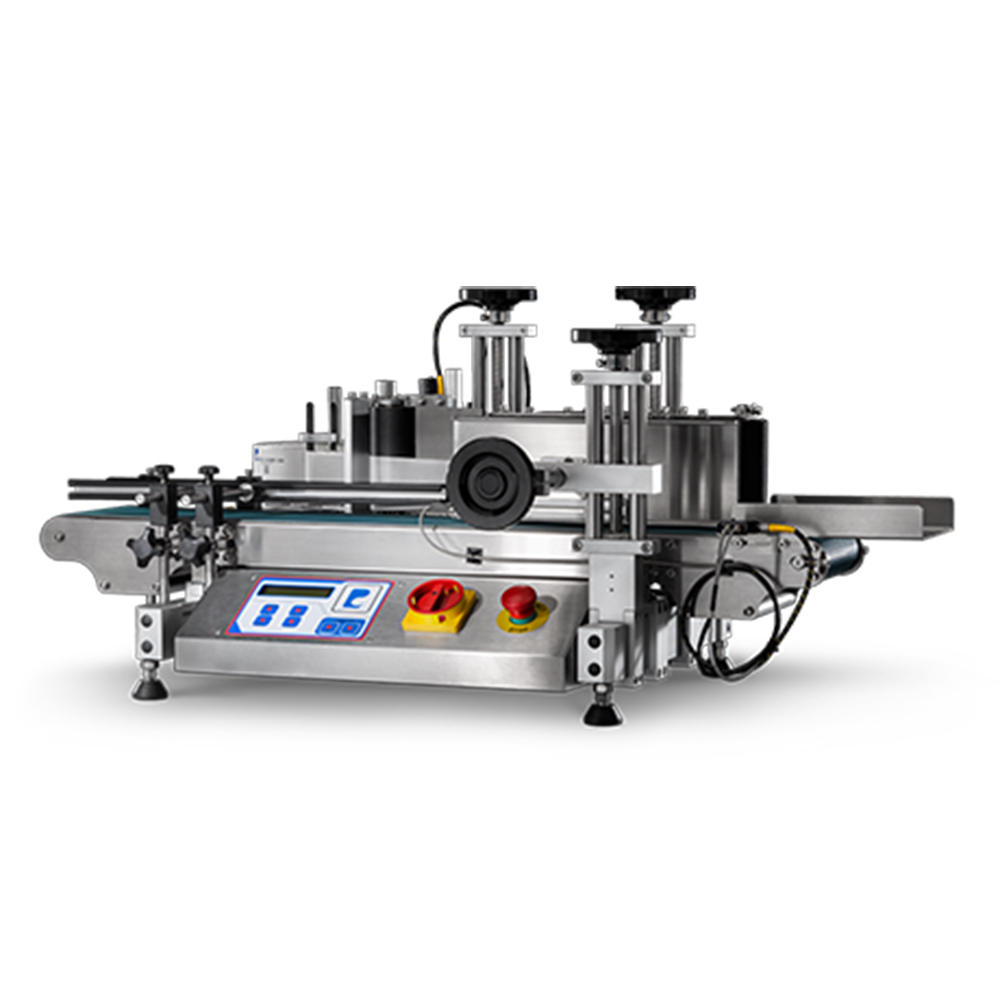

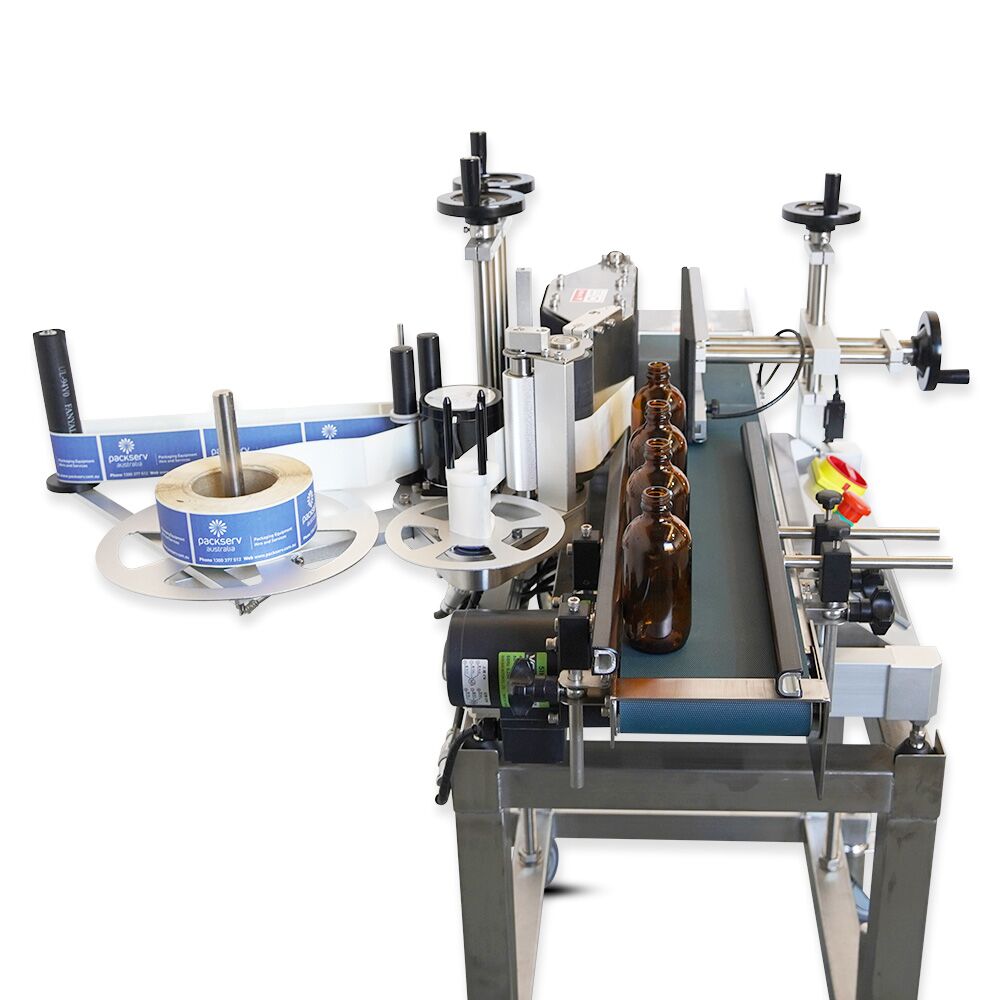

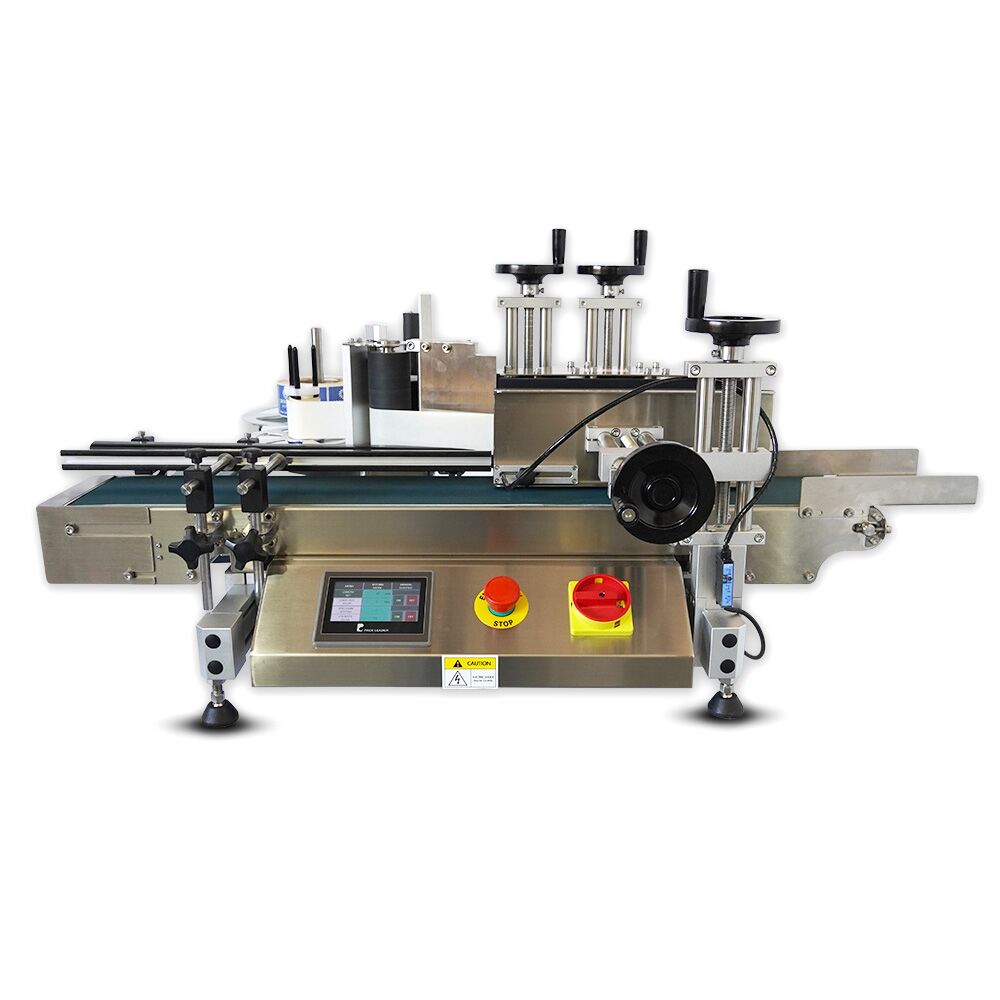

Pack Leader’s ELF-50 benchtop wrap-around labeller is the ideal machine for any wrap-around application of labels up to 120mm in height. The compact size of the ELF-50 means that it can be positioned with ease, particularly when mounted on an optional wheeled trolly.

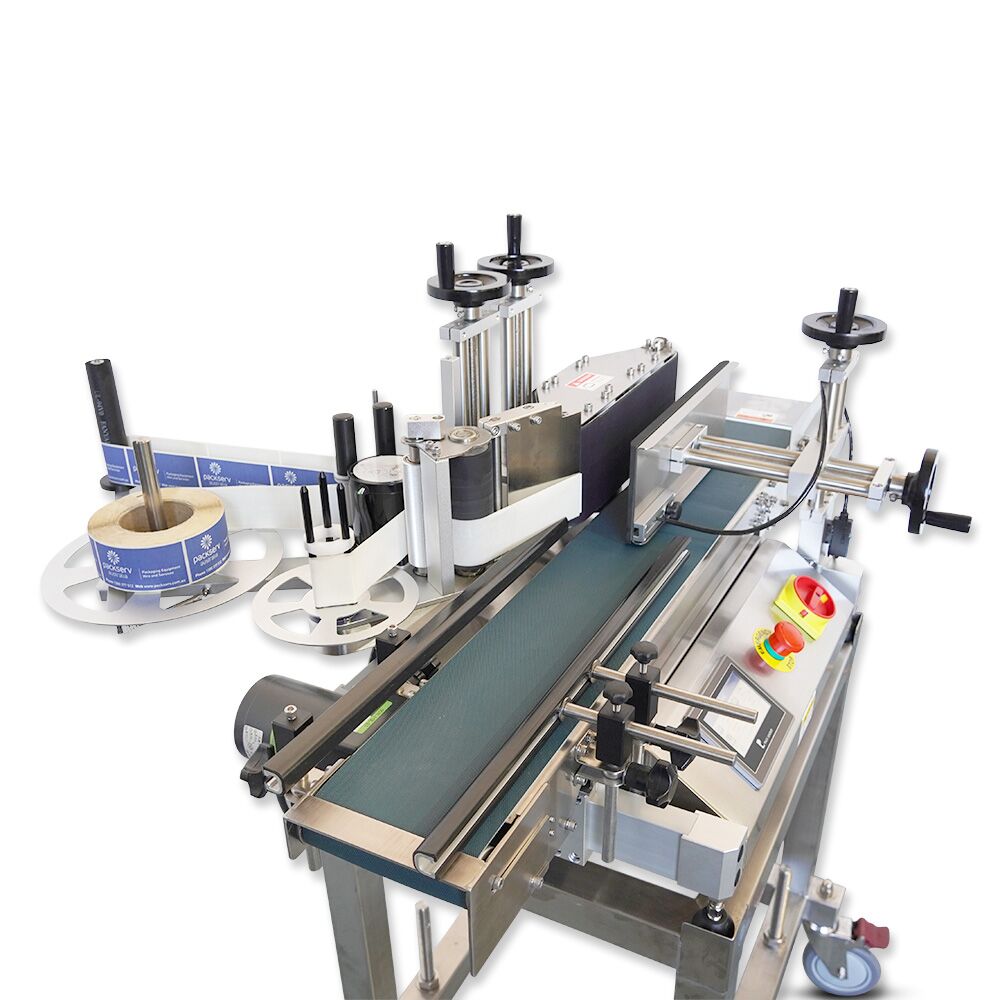

Featuring its own in-built conveyor belt, the ELF-50 offers simple and efficient adjustment. Change-over between different labels and containers is easily achieved and requires very little operator training. The ELF-50 can be utilised as a benchtop machine or, when switched to automatic mode, can be incorporated into a full production line.

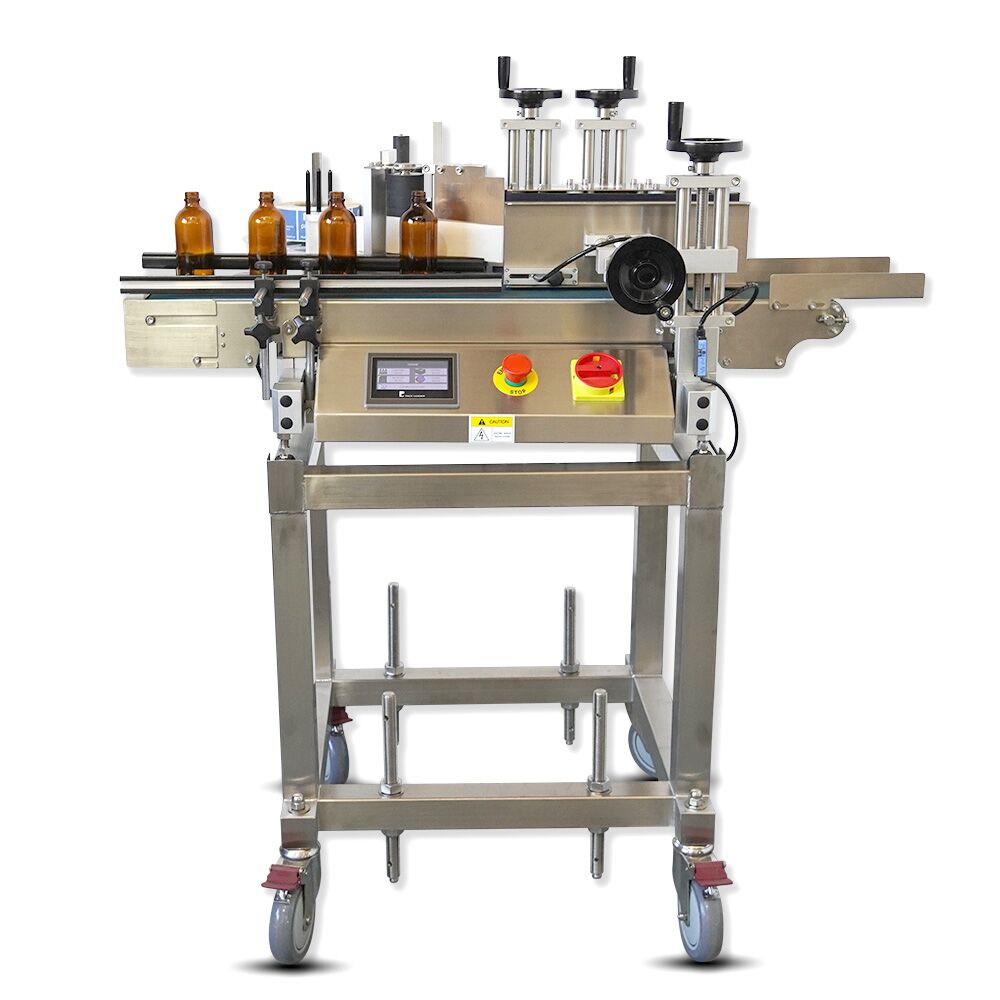

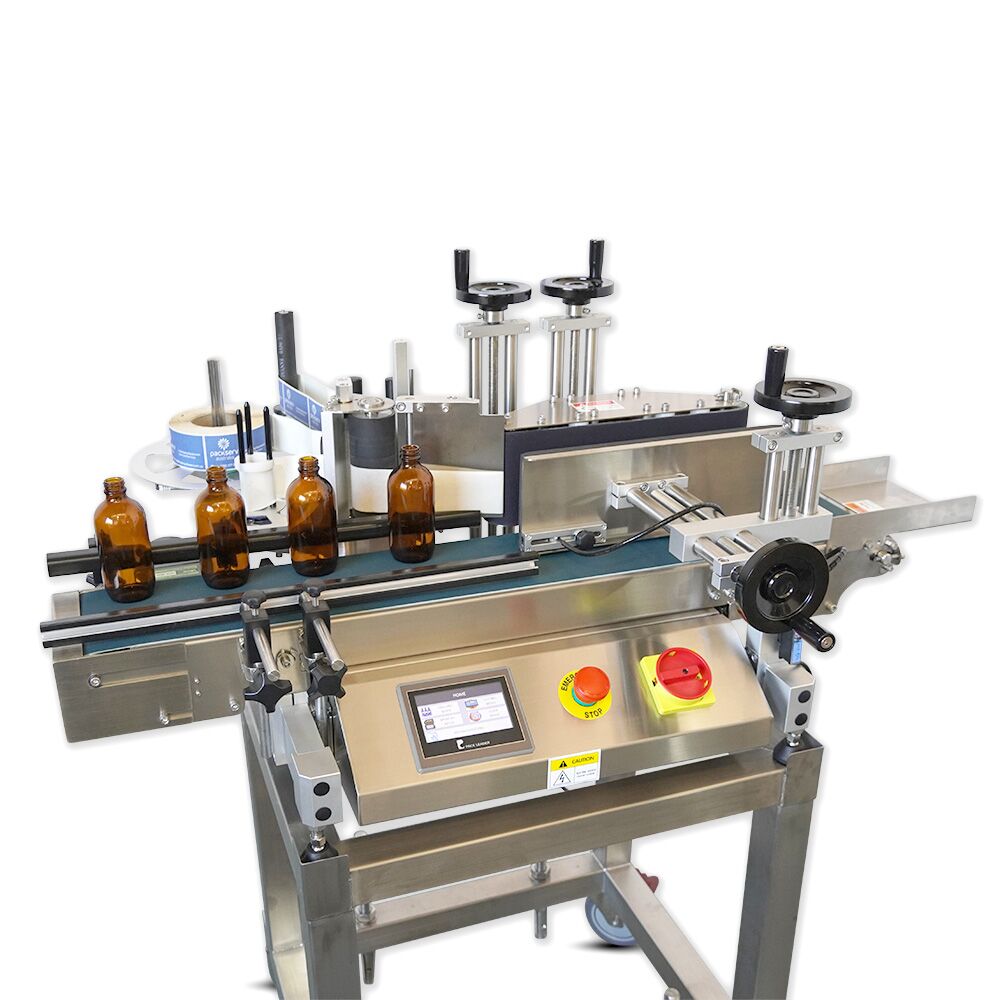

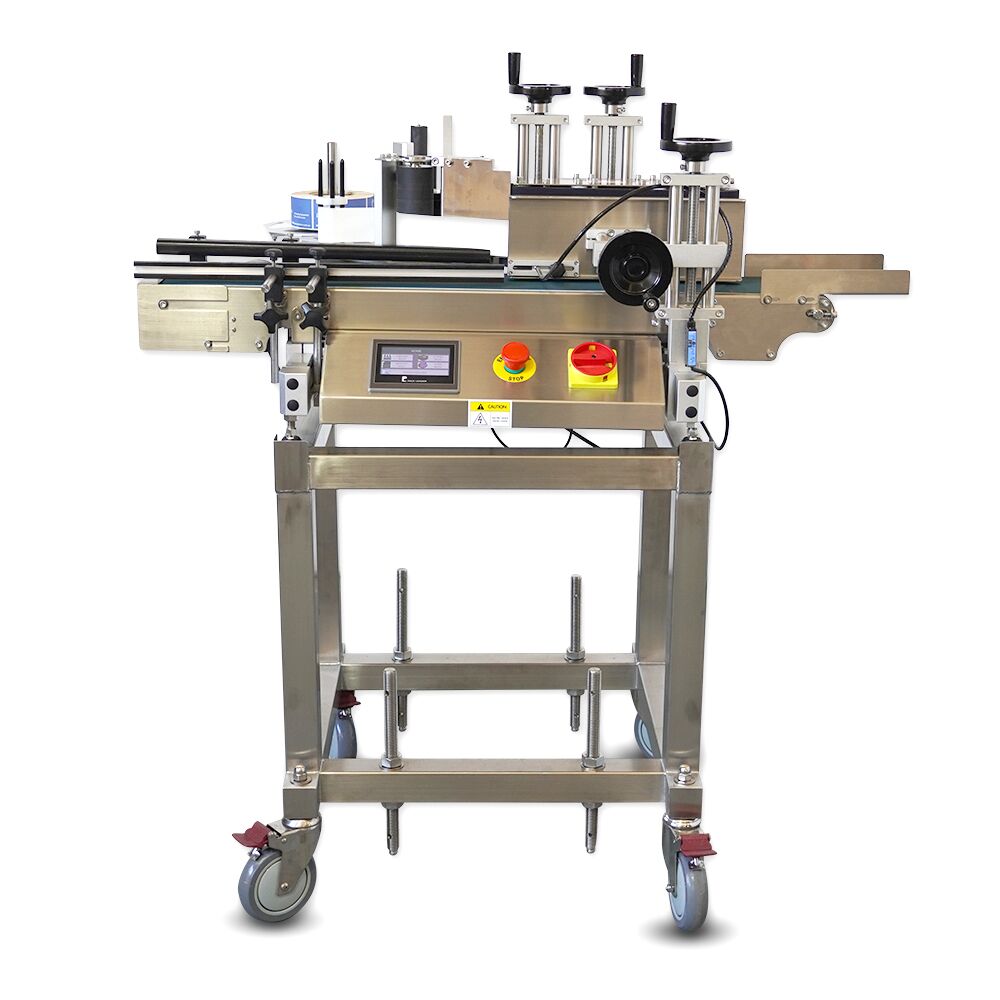

The trolley features in-built threaded levelling jacks to allow the conveyor belt to be set to any height to match any existing conveyor line.

The ELF-50 machine features food and pharmaceutical grade quality components with all parts made from stainless steel or anodised aluminium.

Weight:	60 kg
Width:	820 mm
Length:	1100 mm
Height:	550 mm
Power supply:	Single phase 240v 10amp
Units per minute:	20-60 (16 metres/min)
Max roll diameter:	300mm
Core diameter:	76mm
Max label height:	120mm

Make	Pack-Leader
Automatic Function	Yes
Mounting	Benchtop, Benchtop (Trolley available)
Label Type	Wrap Around Label

Features one-touch label teaching sensor for quick set up
Features a program-storage memory for easy product change-over
Features a ‘precount’ setting so only the correct number of containers are labelled
Wrap-around labelling
Portable, Benchtop Style Machine
Changeable Sensors for clear, opaque and foil based labels
Suitable for food and pharmaceutical use
Quick change over of container or parts featuring a tool-free design
Stainless steel and aluminum construction
Adjustable label position while running

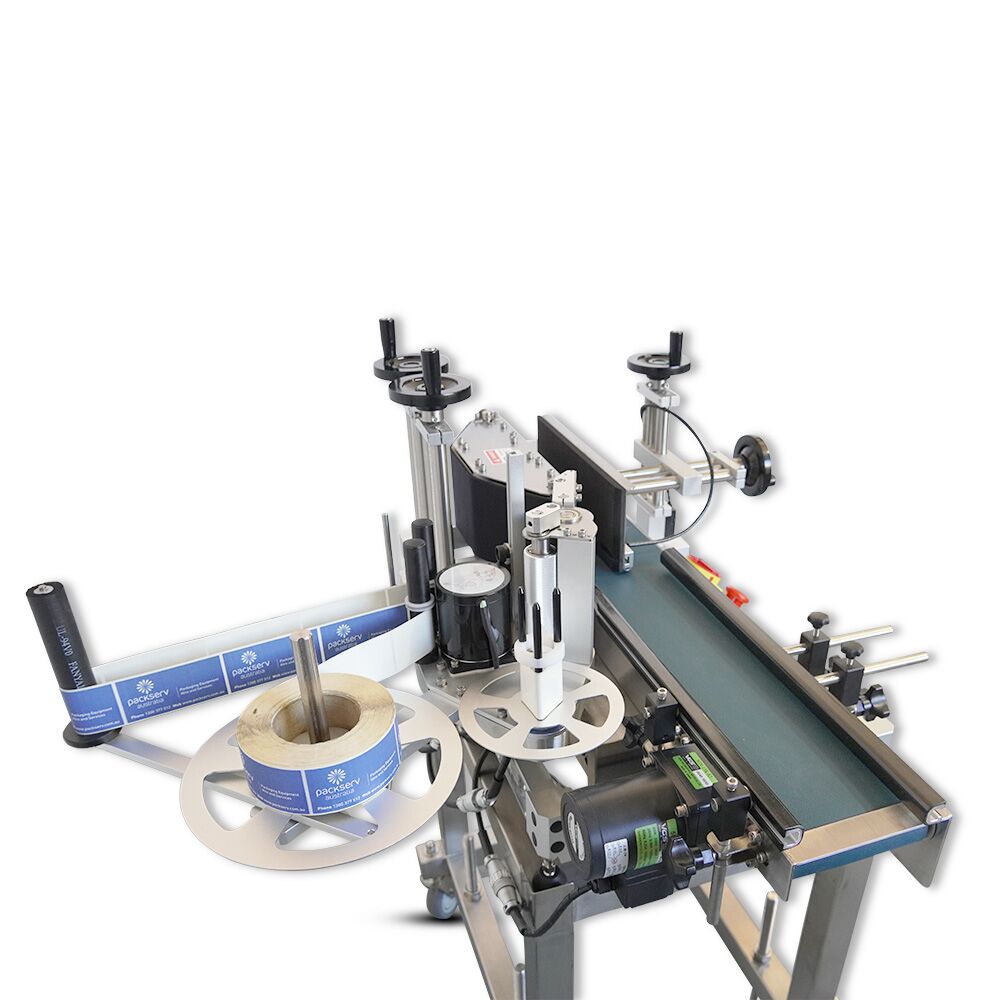

Labels to be on a roll, self-adhesive, die-cut & weeded with left-hand edge leading
Suitable for all cylindrical or near-cylindrical containers shapes
Note – only able to apply single labels i.e. no front and back labels

2 x label application brush
1 x label sensor
1 x product sensor
1 x in-built conveyor system
