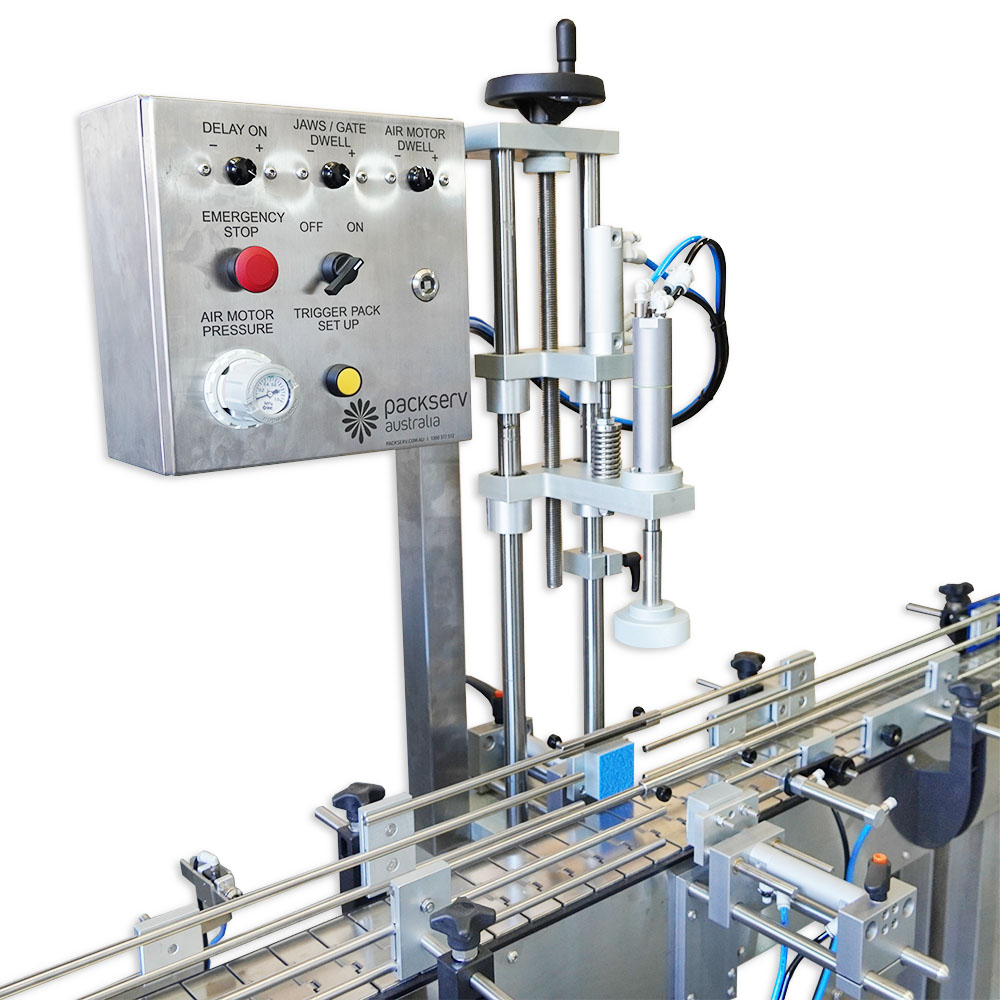

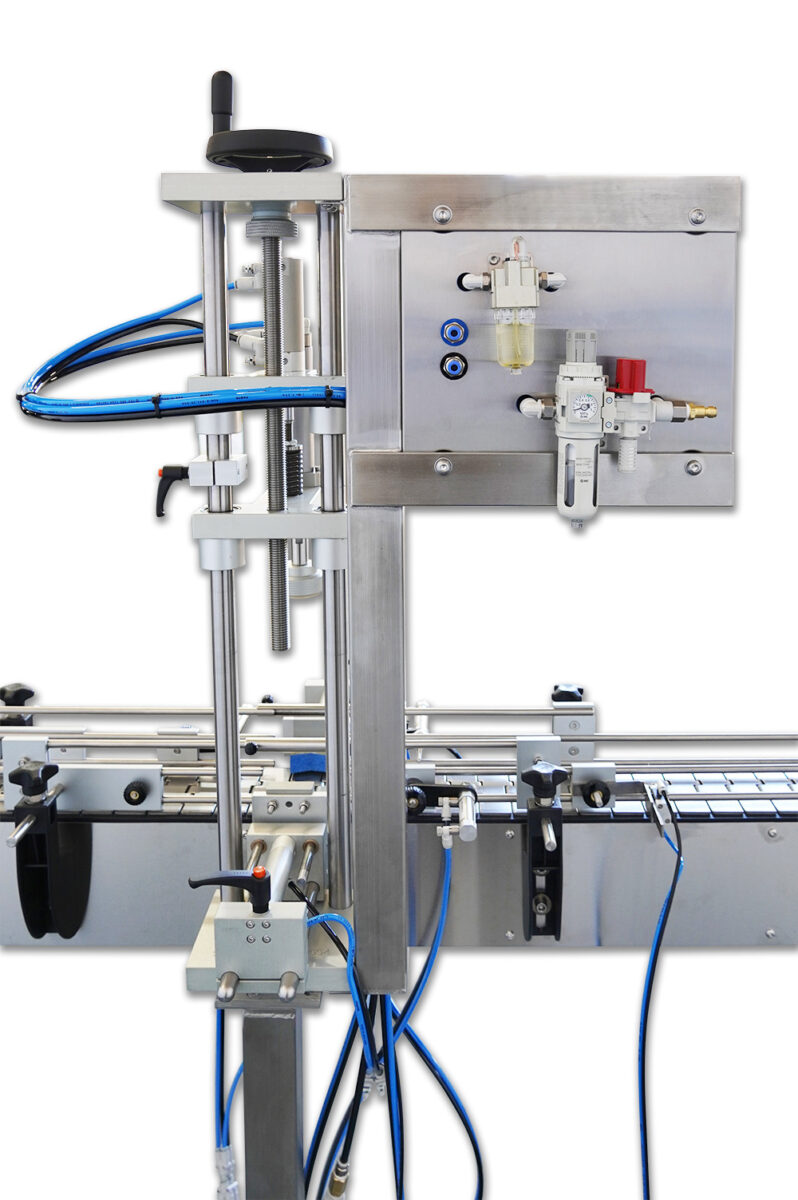

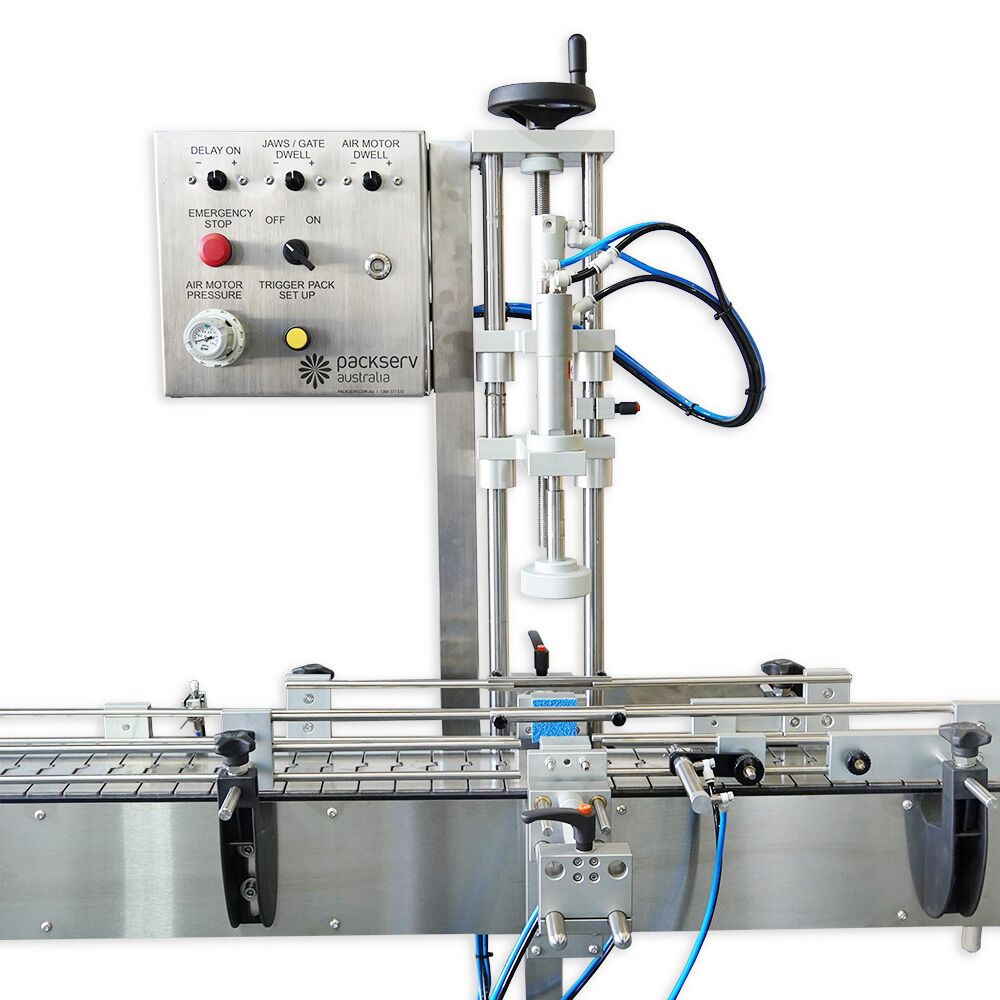

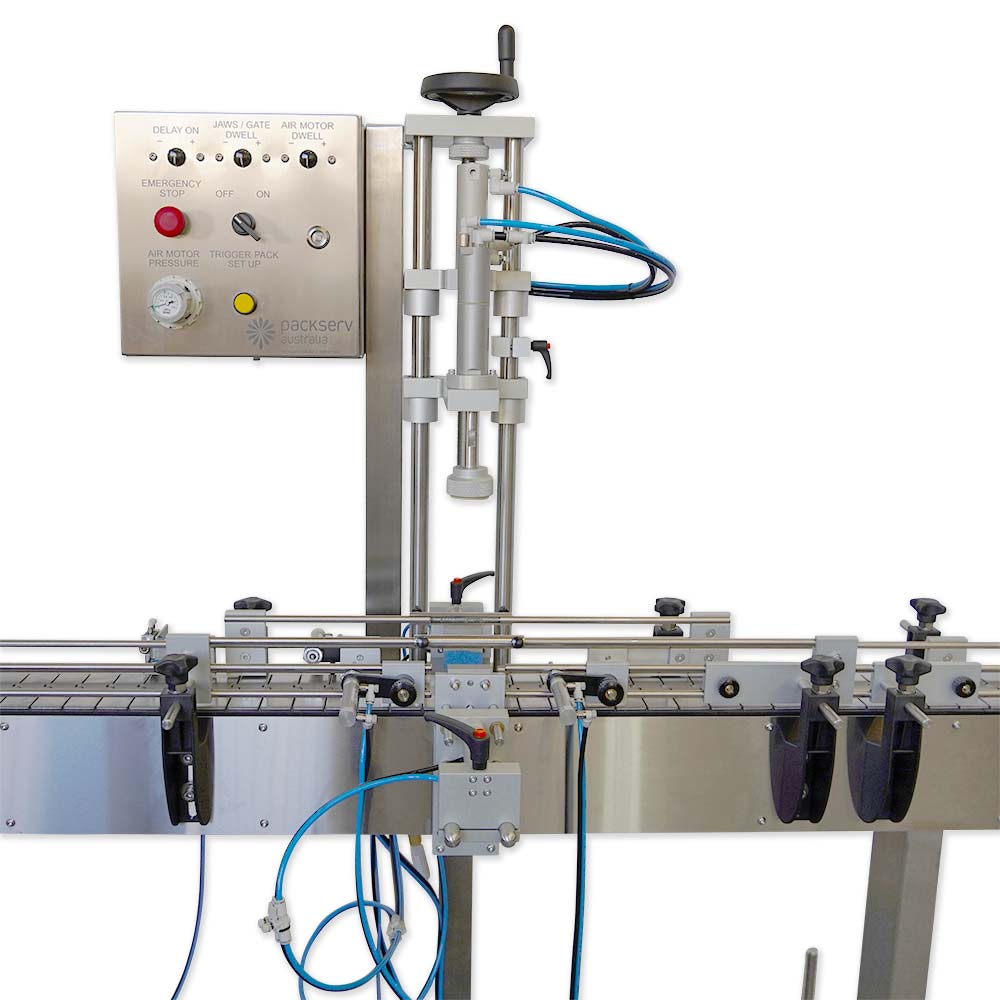

Our PCM-1A-P Auto Capper is an automatic cap tightener designed to mount onto continuously running slat-type conveyors. The PCM-1A-P is capable of tightening a vast range of closures at rates of up to 60UPM (units per minute). Capable of tightening any kind of screw-on or push-on closure; when utilised with out PT-7 trigger-pack unit can additional tighten trigger-pack, pump and mist-spray closures.

During operation, containers will arrive at the Auto Capper by an inline conveyor, with caps pre-positioned upstream either manually or by automatic cap placement equipment. A pneumatic whisker sensor detects the presence of a container and initiates machine operation through an pneumatic timer control unit which in turns the tightening head, jaws and gates system.

The control unit of provides a comprehensive yet simple control of all the different elements. Ensuring any container and closure type can be adequately and efficiently tightened whilst still offering fast set-ups and container changeover. The pneumatic controls ensure optimum ease of use for the operator.

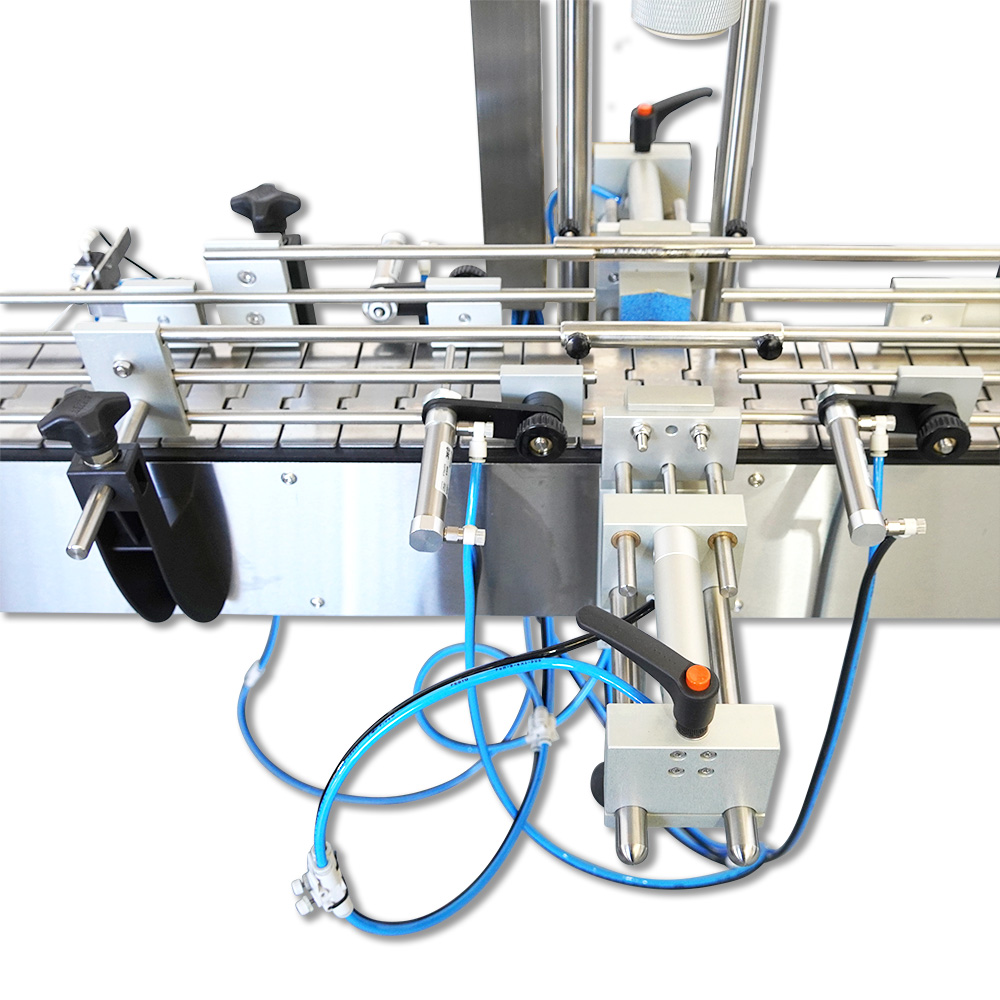

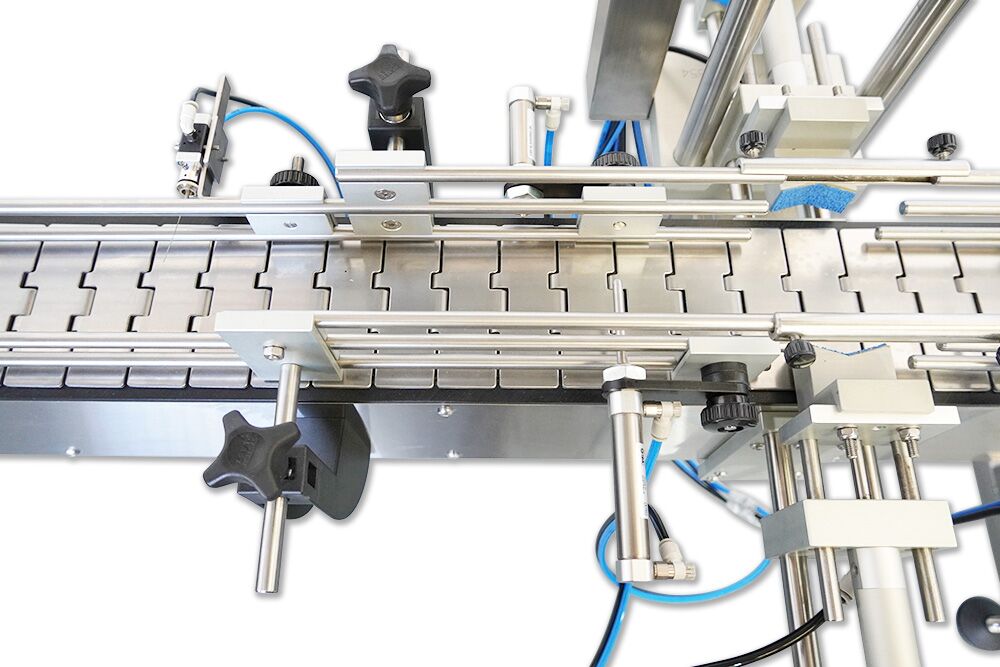

The PCM-1A-P Auto Capper is supplied with a conveyor or conveyor mounting frame, container gating and clamping, and jaws (non-marking). Contoured to the individual container profile or use one of our existing templates to ensure universal container application. Jaws for glass containers come with plastic slippers to prevent the container scoring the conveyor during the bottling process.

This unit is entirely pneumatic (air-driven) so it suitable for use with flammable products.

*Rent: Brand and model may vary. The machine will be identical in function.

See Also: Packserv Capping Machines ; Packserv Conveyors | Packserv Australia

Weight	40 kilograms (88 lbs)
Length	400mm (16 in)
Width	400mm (16 in)
Height	900mm Standalone (3 ft) \| 1800mm (6 ft) when mounted to 900mm (3 ft) high conveyor
Power Supply	Air compression
Construction Type	316 stainless steel and aluminium construction
Container Type	Suitable for all container types capable of standing on a moving conveyor
Mounting	Mounts to a conveyor
Industries	Food, cosmetic, pharmaceutical
Motor	Deprag Air Motor Drive
Air Pressure	600kpa (80psi) pressure requirement
Units Per Minute	Cap 20-60 units per minute
Noise	Medium
Capping Chucks	10-130mm standard chucks
Custom Capping Chucks	Supplied on request
Closure Type	Screw, pump, mist, trigger, push and snap closures
Torque	Torque adjustable
Conveyor	Stand-alone bolt on machine, or supplied with various conveyor options
Flameproof	Yes
Setting Adjustments	No tools required
Timer Control	Pneumatic timer control
Changeover Speed	Fast changeover of bottles/containers
Caps Size	10mm to 130mm caps

Make	Packserv
Automatic Function	Yes
Mounting	Conveyor Mounted

Utilises pneumatic timers
Features container height adjustment hand-wheel and locking ring
Quick container and cap size changeover with limited tools
High quality Deprag air motor drive
Precise torque setting via pressure regulator and gauge
Sturdy low maintenance construction
Dual direction air motor
Special tightening chucks and clamping jaws
Various chuck liner materials
Trigger pack attachment PT-7 available
Chuck sizes from 10mm-130mm
Flame-proof design allows for use with flammable products

1 x base machine
1 x chuck (10-130mm sizes available)
1 x liner
2 x jaw assemblies (including flat or v-jaws)
1 x gate, bracket and clamp
1 x height adjusting clamp
1 x air motor
1 x power cord
1 x sensor, rod and block
