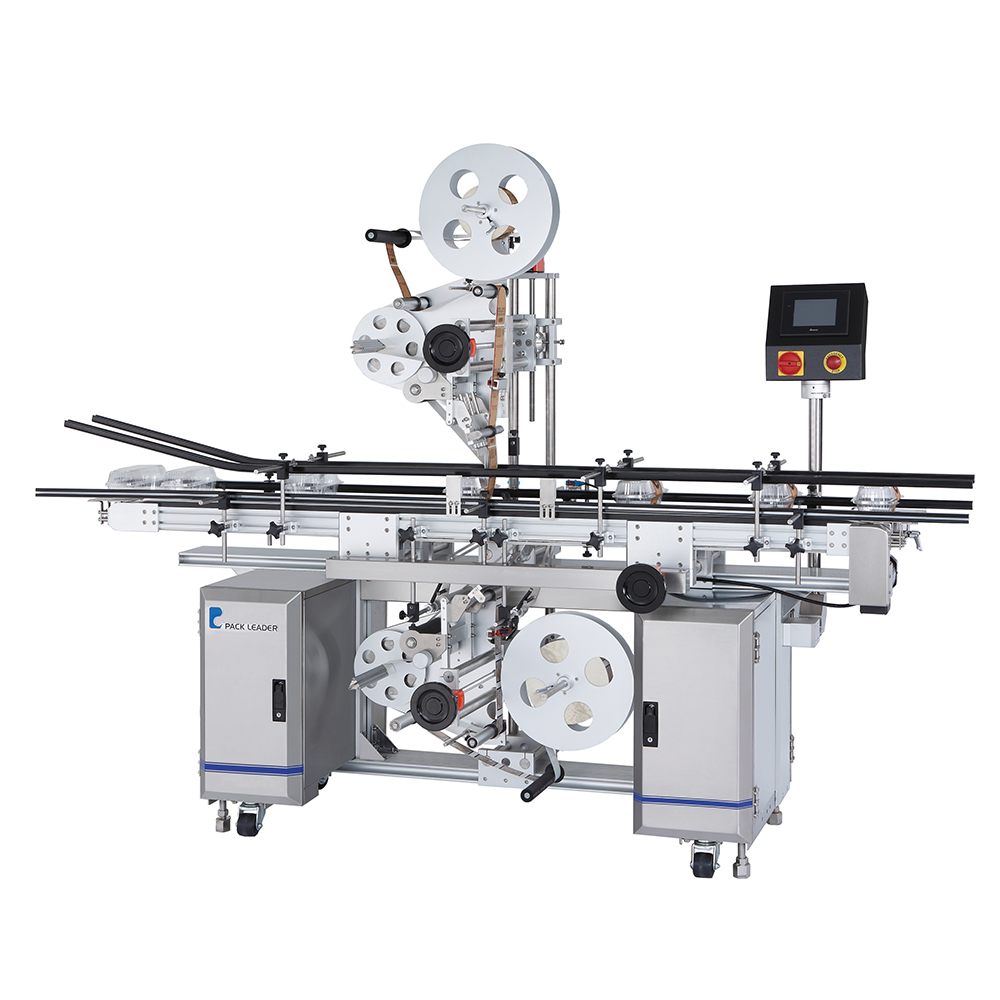

Pack Leader’s PL-225D-CS Pro Top & Bottom Clamshell Labeller is a part of the extraordinary fleet of high-quality, versatile labelling machines on offer by Packserv. This machine offers fully automated dual labelling heads for wipe-on application of clamshell, C shape and L shape labels. This machine features a dual-belt conveyor design to allow centre labelling of a broad range of containers.

Designed as a continuous, reliable high-speed labelling machine, it’s manoeuvrable and simple to change between production lines or to remove it for cleaning. Manufactured in strict compliance with GMP standards the PL-225 is made from 304 grade stainless steel and high quality aluminium which ensures longevity even in the harshest of environments.

The PL-225D-CS Pro incorporates a high-quality LCD control panel featuring inbuilt trouble-shooting and training for operators to ensure minimal downtime on your production schedule. Additionally, the conveyor and labelling heads are all automatically synchronised via the control panel to ensure perfect labelling time and time again, with minimal setup when changing between products.

Weight	200kgs (approx.)
Power Supply	240V 10Amp
Machine Length	Machine Depth
800mm	Machine Height
1360mm	Max Label Height
Max Label Height	170mm
Max Label Roll Size	300mm
Inner Core Size	76mm
Conveyor Width	160mm
Conveyor Height	740mm-800mm
Max Container Width	150mm
Label Dispensing Speed	Up to 40m/min

Make	Pack-Leader
Automatic Function	Yes
Mounting	Frame featuring castors
Label Type	Top and Bottom Label

One-button teach label sensor makes for quick setup and product changeover
Fully adjustable product sensor ensures all materials/shapes are recognised
Missing-label feature in-built to avoid unlabelled products
Stepper motor ensures fast and accurate label application with only an inaccuracy of ?0.5%
170mm label applicator can be ugpraded to cater to a wider range of labels
Labeller and conveyor are synced to ensure perfect label application each and every time
Touch screen control panel makes for tool-free on the fly adjustments by even inexperienced operators
Label/Product count feature allows true progression tracking
Frame on wheels allows for easy maneuvrability between different lines or during cleaning
304 grade stainless steel and anodised aluminium frame ensures a durable product with a long lifespan bult to GMP standards
Height adjustable conveyor belt to cater to all container types and sizes
Memory supports 30 different sets of settings and boots up with most recent settings used
Control panel features built-in Mechanical Operation Tutorial and troubleshooting
Machine is designed for upgrades and these are virtually just bolt on additions
Options include: Hot Foil Coder, different applicator heights, conveyor widths/styles and more

Reviews

There are no reviews yet.

Be the first to review “Pro Top and Bottom Clamshell Labeller”

You must be logged in to post a review.

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

Machine Category* (Please press CTRL to select more then one)

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

Machine Category* (Please press CTRL to select more than one)

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

Machine Category* (Please press CTRL to select more than one)

How did you hear about us?*

Your Message or Enquiry*

Purchase Option -

Make -

Automatic Function -

Product Label Type -

Pro Top and Bottom Clamshell Labeller

Reviews

Normally Used With

Hot Foil Coder

Ink Jet Printer Premium Model

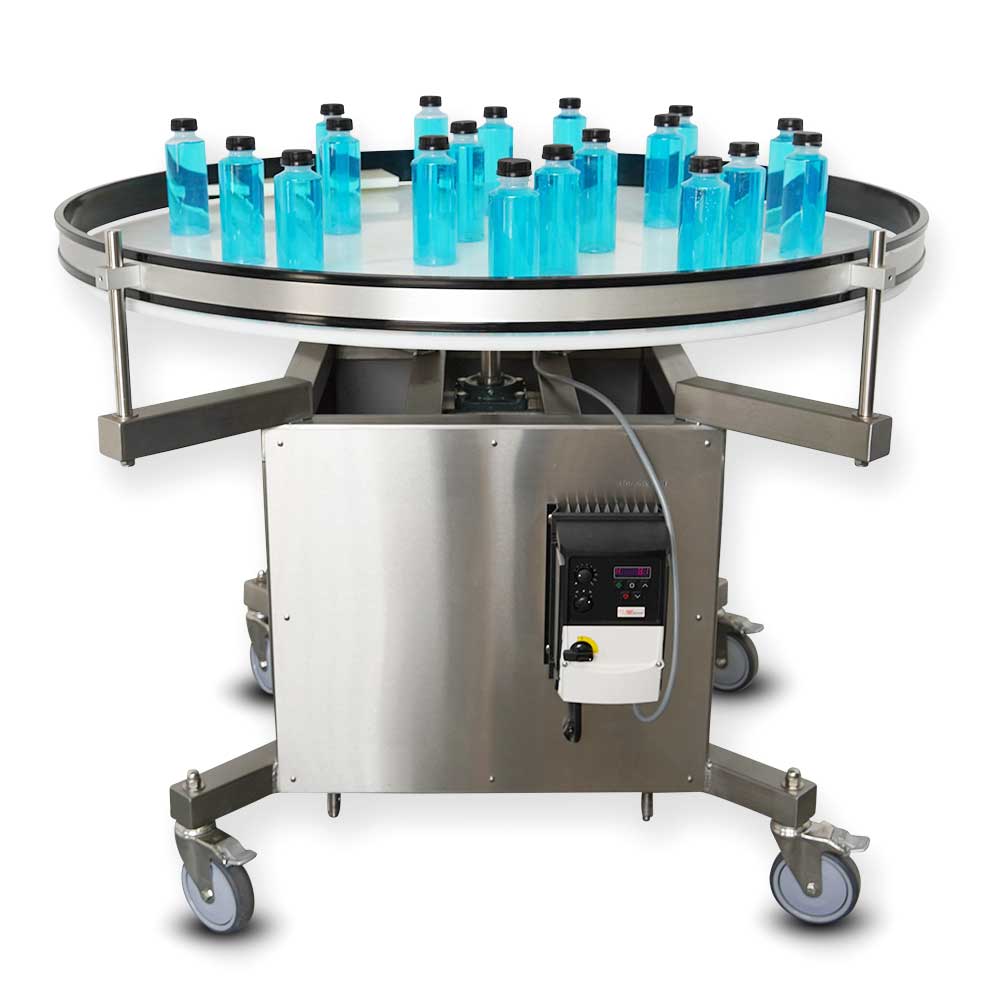

Accumulation Table
