Rental units only, not available to purchase.

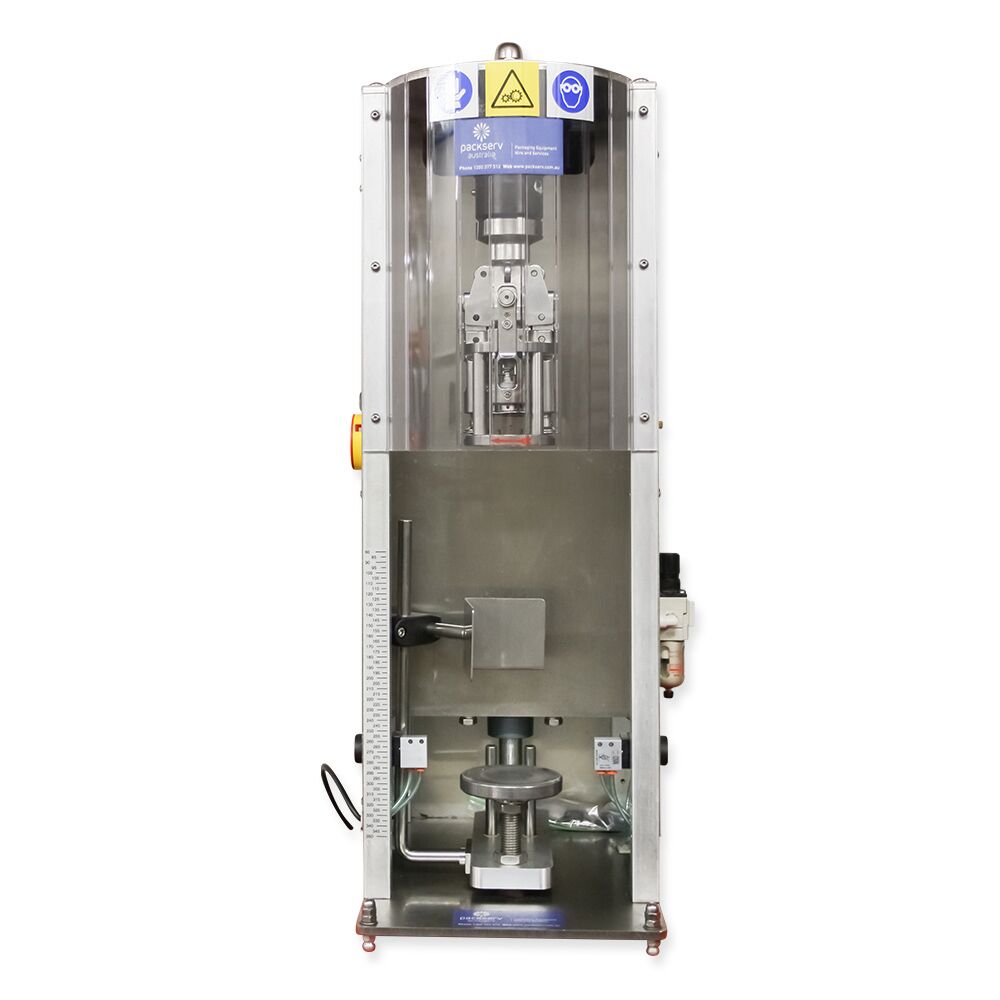

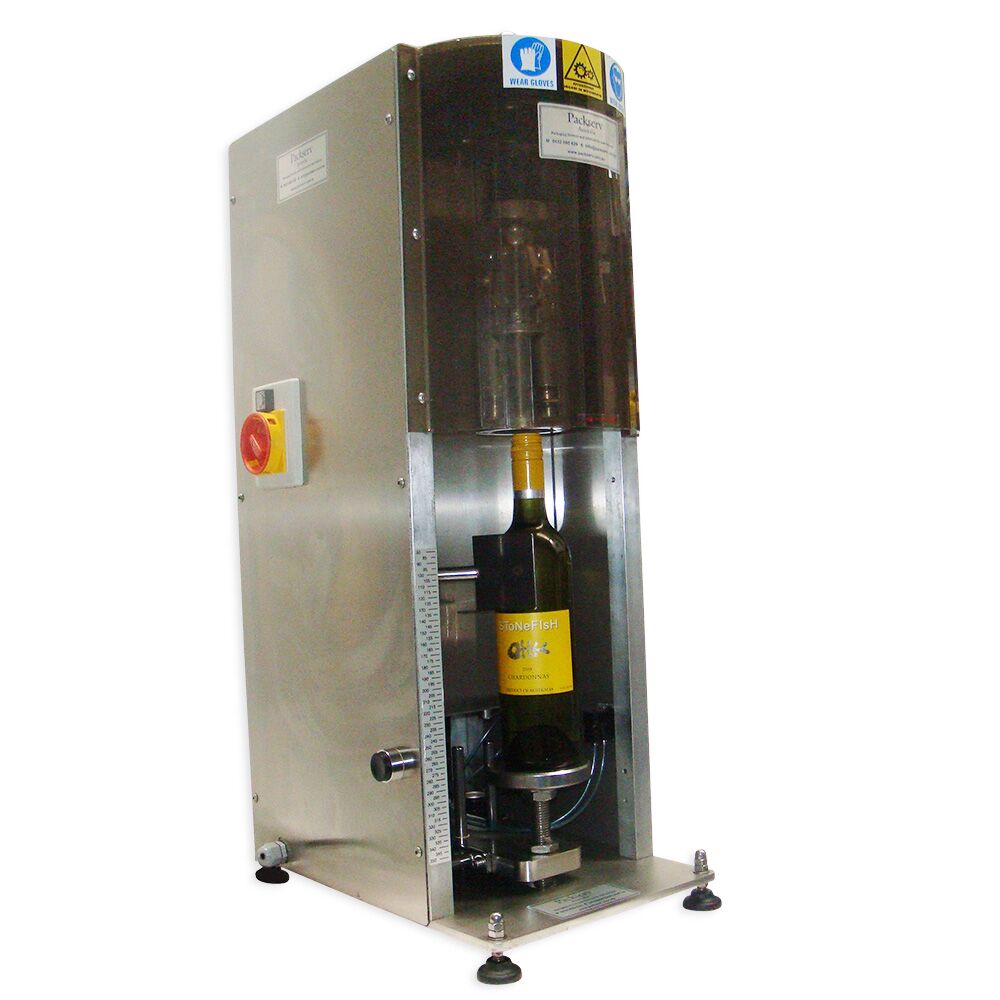

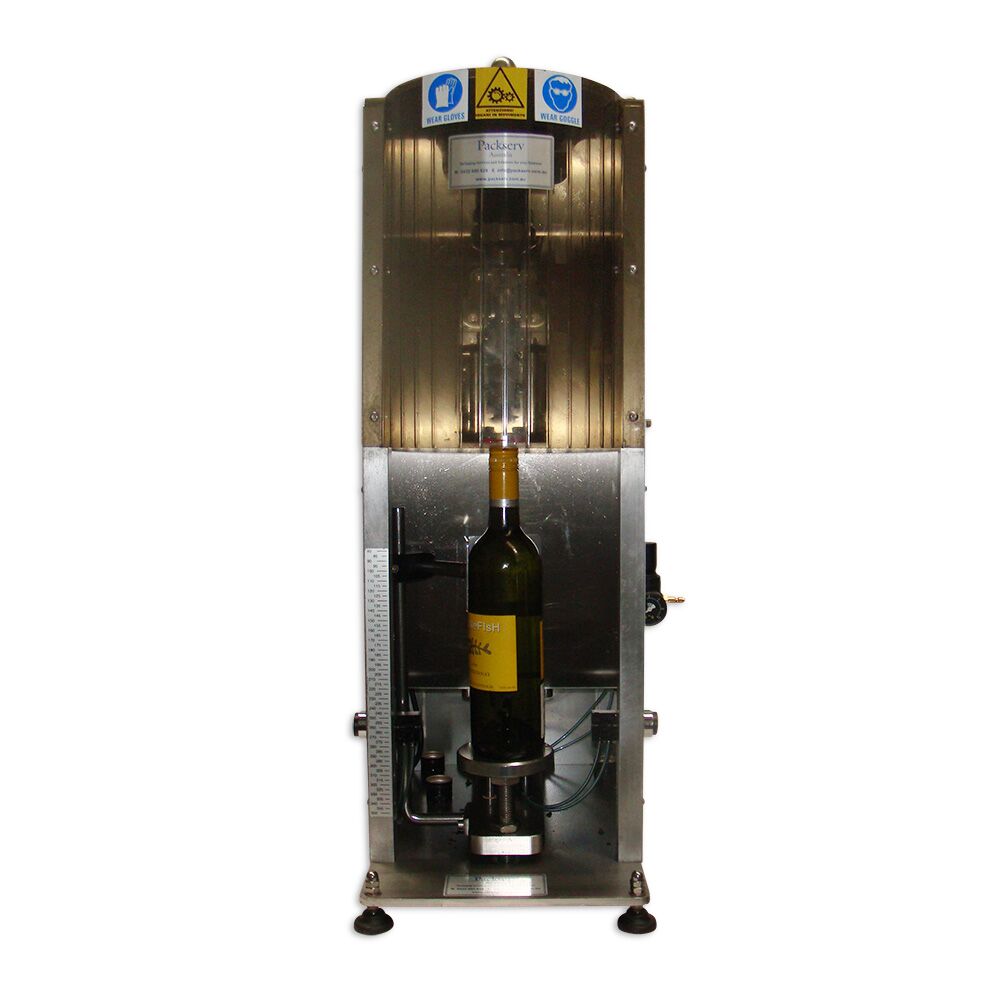

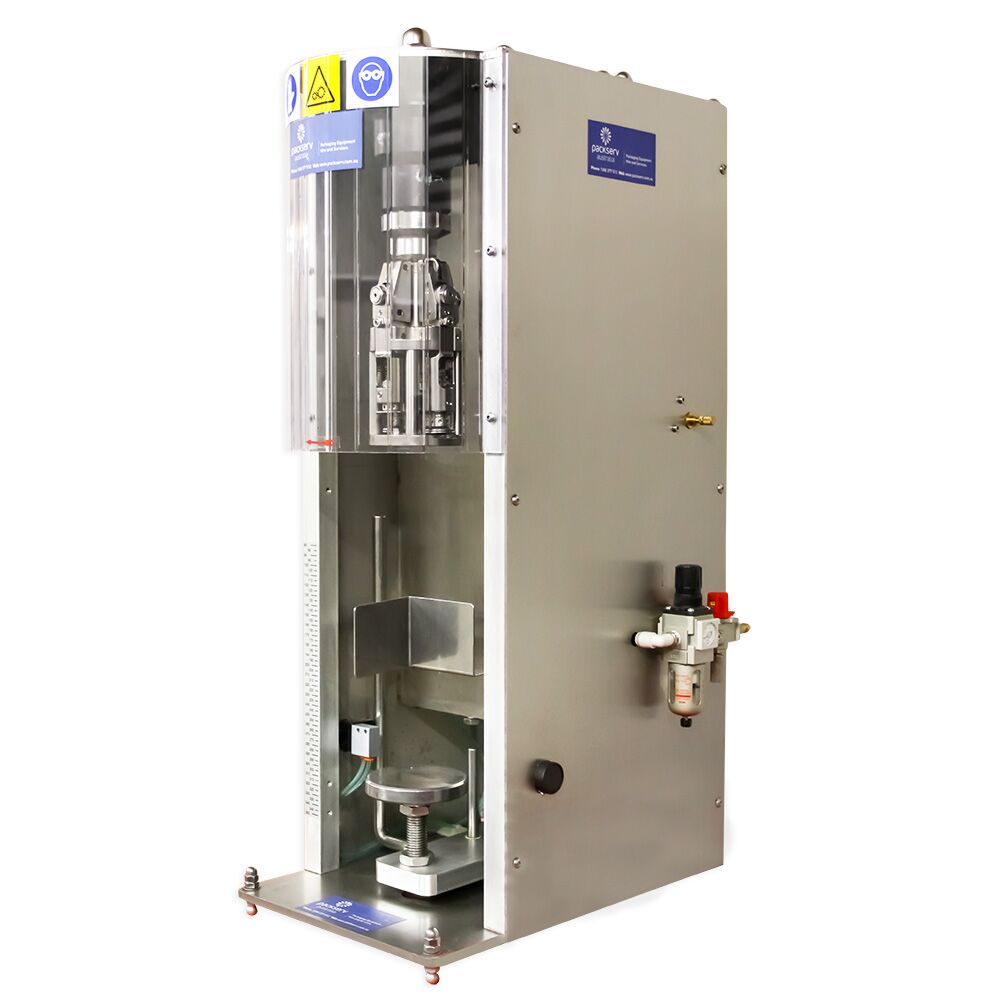

The TSP2002 cap tightening machine is designed for use with all roll on pilfer proof or roll on tamper evident aluminium/metal caps.

This machine is a electro pneumatic (standard household single phase and air compression at 6 bar) machine which features different, easily interchangeable closing heads predominantly 3 wheel for olive oil and larger diameter caps and 4 wheel for wine and smaller diameter caps.

The closure range of these adjustable heads is 8-32mm on the 3 wheel head and 24-50mm on the 4 wheel.

The revolving magnetic head is designed for the closure of twist-off caps, the machine features an impassable operator safety mechanism requiring both of the operators hands to be located on the actuator buttons seen at the front of the machine ensuring fingers and alike are out of harms way at all times.

This machine is easily portable and is suitable for bench or table top operation.

*Rent: Brand and model may vary. The machine will be identical in function.

Width	350mm
Length	450mm
Height	Weight
40Kg	Motor Output
0.25 HP	Acceptable Cap Diameters
Acceptable Cap Diameters	8mm to 50mm
Power Supply	Electric 240V, 10 Amp & 6 Bar Air Supply
Noise	Quiet
Output	10-20 units per minute

Make	Technomax
Automatic Function	Semi-Automatic
Mounting	Benchtop

Two hand safety operation to eliminate operator injury
Clear acrylic safety guard
Quick and individual adjustments of each cutting wheel
Bench top
Simple to use
Allen keys only tool required
Wine & olive oil type closures
Easily portable
Suitable for all ROPP and ROTE style caps
Not for use with redraw style closures
