Single Head Filler

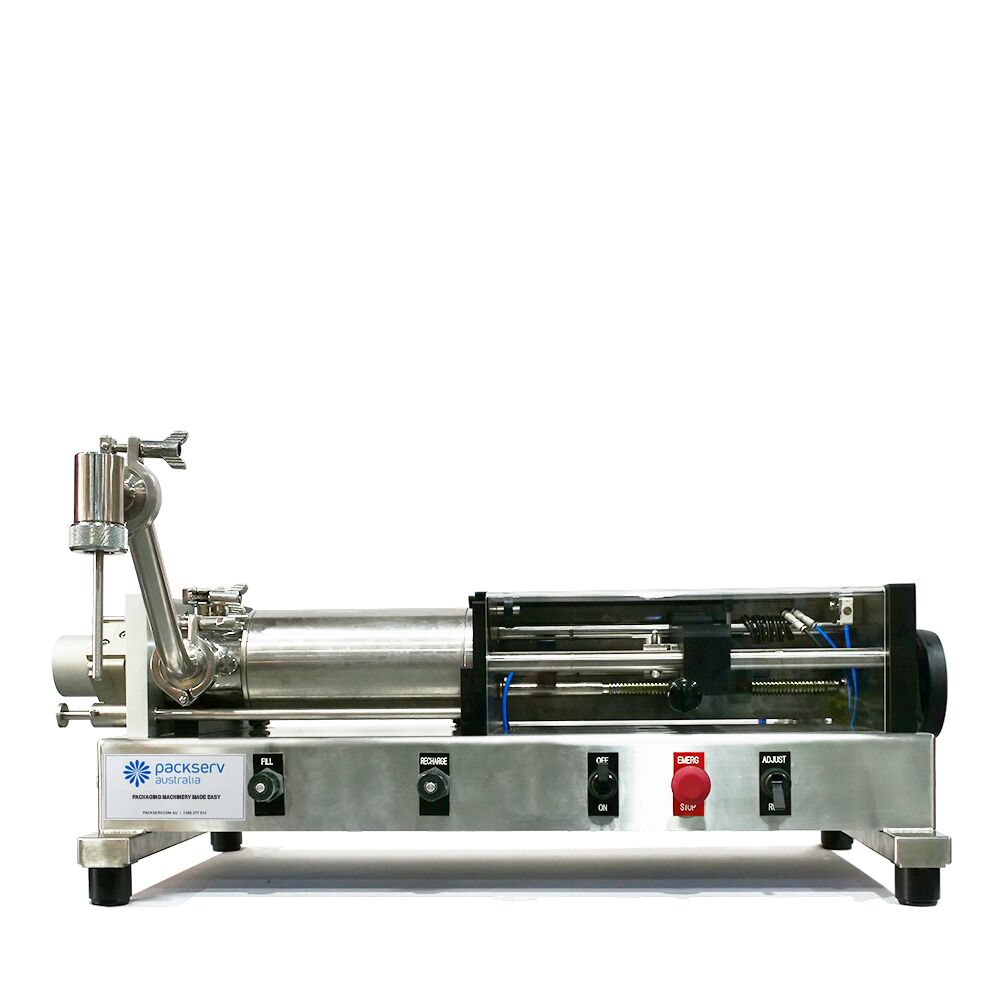

The Packserv PFM-3 is a single head semi-automatic liquid, cream and paste filling machine that is both user-friendly and versatile. It has been designed for use as a heavy duty, all pneumatic semi-automatic bench top filling machine which offers reliability and ease of use and tool-free cleaning and parts change-over.

Product Code PFM-3 Categories , Tag

Our PFM-3 single head filler features a robust and reliable design setting the industry standard in the market for semi-automatic benchtop fillers.

The valve system of the PFM-3 handles all types of products from thin liquids to creams and thick pastes as well as hot and cold filling; a special valve is also available for hot fill applications (i.e. >65°C). This filling machine will even package products with suspended solids; a task that previously required two different types of filling machines or expensive change parts.

*Rent: Brand and model may vary. The machine will be identical in function.

The cylinder design of the Single Head BUF Filler enables quicker dismantling and easier, more thorough cleaning of wet parts. A number of product supply methods can be used to suit the nature of the products or our customers needs – examples include hoppers and inlet assemblies.

This machine features adjustable fill and recharge speeds as well as a safety-interlock feature ensuring operator safety during operation. The volume stroke-adjustment integrated into the machine design means a variety of fill volumes can be achieved with a single product cylinder and this can be altered during production within seconds.

Weight 30 kilograms
Length 820mm
Width 330mm
Height 300mm
Power Supply Air compression
Construction Type 316 grade stainless steel wet parts
Container Type All container/product types assuming nozzle fits into opening orifice
Mounting Benchtop (Trolley with castors available as an option)
Industries All food, pharmaceutical and industrial applications
Air Pressure 600kpa (80psi) pressure requirement
Units Per Minute 10-15UPM (guide only)
Noise Medium
Flameproof Yes
Speed Fill and Recharge strokes are speed variable
Fill Range 2.5ml to 1250mls fill range, single shot
Fill Temperature Cold and hot fill (temperatures above 65?C require an alternative valve system)
Fill Type Liquids, creams, pastes
Not Suitable Products Powder and granules
Benchtop Yes
Machine Cleaning Easy to disassemble for full wash up
Volume Each cylinder is adjustable down to 10% of it’s maximum volume
Filling Accuracy +/- 0.5 to 1% variance
Cylinder Sizes 25ml, 50ml, 125ml, 250ml, 500ml, 750ml or 1250ml
Automatic Function Yes; requires operator to place containers during fill cycle
Make

Automatic Function

Mounting

  • Featurings a range of nozzle sizes ranging from 4mm-25mm in diameter.
  • Heavy duty pneumatic product cylinder drive system.
  • All pneumatic flameproof operation suitable for use with flammable products.
  • Easy volume adjustment while operating.
  • Adjustable piston fill and recharge stroke speed.
  • Simple tool-free dismantling makes for easier cleaning.
  • Quick changeover of products and parts.
  • Suitable for liquids, creams and pastes even with suspended solids.
  • Filler is suitable for food and pharmaceutical use.
  • Suitable for warm water hose down.
  • Quick connect tri-clover product inlet/outlet fittings.

Applications

Liquid dispenser, Fluid filler, Beverage filling device, Fluid packaging equipment, Liquid bottler, Fluid dosing machine, Liquid packaging system, Fluid dispensing apparatus, Beverage bottling machine, Liquid packaging machinery, Liquid filling apparatus, Fluid bottling device, Beverage packaging machine, Liquid bottling system, Fluid doser, Liquid bottling equipment, Beverage dosing machine, Liquid filling station, Fluid bottling unit, Beverage packaging system.

  • 1 x rotary valve setup (interchangeable with hot spool valve)
  • 2 x standard nozzle (different sizes available)
  • 1 x product cylinder (25ml-1250ml options available)
  • 1 x gooseneck with nozzle attachment head
  • 3 x triclover clamps including seals
