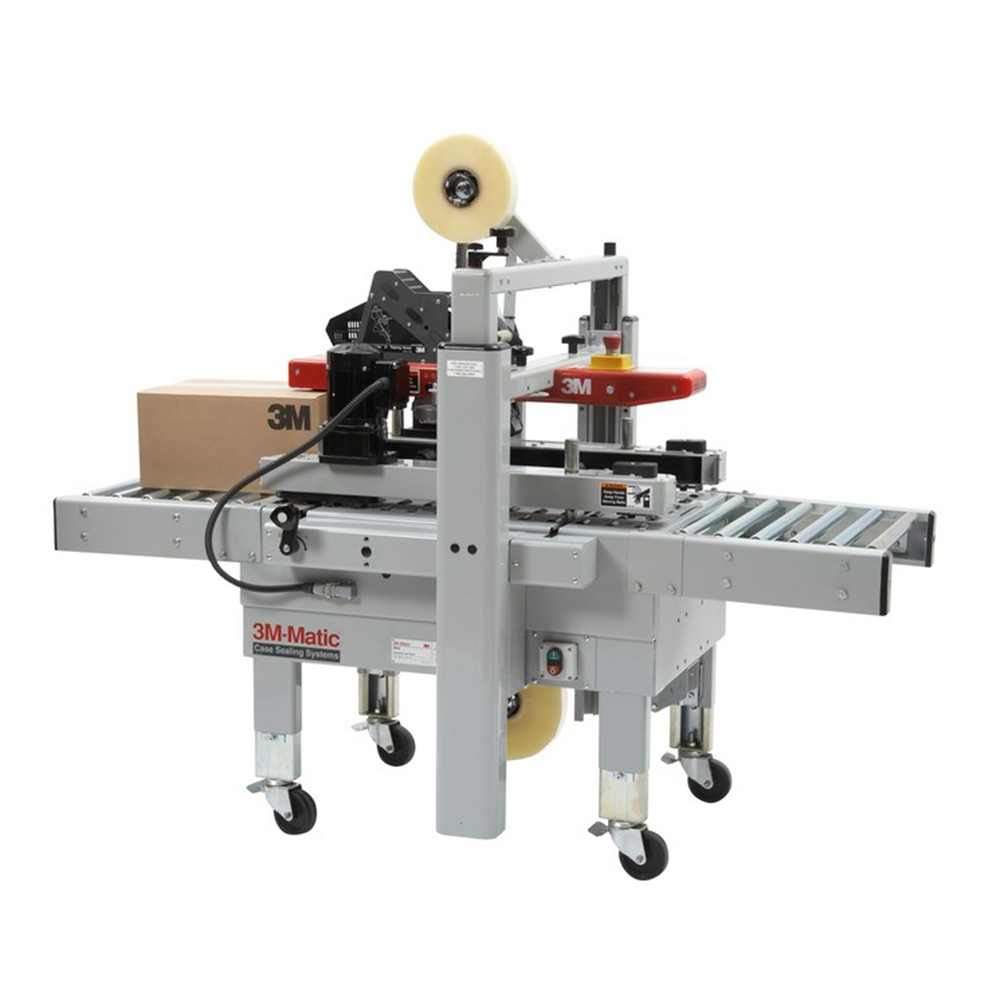

The 3M-Matic Case Sealer 800a features a side belt drive and upper and lower 3M AccuGlide 3 taping heads as well as an alternative outboard mount for the lower tape roll. This results in top and bottom taping of a huge variety of box types.

A height adjustment crank raises or lowers the taping head to adjust to box height and compression rollers position the top flaps of each box for precise sealing. Dual masts include twin lead screws for stop relocation and stronger taping head stability.

The gear motors provide power to the laced side drive belts which run at 100 ft per minute. It can be quickly shut down using the centrally located emergency stop switch.

After setup, 3M-Matic Case Sealer 800a continues to feed same size boxes at a rate of 40 boxes per minute. To change box configuration, simply readjust height and width to accommodate the new case size – changeover between boxes takes mere minutes.

Weight	270kg (approx.)
Machine Height	530mm-860mm (adjustable)
Machine Width	Machine Length
927mm	Power Supply
240V 10Amp power	Operating Speed
Operating Speed	Up to 40 boxes/minute
Drive Belt Speed	0.5m/s
Box Lengths	150mm+
Box Widths	114mm-546mm
Box Heights	121mm-622mm
Box Weights	1kg-38kg

Make	3m
Automatic Function	Yes
Mounting	Frame featuring castors
Sealer Type	Case Sealers

Seals up to 40 uniform cases per minute.
Quick, easy adjustments allow for a wide range of case heights and widths.
3M™ AccuGlide™ 3 Taping Heads apply a ‘C’ clip of 2-inch Scotch™ box sealing tape to both the top and bottom of cases.
Compression rollers squeeze flaps together to create a tight center seam.
Durable side drive offers workhorse dependability for cases weighing up to 85 pounds.
Side drive is designed for narrow profile boxes.
Dual masts and dual crossbars for taping head stability.
Centrally-located emergency stop for quick and easy access.
Features infeed and exit conveyors.
