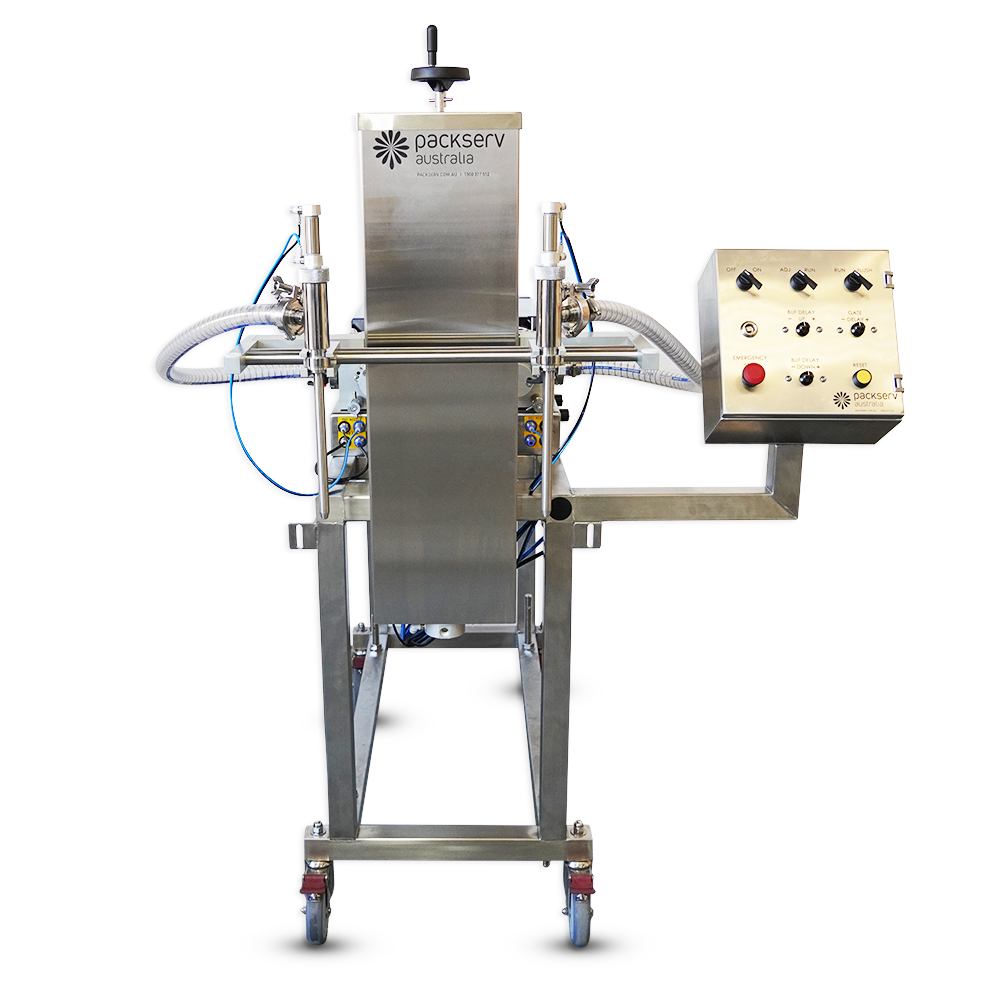

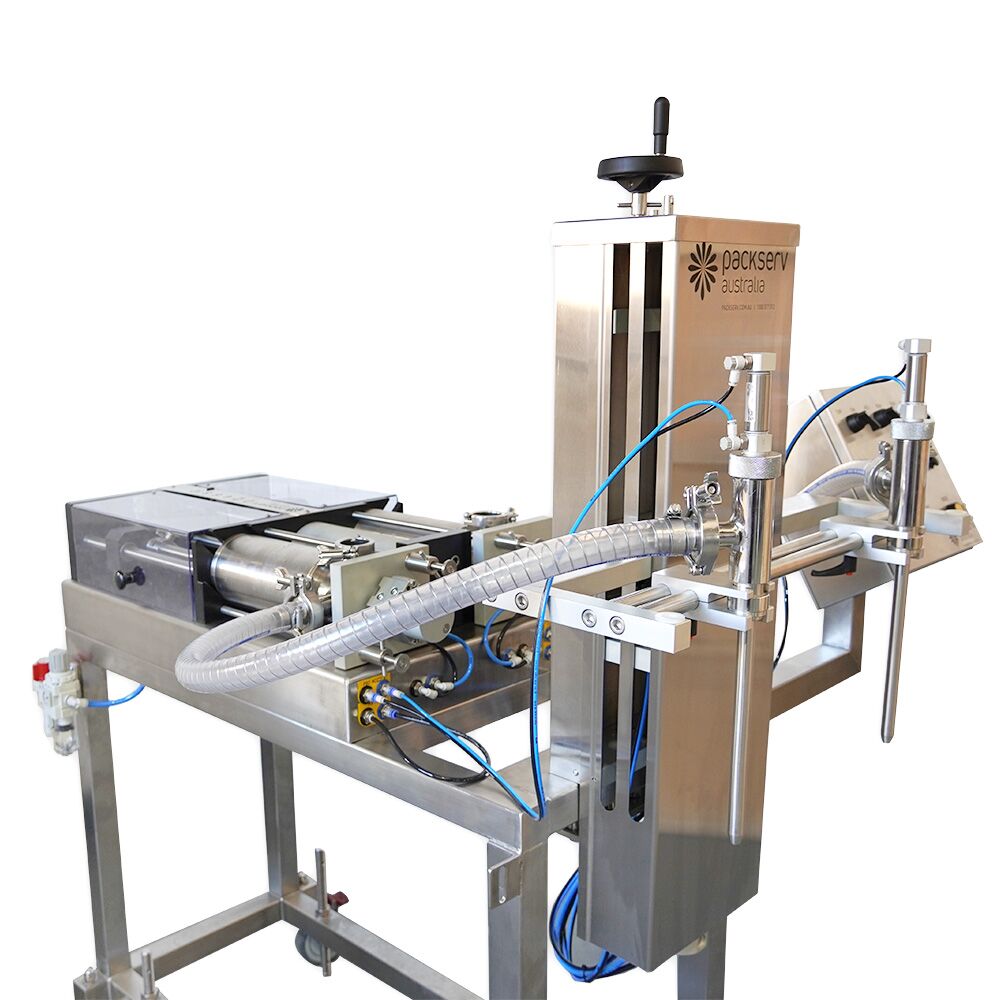

Our PFM-3-2C Auto Twin Head Up Filler is an automatic liquid, paste and cream filling machine that is both user friendly and versatile. The heavy duty, all pneumatic design of the PFM-3-2C is compact, reliable and easy to clean.

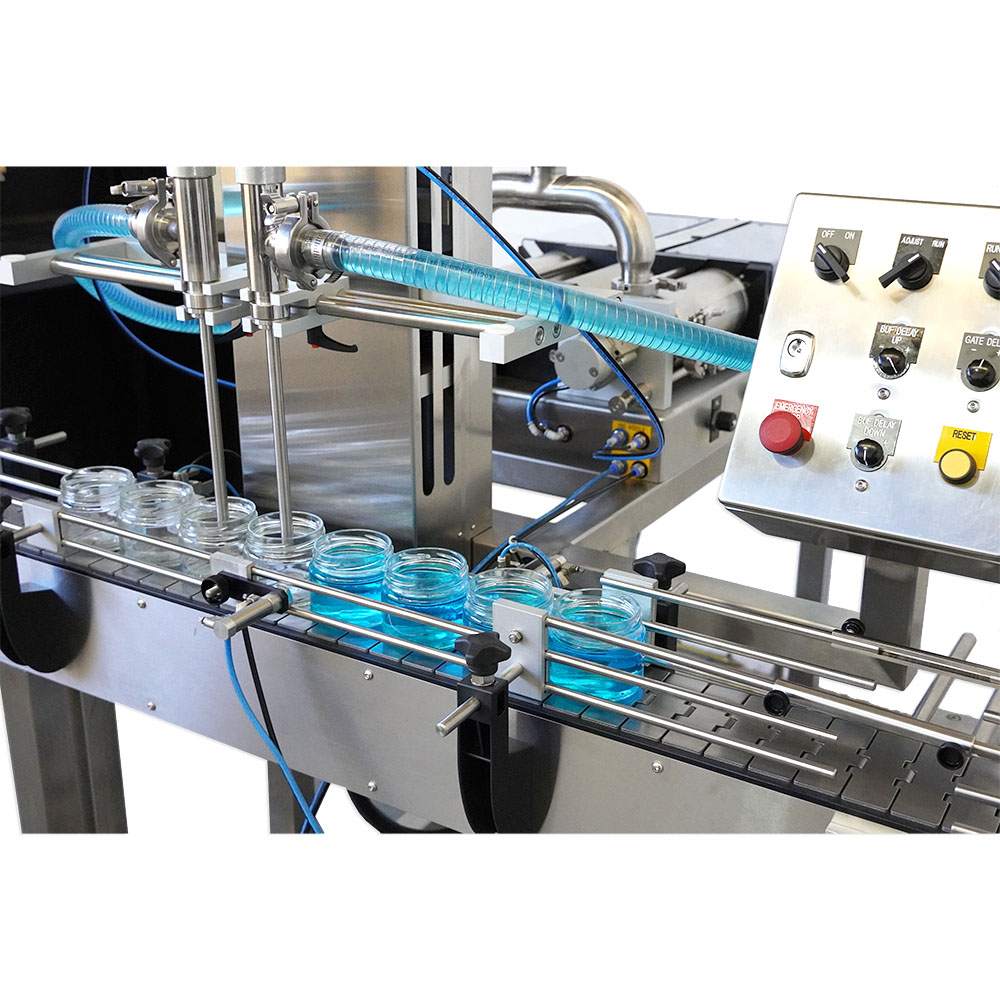

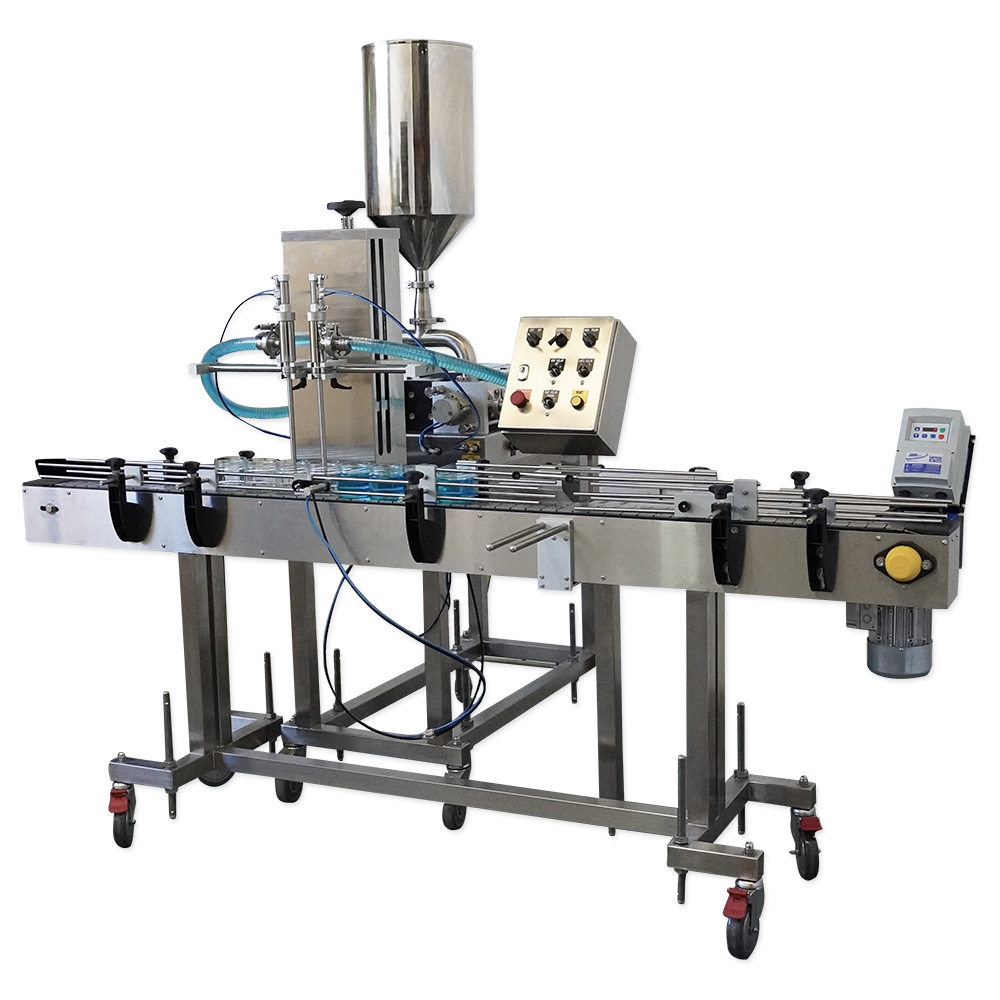

The PFM-3-2C is designed with an automatic function for use in a full-scale production line. The machine is trolley mounted, with lockable castors allowing connection to a continuously running slat conveyor. The PFM-3-2C also comes complete with a “no bottle no fill” safety device and container gating system.

The PFM-3-2C also comes as standard with positive shut-off nozzles and a bottom up fill assembly. The valve system of the PFM-3-2C comfortably handles bottling hot or cold products from thin liquids to creams and thick pastes. An optional valve is also available for particularly hot fill applications i.e., those above 65 C (149 F). This filling machine will even package products with suspended solids; a task that usually requires two different types of filling machine or an expensive change of parts.

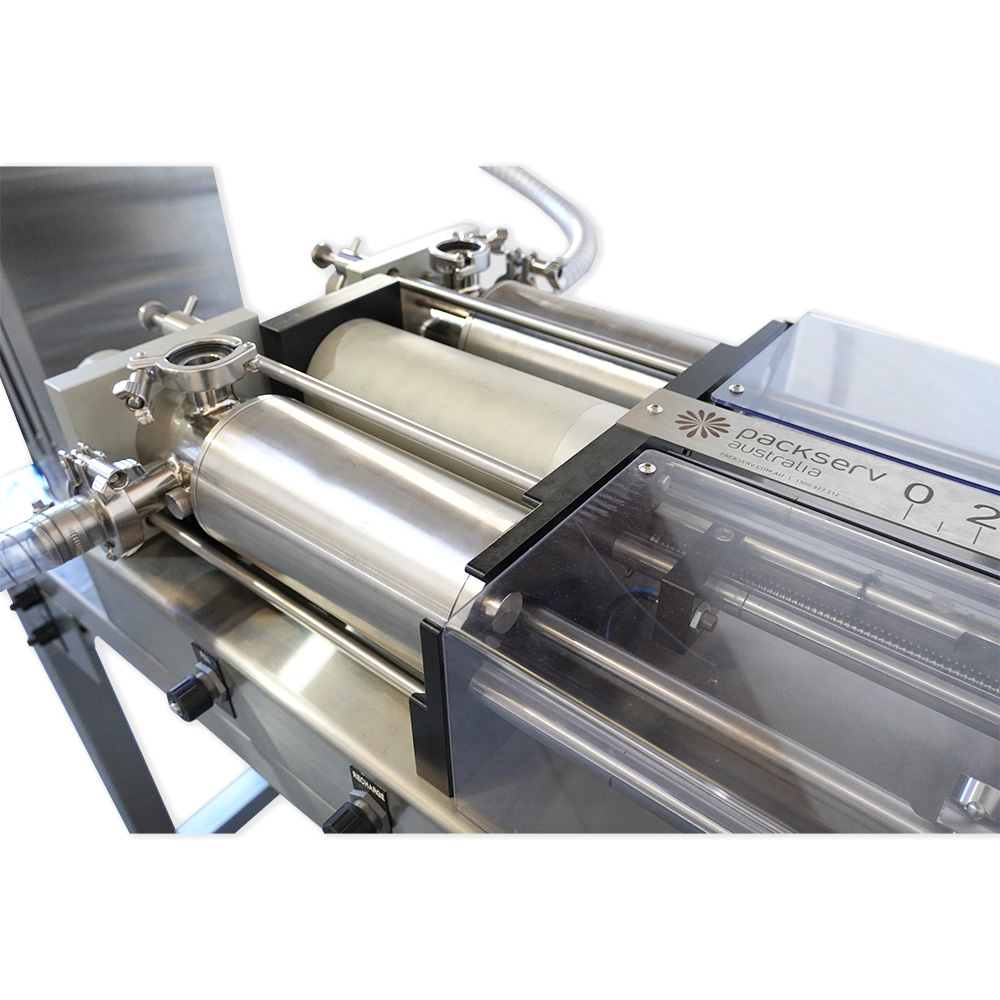

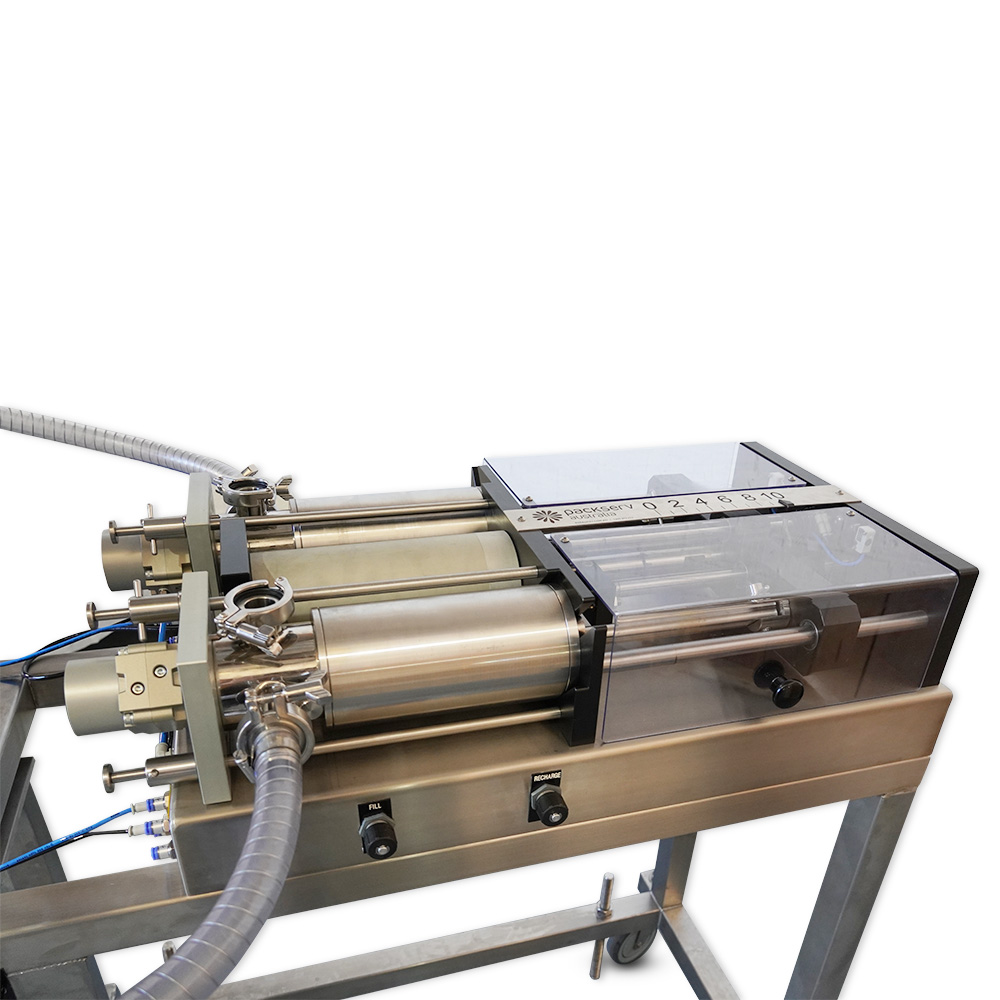

The cylinder design of this Twin Head Auto Filler enables quicker dismantling and easier, more thorough cleaning of cylinder wet parts. A variety of product supply methods can be used to suit the nature of the product, such as ‘twin port hoppers and bespoke inlet assemblies.

To ensure safe operation, the stroke adjuster and air/product cylinder drive assembly are enclosed by an interlocked polycarbonate cover that shuts the machine off if an operator was to open the door during production.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight	75 kilograms (165 lbs)
Length	1400mm (5 ft)
Width	1000mm (3 ft)
Height	1700mm (5.6 ft)
Power Supply	Air compression
Construction Type	316 grade stainless steel wet parts
Container Type	Bottles, jars, tubs etc (any container type that will stand on a conveyor)
Mounting	Trolley mounted with lockable castors (mounts onto inline conveyor system)
Industries	All food, pharmaceutical and industrial applications
Air Pressure	600kpa (80psi)
Units Per Minute	20-60UPM (guide only)
Noise	Medium
Flameproof	Yes
Timer Control	Pneumatic
Speed	Totally speed adjustable for all functions
Fill Range	2.5ml to 1250mls fill range, single shot
Fill Temperature	Cold and hot fill
Fill Type	Liquids, creams, lotions (suspended particles acceptable)
Not Suitable Products	Dry powder and granules
Benchtop	Mounted to mobile welded frame featuring castors/wheels
Machine Cleaning	Easy to disassemble for full wash up
Volume	Fully adjustable
Filling Accuracy	+/- 0.5 to 1% variance
Cylinder Sizes	25ml, 50ml, 125ml, 250ml, 500ml, 750ml or 1250ml
Automatic Function	Yes, designed to be completely operator free

Make	Packserv
Automatic Function	Yes
Mounting	Frame featuring castors

Heavy duty pneumatic product cylinder drive system
All pneumatic flameproof operation suitable for use with flammable products
Features a frame mounted on castors/wheels for easy maneourvability
Easy volume adjustment while running a single cylinder
Adjustable piston fill and recharge stroke speed
Simple tool-free dismantling makes for easier cleaning
Quick changeover of products and parts
Suitable for liquids, creams and pastes
Filler is suitable for food and pharmaceutical use
Suitable for warm water hose down
Quick connect tri-clover product inlet/outlet fittings
Various methods to feed product to machine available

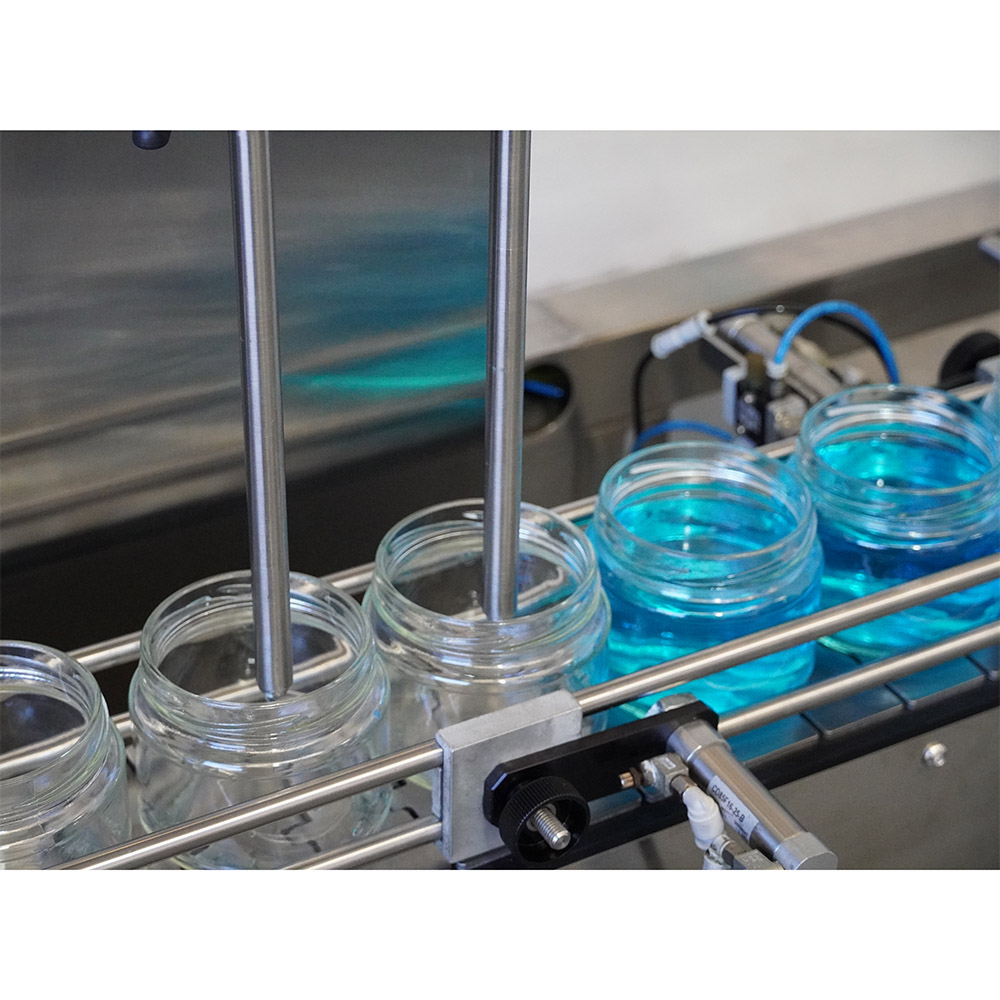

Features bottom up fill (BUF) to reduce foam/froth/bubbling of products.

1 x base machine
1 x installed bottom up fill assembly
1 x positive shut off nozzle kit (includes 2 x positive shut off nozzles)
1 x set of automatic attachments GDS-A (includes 2 x gates, 2 x sensors and all associated brackets)
1 x set of 4 castors and levelling jacks
2 x rotary valve (includes seals)
2 x Rotary valve body (including suckback pin)
2 x curved outlets
2 x hose barb
6 x triclover clamps (including seals)
2 x product cylinder (25ml-1250ml options available)
2 x 1 inch transfer hose & fittings
1 x height adjusting handle
