Top & Bottom Case Sealer Side Drive Lightweight

The 3M-Matic Case Sealer 88a with 3M AccuGlide-3 taping heads is designed to seal the top and bottom center seams of up to 24 uniform regular slotted containers per minute. Heavy duty gear motors provides power to the dual side belt drives, and adjustable side and top guides position and align your boxes for quick and easy throughput.

Product Code 3M-88A Category Tag

PURCHASE

Request Quote

RENT TO BUY

Ask Now

FINANCE

Get Finance

PURCHASE

Enquire Now

FINANCE

Get Finance

RENT TO BUY

Find Out More

PURCHASE

Enquire Now

PURCHASE

Enquire Now

FINANCE

Get Finance

RENT TO BUY

Find Out More

RENT TO BUY

Find Out More

PURCHASE

Buy Now

RENT

Rent Now

FINANCE

Get Finance

RENT TO BUY

Find Out More

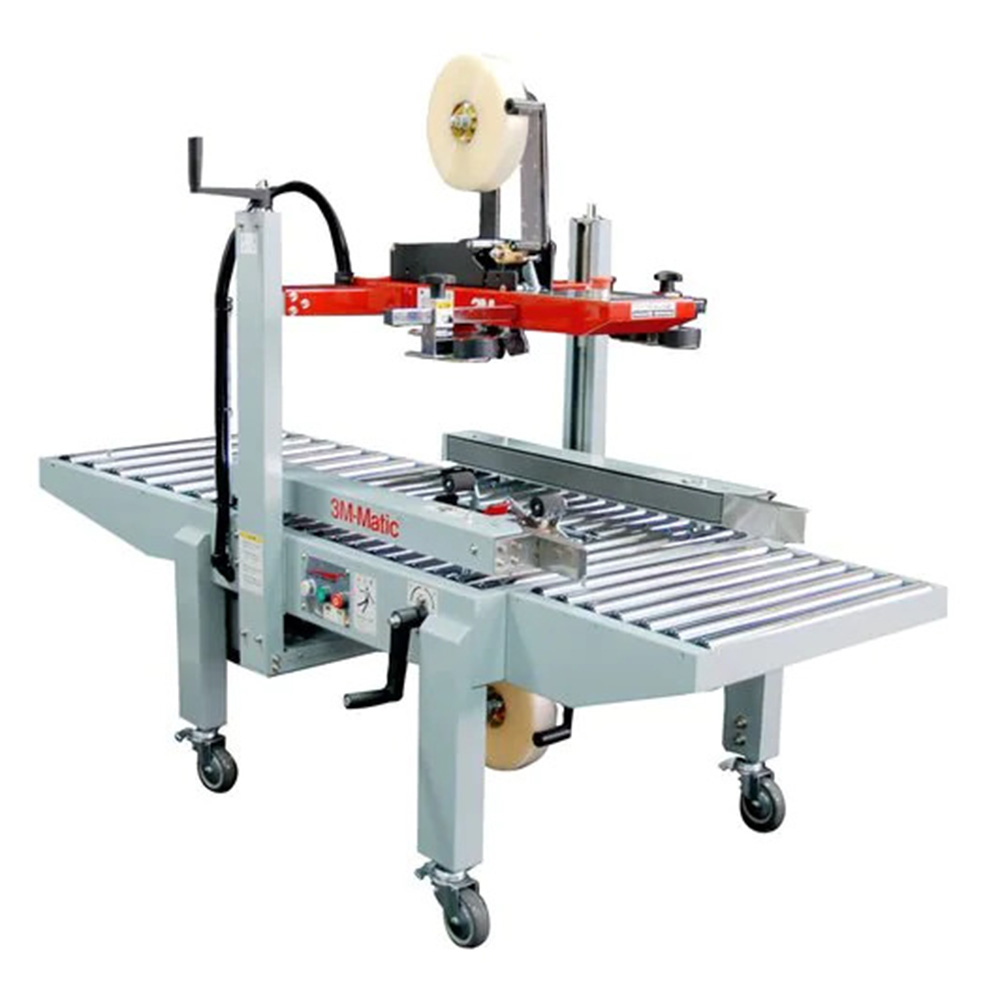

Top & Bottom Case Sealer Side Drive Lightweight (88A).

The 3M-Matic Case Sealer 88a features a side belt drive and upper and lower 3M AccuGlide 3 taping heads as well as an alternative outboard mount for the lower tape roll. This results in top and bottom taping of a huge variety of box types.

A height adjustment crank raises or lowers the taping head to adjust to box height and compression rollers position the top flaps of each box for precise sealing. Dual masts include twin lead screws for stop relocation and stronger taping head stability.

The gear motors provide power to the laced side drive belts which run at 60 ft per minute. Quickly shut down using the centrally located emergency stop switch.

After setup, Case Sealer Side Drive Lightweight continues to feed same size boxes at a rate of 24/minute. To change box configuration, simply readjust height and width to accommodate new case size – changeover between boxes takes mere minutes.

The 3M-88a demonstrates a minimal design after the 3M-800a. Lightweight and quiet design to be implemented in quiet workspaces or where the output is up to 24 cartons a minute.

See Also: Sealers | Packserv Australia

Weight 270kg (approx.)
Machine Height 530mm-860mm (adjustable)
Machine Length 927mm
Power Supply 240V 10Amp power
Operating Speed Up to 40 boxes/minute
Drive Belt Speed 0.5m/s
Box Lengths 150mm+
Box Widths 114mm-546mm
Box Heights 121mm-622mm
Box Weights 1kg-38kg
Make

Automatic Function

Mounting

Sealer Type

  • Seals up to 24 uniform cases per minute
  • Quick, easy adjustments allow for a wide range of case heights and widths
  • 3M? AccuGlide? 3 Taping Heads apply a “C” clip of 2″ Scotch? box sealing tape to both top and bottom of cases
  • Compression rollers squeeze flaps together to create a tight center seam
  • Durable side drive offers workhorse dependability for cases weighing up to 85 pounds
  • Side drive is designed for narrow profile boxes
  • Dual masts and dual crossbars for taping head stability
  • Centrally-located emergency stop for quick and easy access
  • Features infeed and exit conveyors
