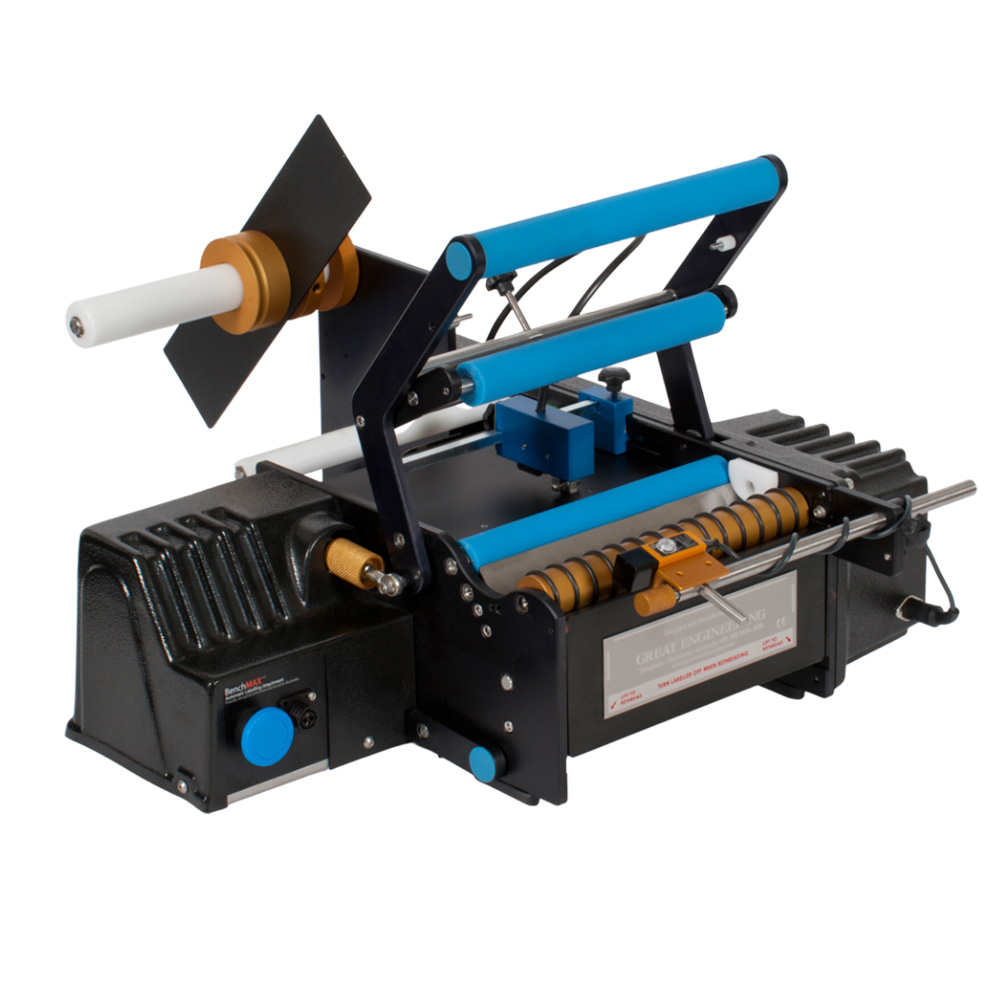

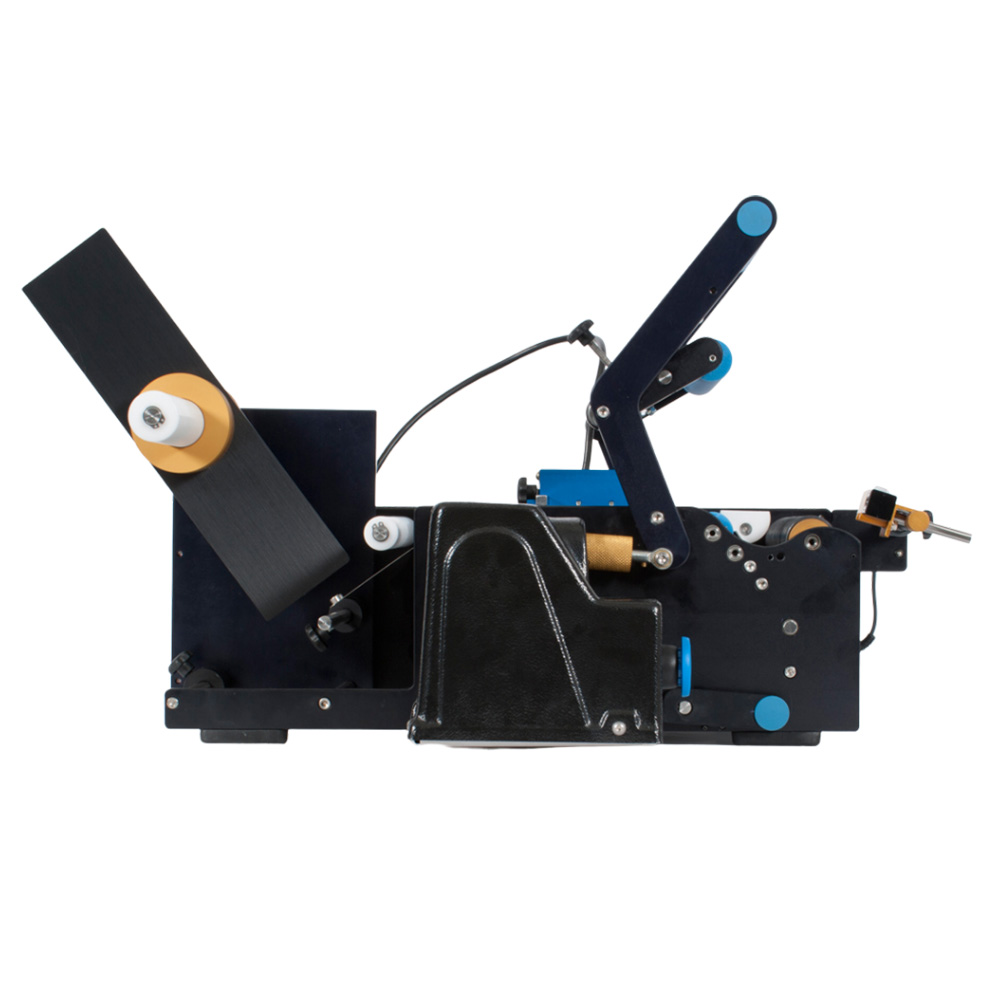

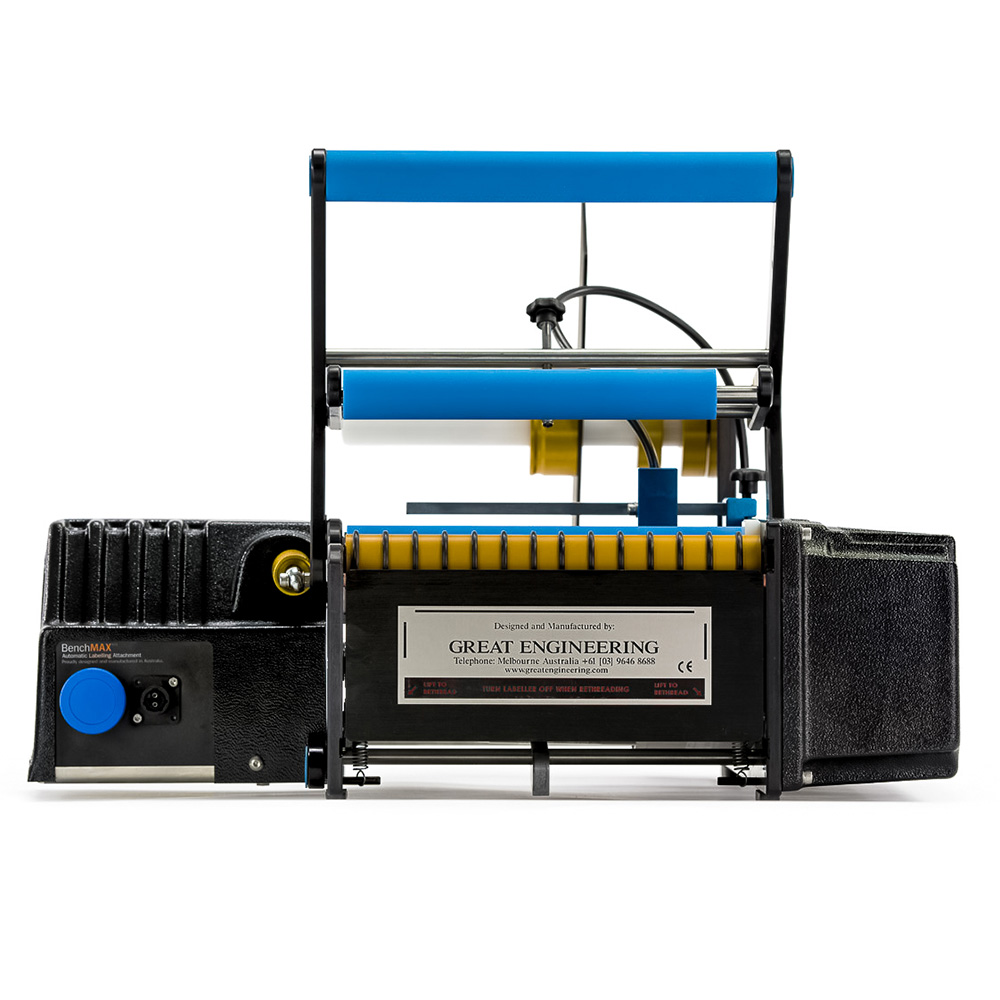

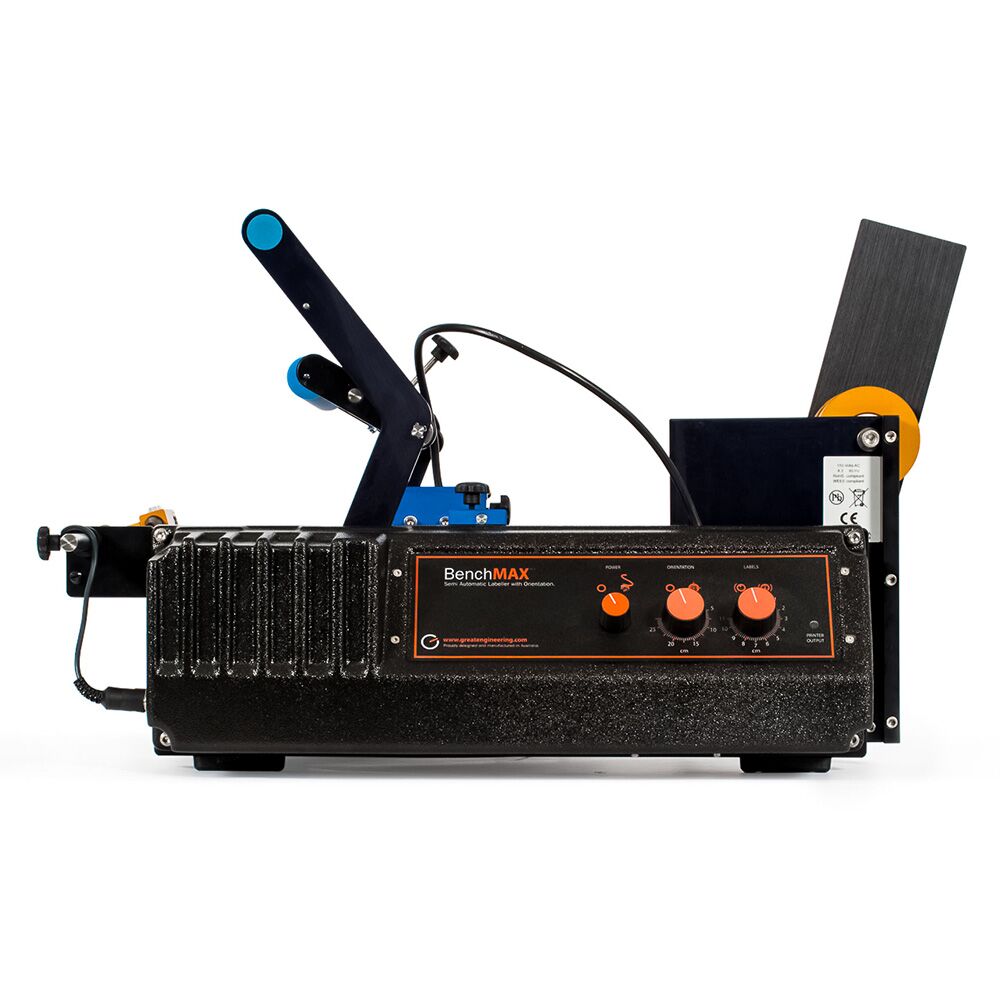

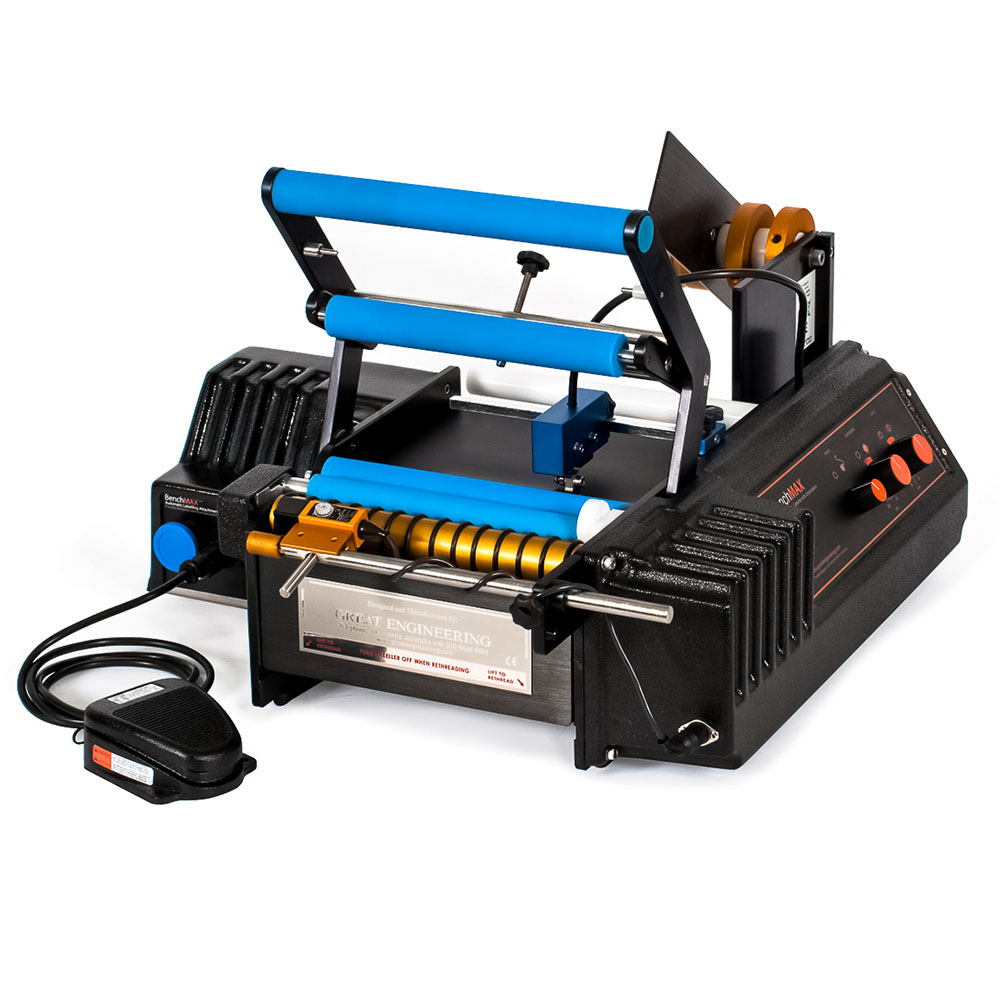

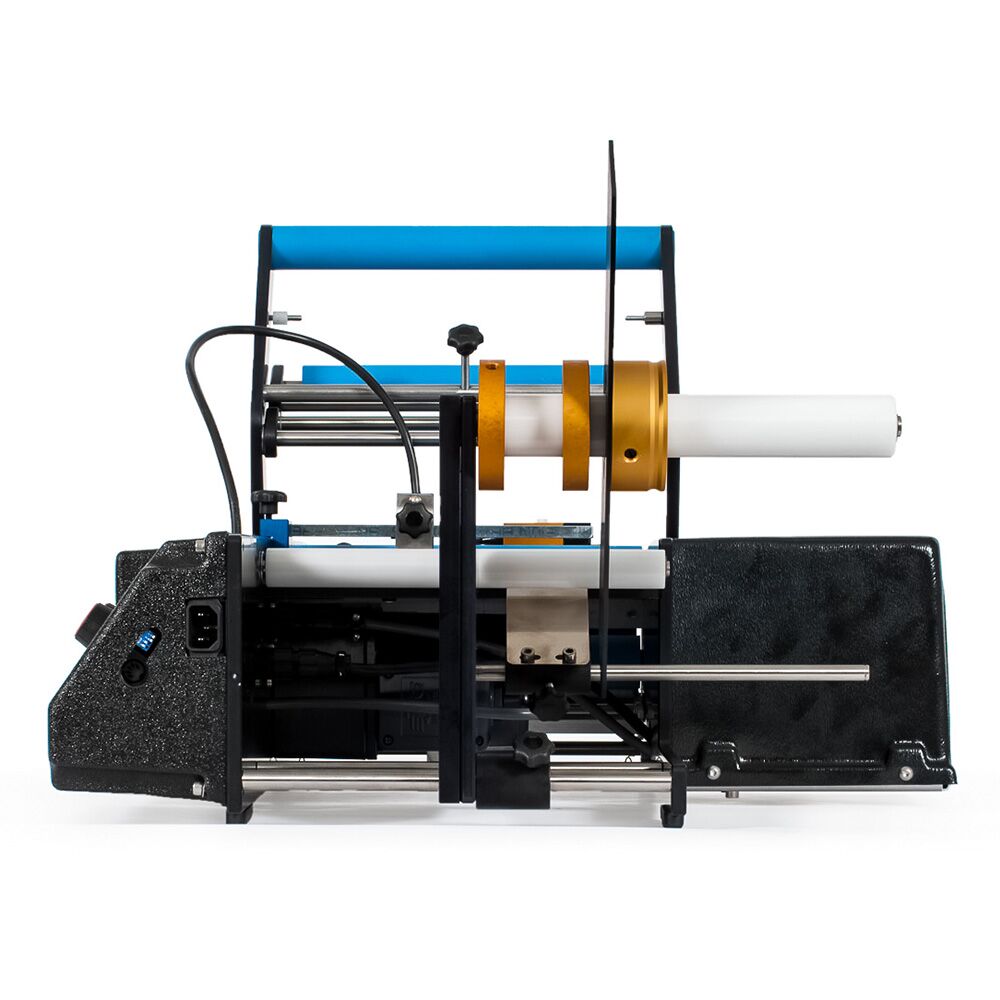

The BM-MAX BenchMAX Labeller applies pressure sensitive/self adhesive labels to a wide range of cylindrical containers, enhancing your products presentation.

The BenchMAX can quickly apply a single label, a full wrap around label or a front and back label in one simple operation. This machinery maintains the rear label’s position to the millimetre. This machine features orientation of containers via a photoelectric sensor.

The BenchMAX Labeller has a unique sensor that detects a greater range of labels accurately and has proven reliability. Controlled label ejection ensures uniform application of the label to the surface of the your product.

Machined from stainless steel and anodized aluminium, this applicator is engineered for industrial use. BenchMAX’s circuitry operates with a wide range of printers. A high impact ABS panel protects this specialised design.

Operators will readily understand the BenchMAX Labeller’s function and appreciate its ease of use. Uncomplicated to set up the labeller requires nor special skills or training to label efficiently and effectively.

A small bottle adapter can be easily fitted for labelling containers with diameters between 10mm and 50mm. Standard use allows 50mm to 250mm diameter containers.

Explore our range of labelling machinery Here.

Power Supply

10mm to 250mm

Weight	20Kgs
Length	500mm
Height	350mm
Max Label Roll Diameter	315mm
Core diameters	38mm and 76mm
Max Label Height	230mm
Minimum Label Height	10mm
Maximum Label Length	230mm
Minimum Label Length	20mm
Container Diameters
240V & 10 Amp
Output	10-20 Units per minute

Make	Great Engineering
Automatic Function	Semi-Automatic
Mounting	Benchtop
Label Type	Wrap Around Label

Automatic rub down time for maximum efficiency
Fast responsive Orientation system for over labelling export compliance or awards
Intelligent printer interface for print and apply
High speed motor for faster semi-automatic labelling
Light portable and durable construction
Accurate and logical dials for greater labelling control
Features a new option for applying extra long labels
Quick container and label roll changeover
Electronic timer control unit
Round containers (some non rounds are acceptable)
Mechanical sensor is suitable for all label types (clear, opaque, foil, regular)
Suitable for food and pharmaceutical use
Stainless steel and aluminum construction
Straight sided containers only
Adjustable label position while running
Applies single, wrap around or front/back
Can connect to the Datamax printer for print-apply
Labels to be on a roll, self-adhesive, die-cut & weeded with left-hand edge lead strongly preferred
Features an optional orientation sensor to ensure your label is applied in the correct place relative to container features
