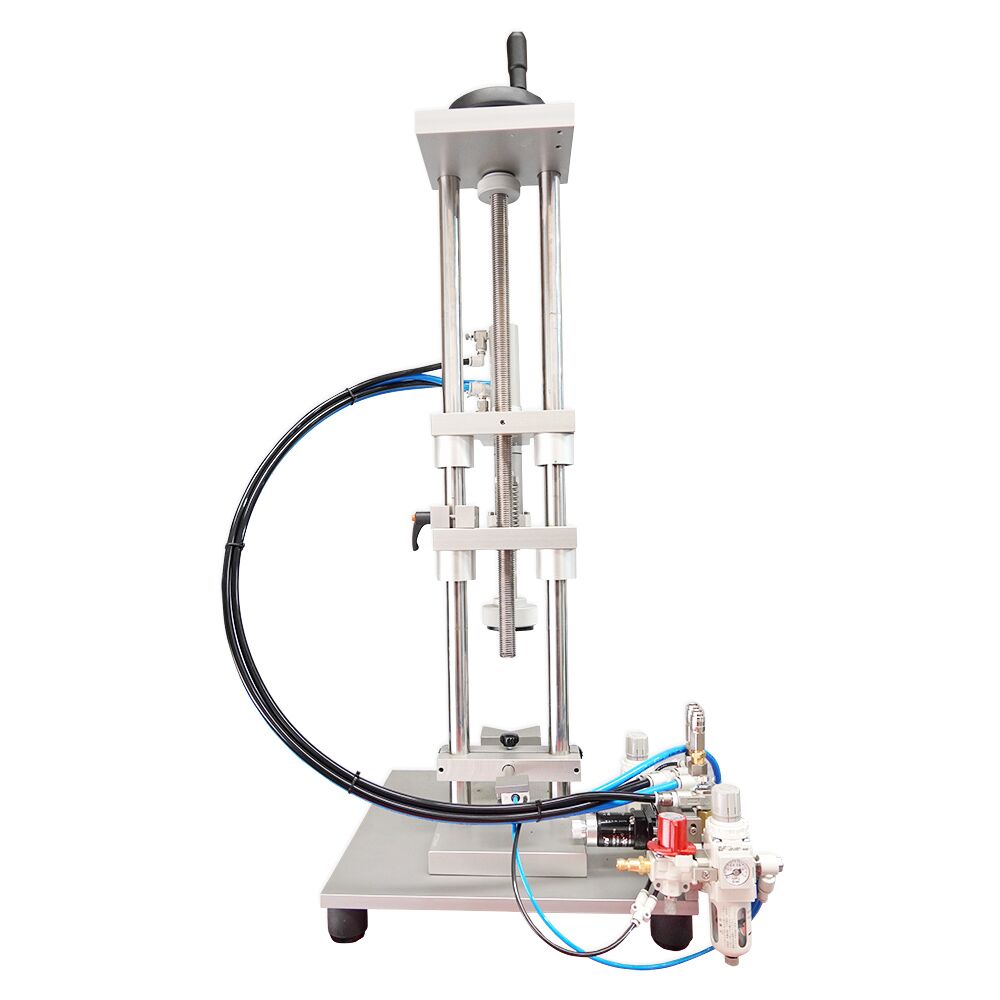

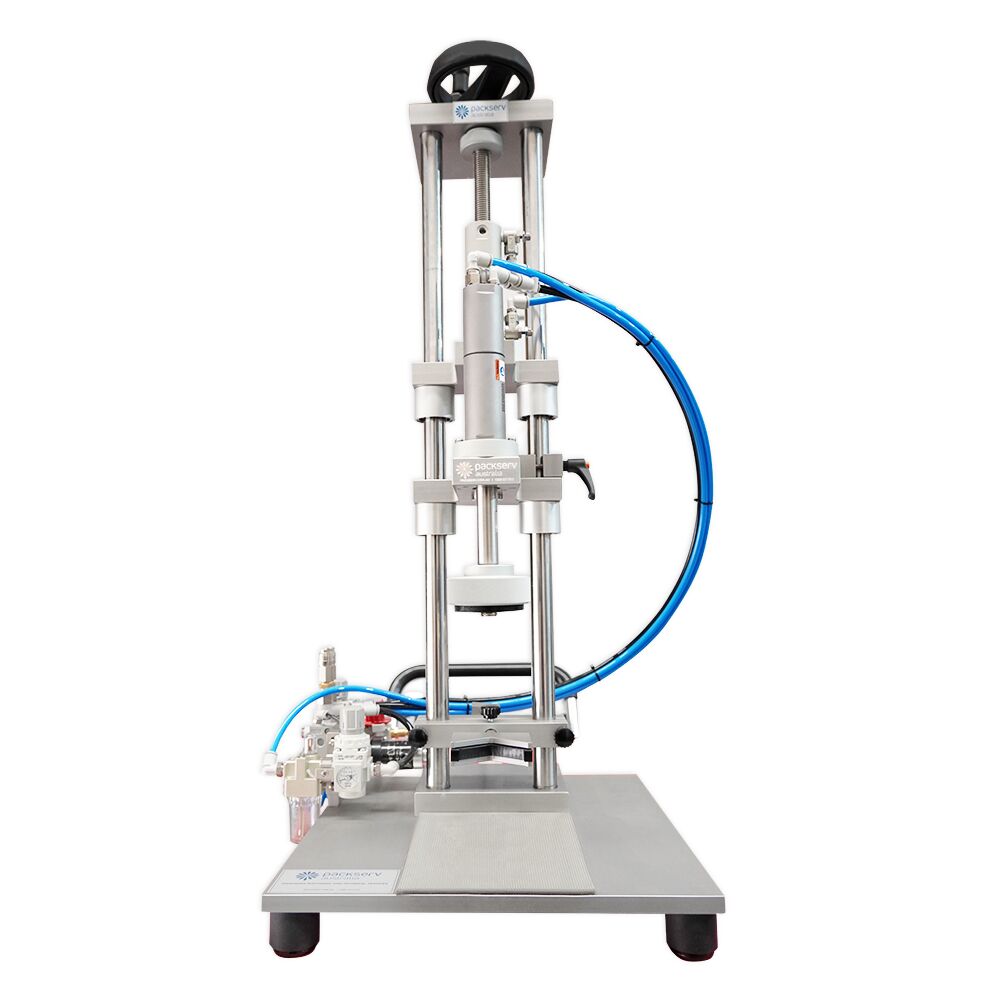

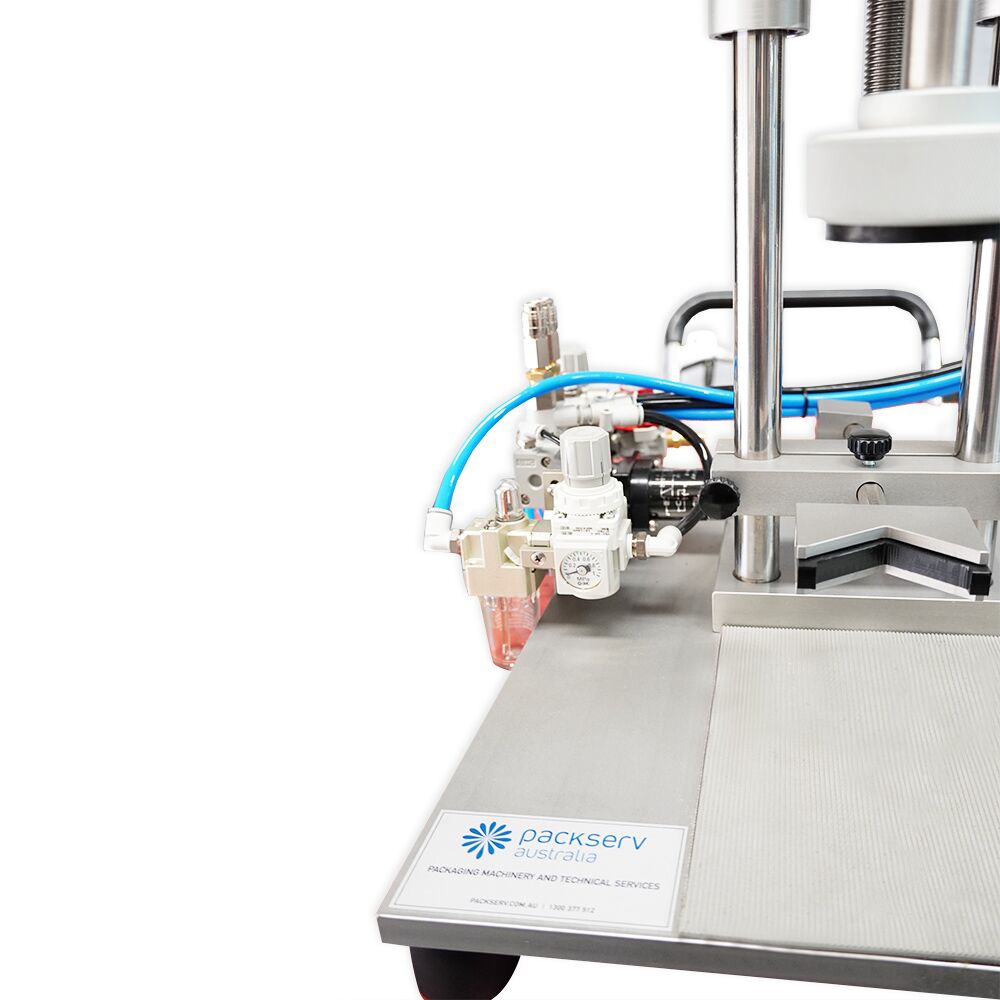

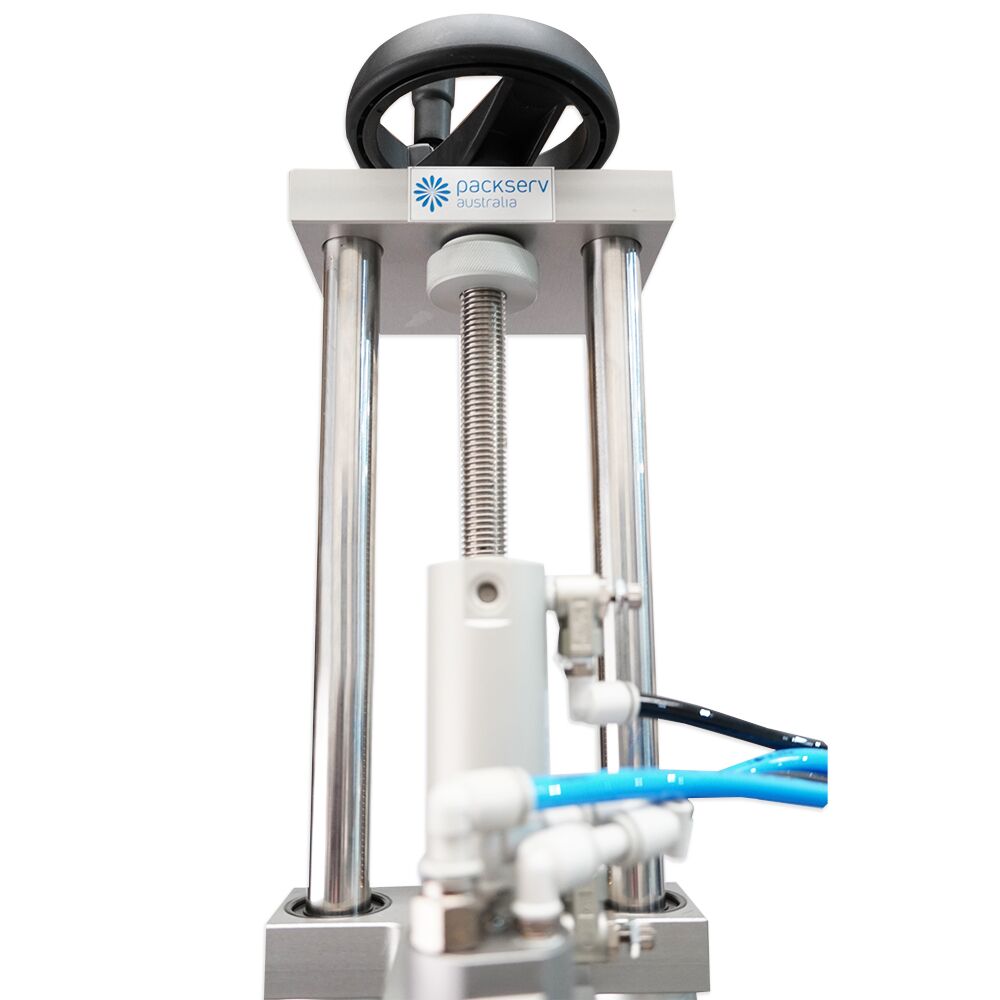

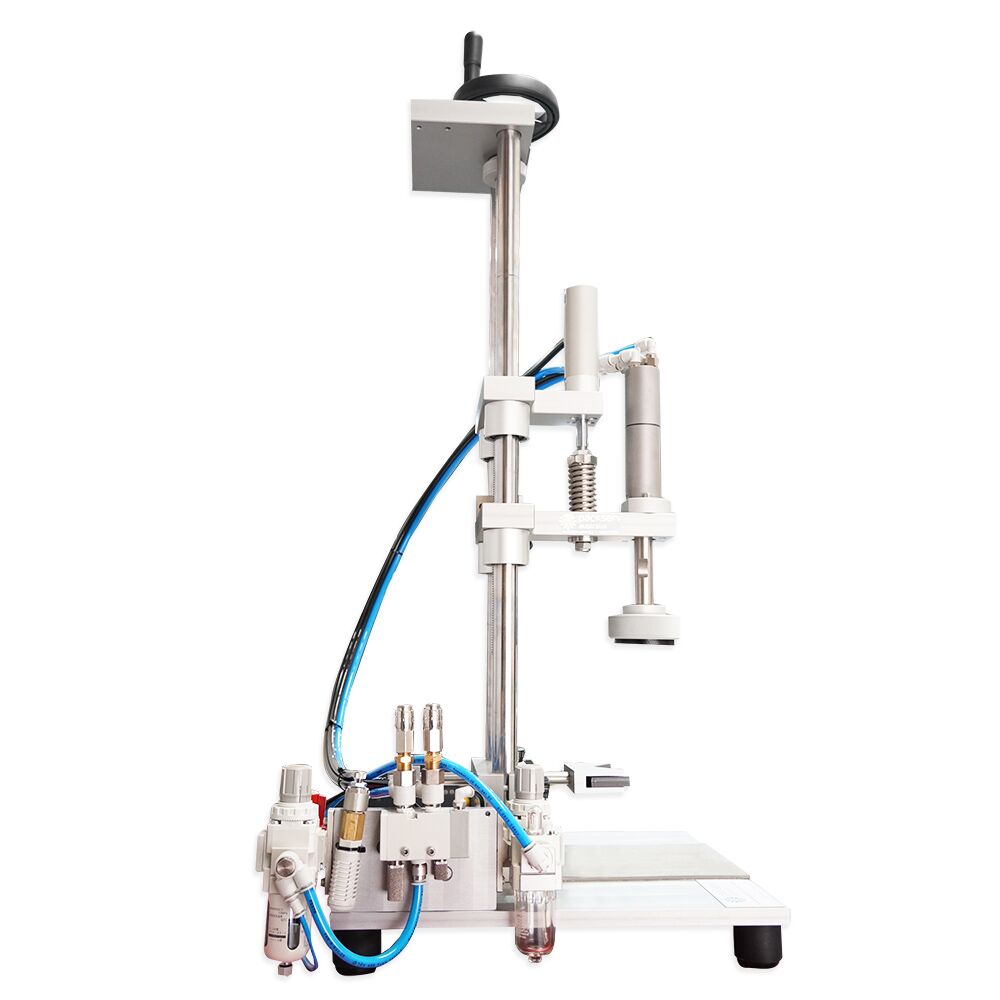

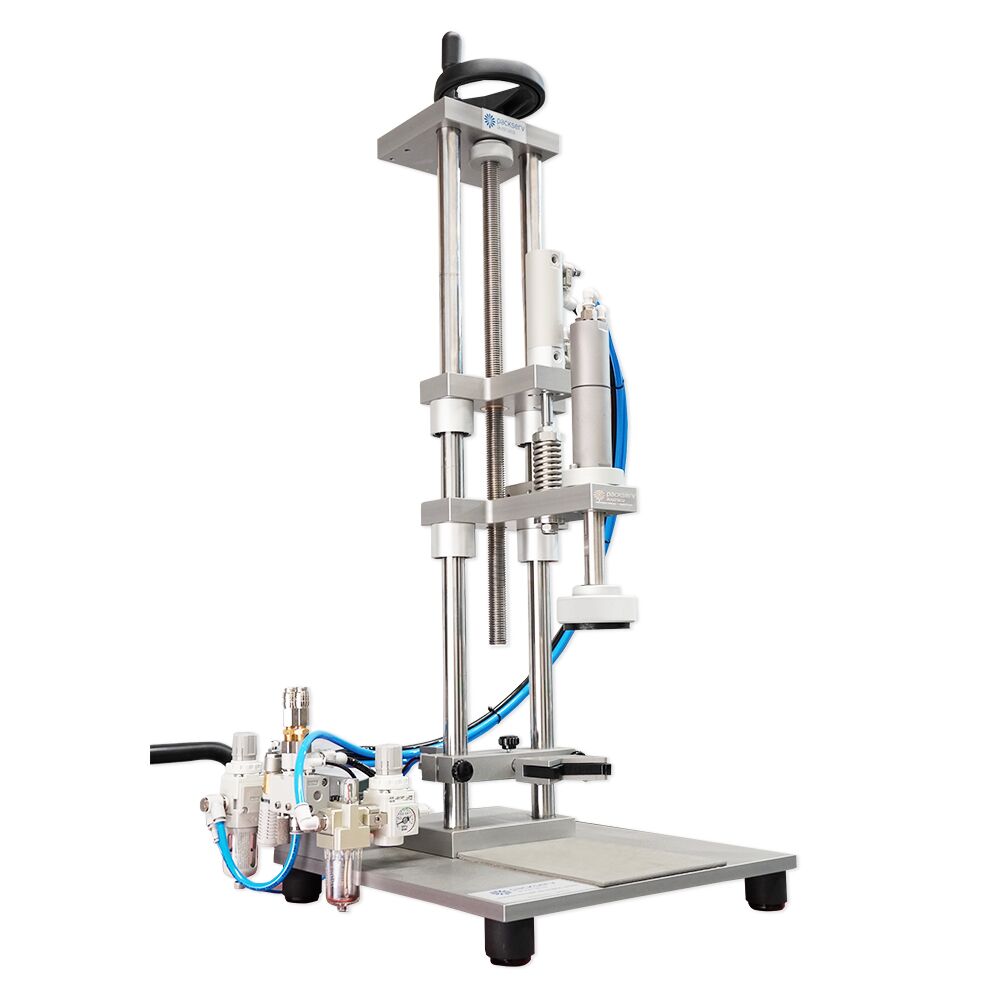

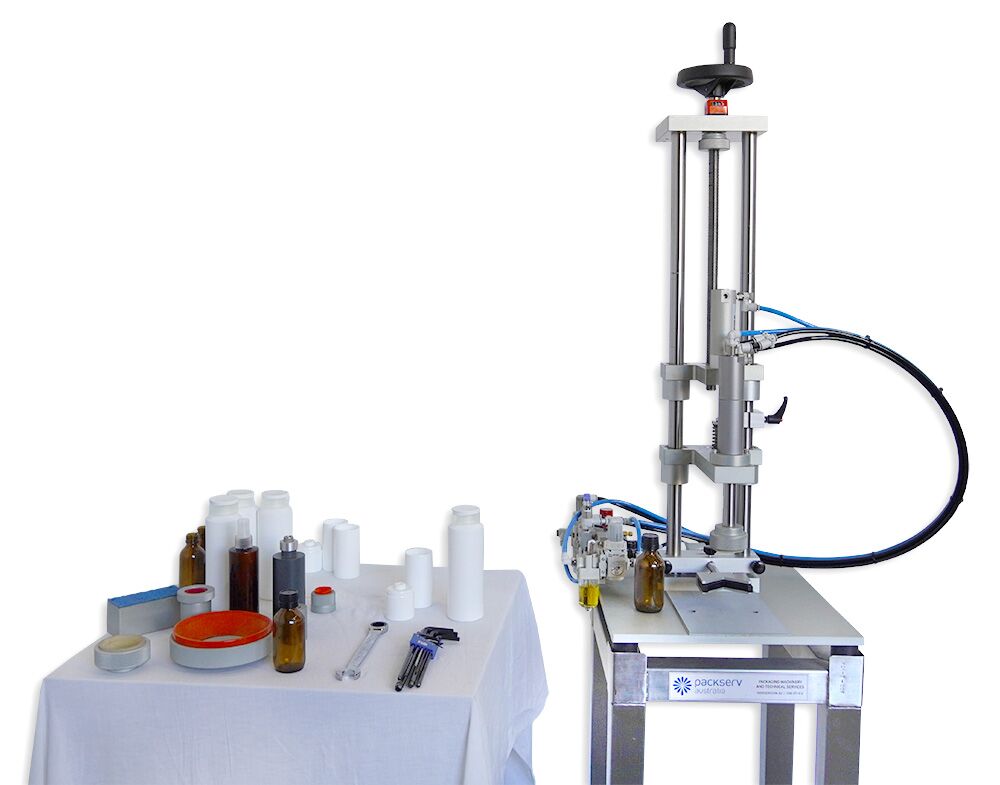

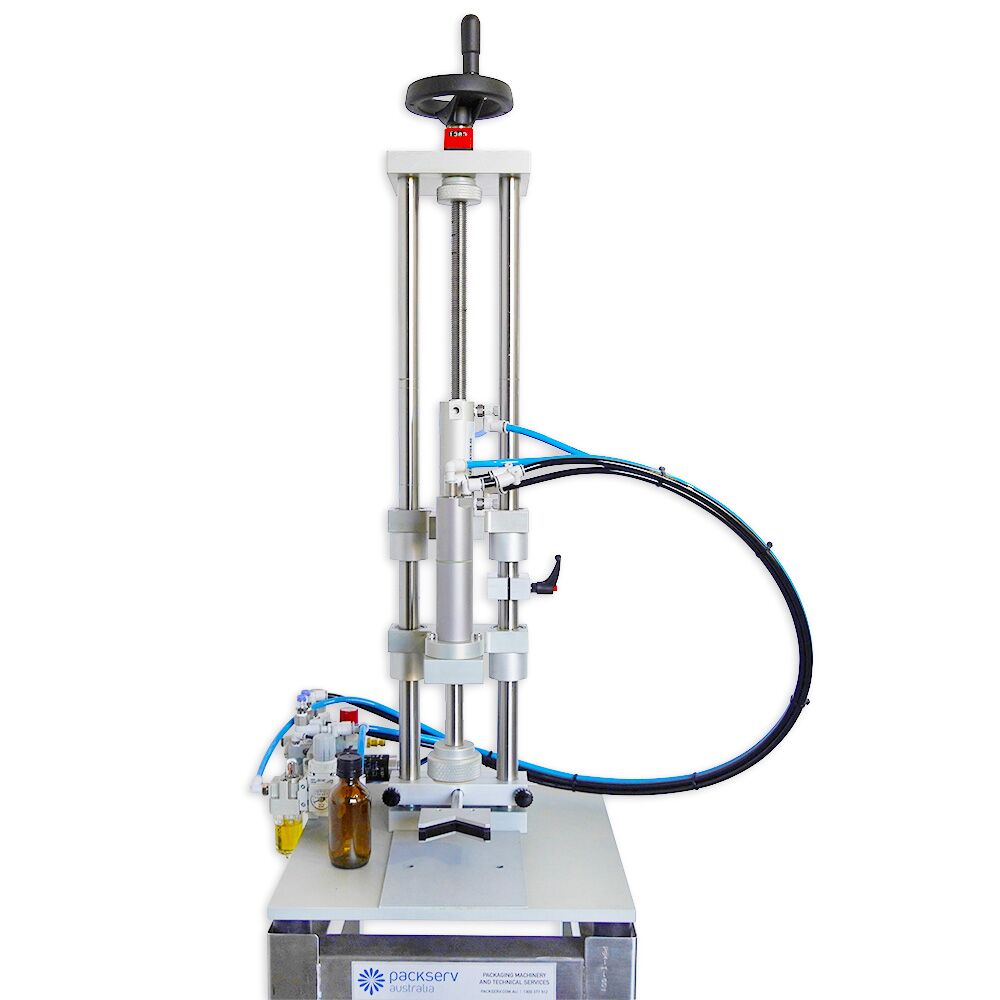

Bench Model Capper

The Packserv PCM-1 bench capper is the perfect entry-level machine for the capping of almost any style of container closure whether screw-on, push-on, trigger-pack or spray-pack. Designed to set the industry standard for semi-automatic cap tightening machinery this machine is versatile, efficient and precise.

Product Code PCM-1 Category Tag

PURCHASE

Request Quote

RENT TO BUY

Ask Now

FINANCE

Get Finance

PURCHASE

Enquire Now

FINANCE

Get Finance

RENT TO BUY

Find Out More

PURCHASE

Enquire Now

PURCHASE

Enquire Now

FINANCE

Get Finance

RENT TO BUY

Find Out More

RENT TO BUY

Find Out More

PURCHASE

Buy Now

RENT

Rent Now

FINANCE

Get Finance

RENT TO BUY

Find Out More

Our PCM-1 Benchtop Capper has been overdesigned to ensure machine durability and the versatility to take on any closure type. This machine is a cost-effective, precise and efficient cap and closure tightener.

This machine features a range of chuck sizes meaning any cap from 10mm-130mm can be tightened simply and quickly. Custom chucks are available upon request to ensure the full spectrum of lids can be utilised. Additionally, when used in conjunction with our PTP-7 (Trigger Pack Tightener) machine the PCM-1 can also be used to tighten any form of trigger-pack, pump or mist-spray style of closure.

*Rent: Brand and model may vary. The machine will be identical in function.

The PCM-1’s simple controls enable fast set-ups and changeovers of products, typically an operator can achieve 10 to 20 units per minute. The universal container guide, adjustable for container size and shape, has an integral activating switch plate ensuring all container styles, shapes and materials will cooperate with this machine.

This is a semi-automatic machine meaning an operator will be required to place a lid on the container then place the container on the machine where it will auto-activate and tighten the closure before repeating the process.

See Also: Cappers | Packserv Australia

Weight 40 kilograms (88 lbs)
Length 500mm (20 in)
Width 500mm (20 in)
Height 950mm (38 in)
Power Supply Air compression
Construction Type 316 stainless steel and aluminium construction
Container Type Suitable for all container shapes and sizes.
Mounting Benchtop
Industries Food, cosmetic, pharmaceutical
Motor Desoutter air motor drive
Air Pressure 400kpa (60psi) pressure requirement.
Units Per Minute Cap 10-15 units per minute
Noise Medium
Capping Chucks 10-130mm (0.4 to 5 in) standard chucks
Custom Capping Chucks Supplied on request
Closure Type crew, pump, mist, trigger, push-on and snap closures
Torque Torque adjustable
Conveyor Option available in a conveyor-mountable automatic version;
Flameproof Yes
Setting Adjustments No tools required
Timer Control Fully adjustable pneumatic dwell timer;
Changeover Speed Speed: Fast changeover of bottles/containers.
Chuck Sizes 29mm (1.15 in), 35mm (1.38 in), 41mm (1.62 in), 47mm (1.85 in), 64mm (2.52 in), 87mm (3.43 in), 95mm (3.75 in), 123mm (4.85 in), 137mm (5.40 in);
Make

Automatic Function

Mounting

  • All pneumatic operation
  • Portable and easy to operate
  • Sturdy low maintenance construction
  • Precise torque setting via pressure regulator and gauge
  • Quick container and cap size changeover
  • Flameproof
  • Requires an air compressor to operate the capper
  • 1 x chuck (10-130mm sizes)
  • 1 x chuck liner to suit
