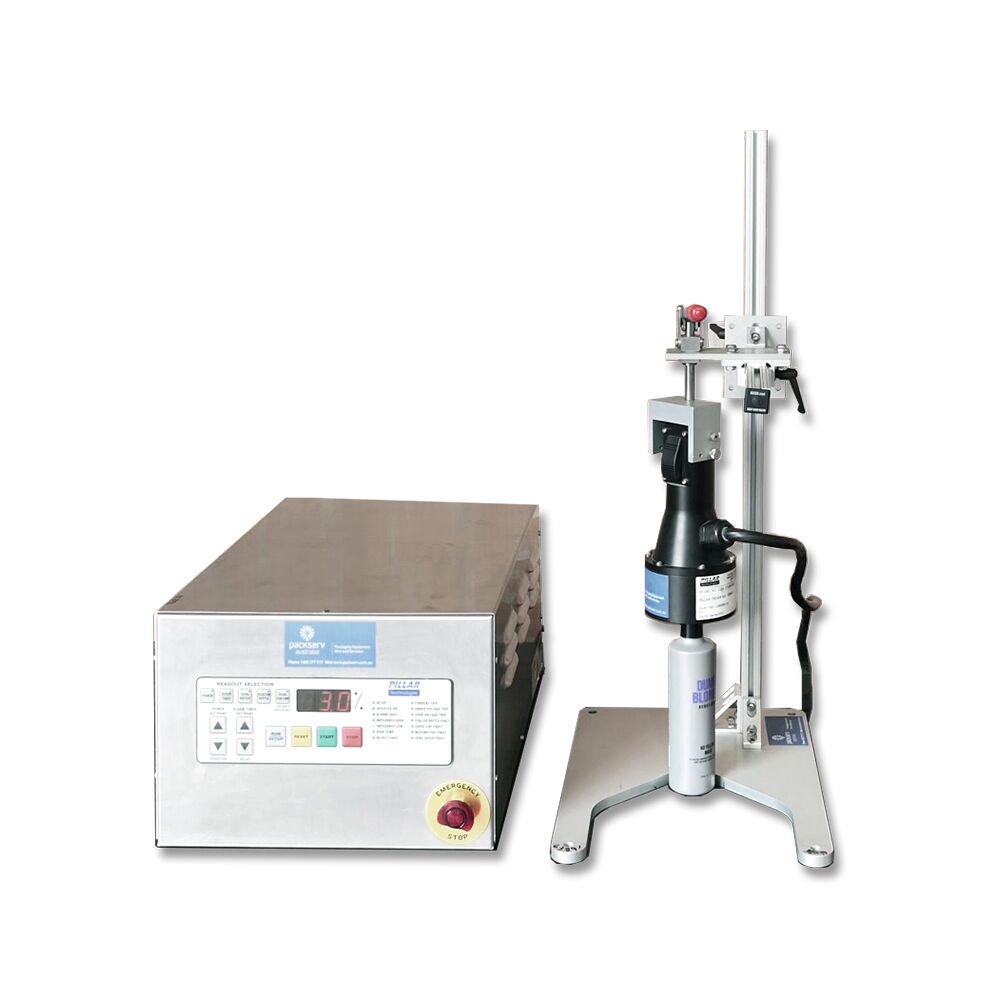

INS-UF1-H-SA Pillar-Technologies Benchtop Induction Sealer

The Pillar Technologies UniFoiler series are portable benchtop induction sealer. The point of difference with this machine is it is fully upgradeable to grow with your business. The entry model is a semi-automatic benchtop unit. Over time you can use simple addons to turn the machine into a fully-automatic conveyor mounted unit to cater to a large range

It delivers highly reliable, tamper-evident seals that prevent leakage and ensures high seal integrity for a wide range of products. The powerful sealing capacity make it ideal for sealing applications in food, beverage, pharmaceuticals, cosmetics, automotive, agricultural and chemical products.

The UniFoiler is well-suited for manual or hand-held production for start-up operations, R&D work, and small volume runs. As your business grows so can the machine as it can be turned into a fully automatable induction sealer. It also features an operator-friendly display.

The UniFoiler digital technology decreases internal components, reduces energy consumption and lessens the overall footprint and weight of the machine, ultimately lowering the cost of ownership.

Weight	15kg
Control box Dimensions:	570mm (L) x 370mm (W) x 270mm (H)
Induction Head Stand Dimensions	Max Container Height (Using Stand)
403mm	Cord Length (Hand-held Sealer)
300mm	Sealing Head Wad Capacity
Sealing Head Wad Capacity	Up to ~85mm
Power supply	10Amp, 240V, 50/60Hz, Single Phase

Make	Pillar-Technologies
Automatic Function	Semi-Automatic
Mounting	Frame featuring castors

Waterless systems which results in reduced maintenance, greater reliability, lower cost of ownership.
The Unifoiler is compact and lightweight taking up less space on the line; easier to position or move from line to line
No tools required with fast, easy set-up and coil changeover
Independent power supply and sealing coil which eliminates the possibility of sealing coil causing power supply to overheat
Coils have a “quick lock” feature which means the coils are easily positioned and locked in place
Precision coil height indicator indicates adjustment to within .025 of a millimetre to ensure correct coil height
The Unifoiler interfaces to other machines or devices to indicate run status of sealer
The Unifoiler can interface to warning alarms or lights to indicate possible non-sealing condition with respect to output
The Diagnostic Indicating Light will alert the operator to the status of machine performance
The Unifoiler is a sturdy stainless steel construction that is easy to clean and maintain. It can be used in the toughest of applications
The Sealers interface will allow an operator to stop the machine from external equipment or location and complete a manual restart
Auto-Start After initial start-up, allows delivery and removal of power to the coil by an external contact
Membrane control panel Soft-touch, easy to adjust controls
Highly engineered proprietary microprocessor-controlled technology from Pillar
