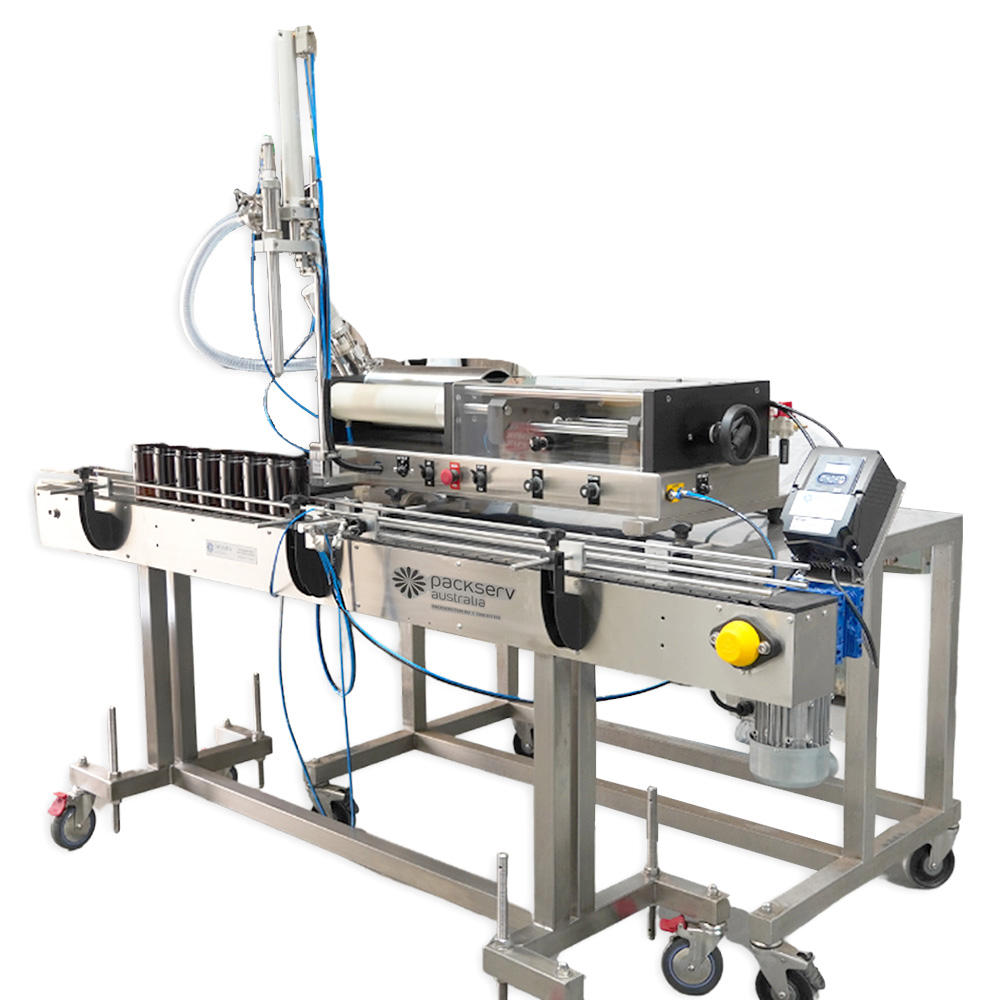

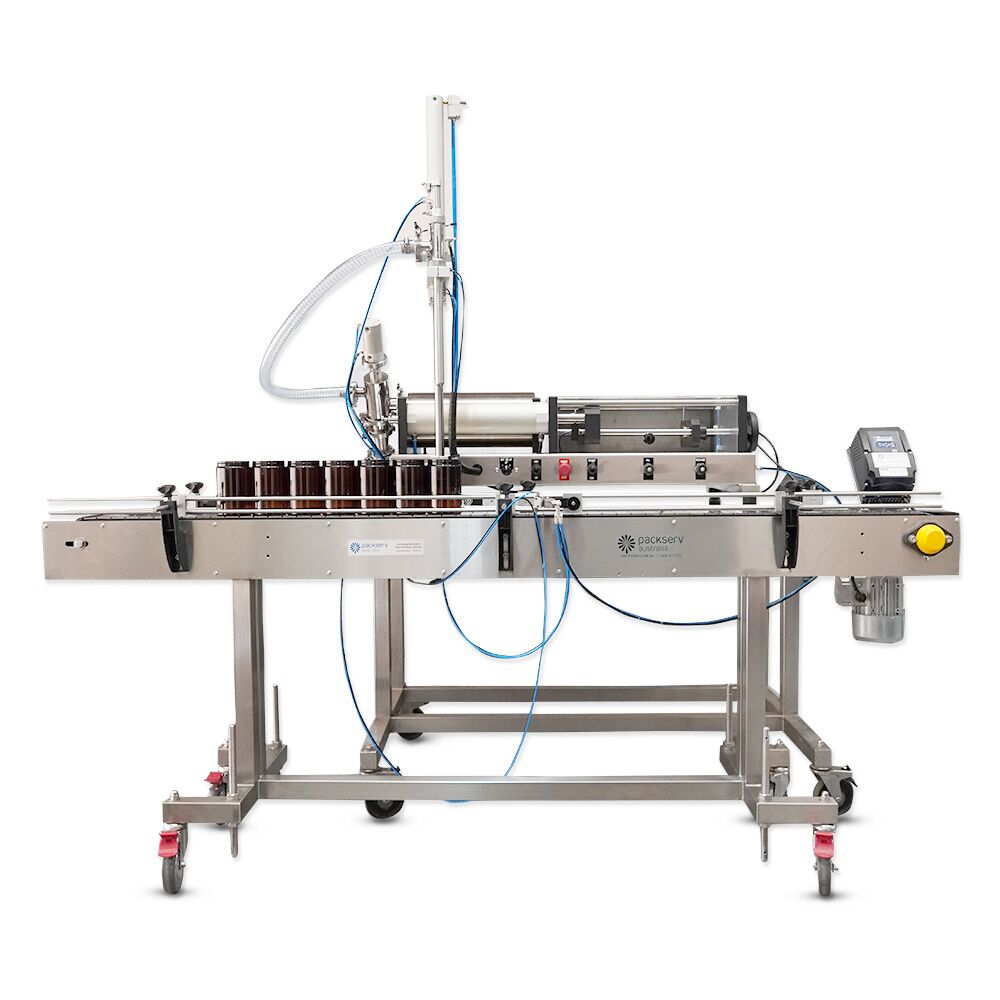

Our PFM-5-BUF-A Single Head 5 Ltr Bottom Up Filler is a fully automatic liquid, paste and cream filling machine that is both user friendly and versatile. The heavy duty, all pneumatic design of the PFM-5-BUF-A is compact, reliable and easy to clean and is designed for semi-automatic benchtop function. This machine features a 5 litre product cylinder allowing for single-shot filling of containers anywhere from 500ml-5000ml.

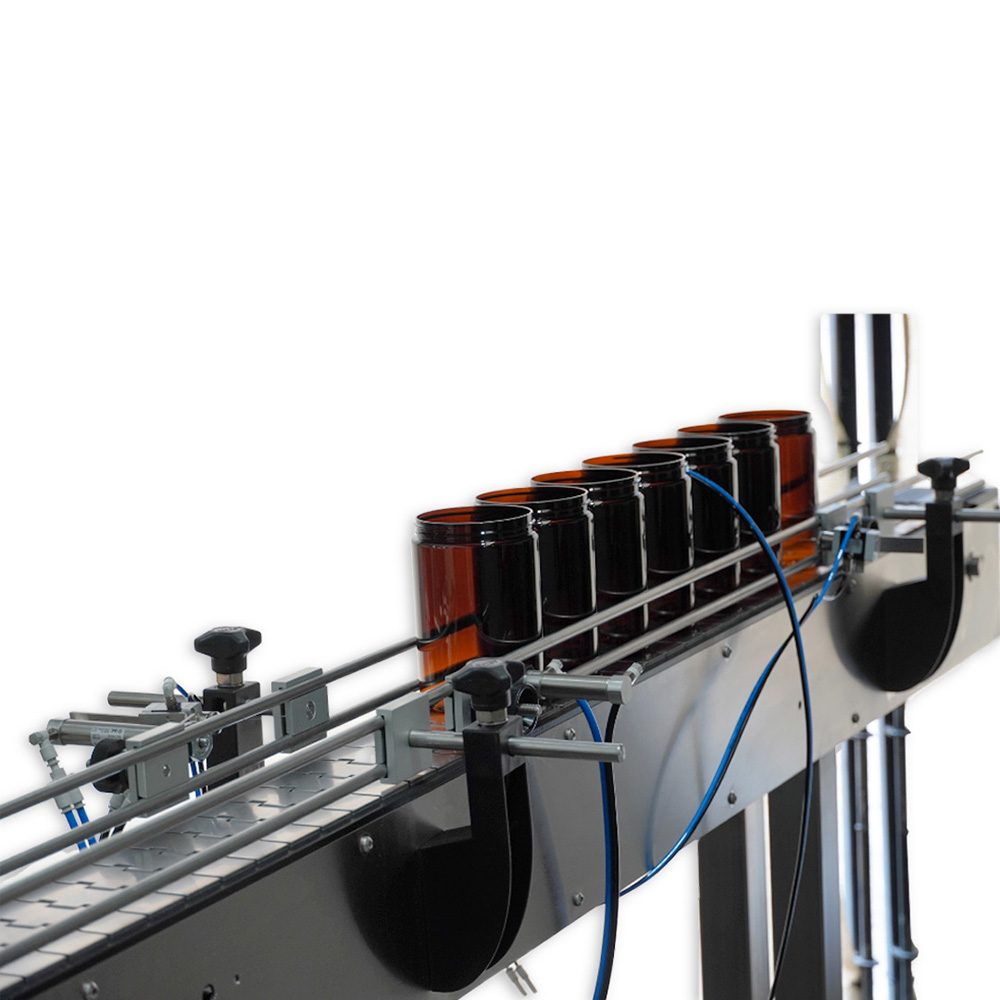

The PFM-5-BUF-A also comes standard with positive shut-off nozzles and a bottom up fill assembly. The spool-valve system of the PFM-5-BUF-A handles all types of bottling products from thin liquids to creams and thick pastes as well as hot and cold filling. It can handle temperatures up to 95°C with ease during the filling process. The PFM-5-BUF-A also comes complete with “no bottle no fill” safety device and container gating system.

The cylinder design of the PFM-5-BUF-A enables quicker dismantling and easier, more thorough cleaning of wet parts. A number of product supply methods can be used to suit the nature of the product or our customers needs – examples include: hoppers and inlet assemblies.

Finally we have enclosed the stroke adjuster and air/product cylinder drive assemblies with a safety interlocked poly-carbonate covers that shuts the machine off if an operator was to open the door during production.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight	75 kilograms
Length	1200mm
Width	500mm
Height	800mm
Power Supply	Air compression
Construction Type	316 grade stainless steel wet parts
Container Type	Any bottles, bags, sachets, vials, tubes, cartridges,
Mounting	Benchtop (trolley mountable)
Industries	Industrial, chemical, cleaning, agricultural, food, pharmaceutical
Air Pressure	600kpa (80psi)
Units Per Minute	10-15UPM (guide only)
Noise	Medium
Flameproof	Yes
Timer Control	Pneumatic
Speed	Totally speed adjustable for all functions
Fill Range	500ml – 5ltr
Fill Temperature	Cold and hot fill
Fill Type	Liquids, creams, lotions
Not Suitable Products	Dry powder and granules
Machine Cleaning	Easy to disassemble for full wash up
Volume	Fully adjustable
Filling Accuracy	+/- 0.5 to 1% variance
Cylinder Sizes	5000ml
Automatic Function	Fully automatic when mounted over a conveyor line

Make	Packserv
Automatic Function	Yes
Mounting	Benchtop (Trolley available)

Heavy duty pneumatic product cylinder drive system
All pneumatic flameproof operation suitable for use with flammable products

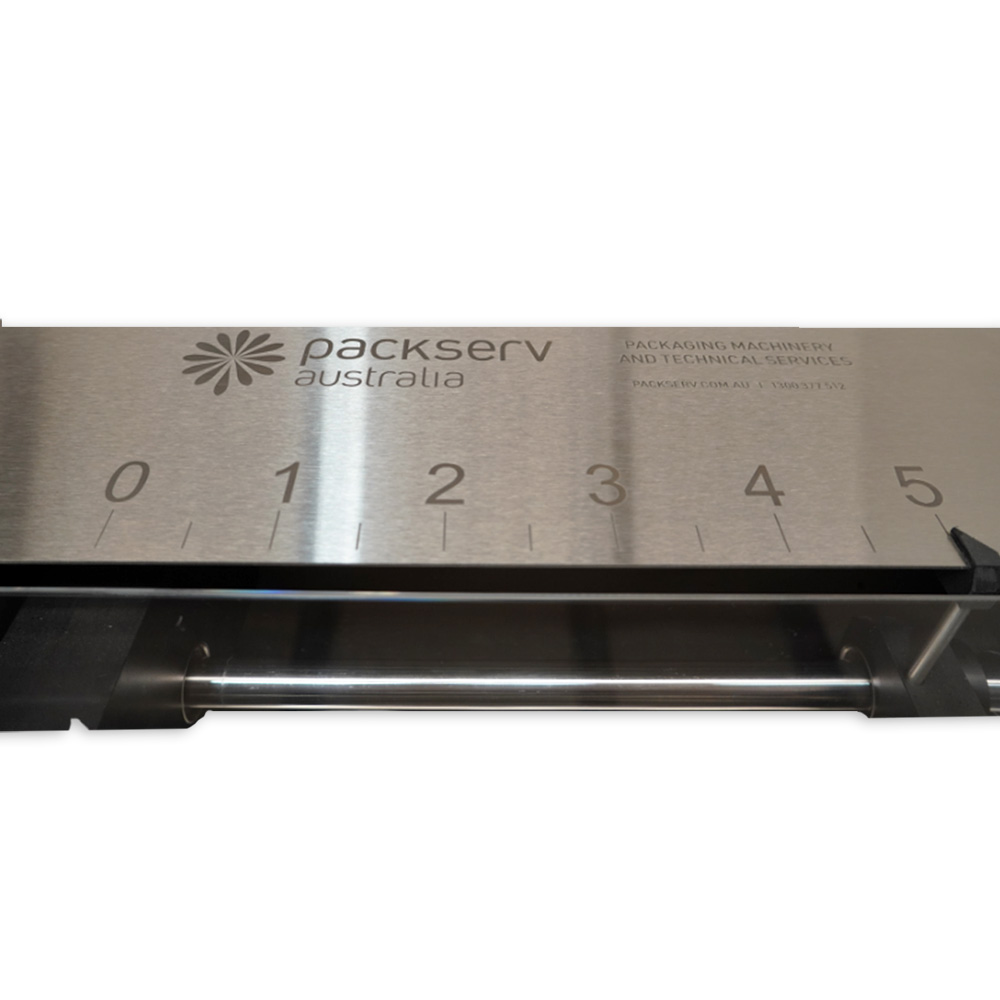

Easy volume adjustment while running a single cylinder
Adjustable piston fill and recharge stroke speed
Simple tool-free dismantling makes for easier cleaning
Quick changeover of products and parts
Suitable for liquids, creams and pastes
Filler is suitable for food and pharmaceutical use
Suitable for warm water hose down
Quick connect tri-clover product inlet/outlet fittings
Various methods to feed product to machine available

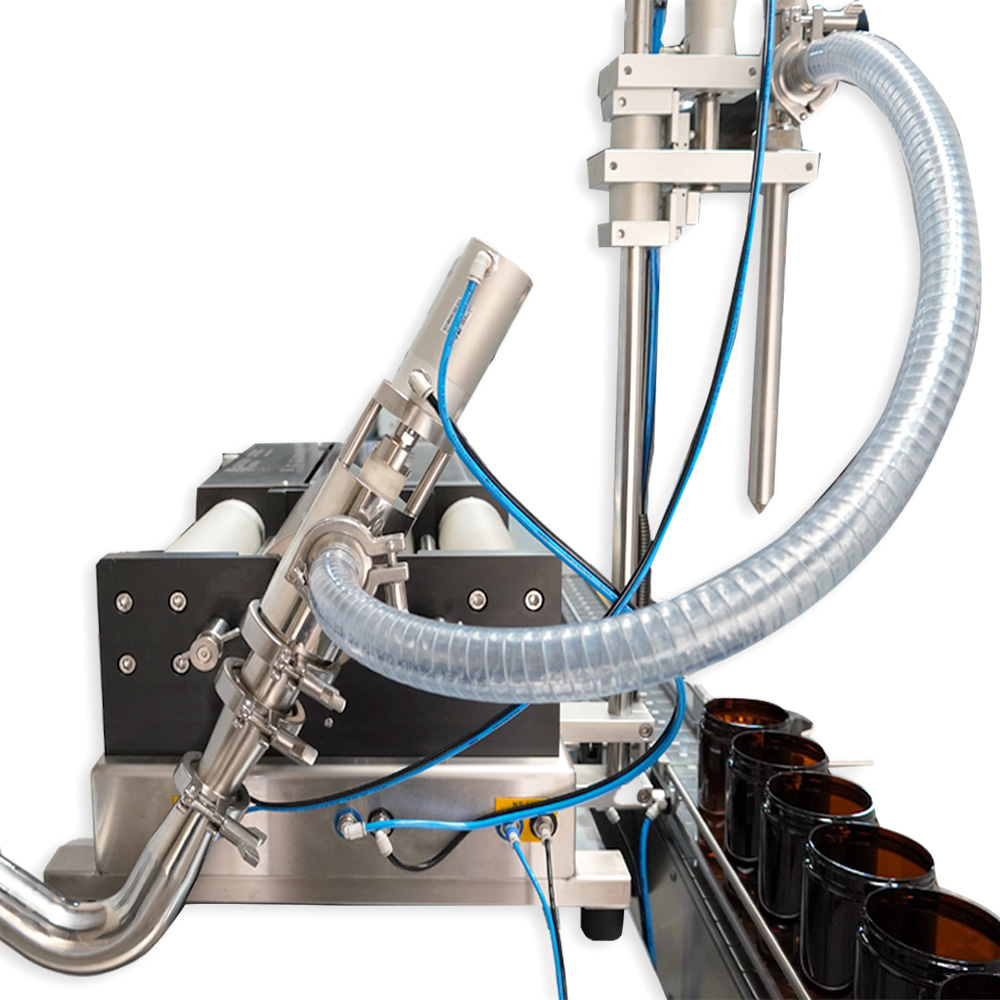

Features bottom up fill (BUF) to reduce foam/froth/bubbling of products
Features a 5L product cylinder capable of filling anywhere from 500ml-5000ml in a single shot.

Applications

Liquid dispenser, Fluid filler, Beverage filling device, Fluid packaging equipment, Liquid bottler, Fluid dosing machine, Liquid packaging system, Fluid dispensing apparatus, Beverage bottling machine, Liquid packaging machinery, Liquid filling apparatus, Fluid bottling device, Beverage packaging machine, Liquid bottling system, Fluid doser, Liquid bottling equipment, Beverage dosing machine, Liquid filling station, Fluid bottling unit, Beverage packaging system.

1 x base machine
1 x installed bottom up fill (BUF) assembly
1 x positive shut off nozzle
1 x 1? transfer hose & fittings
1 x spool valve
1 x 5L product cylinder
2 x outlet hose barbs
6 x triclover clamps (including seals)
2 x reducers
1 x automatic attachments GDS-A (including 2 x gates, 2 x sensors and all associated brackets)
