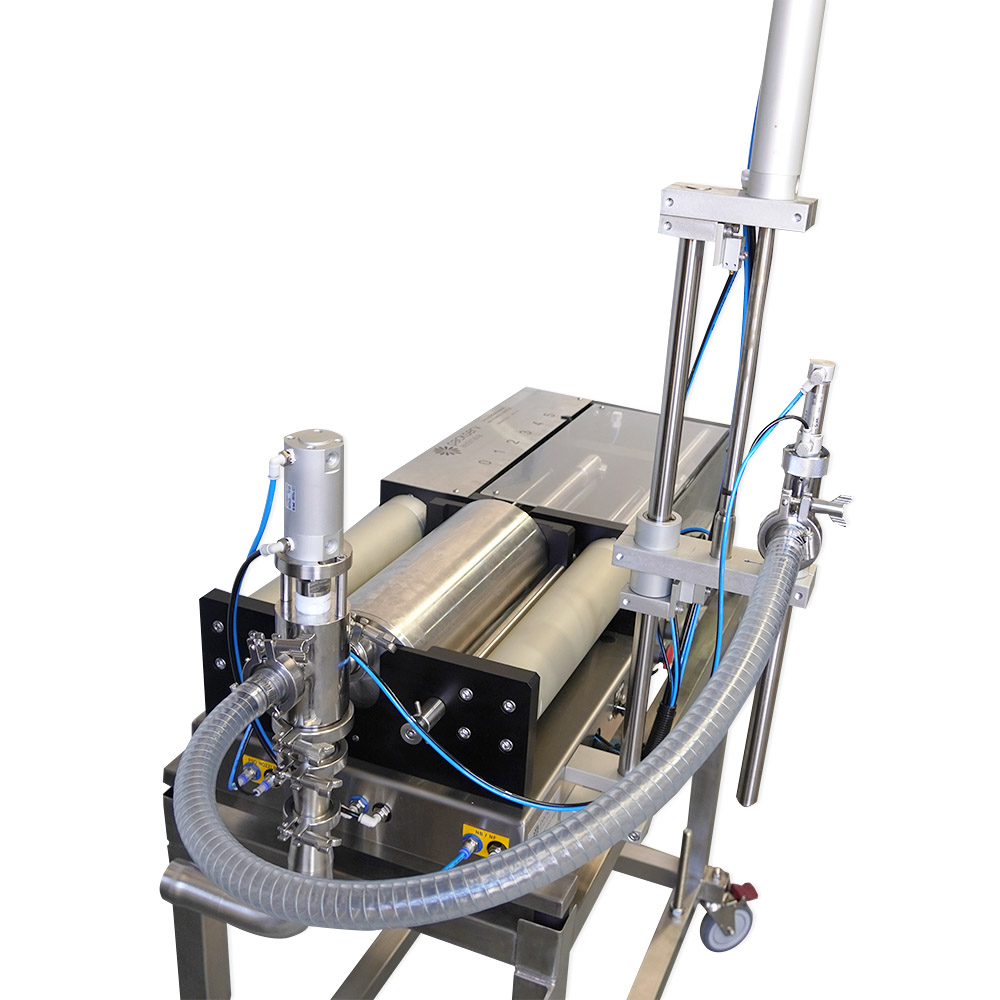

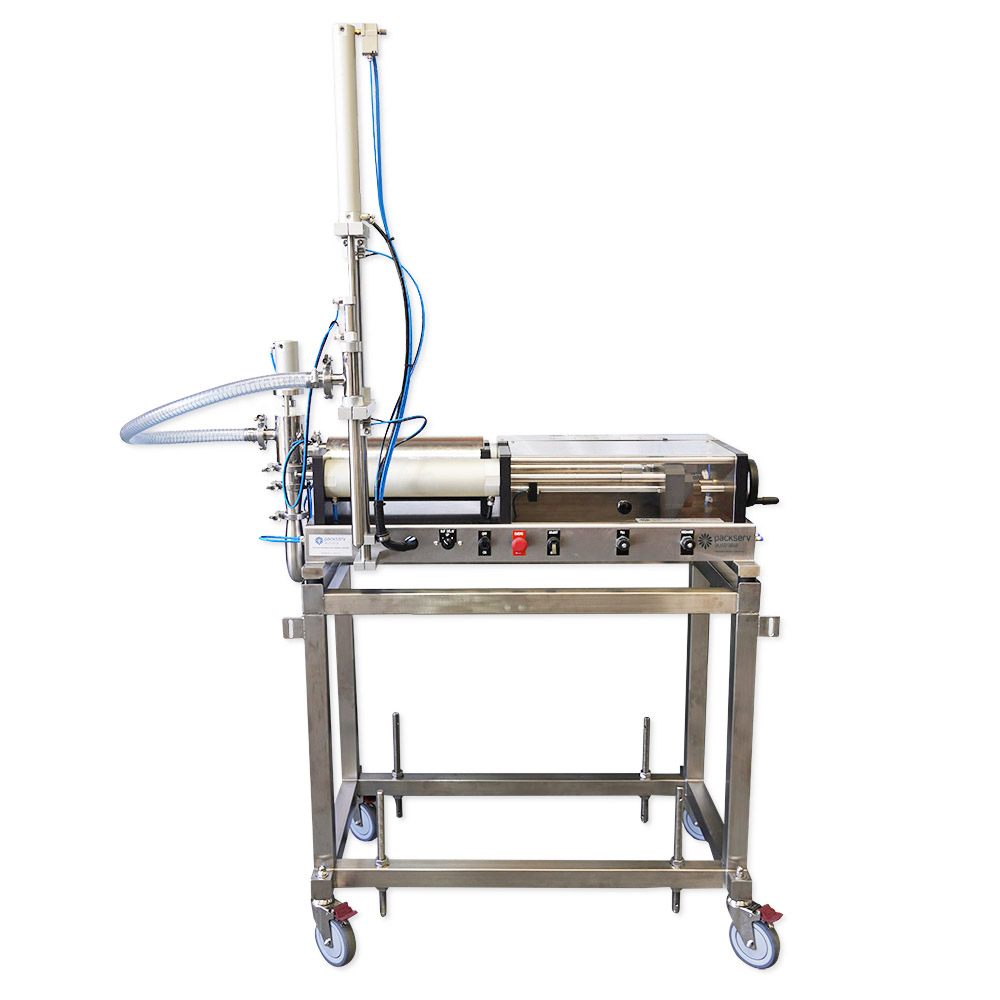

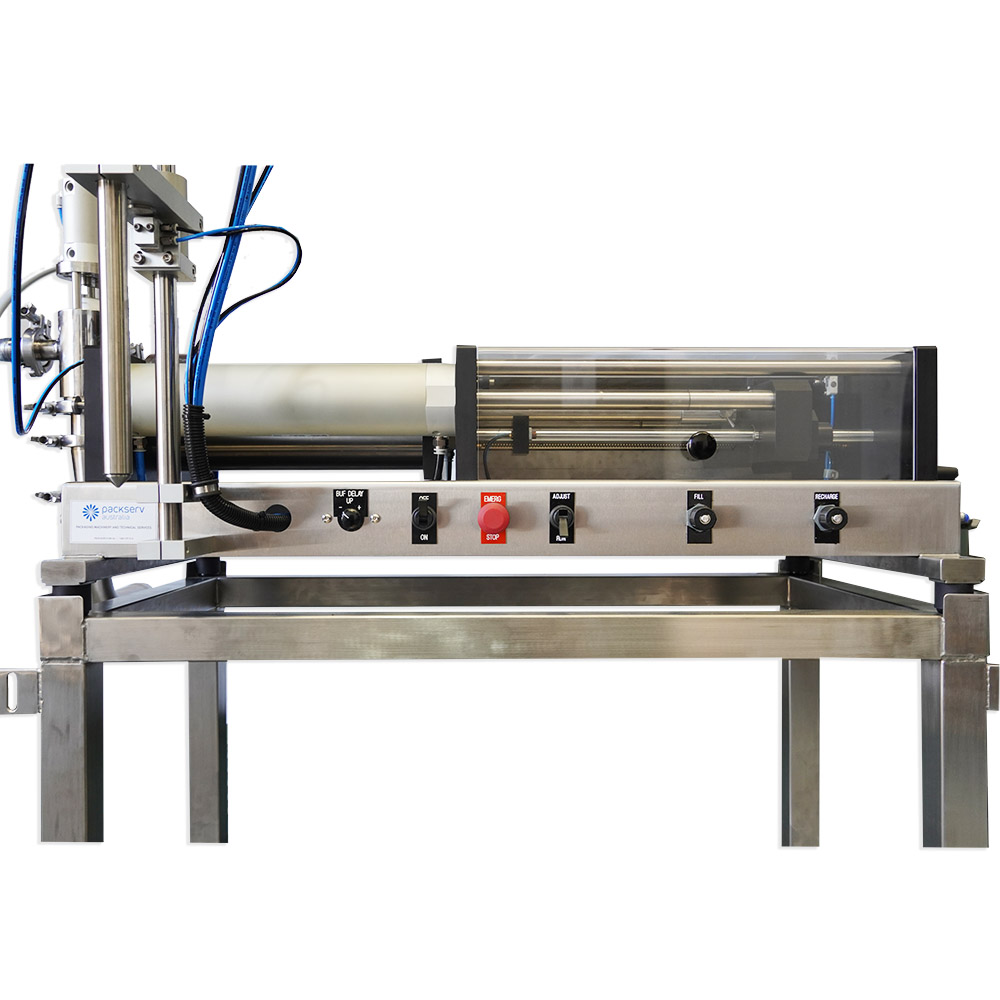

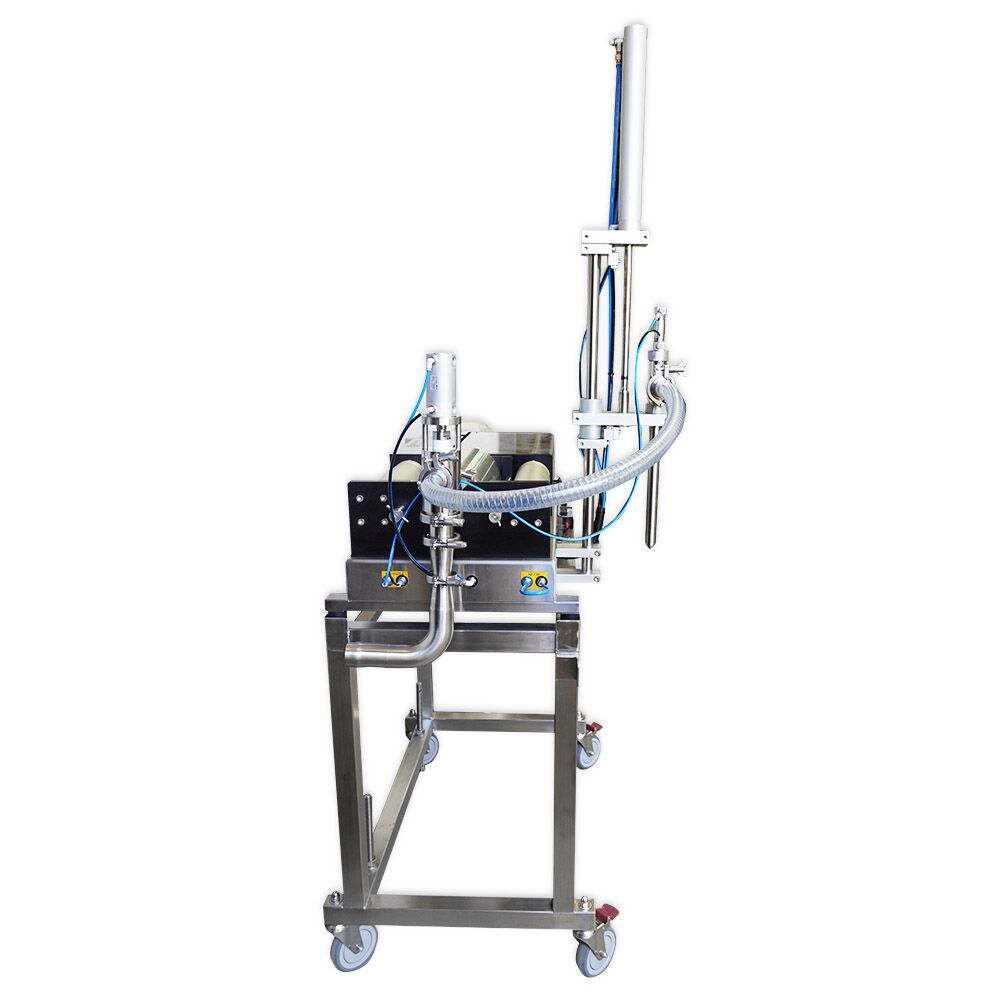

Our PFM-5-BUF Single Head 5 Litre Bottom Up Filler (BUF) is a semi-automatic liquid, cream and lotion filler that is simple and versatile. The heavy duty, all pneumatic design of the PFM-5-BUF is compact, reliable and easy to clean. It is capable of semi-automatic benchtop function. This machine features a 5 litre product cylinder allowing for single-shot filling from 500mL-5000mL.

The PFM-5-BUF also comes standard with positive shut-off nozzle and a bottom up fill assembly. The spool-valve system of the filler handles all types of bottling products. It is capable of processing thin liquids, to creams and thick pastes as well as hot and cold filling. This equipment can handle temperatures of up to 95°C with ease.

The cylinder design of the PFM-5-BUF enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be utilised to suit the nature of our customers’ products such as hoppers and inlet assemblies. Hence, our 5L-BUF machine is versatile in processing various goods.

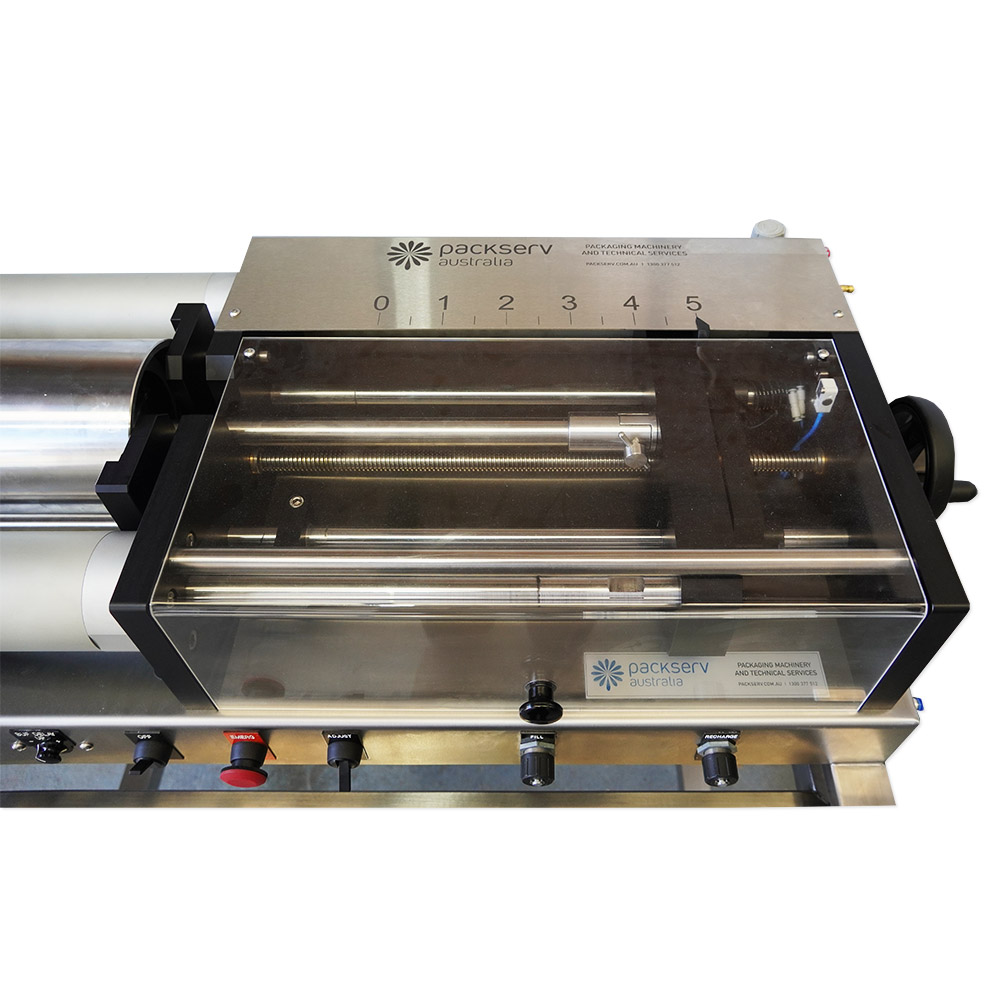

Finally, we enclosed the stroke adjuster and air/product cylinder drive assembly with a safety interlocked poly-carbonate cover, stopping the machine if opened by operator.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight	75 kilograms
Length	1200mm
Width	500mm
Height	800mm
Power Supply	Air compression
Construction Type	316 grade stainless steel wet parts
Container Type	Any bottles, bags, sachets, vials, tubes, cartridges,
Mounting	Benchtop (trolley mountable)
Industries	Industrial, chemical, cleaning, agricultural, food, pharmaceutical
Air Pressure	600kpa (80psi)
Units Per Minute	10-15UPM (guide only)
Noise	Medium
Flameproof	Yes
Timer Control	Pneumatic
Speed	Totally speed adjustable for all functions
Fill Range	500ml – 5ltr
Fill Temperature	Cold and hot fill
Fill Type	Liquids, creams, lotions
Not Suitable Products	Powder and granules
Machine Cleaning	Easy to disassemble for full wash up
Volume	Fully adjustable
Filling Accuracy	+/- 0.5 to 1% variance
Cylinder Sizes	5000ml
Automatic Function	Semi-automatic (requires operator to place and remove containers during fill cycle)

Make	Packserv
Automatic Function	Semi-Automatic
Mounting	Benchtop (Trolley available)

Heavy duty pneumatic product cylinder drive system
All pneumatic flameproof operation suitable for use with flammable products
Easy volume adjustment while running a single cylinder
Adjustable piston fill and recharge stroke speed
Simple tool-free dismantling makes for easier cleaning
Quick changeover of products and parts
Suitable for liquids, creams and pastes
Filler is suitable for food and pharmaceutical use
Suitable for warm water hose down
Quick connect tri-clover product inlet/outlet fittings
Various methods to feed product to machine available
Features bottom up fill (BUF) to reduce foam/froth/bubbling of products
Features a 5L product cylinder capable of filling anywhere from 500ml-5000ml in a single shot.

Applications

Liquid dispenser, Fluid filler, Beverage filling device, Fluid packaging equipment, Liquid bottler, Fluid dosing machine, Liquid packaging system, Fluid dispensing apparatus, Beverage bottling machine, Liquid packaging machinery, Liquid filling apparatus, Fluid bottling device, Beverage packaging machine, Liquid bottling system, Fluid doser, Liquid bottling equipment, Beverage dosing machine, Liquid filling station, Fluid bottling unit, Beverage packaging system.

1 x base machine
1 x installed bottom up fill (BUF) assembly
1 x positive shut off nozzle
1 x 1 transfer hose & fittings
1 x spool valve
1 x 5L product cylinder
2 x outlet hose barbs
6 x triclover clamps (including seals)
2 x reducers
