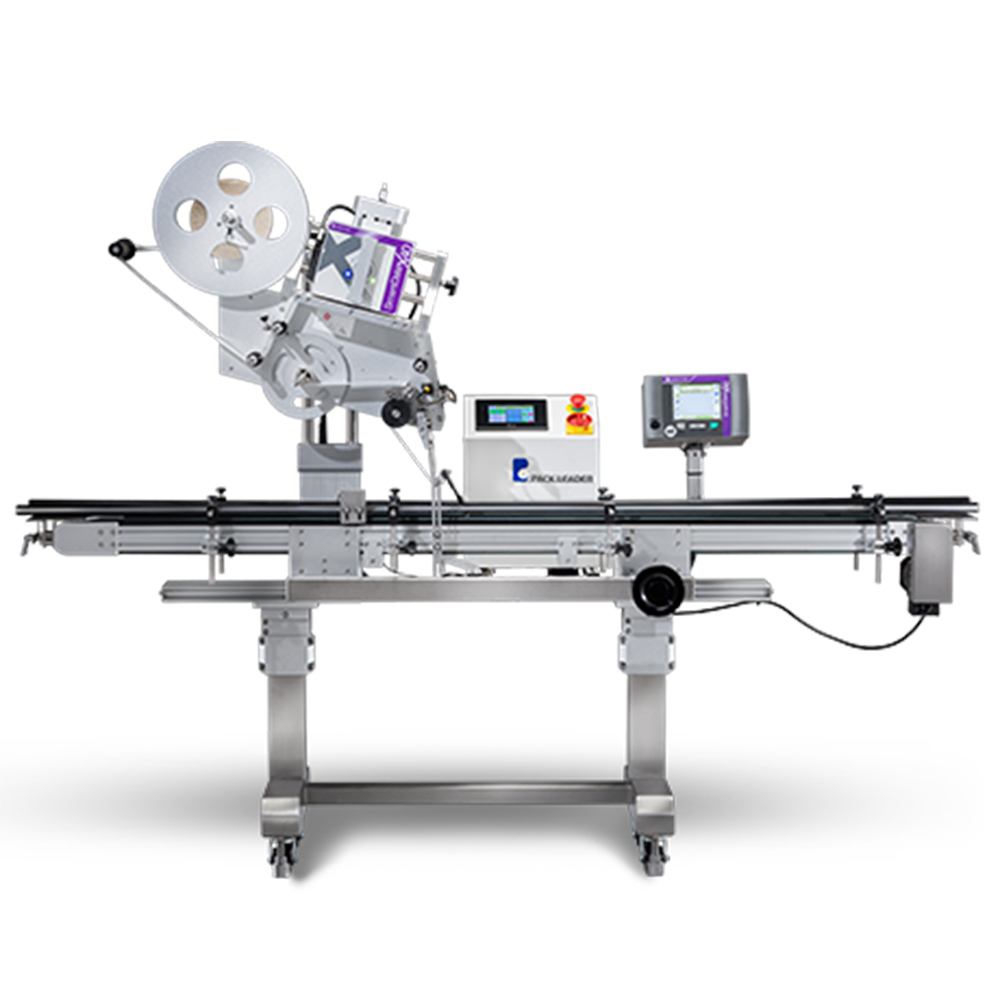

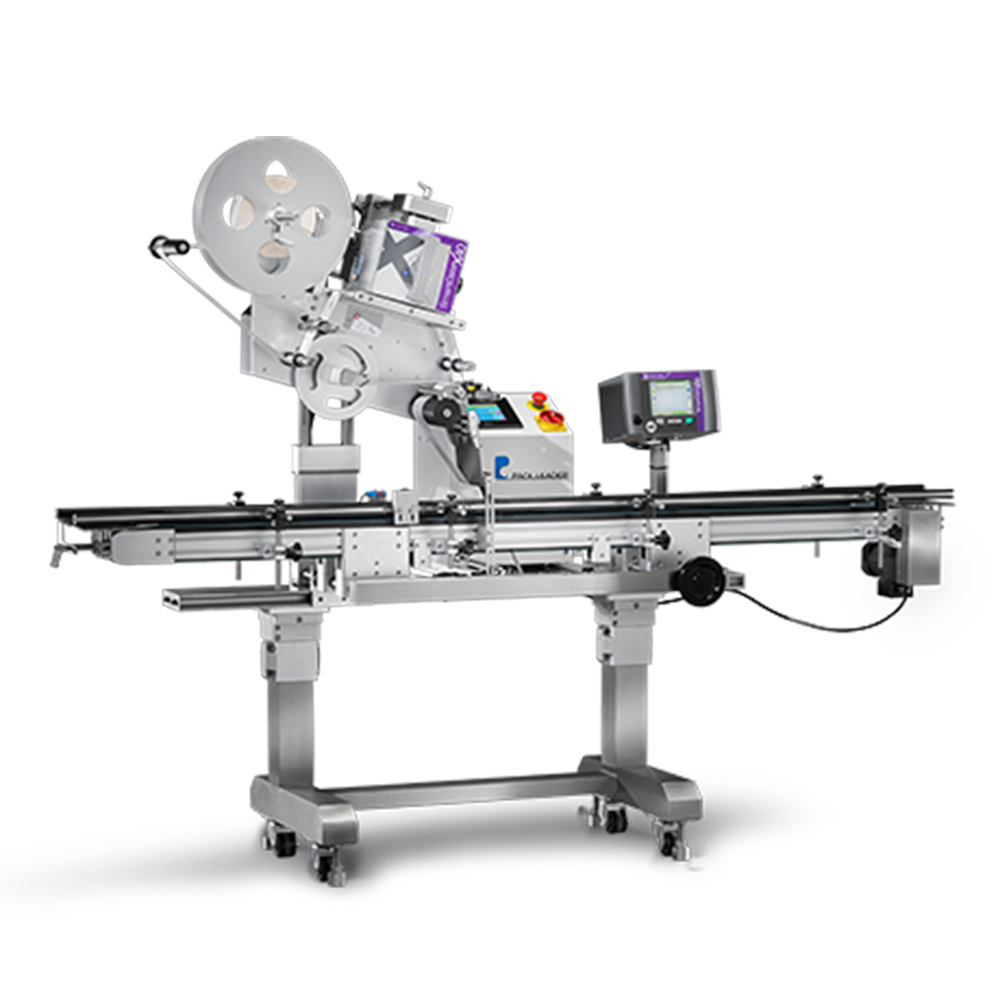

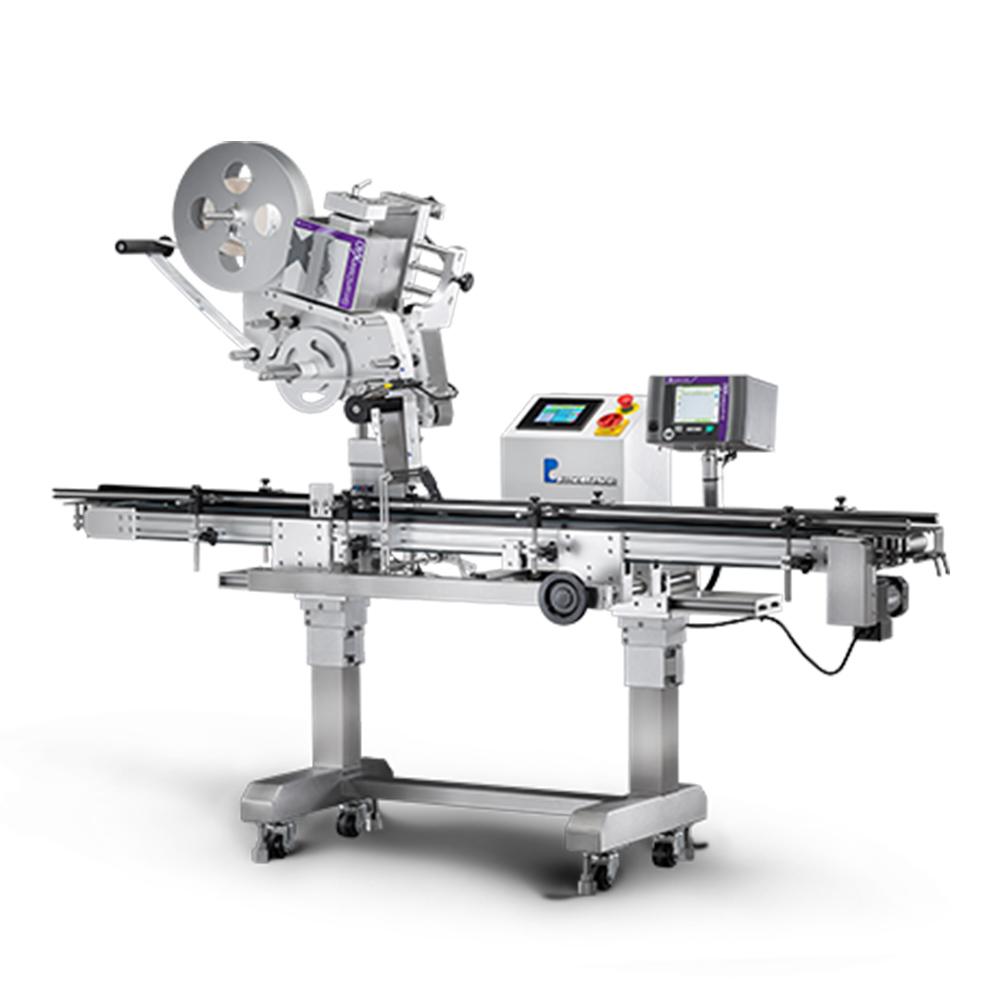

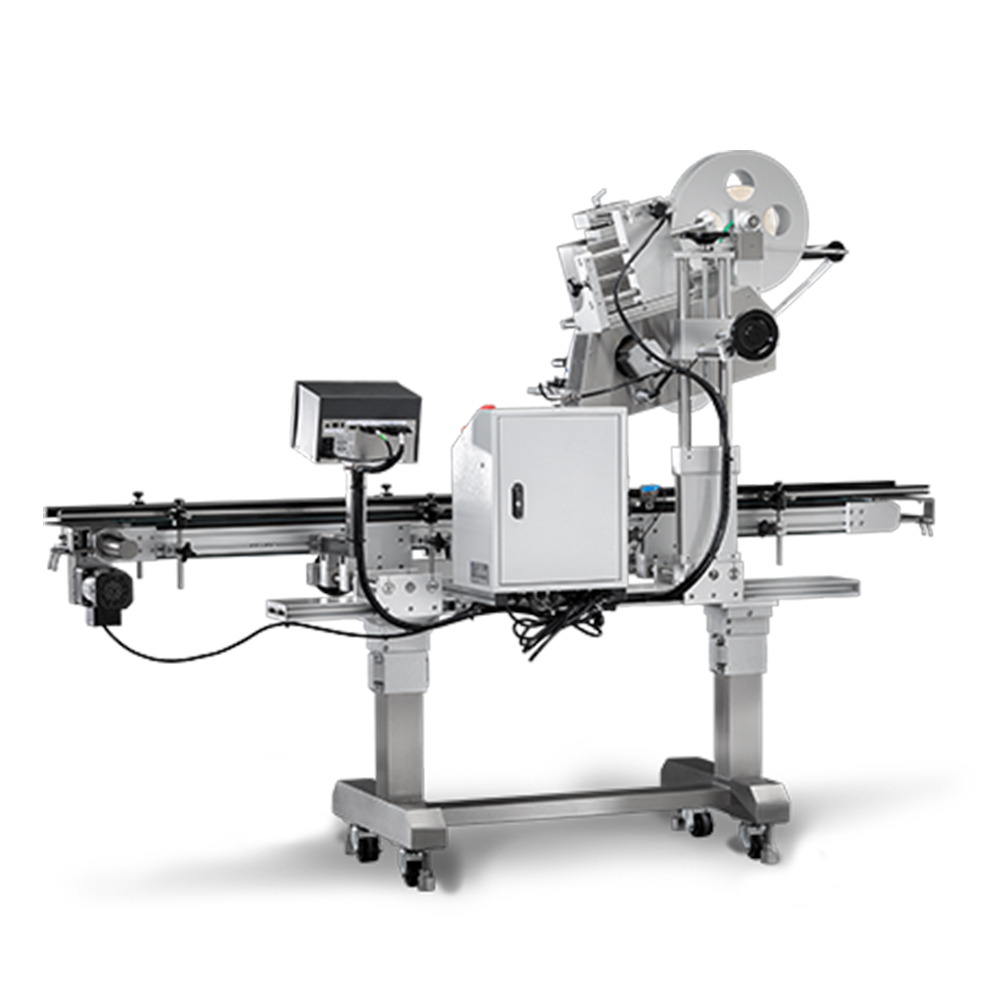

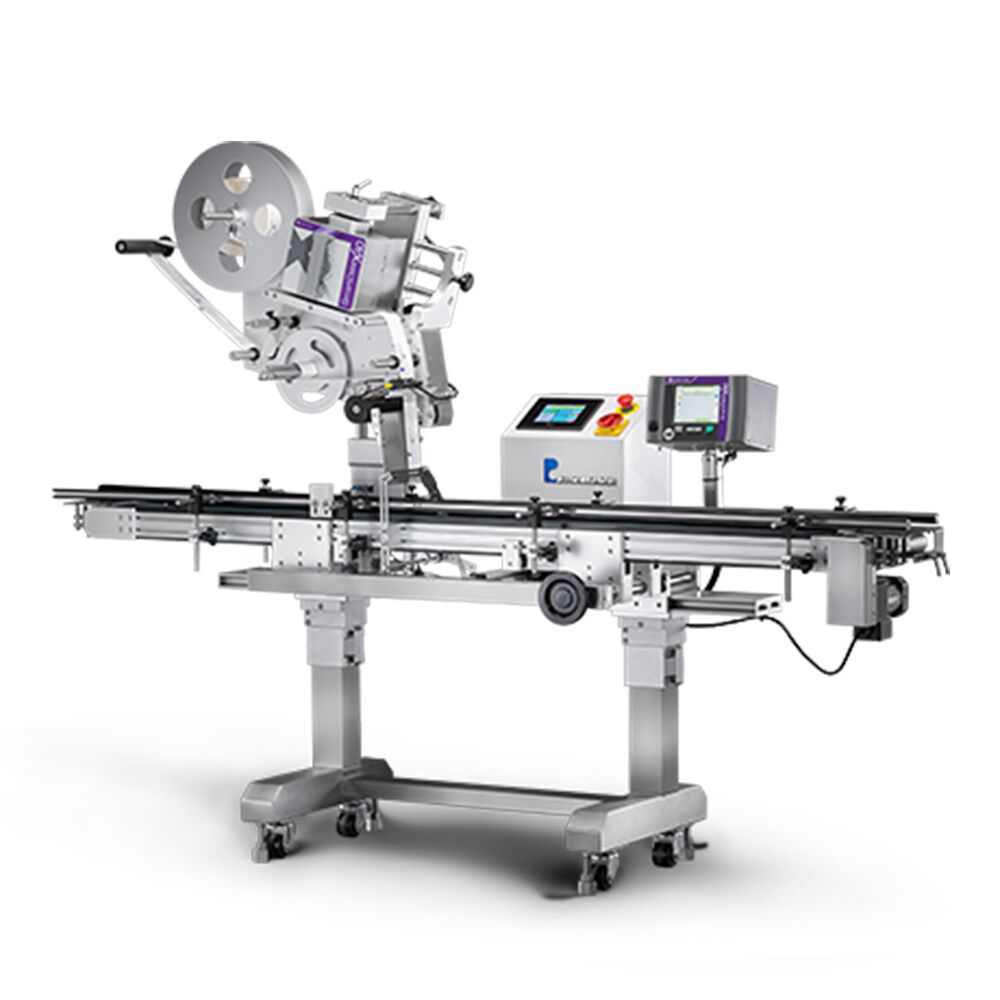

Automatic Top Bottom and Clamshell Labeller (PL-211D).

Pack Leader’s PL-211D Automatic Top, Bottom and Clamshell Labeller is suitable for a wide range of top labelling needs. This includes trays, boxes, chipboard containers, bags and even caps on bottles. This machine features a belt conveyor to offer greater width and traction versus slat conveyors to cater to all product types.

This variant of the PL-211 is specifically designed with clamshell style containers in mind.

It utilises a PLC system combined with a touch screen, an in-built digital counter and self-diagnostic LED on the panel. This synchronises control on the entire machine structure, which allows stable operation regardless of production speed.

The PL-211D Automatic Top, Bottom and Clamshell Labeller is suitable for a wide range of top labelling on flat package products. A simple, tool-free change is all that is required for changeovers, allowing maximum production efficiency.

All in all, these features add up to a machine that is mobile, stable, flexible, and efficient.

See Also ; Labelling Machines | Packserv Australia

Weight	120kgs (approx.)
Power Supply	240V 10Amp
Machine Length	Machine Depth
750mm	Machine Height
1575mm	Max Label Height
Max Label Height	150mm
Max Label Roll Size	300mm
Inner Core Size	76mm
Conveyor Width	160mm
Conveyor Height	749mm-1000mm
Max Container Width	155mm
Label Dispensing Speed	Up to 40m/min

Make	Pack Leader
Automatic Function	Yes
Mounting	Frame featuring castors
Label Type	Top and Bottom Label

One-button teach label sensor makes for quick setup and product changeover
Fully adjustable product sensor ensures all materials/shapes are recognised
Missing-label feature in-built to avoid unlabelled products
Stepper motor ensures fast and accurate label application with only an inaccuracy of ?0.5%
150mm label applicator can be ugpraded to cater to a wider range of labels
Labeller and conveyor are synced to ensure perfect label application each and every time
Touch screen control panel makes for tool-free on the fly adjustments by even inexperienced operators
Label/Product count feature allows true progression tracking
Frame on wheels allows for easy maneuvrability between different lines or during cleaning
304 grade stainless steel and anodised aluminium frame ensures a durable product with a long lifespan bult to GMP standards
Height adjustable conveyor belt to cater to all container types and sizes
Memory supports 30 different sets of settings and boots up with most recent settings used
Control panel features built-in Mechanical Operation Tutorial and troubleshooting
Machine is designed for upgrades and these are virtually just bolt on additions
Options include: Hot Foil Coder, different applicator heights, conveyor widths/styles and more
