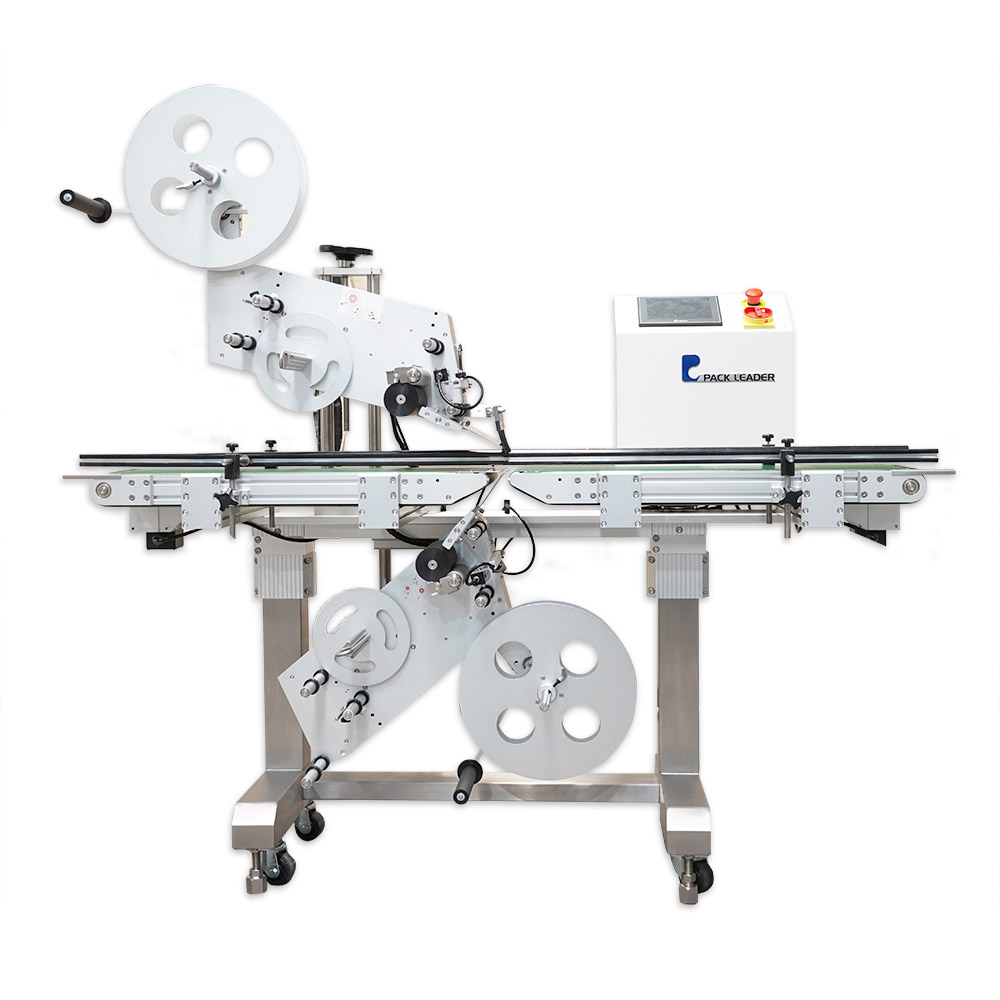

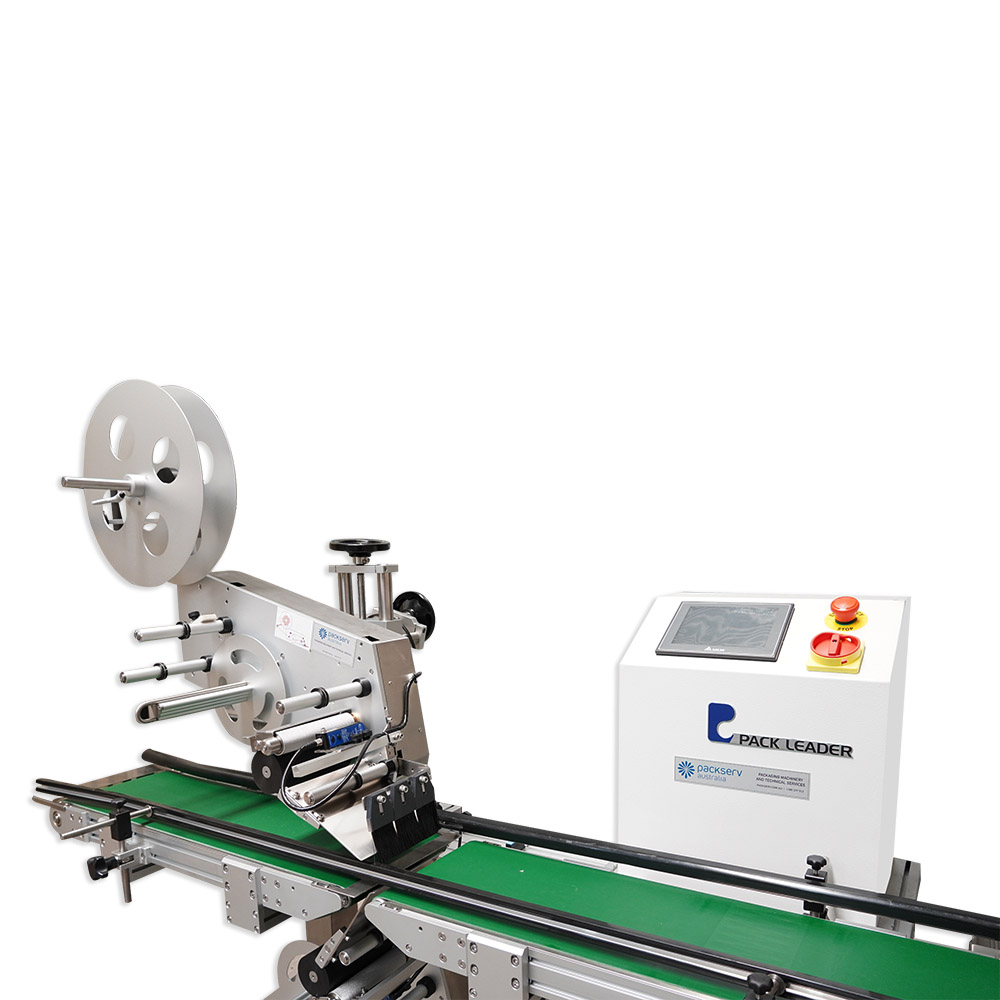

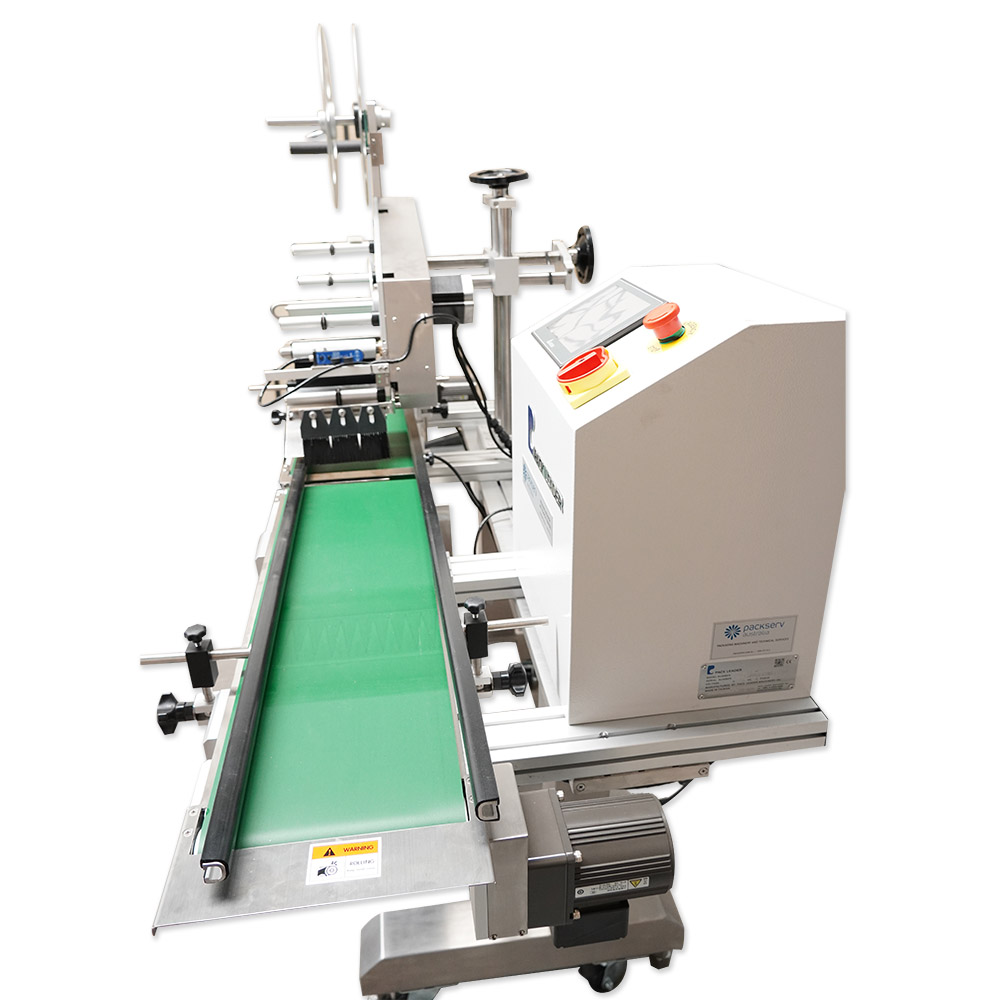

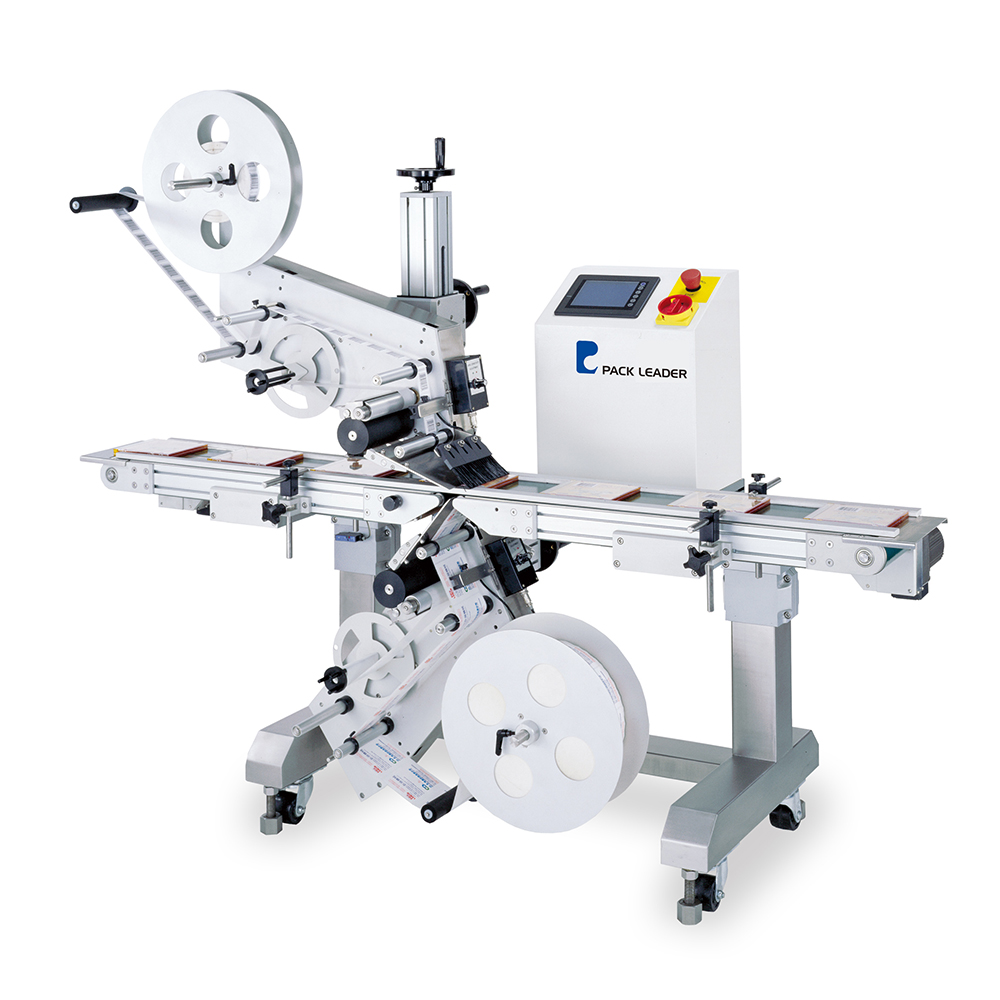

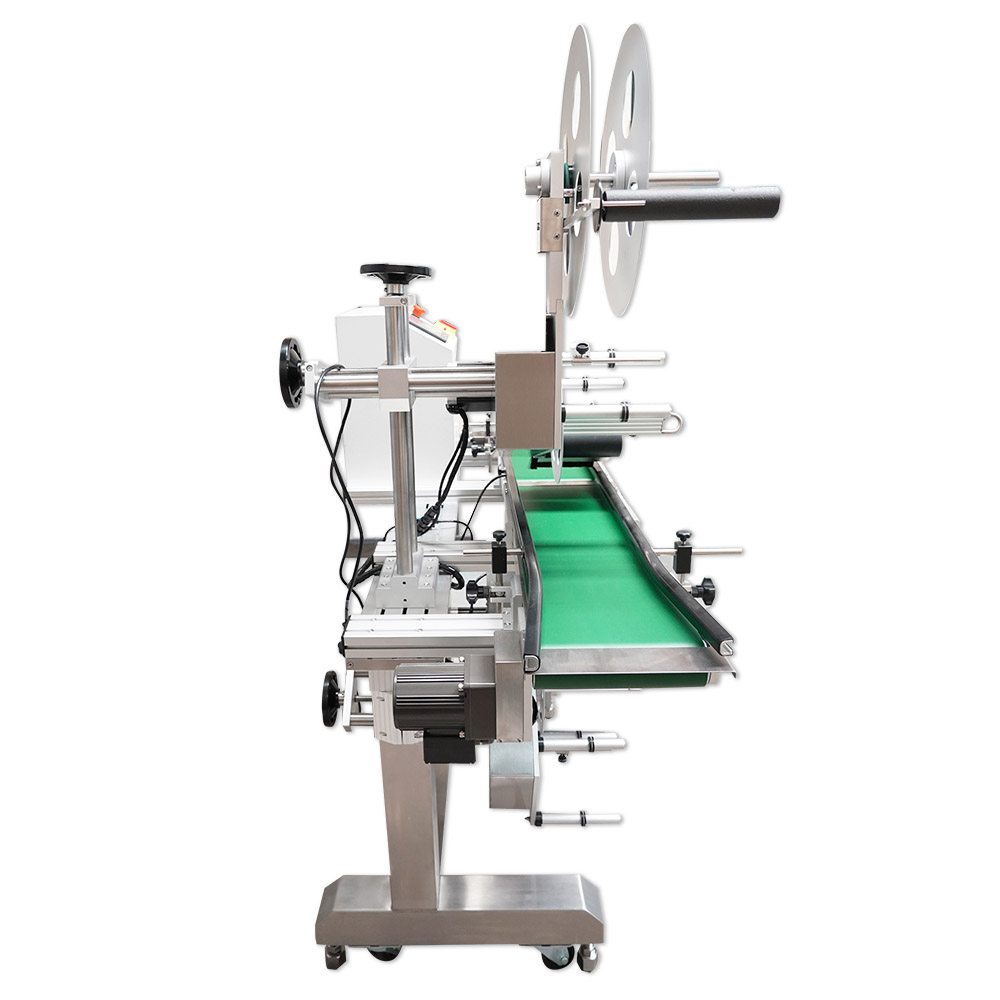

Pack Leader’s PL-221 Standard Top & Bottom Wipe-on Labeller stands out with its innovative dual-head design, streamlining top and bottom wipe-on labelling applications effortlessly.

Featuring two labelling heads that work in harmony, this machine applies top and bottom labels simultaneously in a single pass, enhancing efficiency and productivity.

The PL-221 PLC system boasts a user-friendly interface, including a responsive touch screen, an integrated digital counter, and a self-diagnostic LED control panel. This intelligent system synchronises the entire machine structure seamlessly. The operator interface provides built-in operating instructions and a troubleshooting guide, ensuring an exceptional user experience with minimal training required.

Additionally, the PL-221 offers hassle-free operation with tool-free adjustments, allowing for swift setup and effortless label or product changeover. Its intuitive design simplifies the labelling process, making it a reliable choice for various labelling needs

Weight	120kgs (approx.)
Power Supply	240V 10Amp
Machine Depth	900mm
Machine Height	1500mm
Max Label Height	150mm
Max Label Roll Size	300mm
Inner Core Size	76mm
Conveyor Width	160mm
Conveyor Height	749mm-1000mm
Max Container Width	155mm
Label Dispensing Speed	Up to 40m/min

Make	Pack-Leader
Automatic Function	Yes
Mounting	Frame featuring castors
Label Type	Top and Bottom Label

One-button teach label sensor makes for quick setup and product changeover.
Fully adjustable product sensor ensures all materials/shapes are recognised.
Missing-label feature in-built to avoid unlabelled products.
Stepper motor ensures fast and accurate label application with only an inaccuracy of 0.5%.
150mm label applicator can be ugpraded to cater to a wider range of labels.
Labeller and conveyor are synced to ensure perfect label application each and every time.
Touch screen control panel makes for tool-free on the fly adjustments by even inexperienced operators.
Label/Product count feature allows true progression tracking.
Frame on wheels allows for easy manouevrability between different lines or during cleaning.
304 grade stainless steel and anodised aluminium frame ensures a durable product with a long lifespan bult to GMP standards.
Height adjustable conveyor belt to cater to all container types and sizes.
Memory supports 30 different sets of settings and boots up with most recent settings used.
Control panel features built-in Mechanical Operation Tutorial and troubleshooting.
Machine is designed for upgrades and these are virtually just bolt on additions.
Options include: Hot Foil Coder, different applicator heights, conveyor widths/styles and more.
