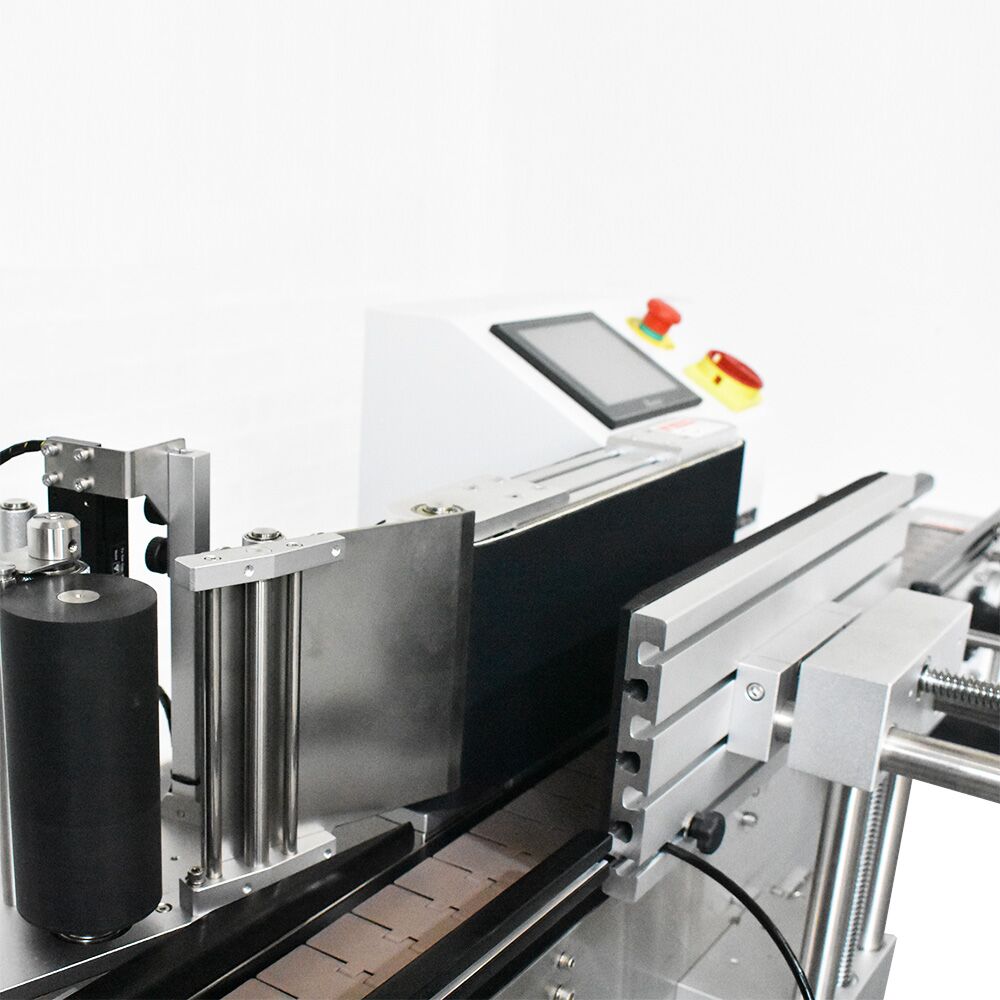

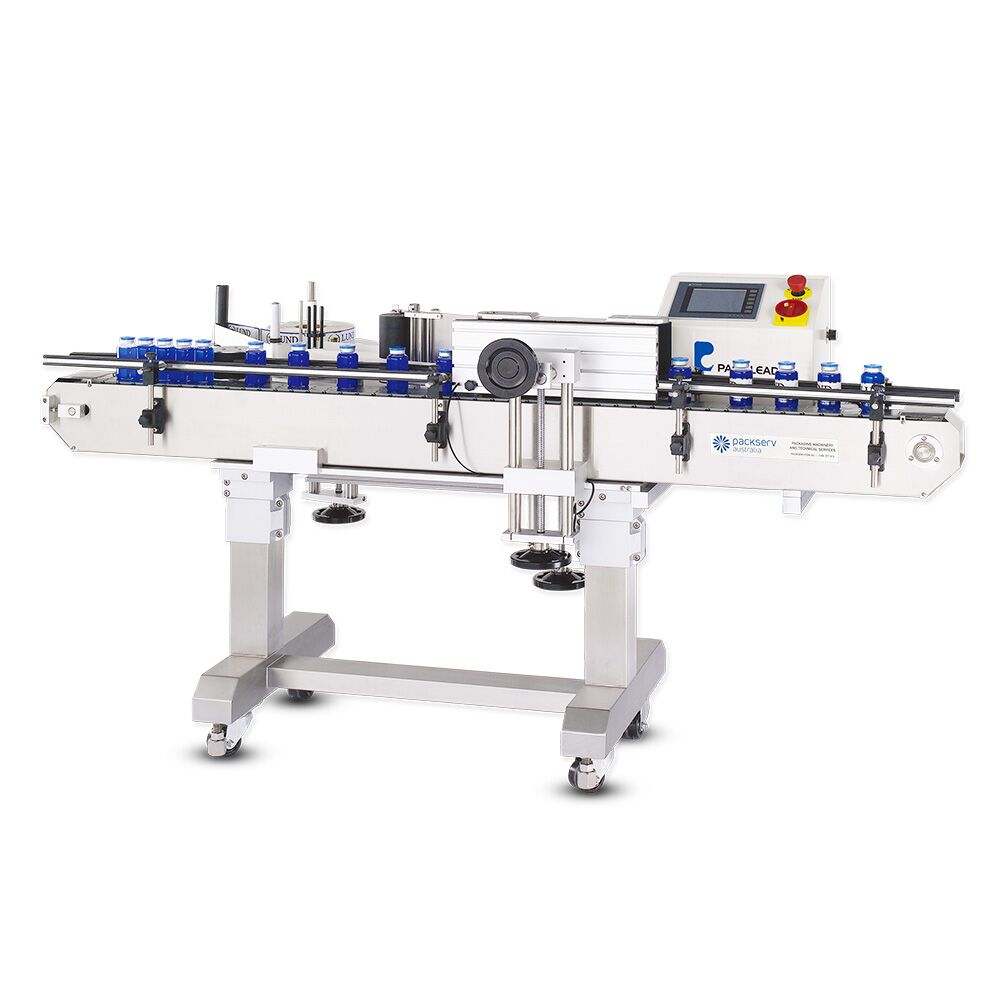

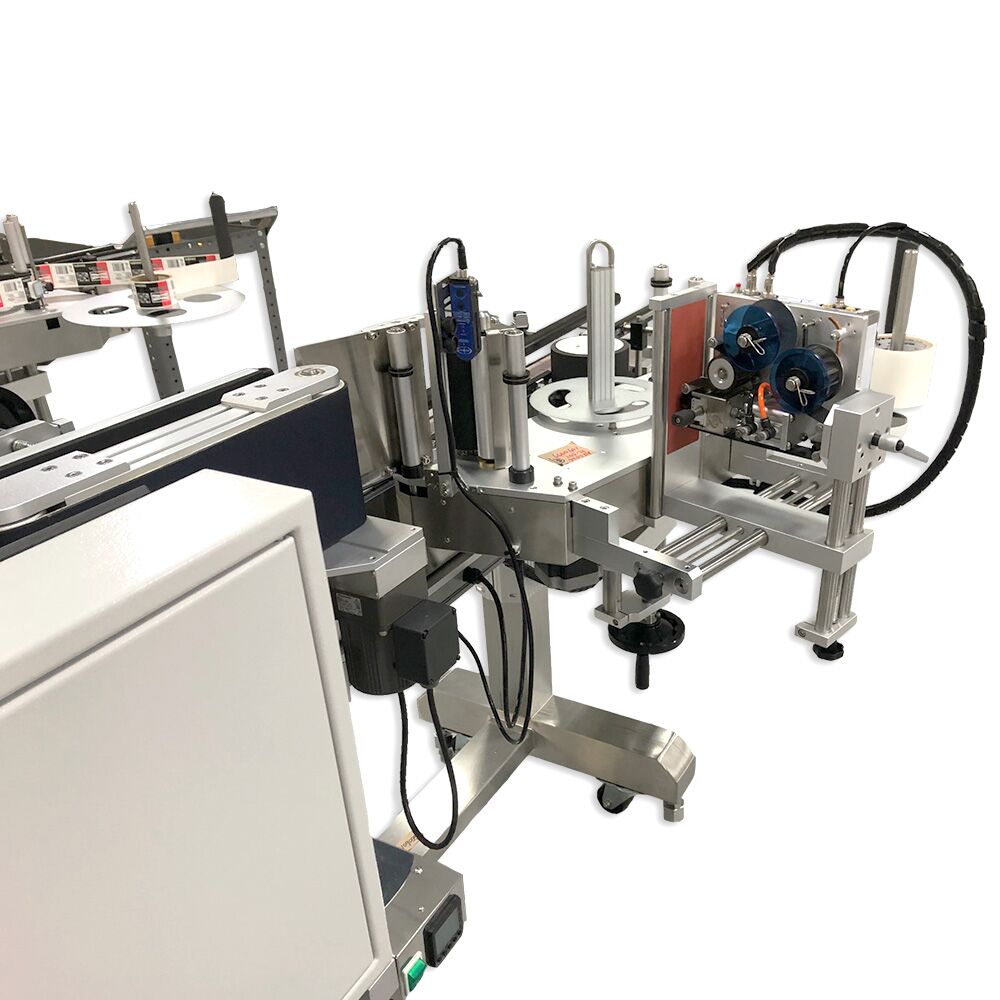

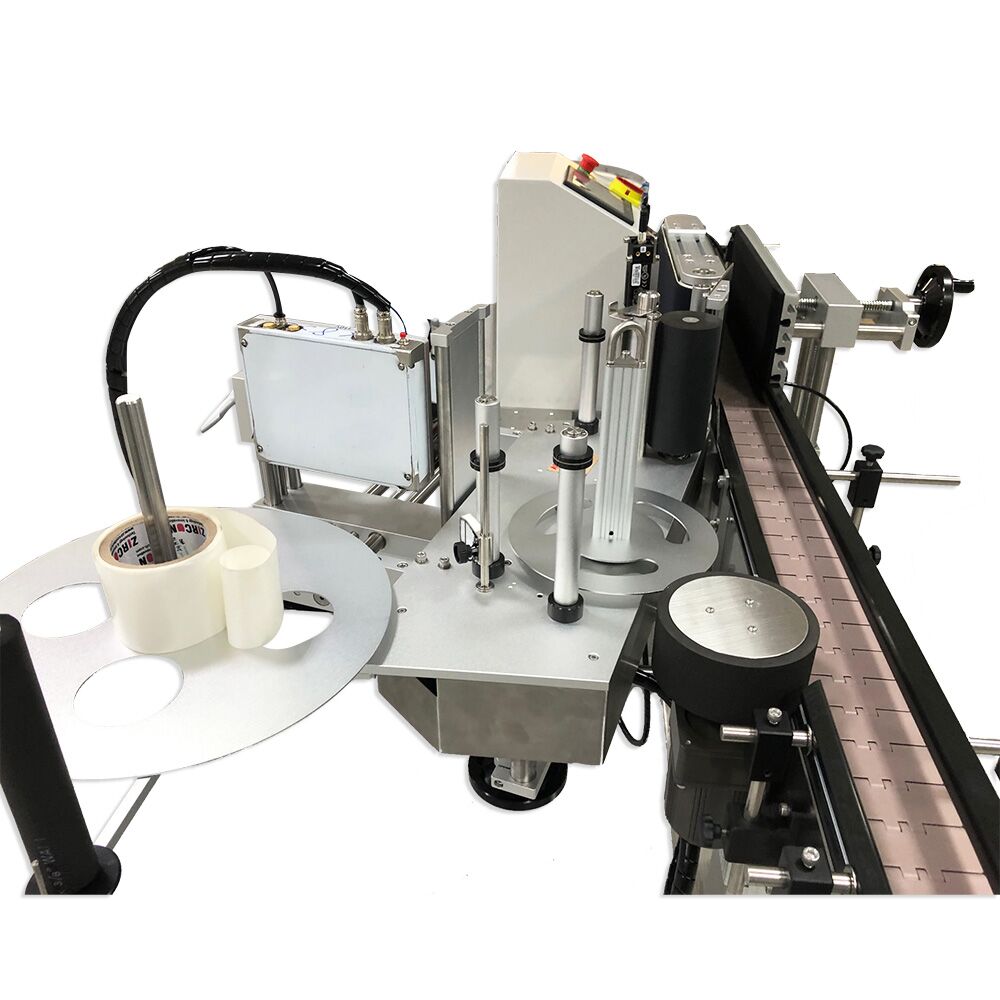

Automatic Wrap Around Labeller

The Pack Leader PL-501 is a fully automatic wrap-around labeller desinged for use with round containers. It offers exceptional flexibility, speed and endurance at an affordable price.

Product Code PL-501 Category Tag

Pack Leader’s PL-501 Automatic Wrap Around Labeller is an easy to use automatic labeller, that has established a position in the Craft Brewing industry both here in Australia and internationally, as the industry standard automatic labelling machine of choice. This machine can handle all types of labels and can be relied upon to work reliably in all kinds of environments.
The PL-501 series of Automatic Labellers have a number of machines that have optional equipment fitted as ‘standard’ in order to supply ready-to-use labellers for specific tasks, such as:

PL-501D-VW Wrap Around Vacuum Wrap Labeller
PL-501D-TC Wrap Around Labeller for Tapered Containers
PL501D-NL Wrap Around Labeller for Neck Labelling

The PL-501 range utilises a touch screen, an in-built digital counter, and a self-diagnostic LED control panel that combine to synchronize the entire machine structure. The built-in operating instructions and troubleshooting guide offered on the operator interface make for an outstanding operator friendly experience that requires minimal training.
With provision for 30 different, recordable settings and simple, tool-free adjustments, set-up and product changeover is simple, quick and easy.

The PL-501 Automatic Wrap Around Labeller Is fully customisable with a range of optional Inclusions:
Conveyor Height can be adjusted from 700mm to 1000mm (not including levelling jacks’ adjustment)
Optional Hot Foil Coder for batch & expiry printing on labels
Label Applicators Up To 200mm tall for larger labels
Poly or stainless steel conveyor slats
Optional sensors for clear and metallic labels
3-Point Wrap Station for front and back labelling
AI Sensor for orientation labelling
Tamper-seal labelling
Vacuum Wrap for conical or angled containers
Neck labelling
Bespoke custom labelling options are also possible
The PL501 range of machines have a number of additional features that are supplied as standard. You can find details of these under the section entitled “Additional Information”.

Voltage220/110 VAC 50/60 Hz Single Phase
Power760 VA
ControlsTouch Screen
Applicator Height150 mm
Label SizeH:150 mm x L:300 mm Max
Label Roll Size300mm diameter Max.
Label Roll Core76mm diameter
Maximum Bottle Diameter100 mm
Conveyor Width100 mm
Conveyor Speed5~23 m/min.
Dispensing Speed40 m/min. Max
Dispense DriverStepper Motor
Dimensions2004mm(L) X 1052 mm (W) X 1043mm (H)
Net WeightApprox. 150 KGS
Make

Automatic Function

Mounting

  • Adjustments via one-touch screen and label sensors ensure simple set-up of any container
  • Manual label position button ensures labels are placed accurately on container
  • Modular system allows for simple future upgrades to be conducted (i.e. 3-point roller, orientation sensor, spacing wheel, hot-foil coder)
  • Missing-label function ensures no product goes unlabelled
  • Fully synchonrised controls (i.e. label dispensing, wrap-belt, conveyor speeds) ensure consistent labelling
  • Independent positioning systems for the wrap-belt, pressure-pad and label applicator for complete flexibility
  • Toolless operation
  • Label/Product counter system to show overall production progress
  • Pre-count to ensure only the number of required units are produced
  • Memory storage with ability to store 30 different label settings
  • 30 Recallable Memory Spots
  • 8 Synchronized Speeds Selection
  • In Built Instructions And Trouble Shooting
  • Production Counter And Preset Function
  • Auto Labelling Start Up Mode
  • Castors For Easy Relocation
  • Levelling Jacks For Uneven Floors
  • 1 x wrap belt
  • 1 x foam pressure-pad
  • 1 x label application system
