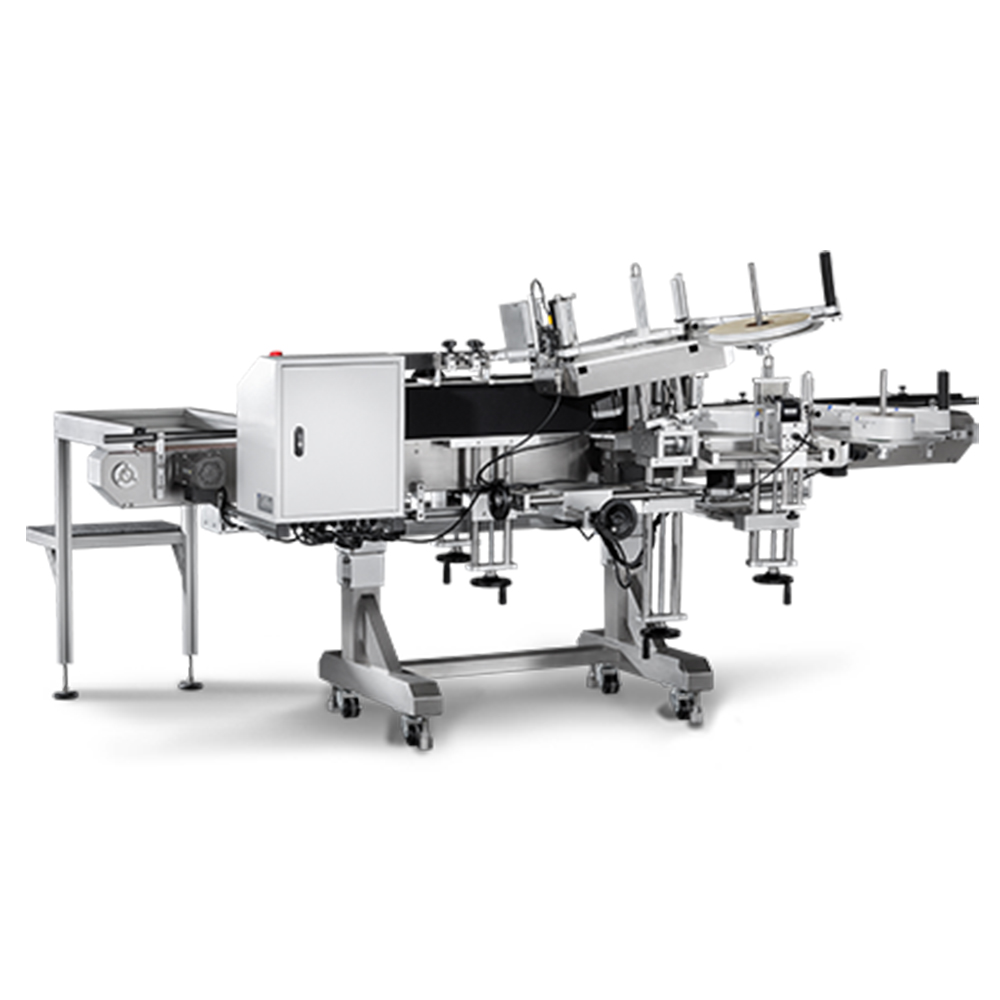

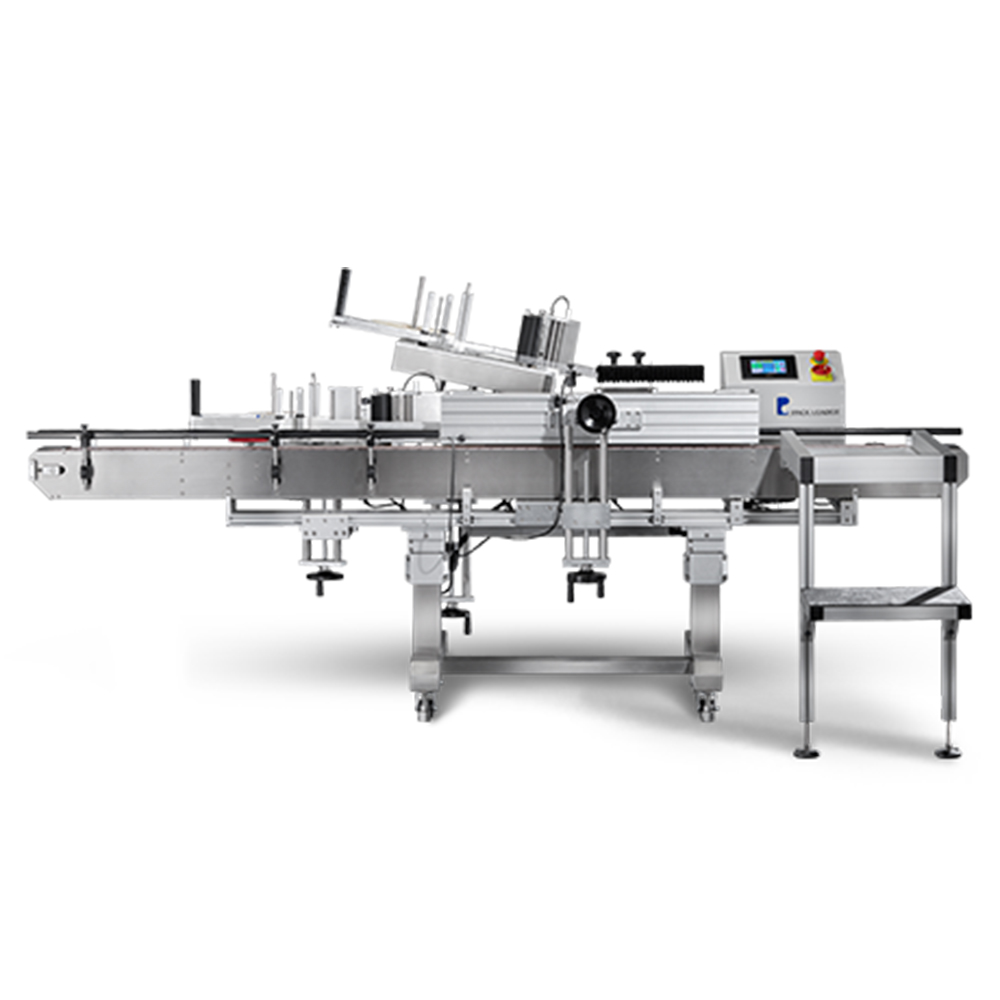

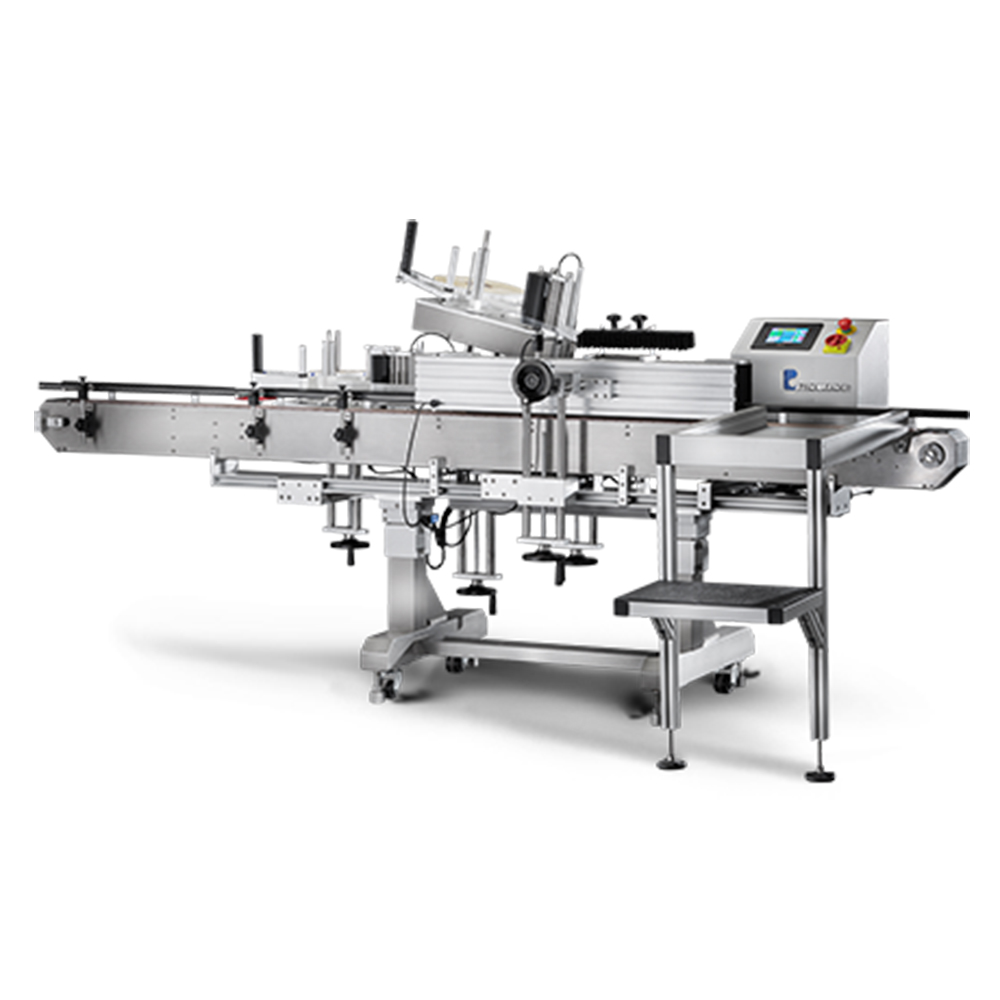

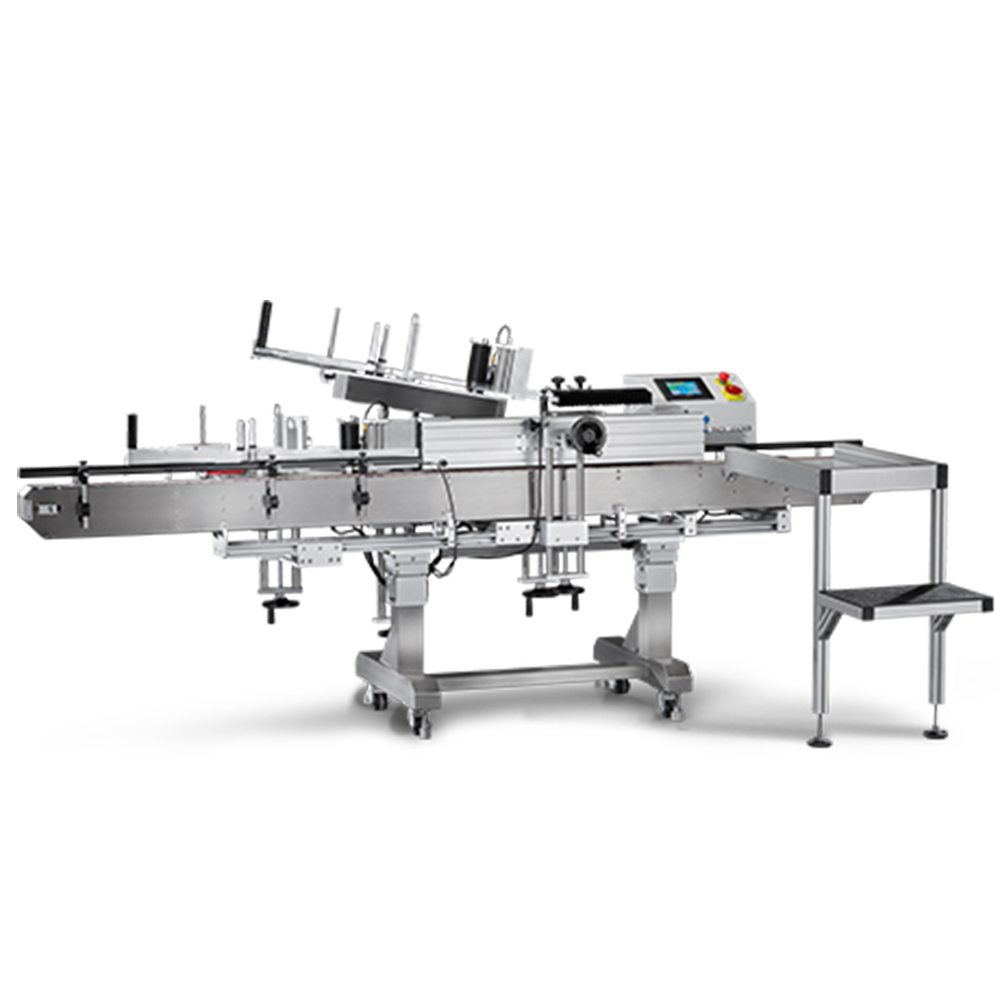

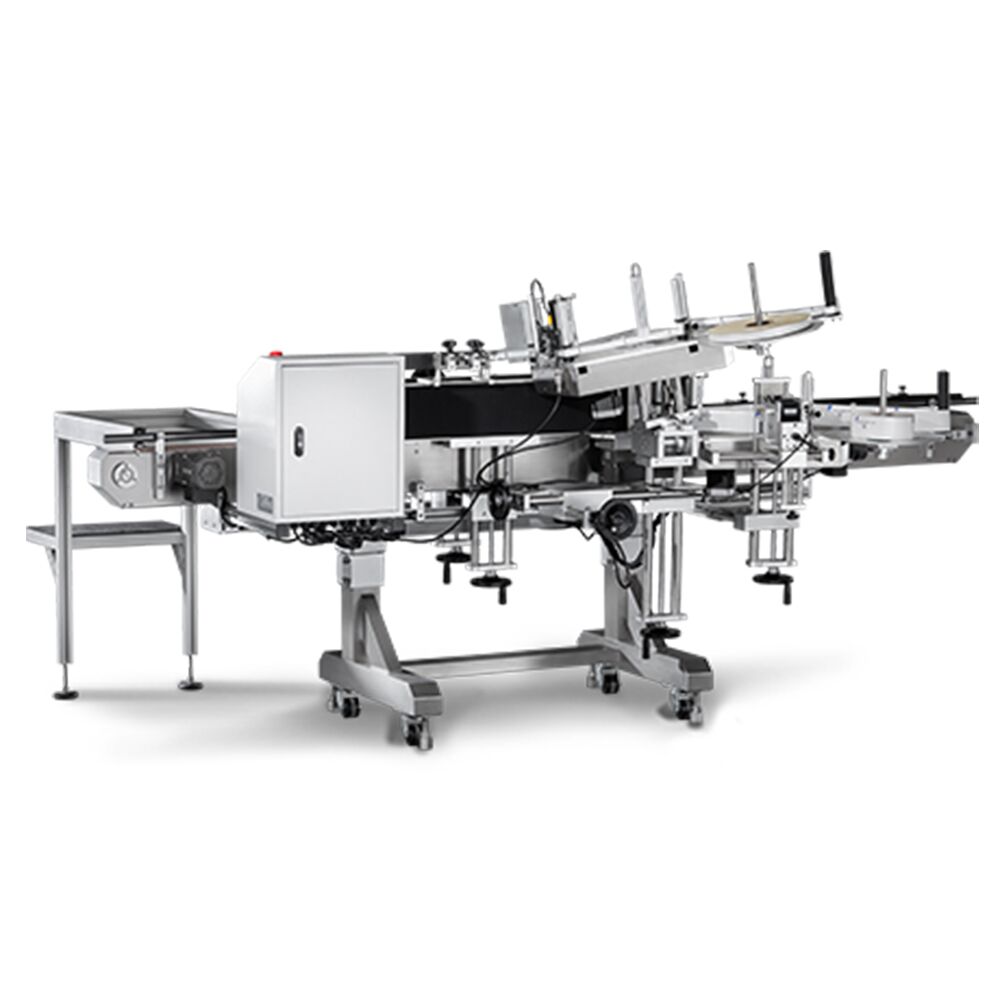

Pack Leader’s PL-501D-NL is an easy to use and accurate automatic wrap labeller with the ability to apply neck labels simulatenously during the body label application.

It utilises a PLC based control panel in the form of an advanced touch screen. The controls are easy to learn and simple to operate.

With advanced sensors, the PL-501D-NL delivers optimal efficiency. Hand wheels provide simple adjustments, enable quick set-up and easy changeover.

The PL-501D-NL Is Fully Customisable And Optional Including:

– Conveyor Height Adjustment From 700mm To 1000mm (not including levelling jacks adjustment)

– Optional Hot Foil Coder (HFC) For Batch And Expiry Printing On labels

– Label Applicators Up To 200mm Tall For Large Labels

– Poly Or Stainless Conveyor Slats

– Optional Sensors For Clear And Metallic Labels

– 3 Point Wrap For Front And Back Labelling

– AI Sensor For Orientation Labelling

– Tamper Seal Labelling

– Vacuum Wrap for Conical Or Angled Containers

– Neck Labelling

– Custom Labelling Options For Your Container, Talk to our Sales Team.

In strict compliance with Good Manufacturing Practices (GMP) standards the PL-501 is made of 304 stainless steel and anodised aluminium, and carefully treated to guard against the effects of harsher environments.

Pack Leader products are manufactured under strict ISO 9001 quality control procedures and also strictly tested by the European CE and UL standards.

Voltage	220/110 VAC 50/60 Hz Single Phase
Power	760 VA
Controls	Touch Screen
Applicator Height	150 mm
Label Size	H:150 mm x L:300 mm Max
Label Roll Size	300mm diameter Max.
Label Roll Core	76mm diameter
Maximum Bottle Diameter	100 mm
Conveyor Width	100 mm
Conveyor Speed	5~23 m/min.
Dispensing Speed	40 m/min. Max
Dispense Driver	Stepper Motor
Dimensions	2004mm(L) X 1052 mm (W) X 1043mm (H)
Net Weight	Approx. 150 KGS

Make	Pack-Leader
Automatic Function	Yes
Mounting	Frame featuring castors
Label Type	Wrap Around Label

Adjustments via one-touch screen and label sensors ensure simple set-up of any container
Manual label position button ensures labels are placed accurately on container
Modular system allows for simple future upgrades to be conducted (i.e. 3-point roller, orientation sensor, spacing wheel, hot-foil coder)
Missing-label function ensures no product goes unlabelled
Fully synchonrised controls (i.e. label dispensing, wrap-belt, conveyor speeds) ensure consistent labelling
Independent positioning systems for the wrap-belt, pressure-pad and label applicator for complete flexibility
Toolless operation
Label/Product counter system to show overall production progress
Pre-count to ensure only the number of required units are produced
Memory storage with ability to store 30 different label settings
30 Recallable Memory Spots
8 Synchronized Speeds Selection
In Built Instructions And Trouble Shooting
Production Counter And Preset Function
Auto Labelling Start Up Mode
Castors For Easy Relocation
Levelling Jacks For Uneven Floors

1 x wrap belt
1 x foam pressure-pad
1 x label application system
