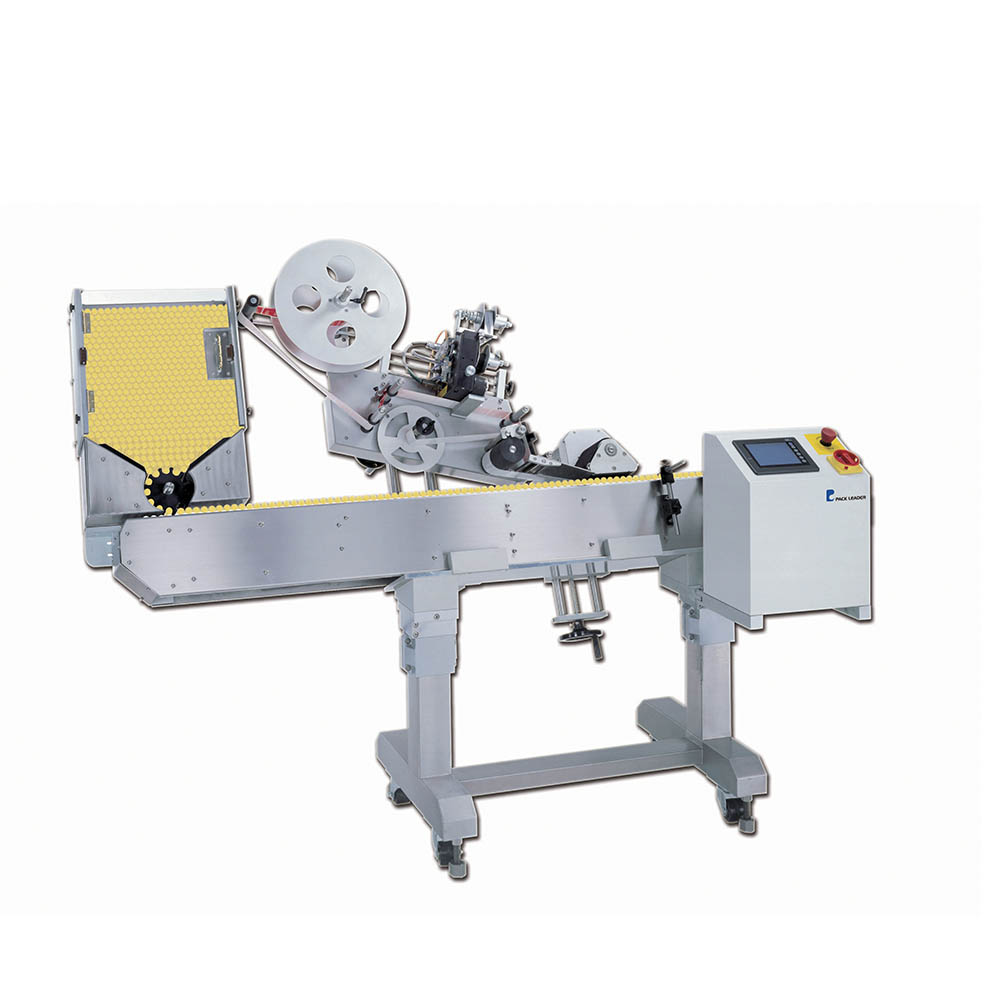

Horizontal Wrap Around Labeller

The PL-521 Horizontal Wrap Around Labeller is a wise choice for labelling odd-sized products that cannot securely stand on their own. This machine is designed to apply a full or partial wrap label horizontally to unweidly round containers, this machine is distinguished by its exceptonal dispensing speed, flexibility and dependability.

Product Code PL-521 Category Tag

Pack Leader’s PL-521 is a part of the extraordinary profile of high-quality, versatile labelling machines on offer by Packserv. This machine offers fully automated horizontal wrap around labelling for all cylindrical containers regardless of shape. This machine is designed for use with those containers that can’t stand up on a regular conveyor line or are prone to toppling.

An excellent machine for the pharmaceutical and cosmoceutical industries this machine is ideal for vials, test tubes, narrow containers and much more. This machine contains a single horizontally positioned labelling head and comes optional with an infeed system to reduce operator input.

The design basis for this machine is to be used as a continuous, reliable high-speed labelling machine. The machine is easily maneuvrable due to the castors/wheels it is mounted on making it simple to change it between production lines or remove it for cleaning.

The machine is manufactured in strict compliance with GMP standards; made from 304 grade stainless steel and high quality aluminium to ensure longevity even in the harshest of environments and to be able to endure three shift operations non-stop.

The control panel of the machine is a high-quality LCD panel featuring inbuilt trouble-shooting and training for operators to ensure minimal downtime on your production schedule. Additionally, the conveyor and labelling heads are all automatically put in sync via the control box to ensure perfect labelling time and time again with minimal setup when changing between products.

Weight175kgs (approx.)
Power Supply240V 10Amp
Machine LengthMachine Depth
1065mmMachine Height
1625mmMax Label Height
Max Label Height150mm
Max Label Roll Size300mm
Inner Core Size76mm
Conveyor Width100mm
Conveyor Height865mm-1120mm
Container Widths7.6mm-25mm
Label Dispensing SpeedUp to 40m/min
Make

Automatic Function

Mounting

  • One-button teach label sensor makes for quick setup and product changeover
  • Fully adjustable product sensor ensures all materials/shapes are recognised
  • Missing-label feature in-built to avoid unlabelled products
  • Stepper motor ensures fast and accurate label application with only an inaccuracy of ?0.5%
  • 150mm label applicator can be ugpraded to cater to a wider range of labels
  • Labeller and conveyor are synced to ensure perfect label application each and every time
  • Touch screen control panel makes for tool-free on the fly adjustments by even inexperienced operators
  • Label/Product count feature allows true progression tracking
  • Frame on wheels allows for easy maneuvrability between different lines or during cleaning
  • 304 grade stainless steel and anodised aluminium frame ensures a durable product with a long lifespan bult to GMP standards
  • Height adjustable conveyor belt to cater to all container types and sizes
  • Memory supports 30 different sets of settings and boots up with most recent settings used
  • Control panel features built-in Mechanical Operation Tutorial and troubleshooting
  • Machine is designed for upgrades and these are virtually just bolt on additions
  • Options include: Hot Foil Coder, different applicator heights, conveyor widths/styles and more
