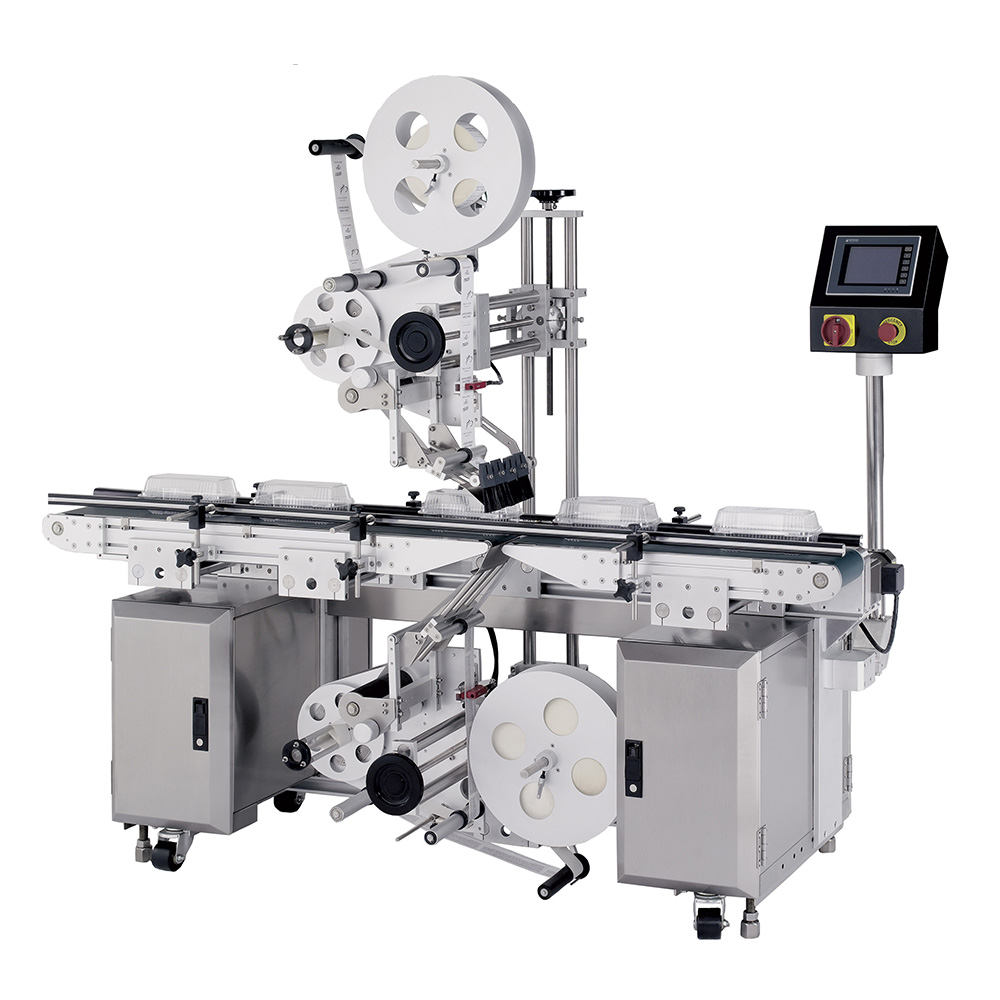

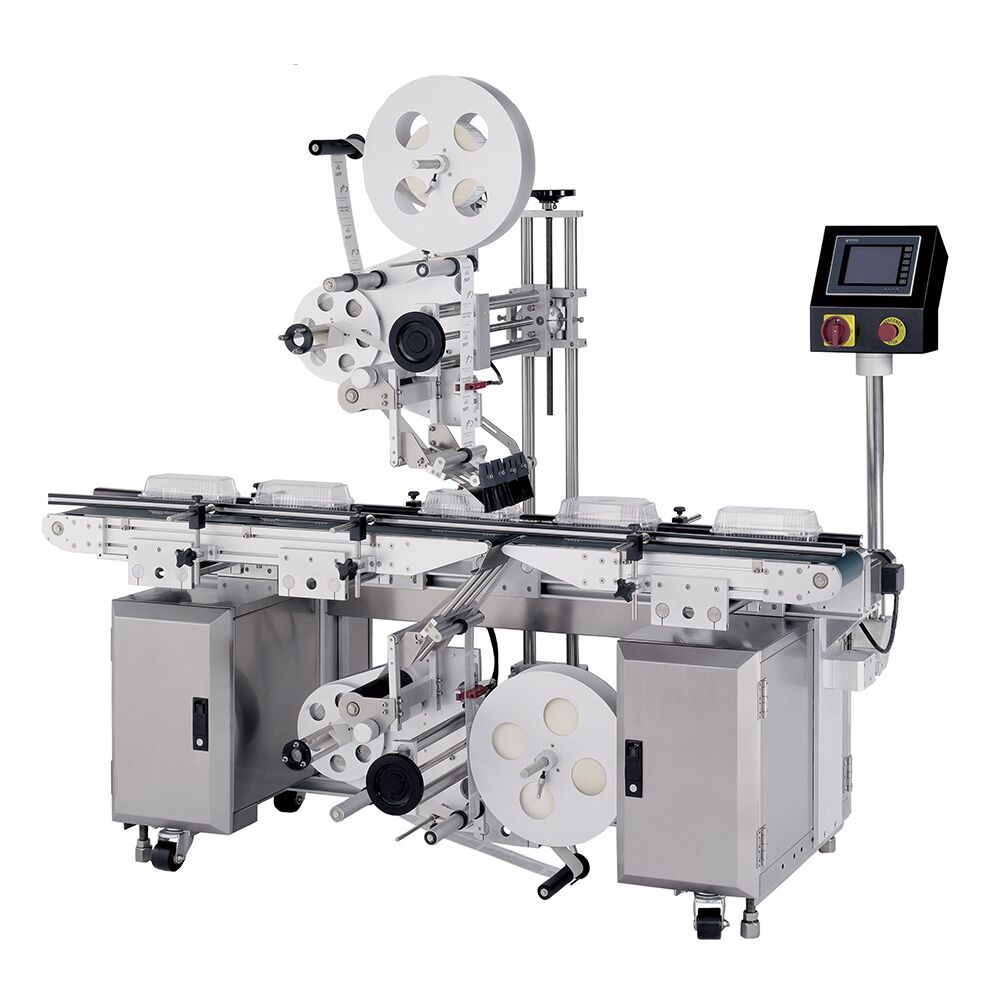

Pack Leader’s PL-225 is a part of the extraordinary profile of high-quality, versatile labelling machines on offer by Packserv. This machine offers fully automated dual labelling heads for wipe-on application of the top and bottom of flat sided containers.

The design basis for this machine is to be used inline as a continuous, reliable high-speed labelling machine. The machine is easily maneuvrable due to the castors/wheels it is mounted on making it simple to change it between production lines or remove it for cleaning.

The machine is manufactured in strict compliance with GMP standards; made from 304 grade stainless steel and high quality aluminium to ensure longevity even in the harshest of environments and to be able to endure three shift operations non-stop.

The control panel of the machine is a high-quality LCD panel featuring inbuilt trouble-shooting and training for operators to ensure minimal downtime on your production schedule. Additionally, the conveyor and labelling heads are all automatically put in sync via the control box to ensure perfect labelling time and time again with minimal setup when changing between products.

Weight	150kgs (approx.)
Power Supply	240V 10Amp
Machine Length	Machine Depth
800mm	Machine Height
1360mm	Max Label Height
Max Label Height	170mm
Max Label Roll Size	300mm
Inner Core Size	76mm
Conveyor Width	160mm
Conveyor Height	740mm-800mm
Max Container Width	150mm
Label Dispensing Speed	Up to 40m/min

Make	Pack Leader
Automatic Function	Yes
Mounting	Frame featuring castors
Label Type	Top and Bottom Label

One-button teach label sensor makes for quick setup and product changeover
Fully adjustable product sensor ensures all materials/shapes are recognised
Missing-label feature in-built to avoid unlabelled products
Stepper motor ensures fast and accurate label application with only an inaccuracy of ?0.5%
170mm label applicator can be ugpraded to cater to a wider range of labels
Labeller and conveyor are synced to ensure perfect label application each and every time
Touch screen control panel makes for tool-free on the fly adjustments by even inexperienced operators
Label/Product count feature allows true progression tracking
Frame on wheels allows for easy maneuvrability between different lines or during cleaning
304 grade stainless steel and anodised aluminium frame ensures a durable product with a long lifespan bult to GMP standards
Height adjustable conveyor belt to cater to all container types and sizes
Memory supports 30 different sets of settings and boots up with most recent settings used
Control panel features built-in Mechanical Operation Tutorial and troubleshooting
Machine is designed for upgrades and these are virtually just bolt on additions
Options include: Hot Foil Coder, different applicator heights, conveyor widths/styles and more
