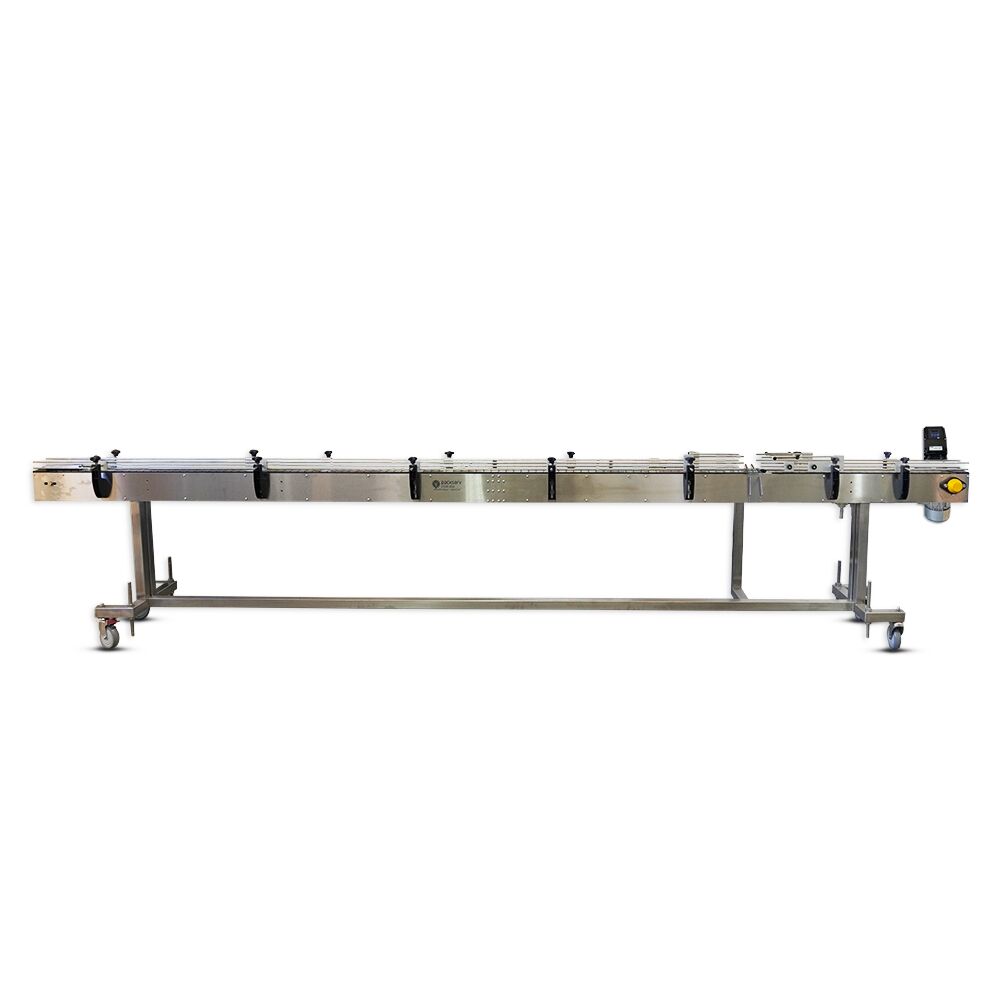

Our PSC-6-4.8m Slat Conveyor measures 4800mm (16ft) in length and is designed for handling all types of containers regardless of shape or material; as long as they can stand of their own accord. Containers are normally fed to the conveyor to assist with other production line systems such as filling, capping, labelling, marking and sealing.

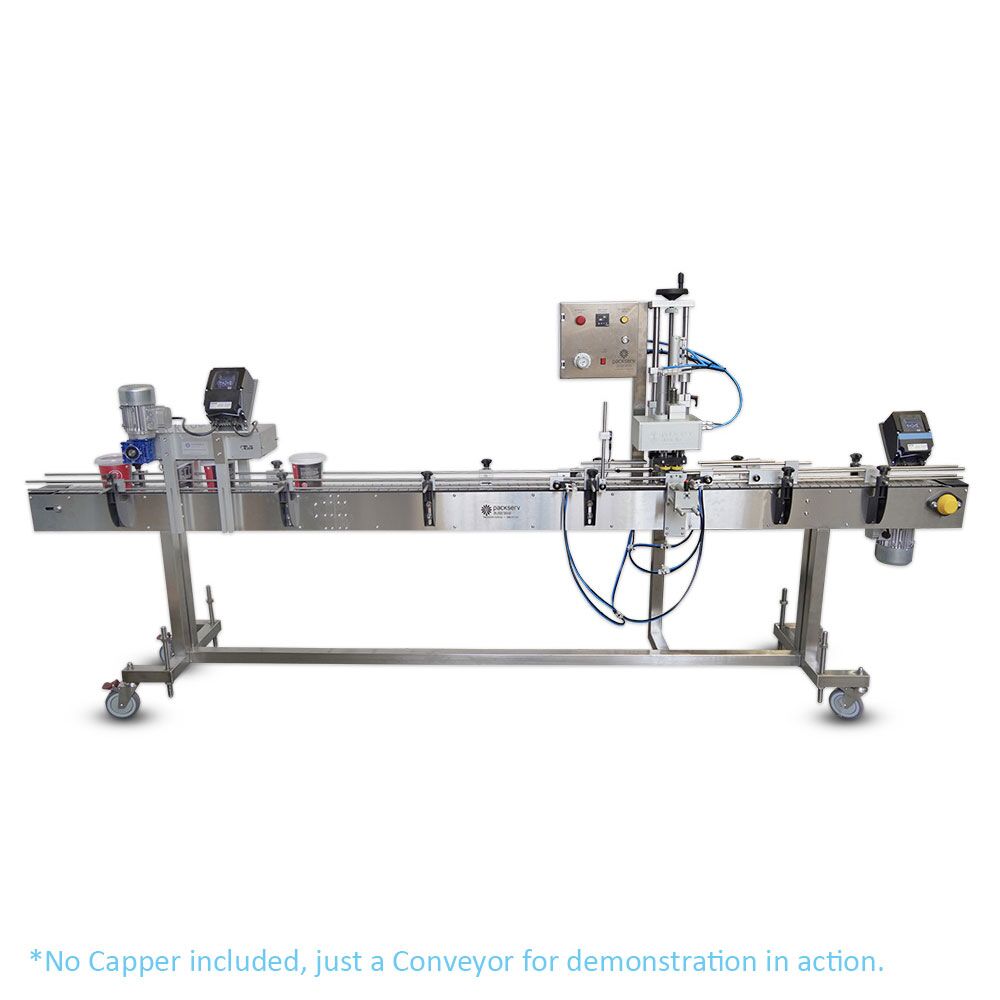

The Packserv conveyor systems are modular allowing for use with our entire suite of equipment as well as other manufacturers. All of our gating and sensor systems are designed to be utilised with the guide rails used by this conveyor. Furthermore, all our filling and capping machines can mount directly to the conveyor to ensure consistency of application.

This machines features a 316 Stainless Steel design ensuring long-lasting durability and function with minimal maintenance. It has rubber feet to ensure traction on any surface regardless of material. There is also has an optional trolley available to allow it to fit into tight spaces in your production line.

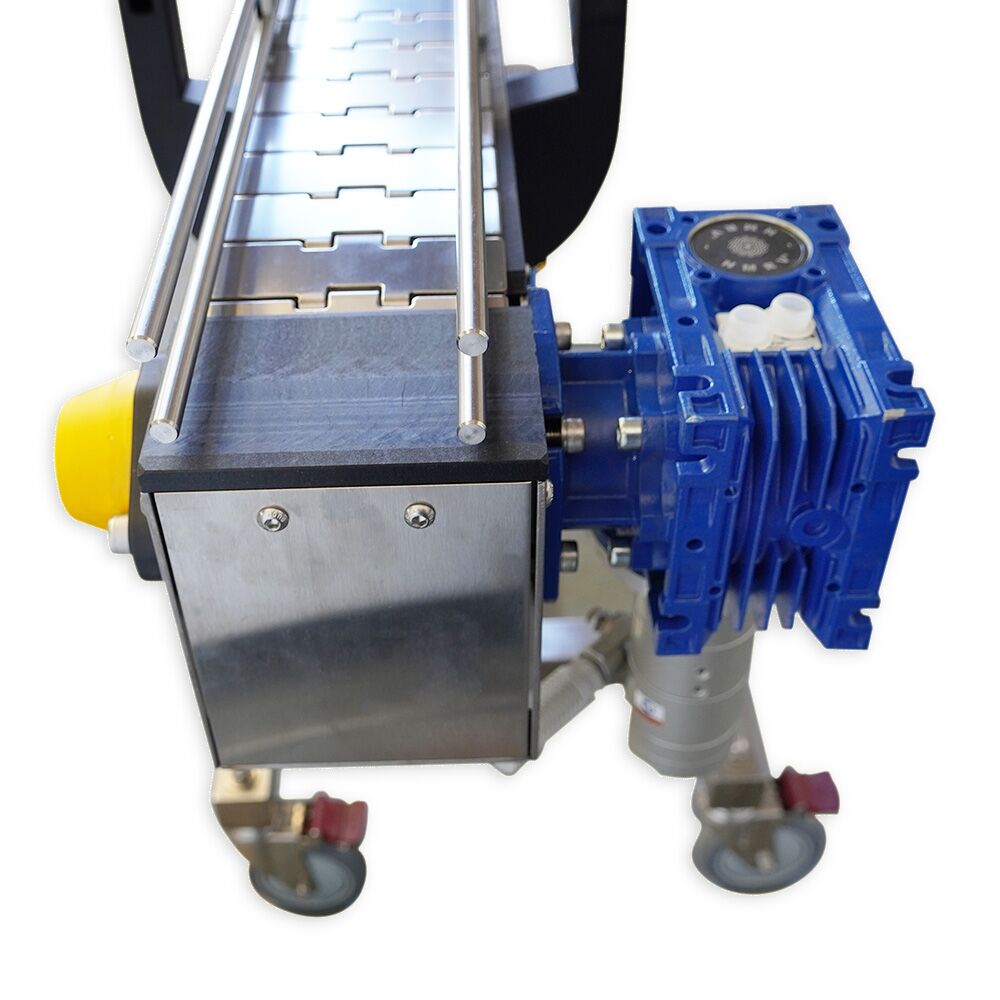

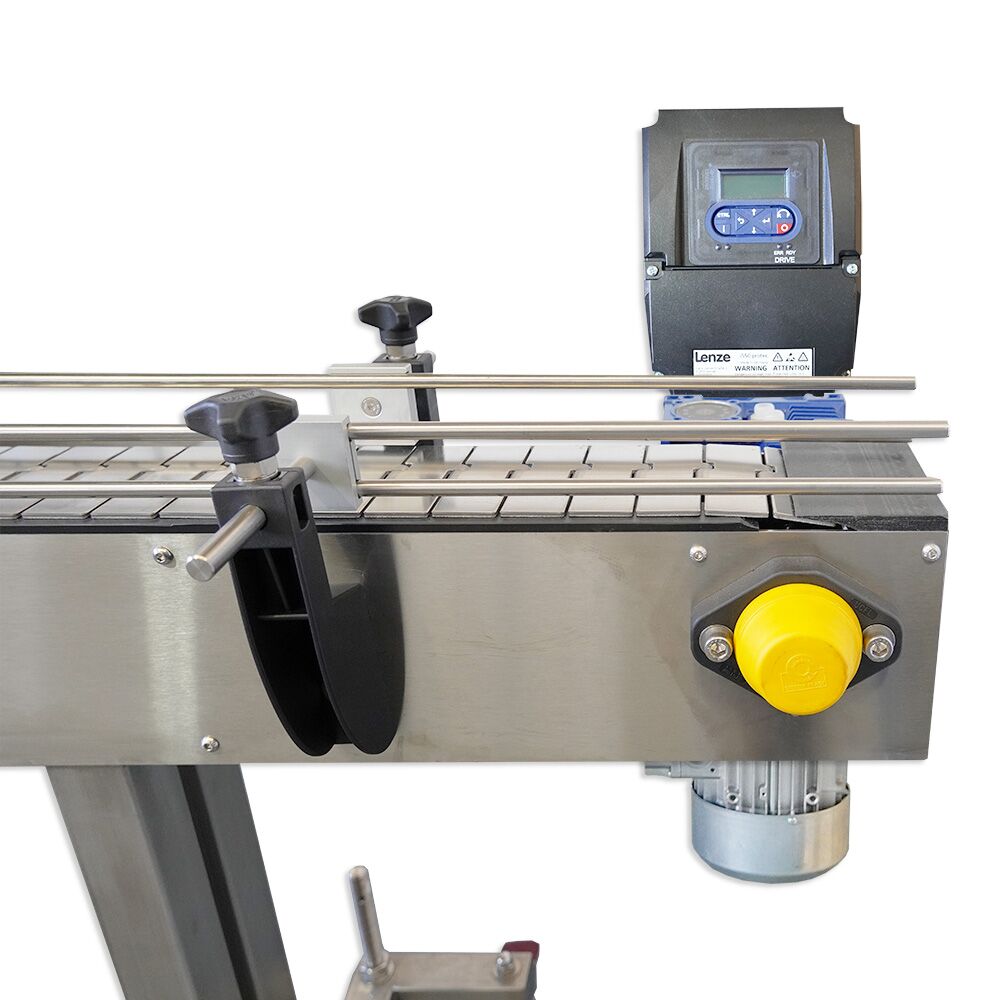

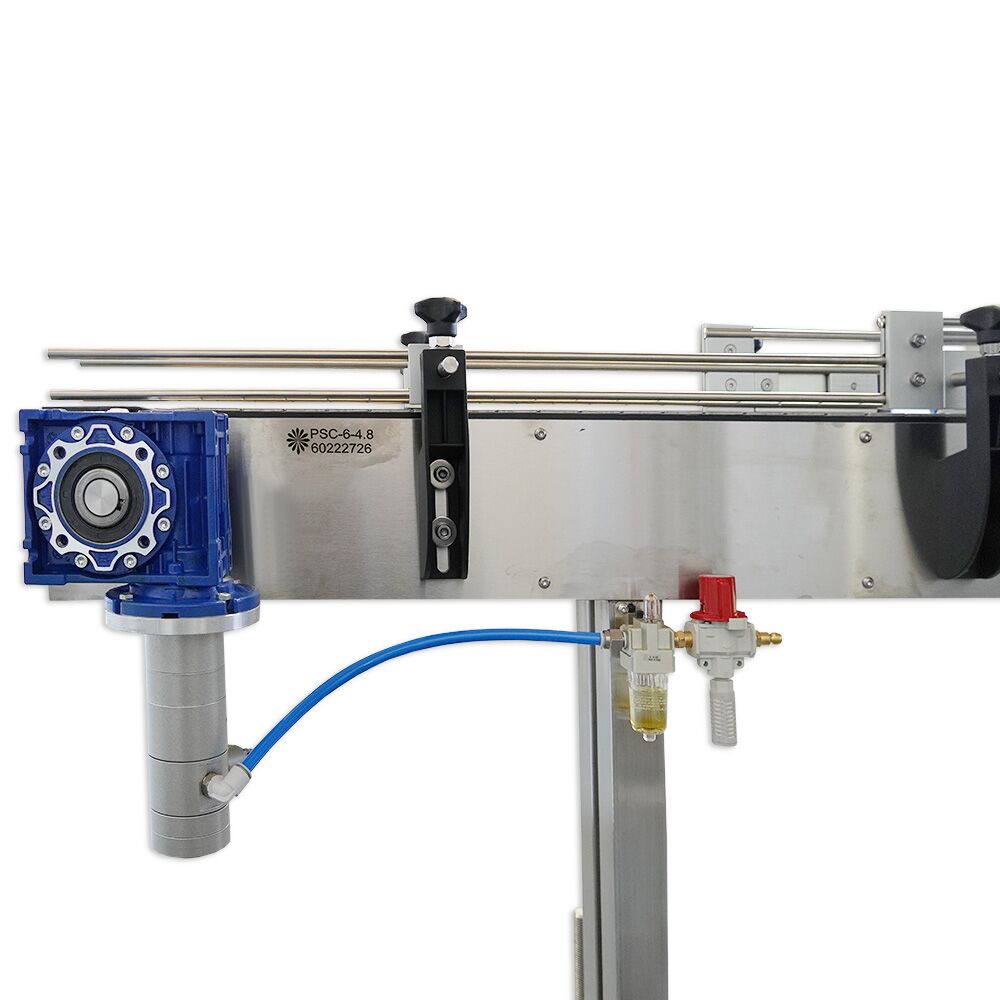

This conveyor utilises an AC motor with a VSD controller this conveyor can be easily put into reverse at the touch of a button.

The PSC 4.8m slat conveyor is also available on legs at a standard height of 900mm. With lockable castors and height adjusting jacks

*Rent: Brand and model may vary. The machine will be identical in function.

This conveyor model is available in four sizes, ranging from 1.2 to 4.8m; See Below.

See Also: Conveyors | Packserv Australia

Weight	80 kilograms (176 lb)
Length	4800mm (189 in)
Width	500mm (20 in)
Height	1200mm (47 in)
Slat Width:	114.3mm (4.5 in)
Conveyor Width:	130mm (5 in)
Operating Height	900mm (35 in) slat height, adjustable on frame
Power Supply	Single phase 240V, 10 AMPs (120V, 15 AMPs)
Construction Type	All 316 stainless steel and engineering grade plastics
Container Type	All containers regardless of shape/material that will stand on their own
Mounting	Lockable castors
Industries	All food, pharmaceutical and industrial applications
Noise	Low
Conveyor	430 Stainless Steel (Austenitic) Slats – Food Grade, High Performance, High Corrosion & Acid Resistance
Speed	Variable Speed Control from 0m/min to 18/min.
Guide Rails	Fully adjustable, height and width
Reversible	Yes

Make	Packserv
Automatic Function	Yes
Mounting	Frame featuring castors

Mounted on lockable castors for easier manoeuvrability
Conveyor comes with height adjusting jacks
Variable speed control
Conveyor is also available in other lengths including 2.4m and 3.6m
Comes with adjustable guide rails
Suitable for food and pharmaceutical use
Fast changeover of containers

1 x base machine
4 x rubber feet and levelling jacks
4 x castors/wheels
1 x full set of adjustable guide rails
1 x reversible and variable speed controller
1 x full 406 stainless steel slat set
