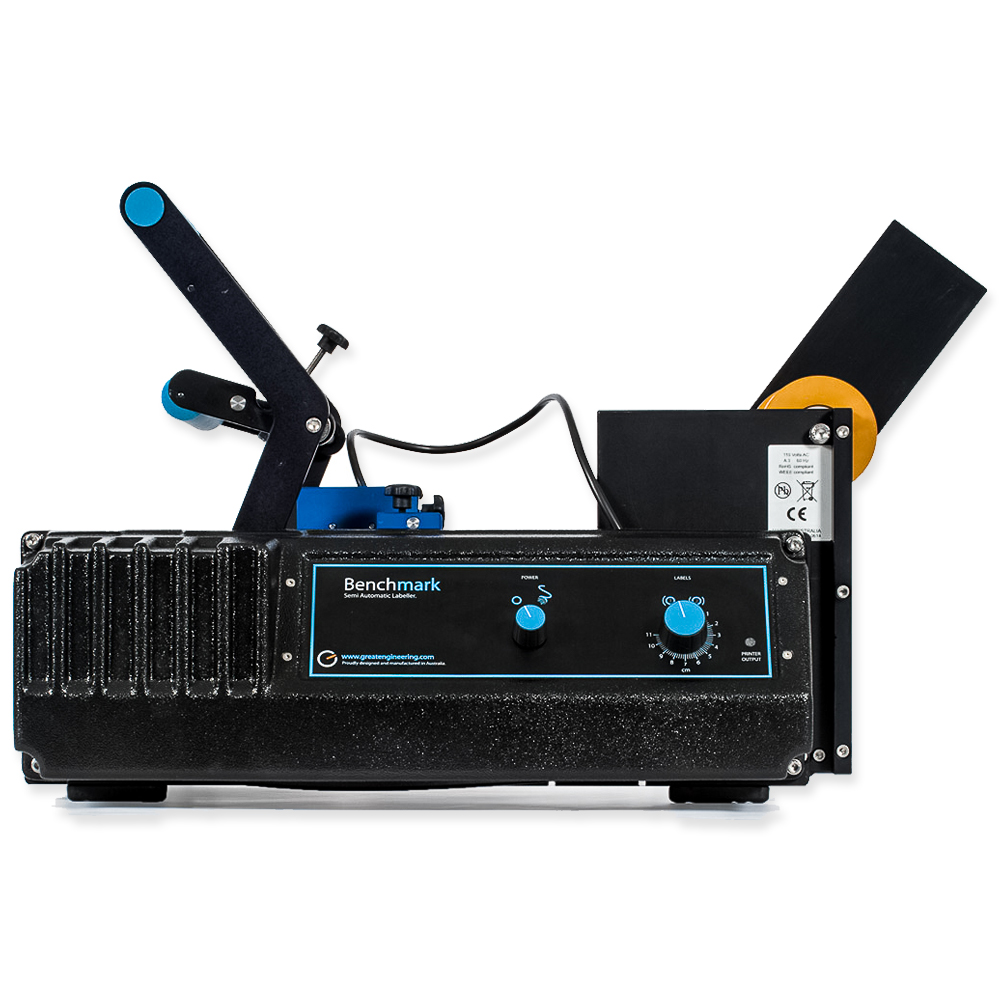

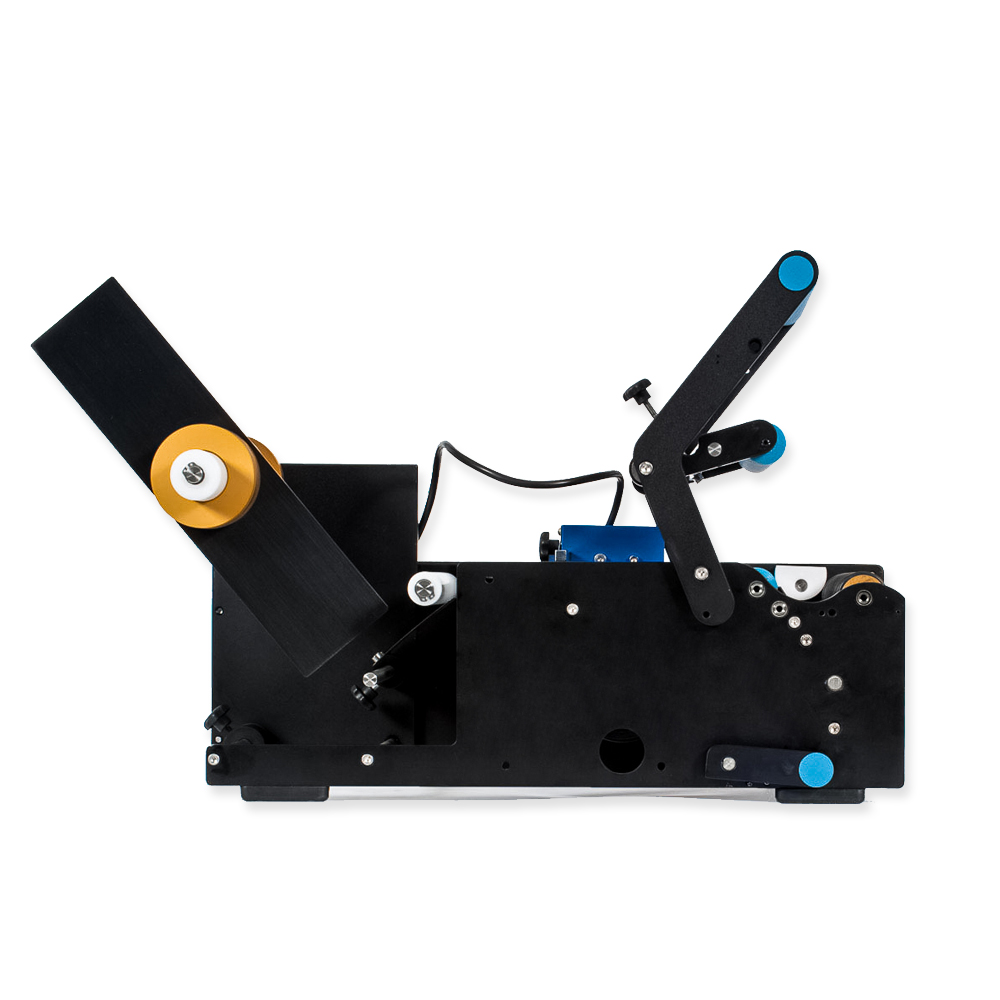

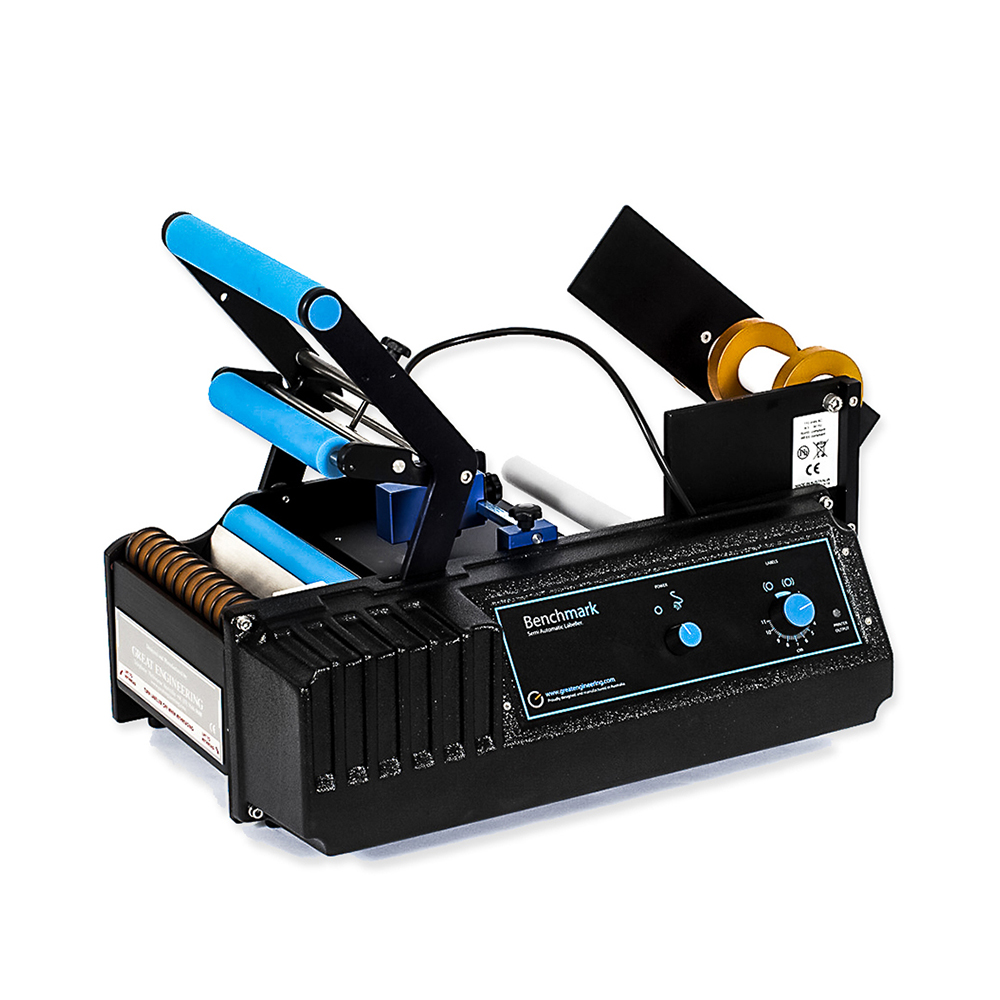

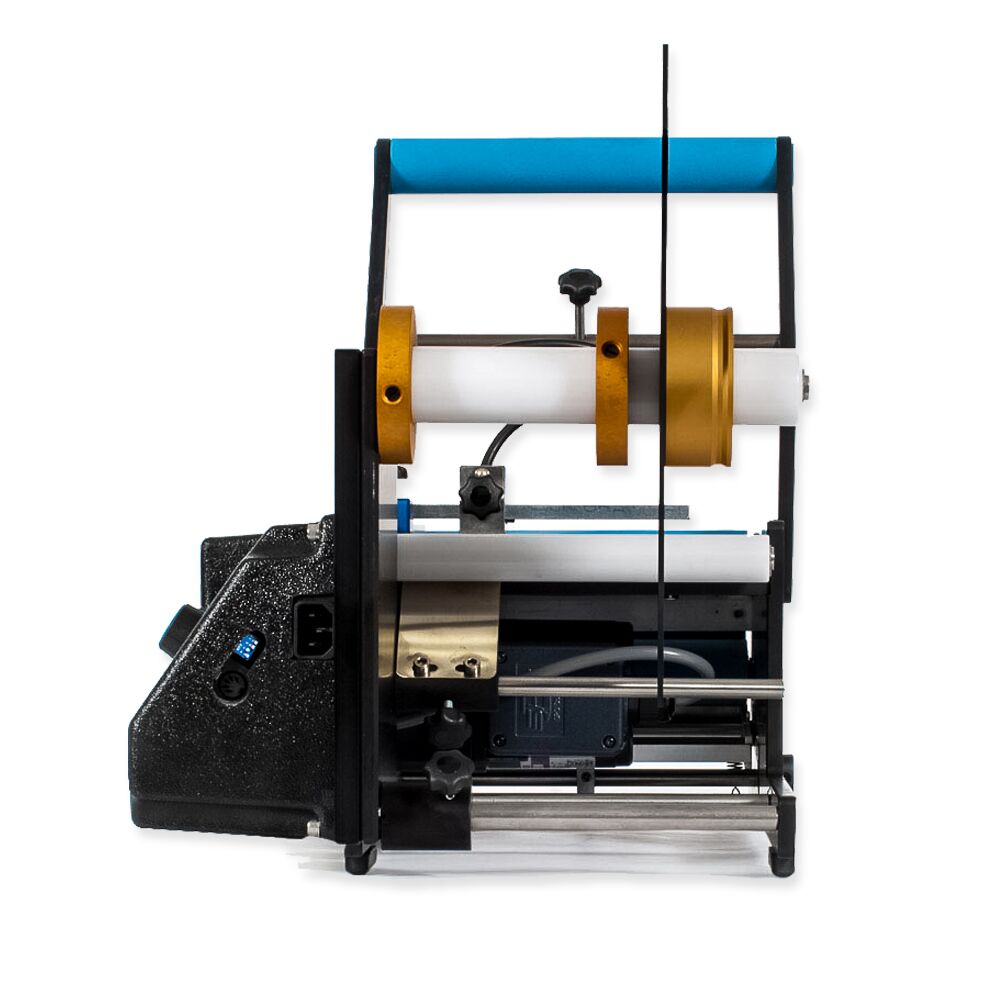

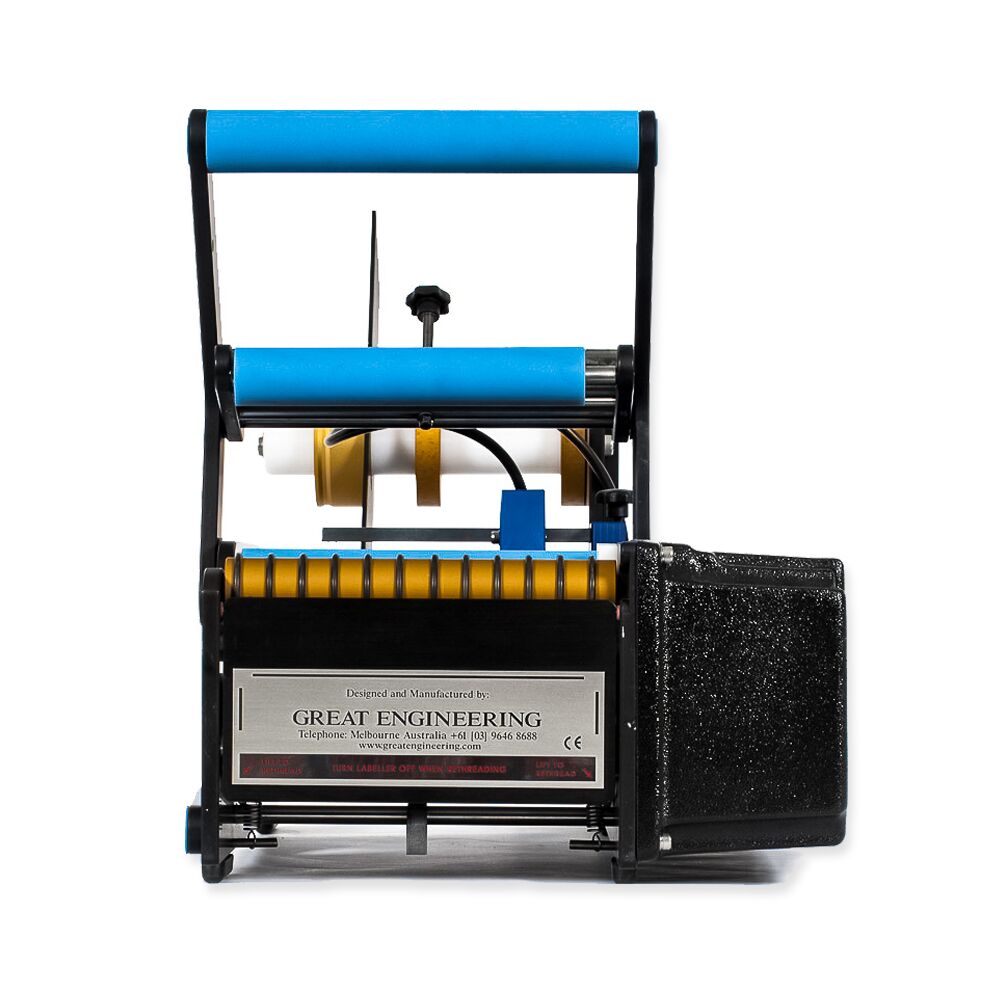

The BM-SAL Benchmark labeller applies pressure sensitive/self adhesive labels to a wide range of cylindrical containers, enhancing your products presentation.

The Benchmark can quickly apply a single label, a full wrap around label or a front and back label in one simple operation. The position of the back label is consistently maintained with millimeter precision.

The Benchmarks unique sensor detects a greater range of labels accurately and has proven reliability. Controlled label ejection ensures uniform application of the label to the surface of the your product.

Machined from stainless steel and anodized aluminum, this applicator is engineered for industry. Benchmark’s circuitry is designed to operate with a wide range of printers and is protected by a high impact ABS panel.

Operators will readily understand the Benchmarks function and appreciate its ease of use. Uncomplicated to set up the labeller requires nor special skills or training to label efficiently and effectively.

A small bottle adapter can be easily fitted for labelling containers with diameters between 10mm and 50mm.

Weight	20Kgs
Power Supply	240V 10 Amp
Length	500mm
Width	Height
350mm	Max Label Roll Diameter
315mm	Core diameters
Core diameters	38mm and 76mm
Max Label Height	170mm
Minimum Label Height	10mm
Maximum Label Length	230mm
Minimum Label Length	20mm
Container Diameters	10mm to 140mm
Output	10-20 units per minute

Make	Great Engineering
Automatic Function	Semi-Automatic
Mounting	Benchtop
Label Type	Wrap Around Label

Quick container and label roll changeover
Electronic timer control unit
Round containers (some non rounds are acceptable)
Mechanical sensor is suitable for all label types (clear, opaque, foil, regular)
Suitable for food and pharmaceutical use
Stainless steel and aluminum construction
Straight sided containers only
Adjustable label position while running
Applies single, wrap around or front/back
Can connect to the Datamax printer for print-apply
Labels to be on a roll, self-adhesive, die-cut & weeded with left-hand edge lead strongly preferred
