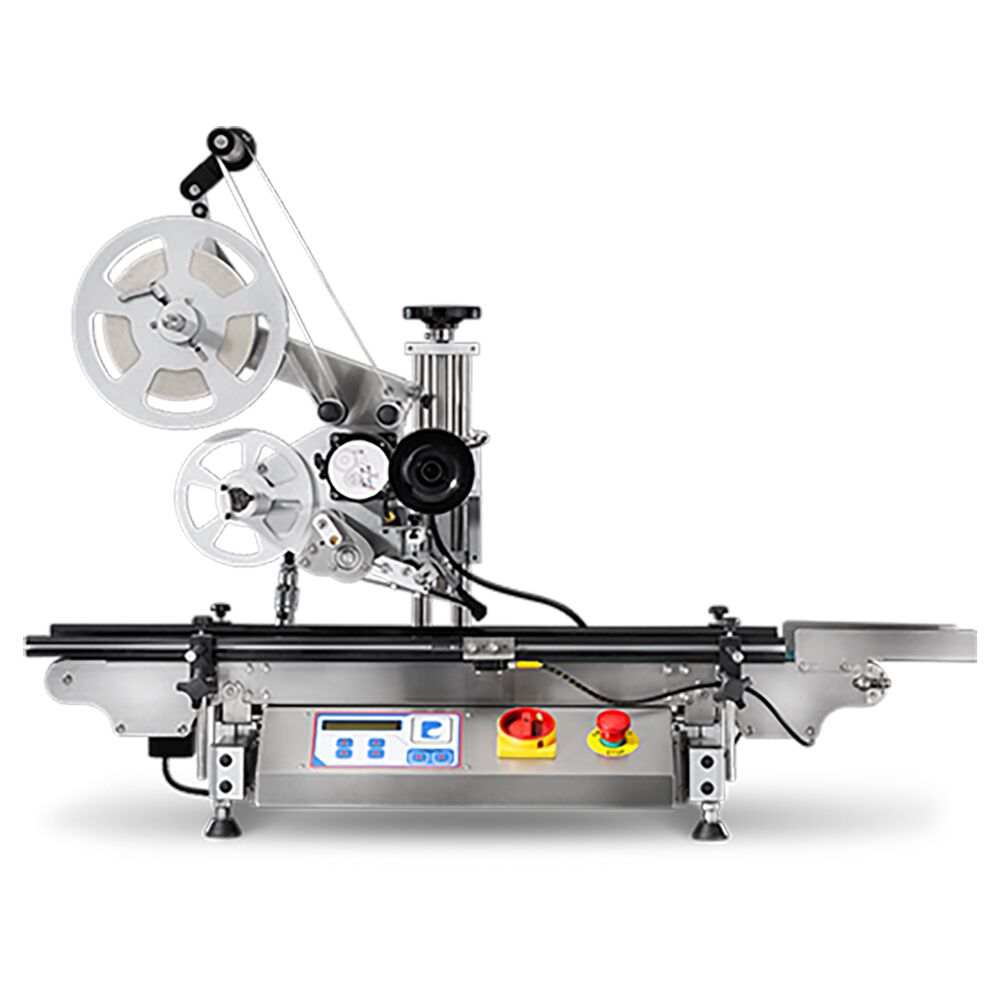

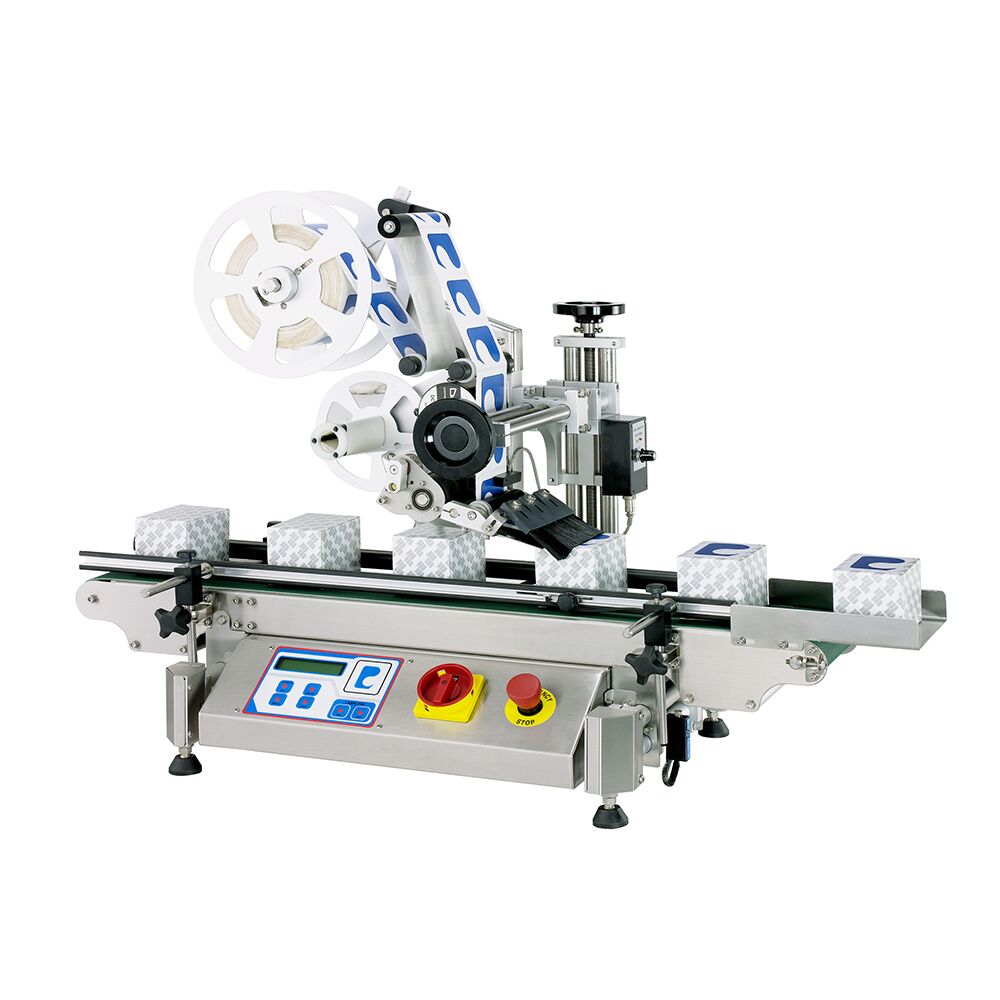

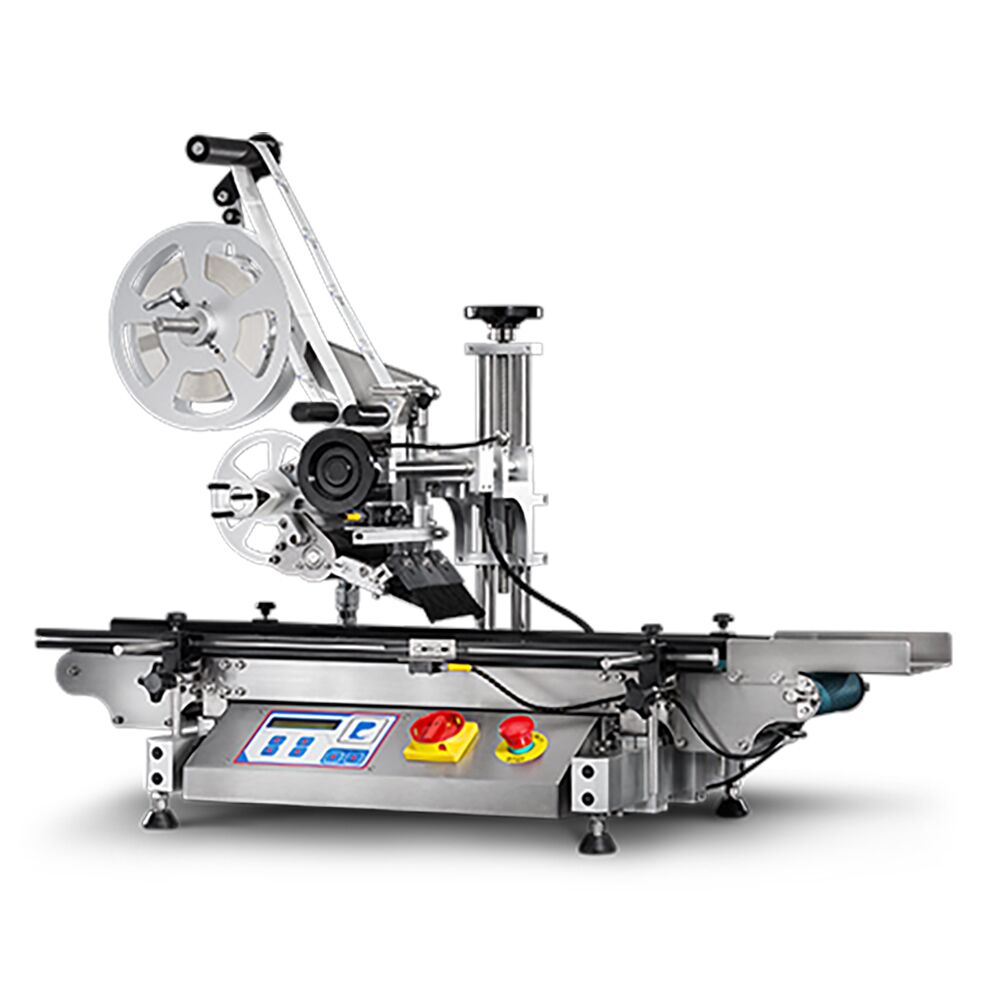

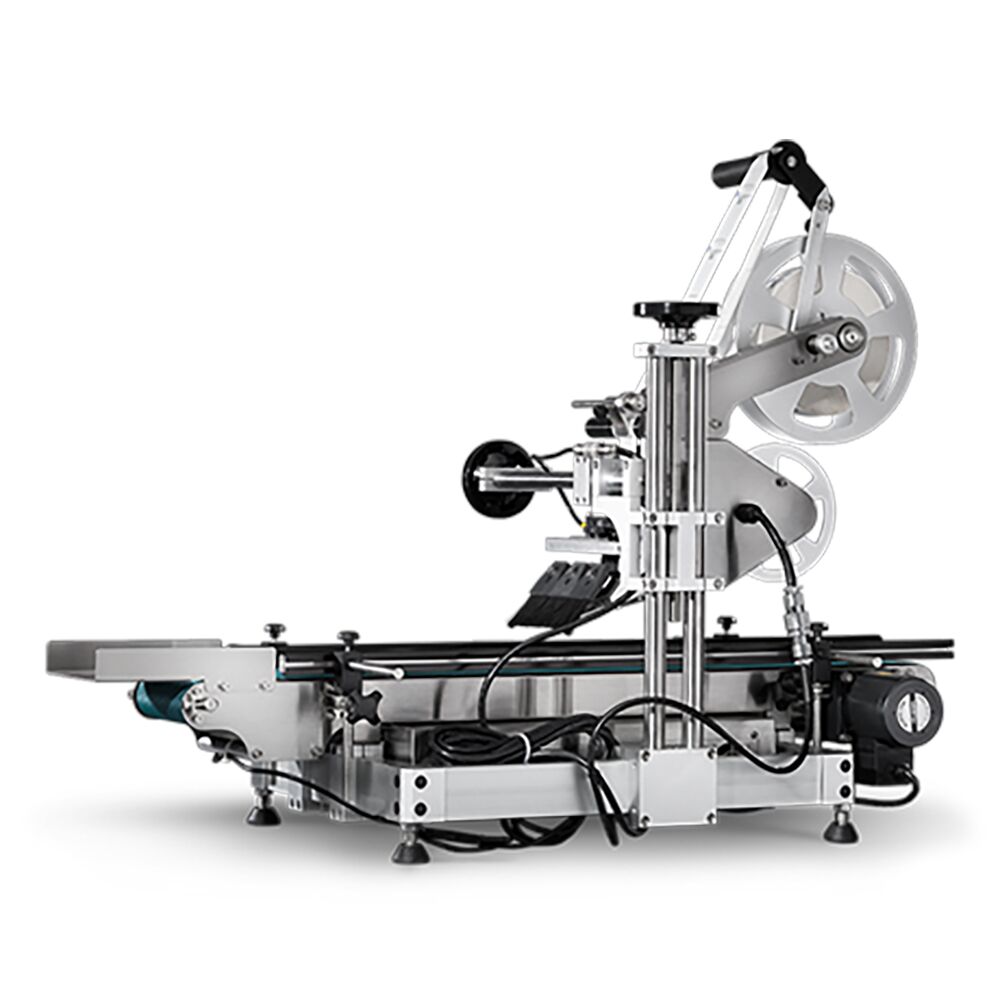

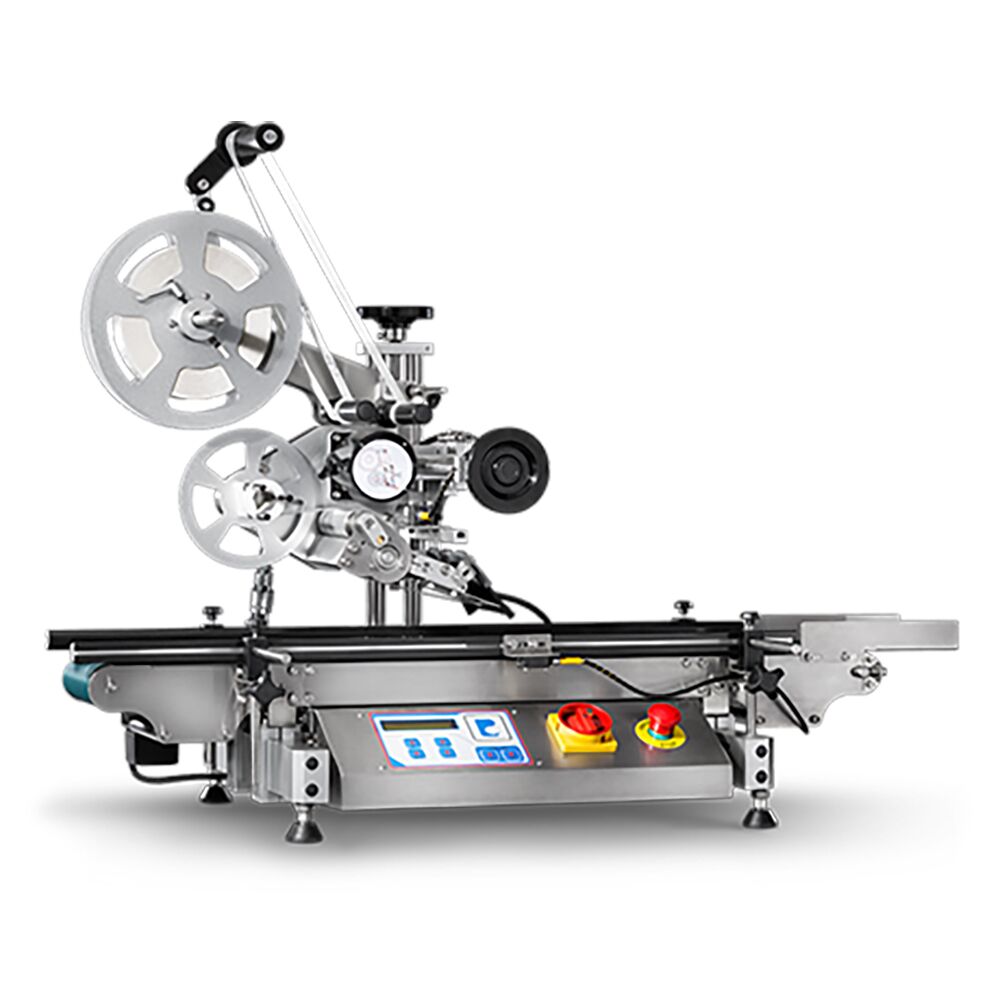

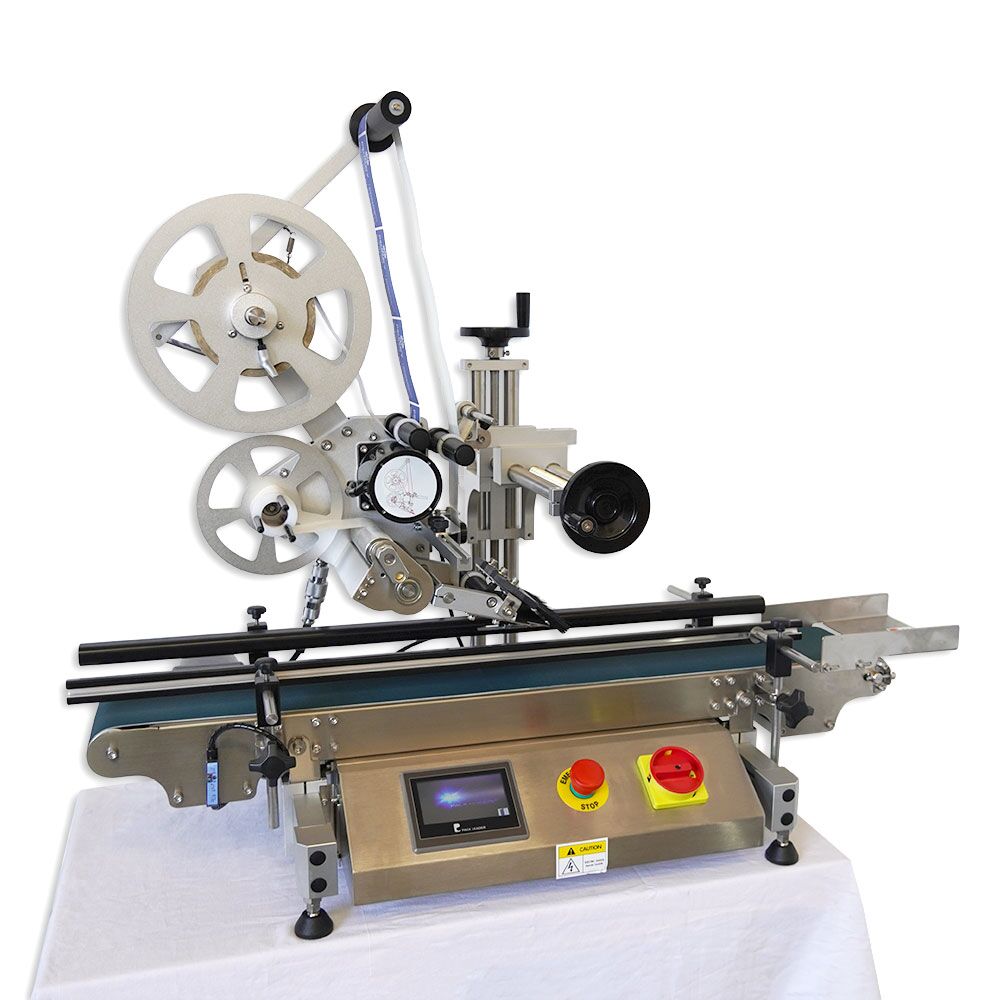

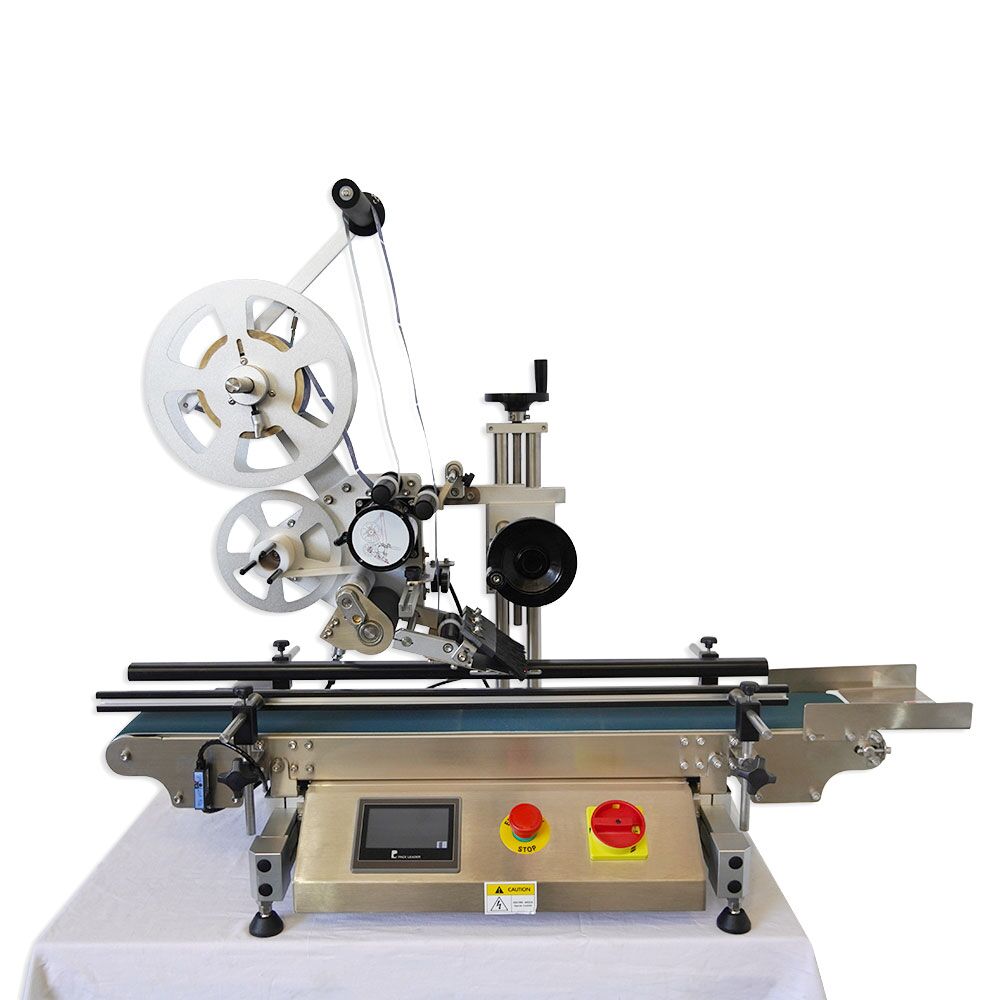

Pack Leader’s ELF-20 Auto Top Wipe-On Bench Labeller is the perfect solution for any wipe-on labeling application with labels up to 120mm in height. Its compact design ensures easy positioning, especially when mounted on an optional wheeled trolley.

Equipped with its own built-in conveyor belt, the ELF-20 offers effortless and precise adjustments. Switching between different labels and containers is seamless and requires minimal operator training. The ELF-20 can function as a convenient benchtop machine or, when set to automatic mode, can be integrated into a complete production line.

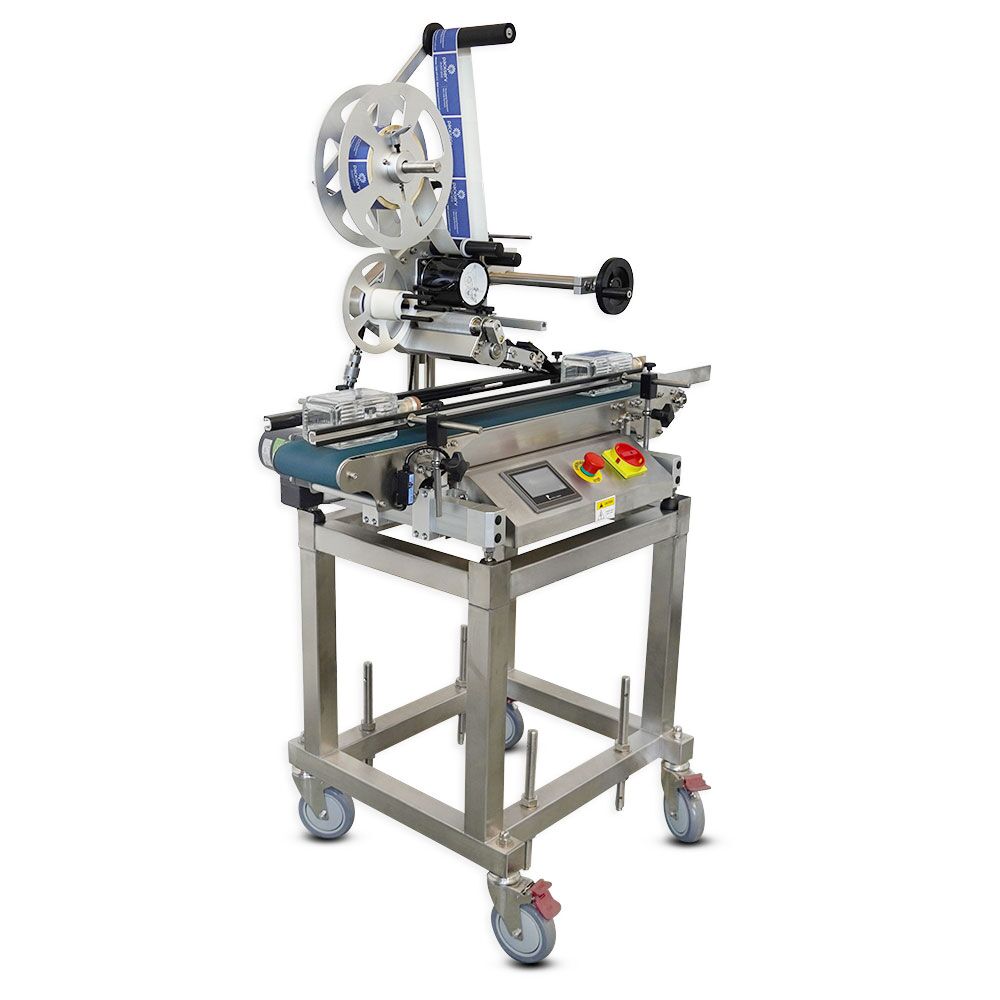

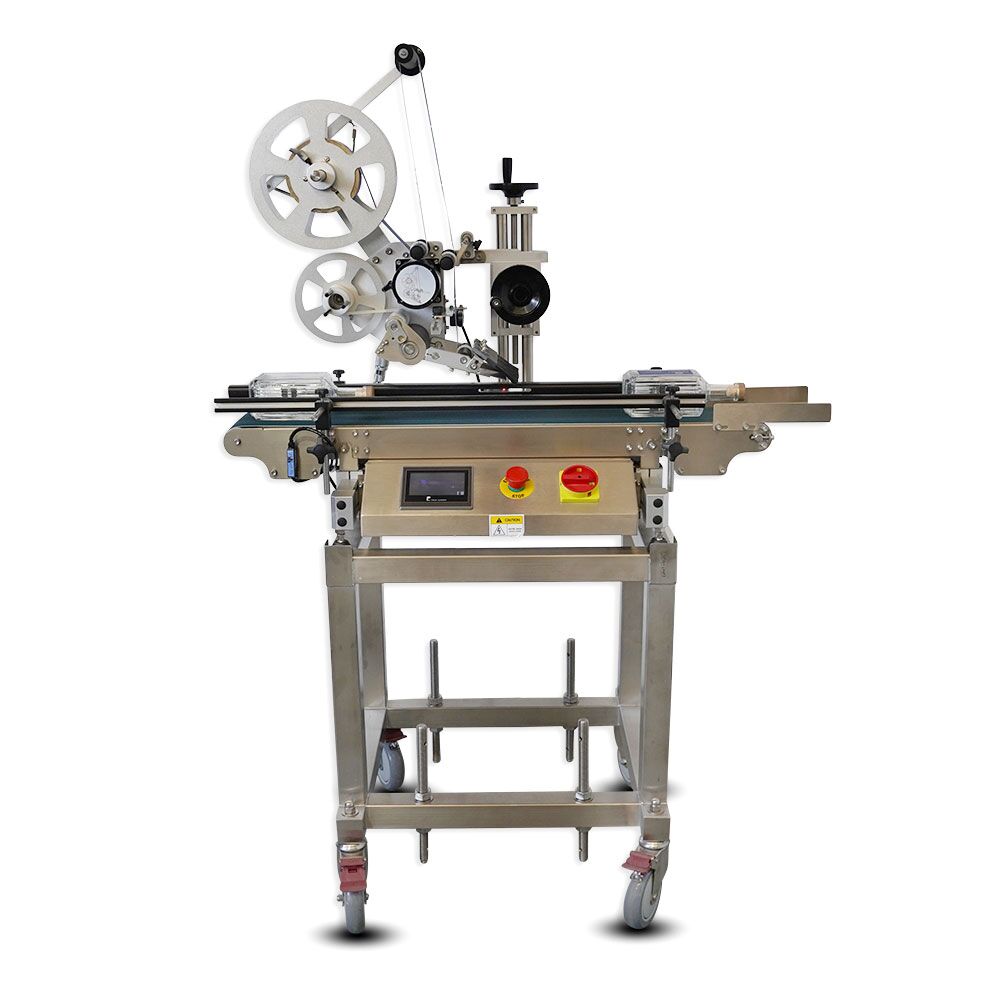

The accompanying trolley features integrated threaded leveling jacks, allowing the conveyor belt to be adjusted to match any existing conveyor line’s height.

Designed with high-quality components, the ELF-20 machine has food and pharmaceutical-grade materials, with parts made from stainless steel or anodised aluminum.

Weight:	60kg
Width:	820m
Length:	1100mm
Height:	550mm
Power supply:	Single phase 240v & 10amp
Units per minute:	20-60 (16 metres/min)
Max roll diameter:	300mm
Core diameter:	76mm
Max label height:	120mm

Make	Pack-Leader
Automatic Function	Yes
Mounting	Benchtop, Benchtop (Trolley available)
Label Type	Top and Bottom Label

Features one-touch label teaching sensor for quick set up.
Features a program-storage memory for easy product change-over.
Features a ‘precount’ setting so only the correct number of containers are labelled.
Flat Surface Labelling.
Portable, Benchtop Style Machine.
Changeable Sensors for clear, opaque and foil based labels.
Suitable for food and pharmaceutical use.
Quick change over of container or parts featuring a tool-free design.
Stainless steel and aluminum construction.
Adjustable label position while running.
Labels to be on a roll, self-adhesive, die-cut & weeded with left-hand edge leading.

2 x label application brush
1 x label sensor
1 x product sensor
1 x in-built conveyor system
