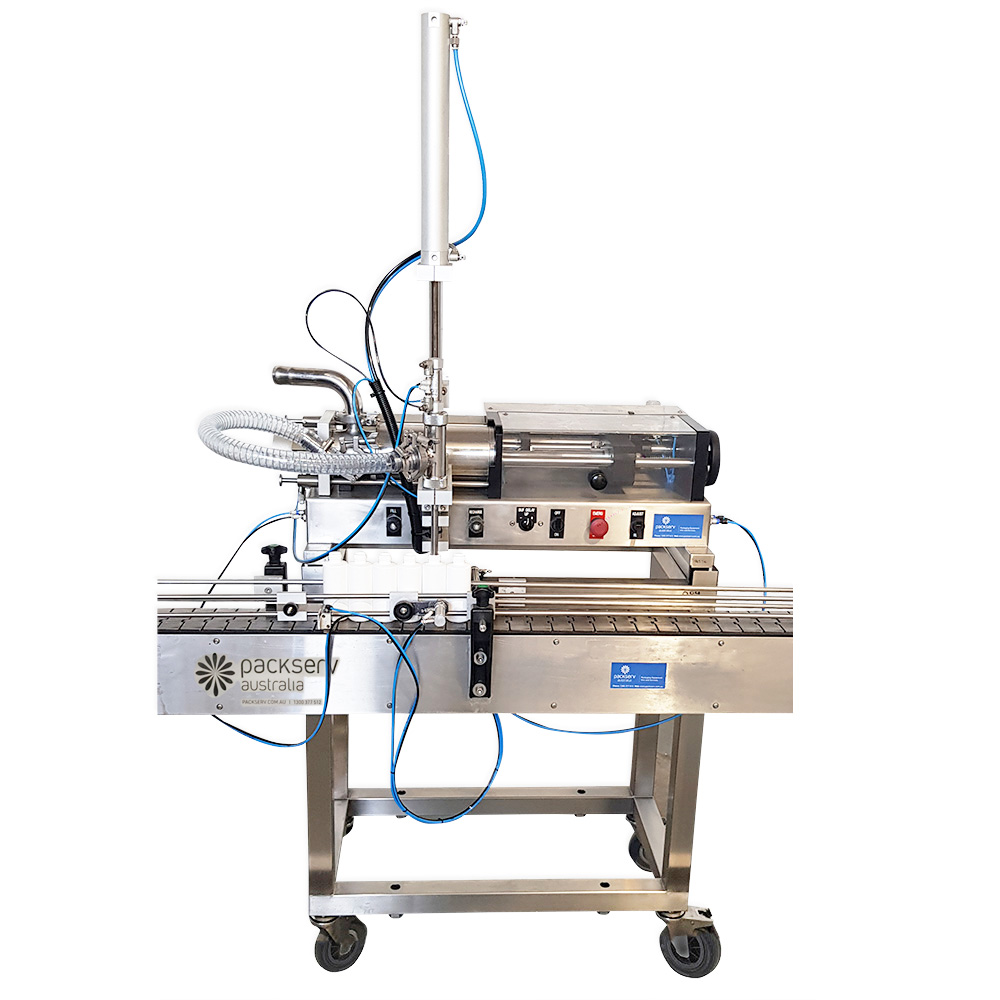

Our PFM-3-BUF-A valve system handles all types of bottling products from thin liquids to creams and thick pastes. This filling machine will even package products with suspended solids; a task that usually requires two different types of filling machine or an expensive change of parts.

The cylinder design of the PFM-3-BUF-A enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be used according to the nature of product or customer preference e.g., close coupled hopper, suction hose inlet assembly, elevated or floor level tank, and low pressure feed from a pump.

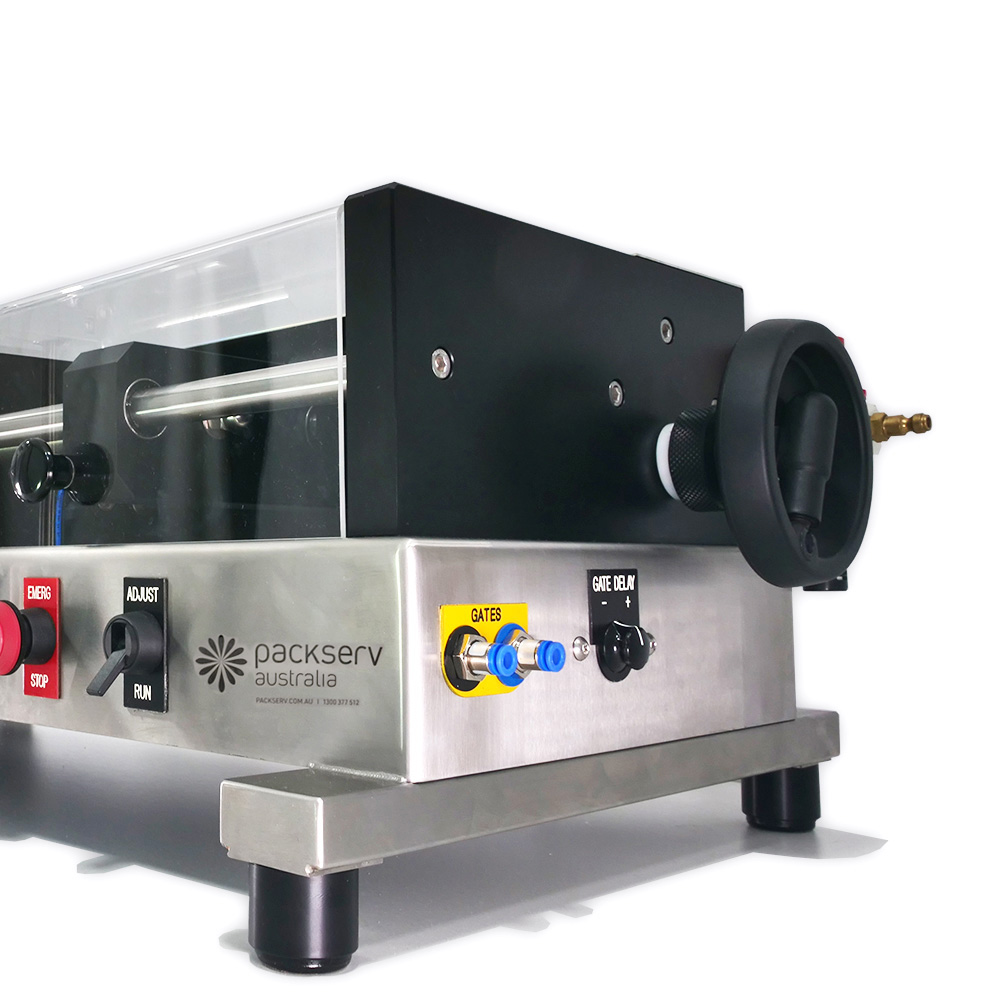

To ensure safe operation, the stroke adjuster and air/product cylinder drive assembly are also enclosed by an interlocked polycarbonate cover that shuts the machine off if an operator was to open the door during production.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight:	35 kilograms
Length:	820mm
Width:	330mm
Height:	800mm
Mounting:	Trolley mounted with lockable castors (mounts onto inline conveyor system)
Power Supply:	Air compression
Noise:	Medium
Air pressure:	600kpa (80psi)
Units per minute:	10-20UPM (guide only)
Speed:	Totally speed adjustable for all functions
Timer Control:	Pneumatic
Container type:	Bottles, jars, tubs, containers that will stand on a conveyor
Industries:	All food, pharmaceutical and industrial applications
Fill range:	2.5ml to 1250mls fill range, single shot
Construction type:	316 grade stainless steel wet parts
Fill temperature:	Cold and hot fill
Fill type:	Liquids, creams, lotions
Not suitable products:	Powder and granules.
Benchtop:	Yes/Trolley
Machine Cleaning:	Easy to disassemble for full wash up
Flameproof:	Yes
Volume:	Fully adjustable
Filling accuracy:	+/- 0.5 to 1% variance
Cylinder Sizes:	25, 50, 125, 250, 500, 750 or 1250ml
Automatic function:	Yes, designed to be completely operator free

Make	Packserv
Automatic Function	Yes
Mounting	Benchtop (Trolley available)

Heavy duty pneumatic product cylinder drive system
All pneumatic flameproof operation
Easy volume adjustment while running
Totally speed adjustable, fill and recharge stroke
Once dismantled by hand the filler can be fully washed down
Quick changeover of products and parts
This bottom up filler is suitable for liquids, creams and pastes
Filler is suitable for food and pharmaceutical use
Suitable for warm water hose down
Quick connect tri-clover product inlet/outlet fittings
Individual fill speed and recharge speed controls.

Applications

Liquid dispenser, Fluid filler, Beverage filling device, Fluid packaging equipment, Liquid bottler, Fluid dosing machine, Liquid packaging system, Fluid dispensing apparatus, Beverage bottling machine, Liquid packaging machinery, Liquid filling apparatus, Fluid bottling device, Beverage packaging machine, Liquid bottling system, Fluid doser, Liquid bottling equipment, Beverage dosing machine, Liquid filling station, Fluid bottling unit, Beverage packaging system.

25L or 50L Hopper
Inlet assembly
Various interchangeable nozzles
Positive shut-off nozzle
Suck-back nozzle
Plug or plunger nozzle
Spool valve
Stainless steel trolley (long term hire only)
Interchangeable cylinder sizes
Custom parts for special jobs
