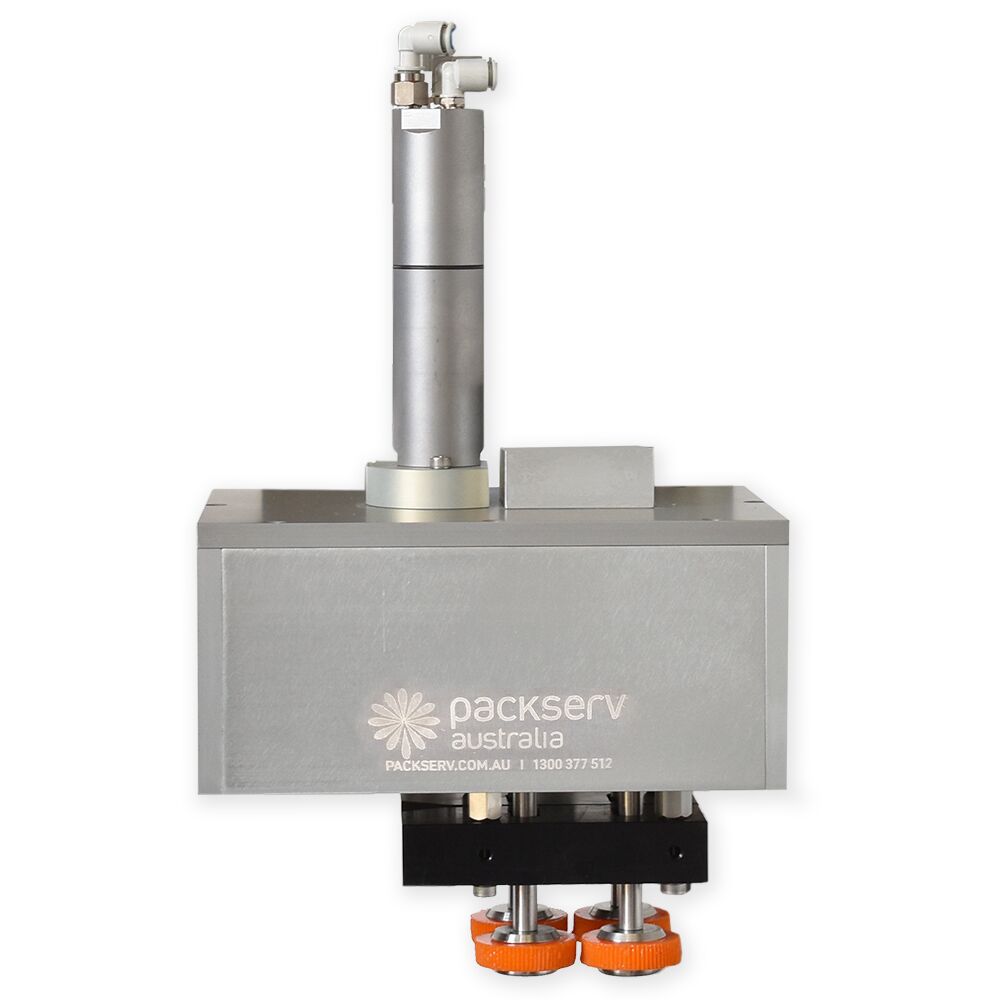

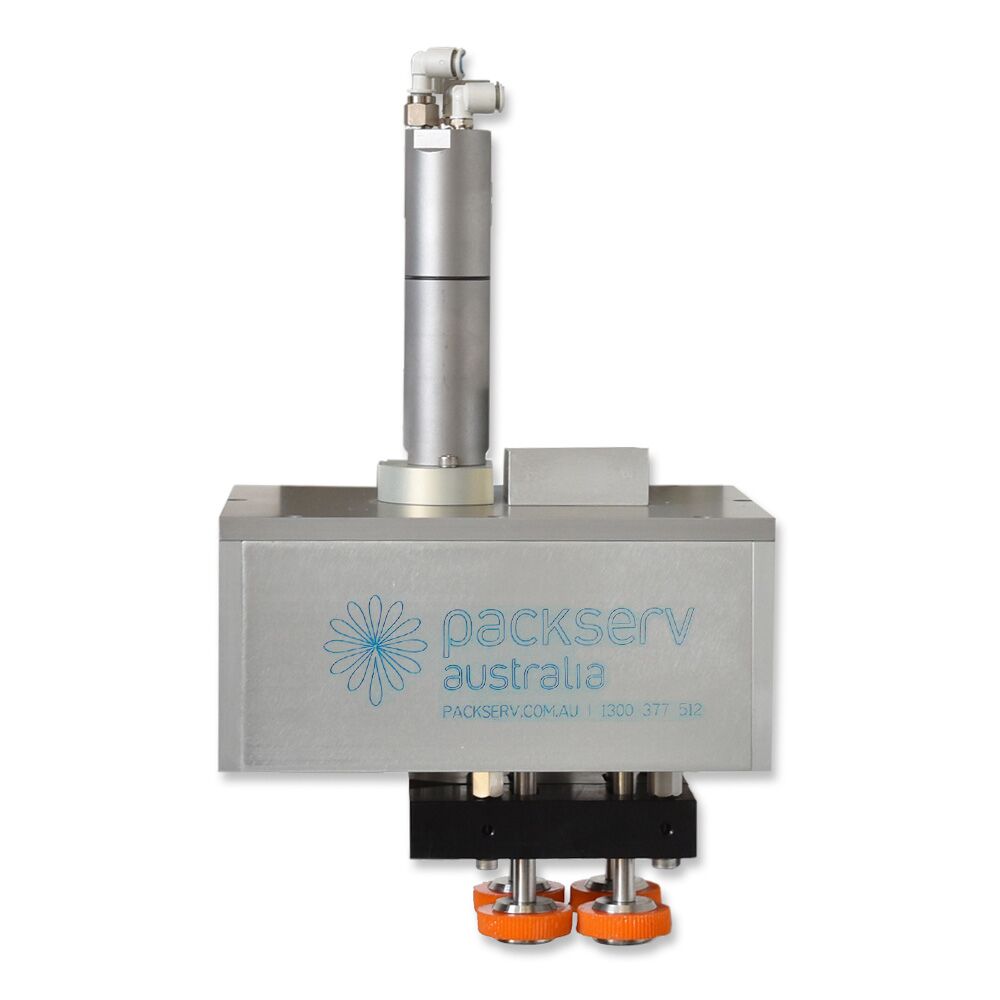

Trigger Pack Head

The PTP-7 Trigger Pack Head is an accessory for our suite of cap tightening machines. This machine allows for the tightening of all trigger, spray, cream dispenser pumps and other types of closures. Furthermore, the Trigger Pack is the preferred solution for caps that cannot be tightened by standard overhead tightening chucks.

Packserv Manufacturing
Product Code PTP-7 Category Tag

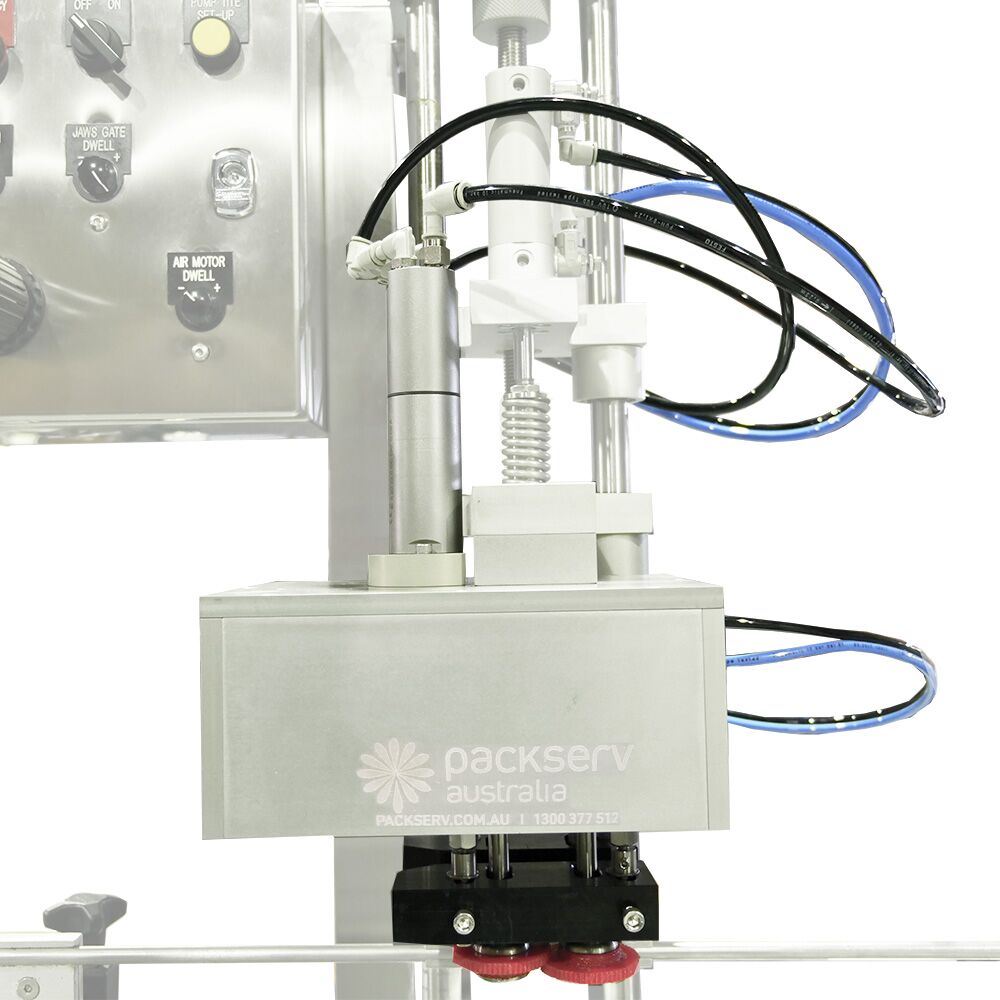

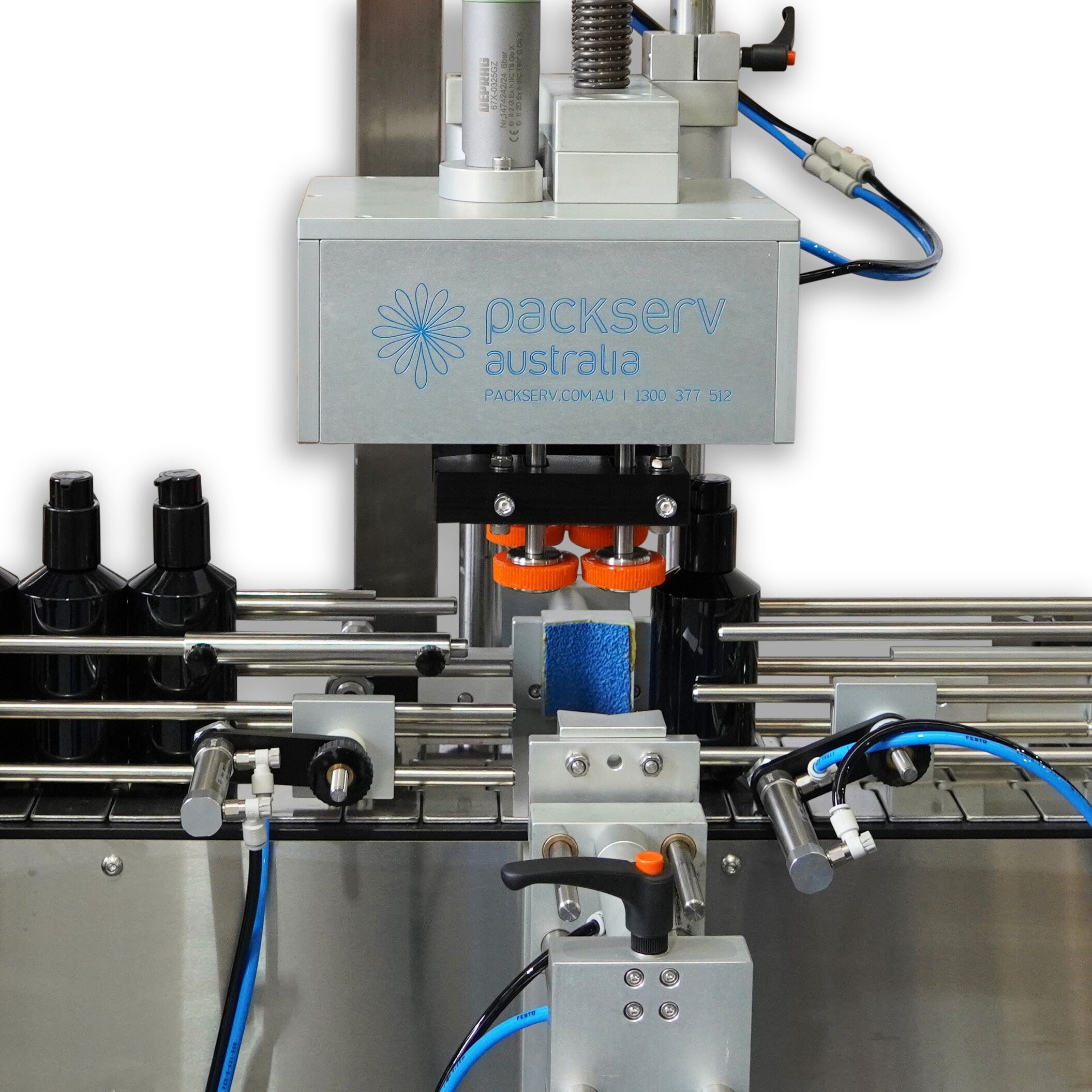

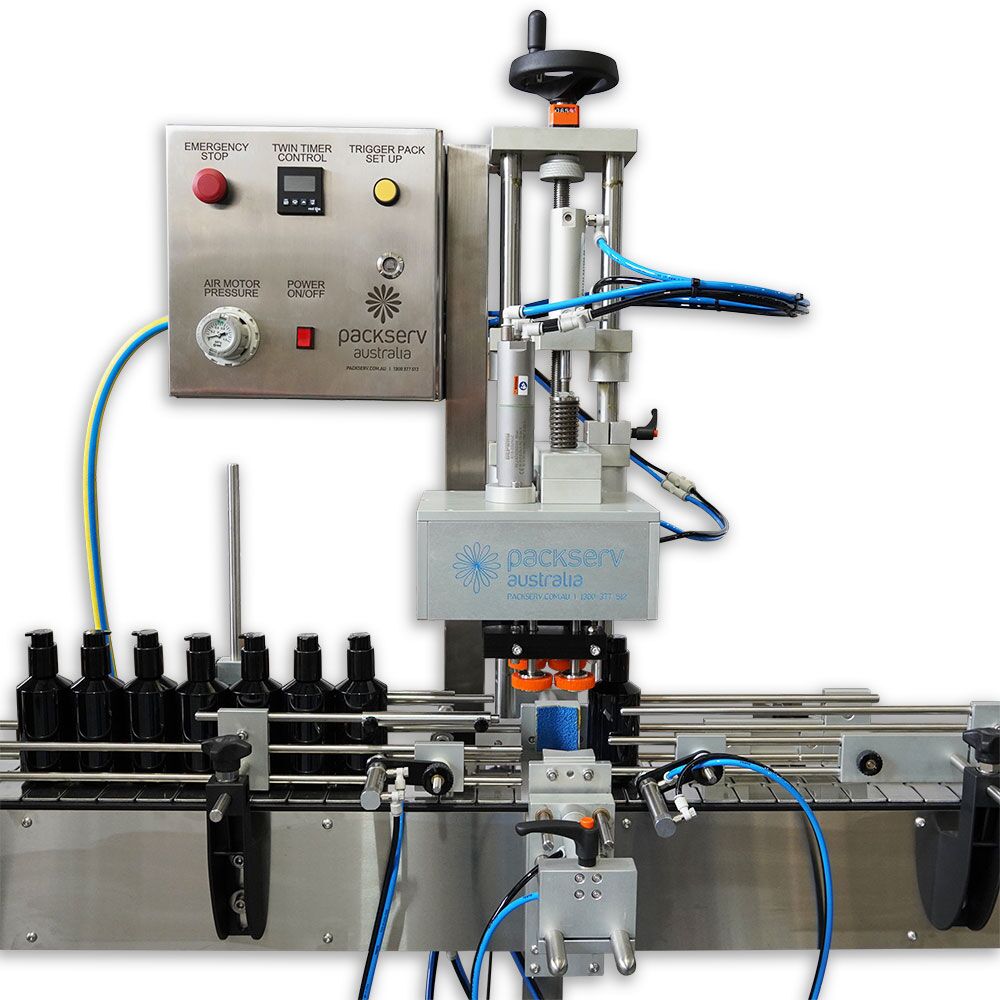

Our PTP-7 Trigger Pack Head is designed for throughputs of up to 60 units per minute. The PTP-7 Trigger Pack can be mounted on our full suite of standard cap tightening machines. The same pack fits both automatic and semi-automatic (bench model) machines.

Attachment is via 2 screws and 3 quick connect air fittings which is all that’s required for you to change your Packserv cap tightening machine from a standard overhead chuck operation to PTP-7 Trigger Pack operation and back again in just a few minutes. The compact design allows for convenient storage when not in use.

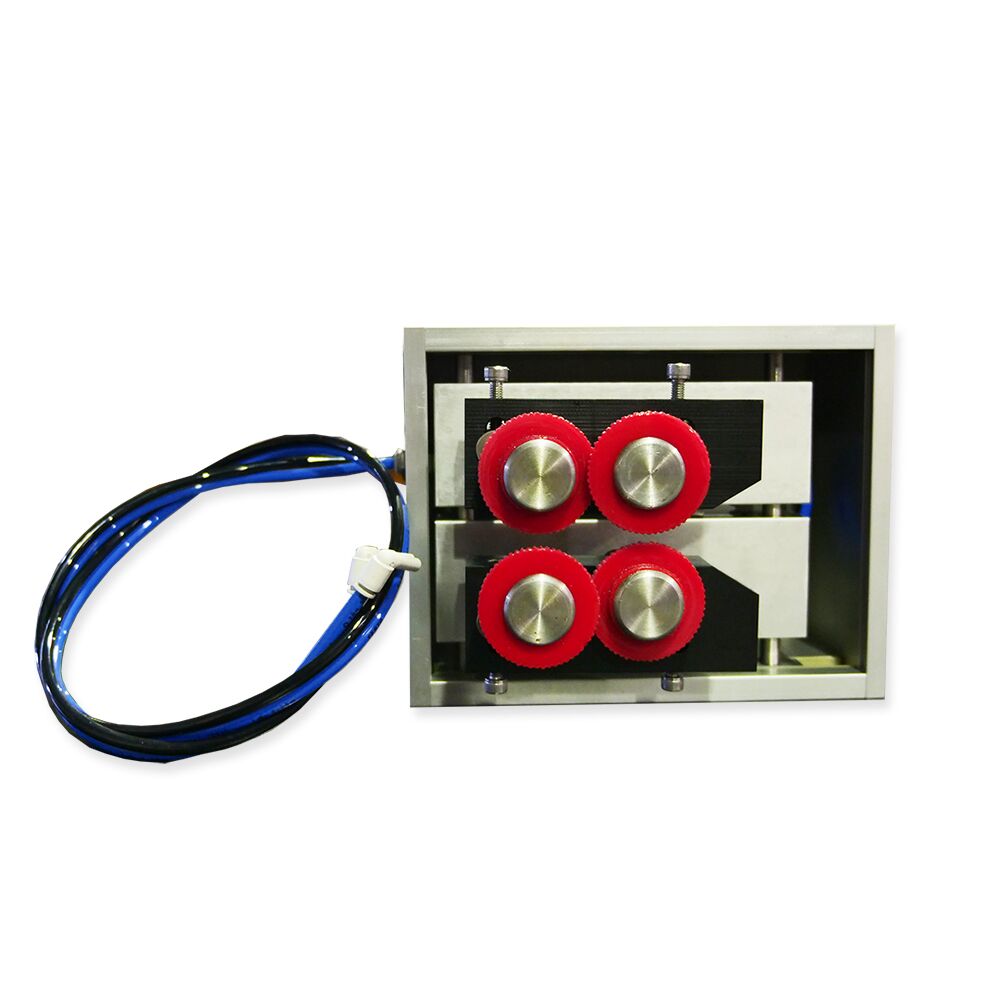

The PTP-7 Trigger Pack operates via a drive system design in which 4 tightening wheels are positively gear driven from a single high quality air motor. This ensures that all 4 wheels are driven at precisely the same speed and torque with minimal air consumption and operating noise.

The torque applied to the cap can be varied from 0-60psi. An air cylinder within the unit smoothly brings both pairs of tightening wheels into firm engagement with the cap at 4 points around its circumference. This action is self-adjusting for different cap sizes so it is fast to set up and can’t get out of adjustment.

The tightening wheels are manufactured from polyurethane in fine and coarse rib patterns to suit the particular cap being tightened, and can be changed over without tools in around 2 minutes. They provide a positive high friction grip which drives the cap to a preset torque without slippage or scuffing of the cap surface.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight5 kilograms
Length250mm
Width200mm
Height400mm
Power SupplyAir compression
Construction Type316 stainless steel and aluminium construction
Container TypeTrigger packs, Mist tops, pump packs, witches hats
MountingMounts to PCM Series Capping Machines
IndustriesAll food, pharmaceutical and industrial applications
MotorDeprag Air Motor Drive
Air Pressure400kpa (60psi)
Units Per MinuteCap up to 60 units per minute
NoiseMedium
Capping ChucksVarious capping wheels for different applications
Custom Capping ChucksSpecial wheels for small, large, and odd shaped containers
Closure TypePump, trigger, dispenser, flip top, witches hats plus standard caps
TorqueTorque adjustable 0-60psi
FlameproofYes
Setting AdjustmentsNo tools required
Timer ControlPneumatic timer control
Changeover SpeedFast changeover of bottles/containers
Caps Size10mm to 45mm
Make

Automatic Function

Mounting

  • All pneumatic flameproof operation
  • Sturdy low maintenance construction
  • Design caters to variety of cap sizes up to 45mm
  • Heavy duty drive system
  • High quality air cylinder drive
  • Can be removed and replaced on a capping machine in a few minutes
  • SImple install and use by operator
  • Tightening wheels self adjust to different cap diameters
  • Self adjusting pump alignment jaws adapt to various pump body shapes to ensure correct alignment with bottle
  • Precise torque setting via pressure regulator and gauge
  • Quick change ribbed polyurethane tightening wheels
  • Self lubricating low maintenance design
  • 1 x base machine
  • 4 x capping wheels (varying materials and types available)
  • 1 x set of airlines and fittings
  • 1 x high torque air motor
