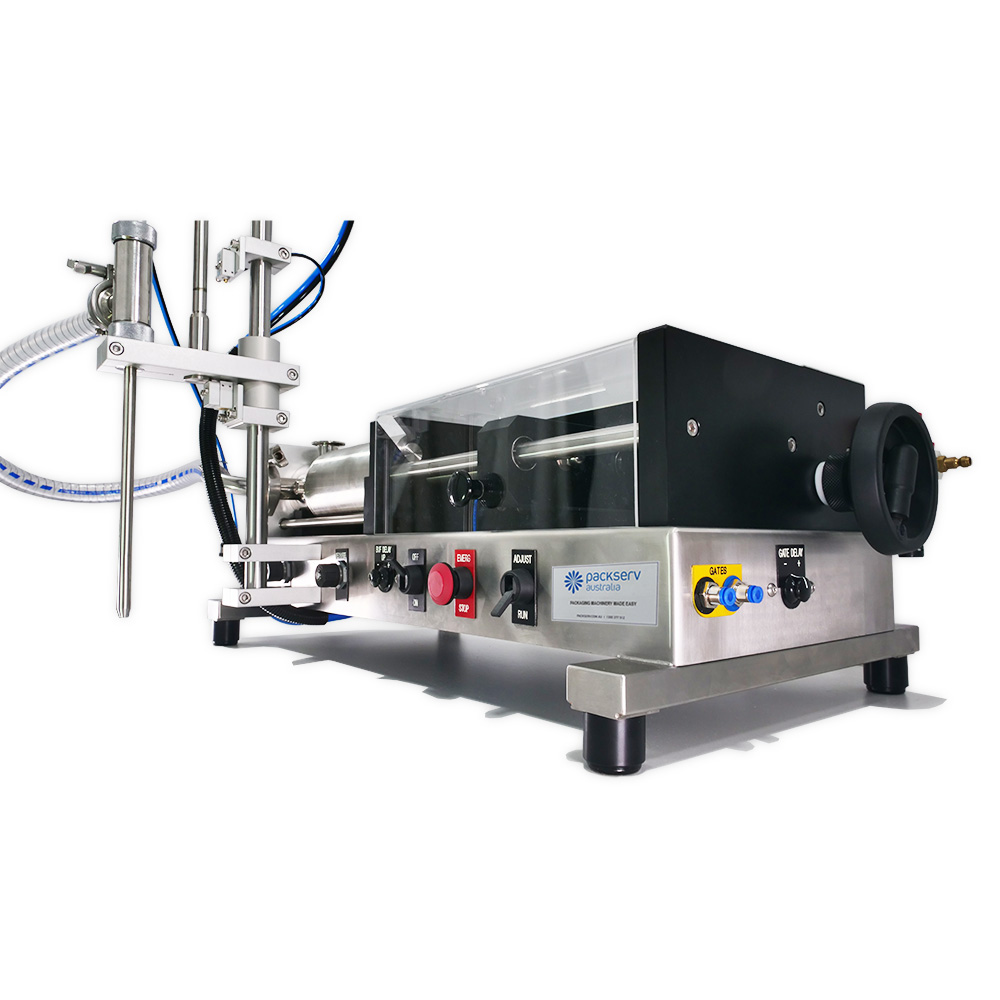

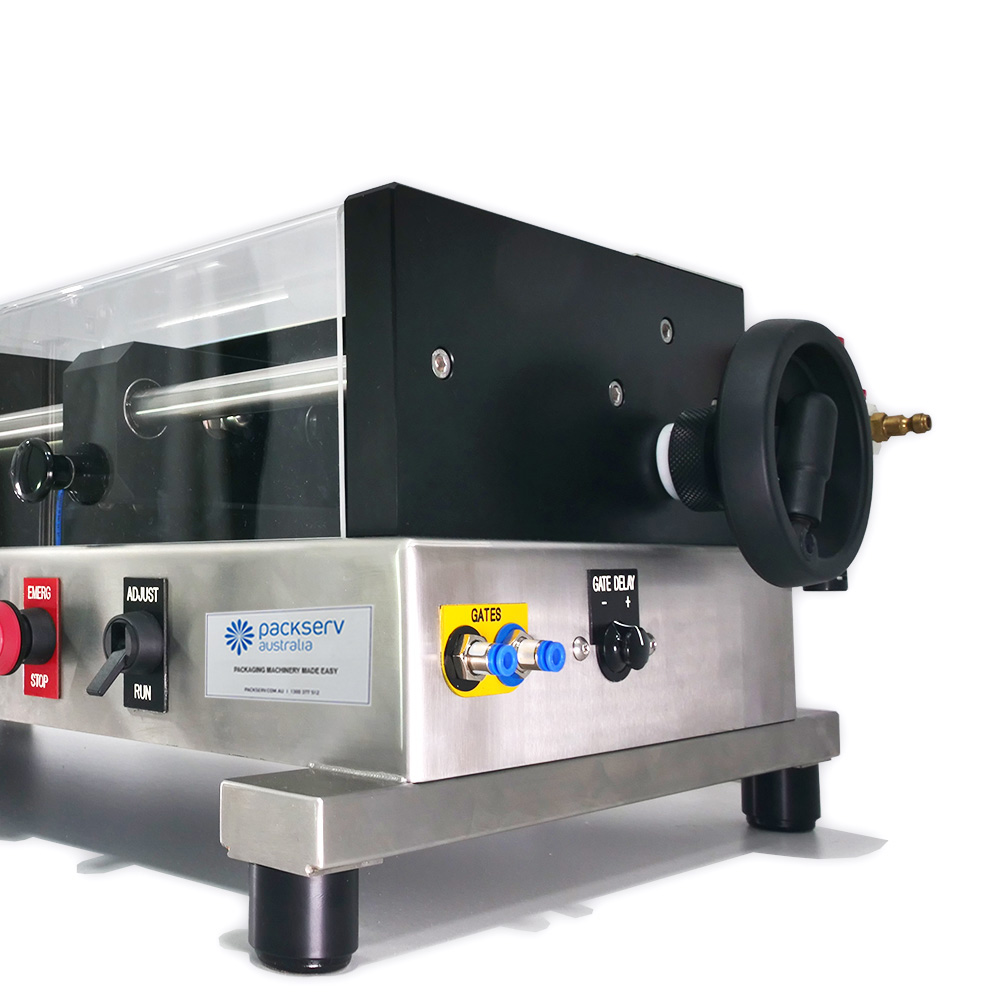

Our PFM-3 Single Head Auto BUF Filler (NA) is a semi-automatic filler for liquid, paste and cream. The heavy duty, all pneumatic design of the PFM-3-BUF-NA is compact, reliable and easy to clean.

Unlike the PFM-3-BUF, the NA design has been optimised to allow a seamless upgrade to fully automatic operation. This means the machine can be mounted over a conveyor line and run operator-free.

The PFM-3-BUF-NA also comes standard with a positive shut-off nozzle and bottom up fill assembly. The valve system of the PFM-3 Auto BUF Filler (NA) handles all types of bottling products from thin liquids to creams and thick pastes as well as hot and cold filling. A special valve is also available for hot fill applications (i.e. >65°C). This filling machine will even package products with suspended solids. Such a task previously required two different filling machines or expensive change parts.

The cylinder design of the PFM-5-BUF enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be utilised to suit the nature of our customers’ products such as hoppers and inlet assemblies. Hence, our BUF machine is versatile in processing various goods.

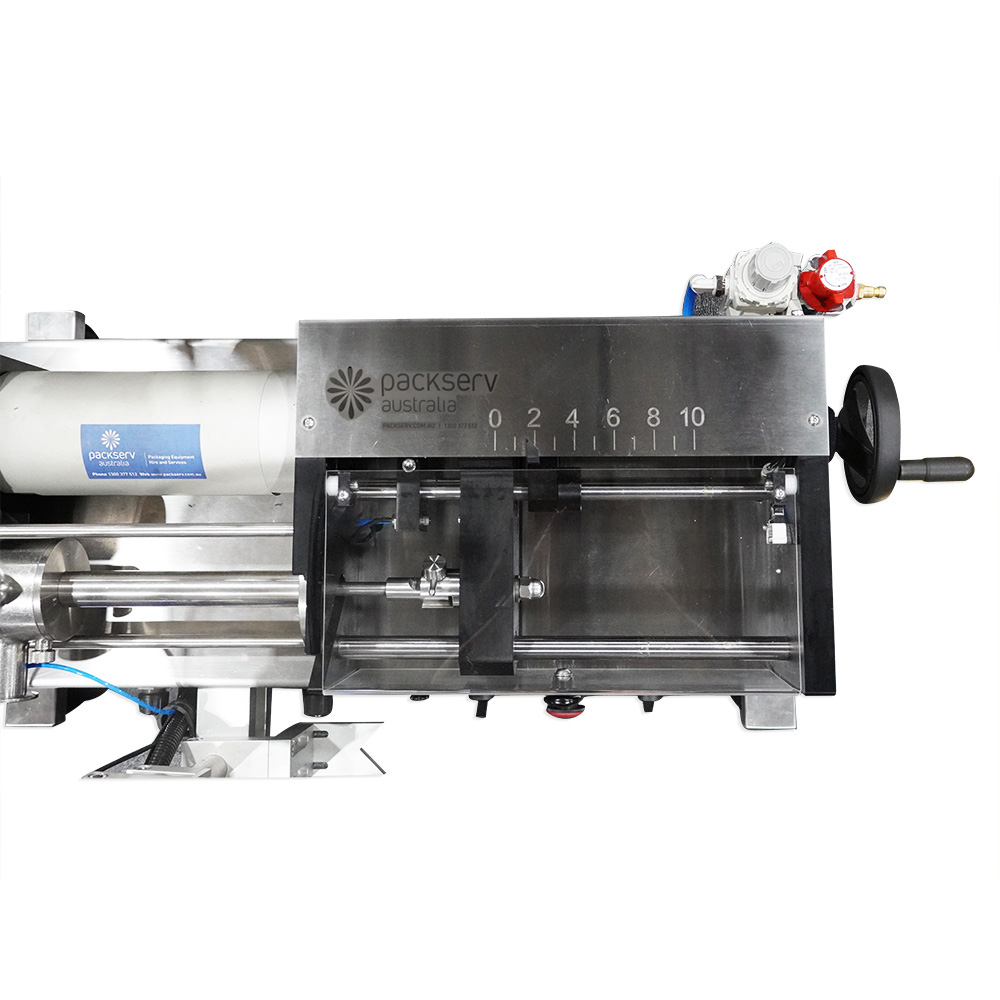

Finally, we enclosed the stroke adjuster and air/product cylinder drive assembly with a safety interlocked poly-carbonate cover, stopping the machine if opened by operator.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight:	35 kilograms
Length:	820mm
Width:	330mm
Height:	800mm
Noise:	Medium
Air pressure:	600kpa (80psi)
Speed:	Totally speed adjustable for all functions
Timer Control:	Pneumatic
Container type:	Bottles, jars, tubs, containers that will stand on a conveyor
Industries:	All food, pharmaceutical and industrial applications
Construction type:	316 grade stainless steel wet parts
Fill temperature:	Cold and hot fill
Fill type:	Liquids, creams, lotions
Not suitable products:	Powder and granules.
Machine Cleaning:	Easy to disassemble for full wash up
Volume:	Fully adjustable
Filling accuracy:	+/- 0.5 to 1% variance
Cylinder Sizes:	25ml, 50ml, 125ml, 250ml, 500ml or 1250ml
Automatic function:	Yes, designed to be completely operator free

Make	Packserv
Automatic Function	Yes
Mounting	Benchtop (Trolley available)

Heavy duty pneumatic product cylinder drive system
All pneumatic flameproof operation suitable for use with flammable products
Easy volume adjustment while running a single cylinder
Adjustable piston fill and recharge stroke speed
Simple tool-free dismantling makes for easier cleaning
Quick changeover of products and parts
Suitable for liquids, creams and pastes
Filler is suitable for food and pharmaceutical use
Suitable for warm water hose down
Quick connect tri-clover product inlet/outlet fittings
Various methods to feed product to machine available

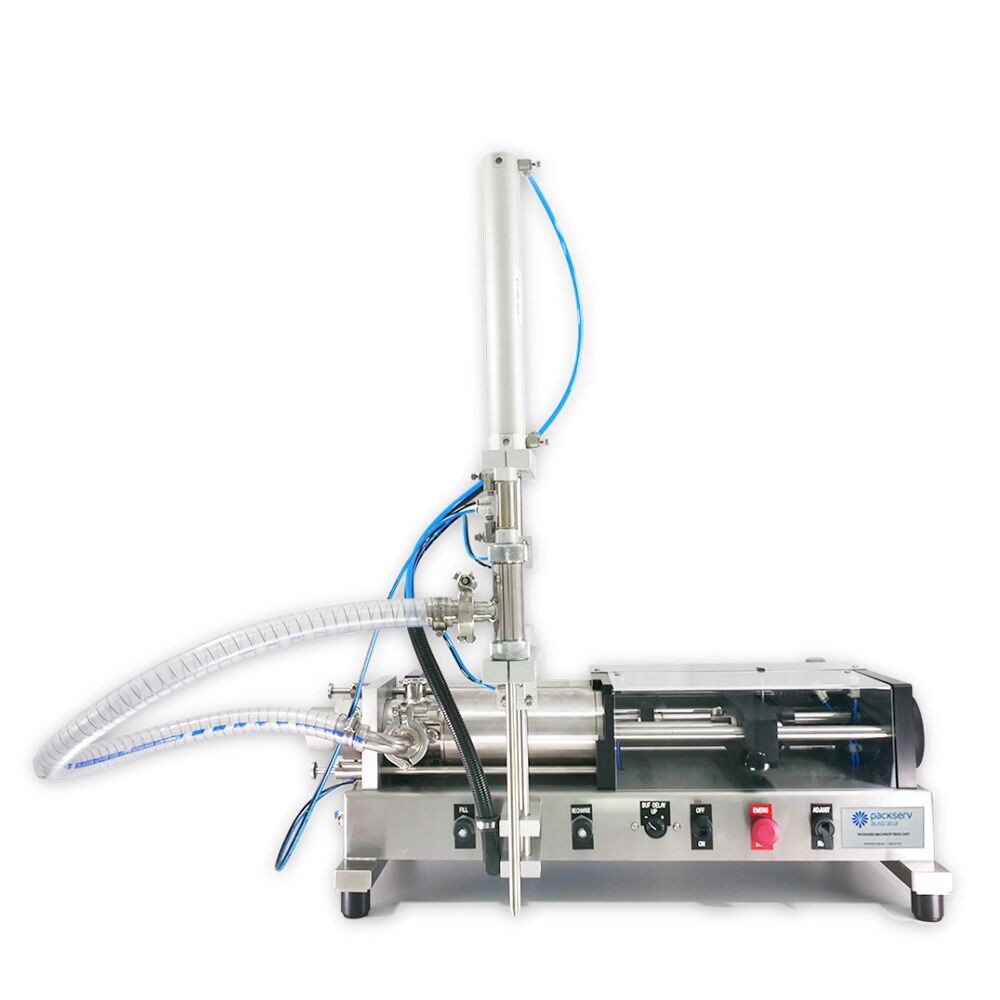

Features bottom up fill (BUF) to reduce foam/froth/bubbling of products.

Applications

Liquid dispenser, Fluid filler, Beverage filling device, Fluid packaging equipment, Liquid bottler, Fluid dosing machine, Liquid packaging system, Fluid dispensing apparatus, Beverage bottling machine, Liquid packaging machinery, Liquid filling apparatus, Fluid bottling device, Beverage packaging machine, Liquid bottling system, Fluid doser, Liquid bottling equipment, Beverage dosing machine, Liquid filling station, Fluid bottling unit, Beverage packaging system.

1 x rotary valve setup (interchangeable with hot spool valve)
1 x bottom up fill assembly
1 x positive shut off nozzle (different sizes and styles available)
1 x product cylinder (25ml-1250ml options available)
1 x curved inlet
1 x barbed inlet
1 x length of transfer hose
3 x triclover clamps including seals
