Our PFM-4C Four Head Auto Bottom Up Filler is a semi-automatic liquid, paste and cream filling machine that is both user friendly and versatile. The heavy duty, all pneumatic design of the PFM-4C is compact, reliable and easy to clean.
This machine is designed for completely automatic function and use in a full-scale production line. The PFM-4C features a welded and polished frame with lockable castors allowing connection to a continuously running slat conveyor. The PFM-4C also comes complete with “no bottle no fill” safety device and container gating system.
The PFM-4C also comes standard with positive shut-off nozzles and a bottom up fill assembly. The valve system of the PFM-4C handles all types of bottling products from thin liquids to creams and thick pastes as well as hot and cold filling; a special valve is also available for hot fill applications (i.e. >65?C). This filling machine will even package products with suspended solids; a task that previously required two different types of filling machine or expensive change parts.

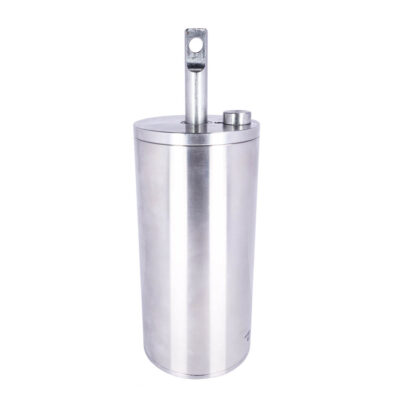

The cylinder design of the Four Head Auto Filler enables quicker dismantling and easier, more thorough cleaning of wet parts. The supply method of product to this machine is run through a stainless steel manifold system connected preferably by 2″ or 3″ transfer hose connected directly to a storage/mixing vat or IBC.
Finally we have enclosed the stroke adjuster and air/product cylinder drive assemblies with a safety interlocked poly-carbonate covers that shuts the machine off if an operator was to open the door during production.
*Rent: Brand and model may vary. The machine will be identical in function.
