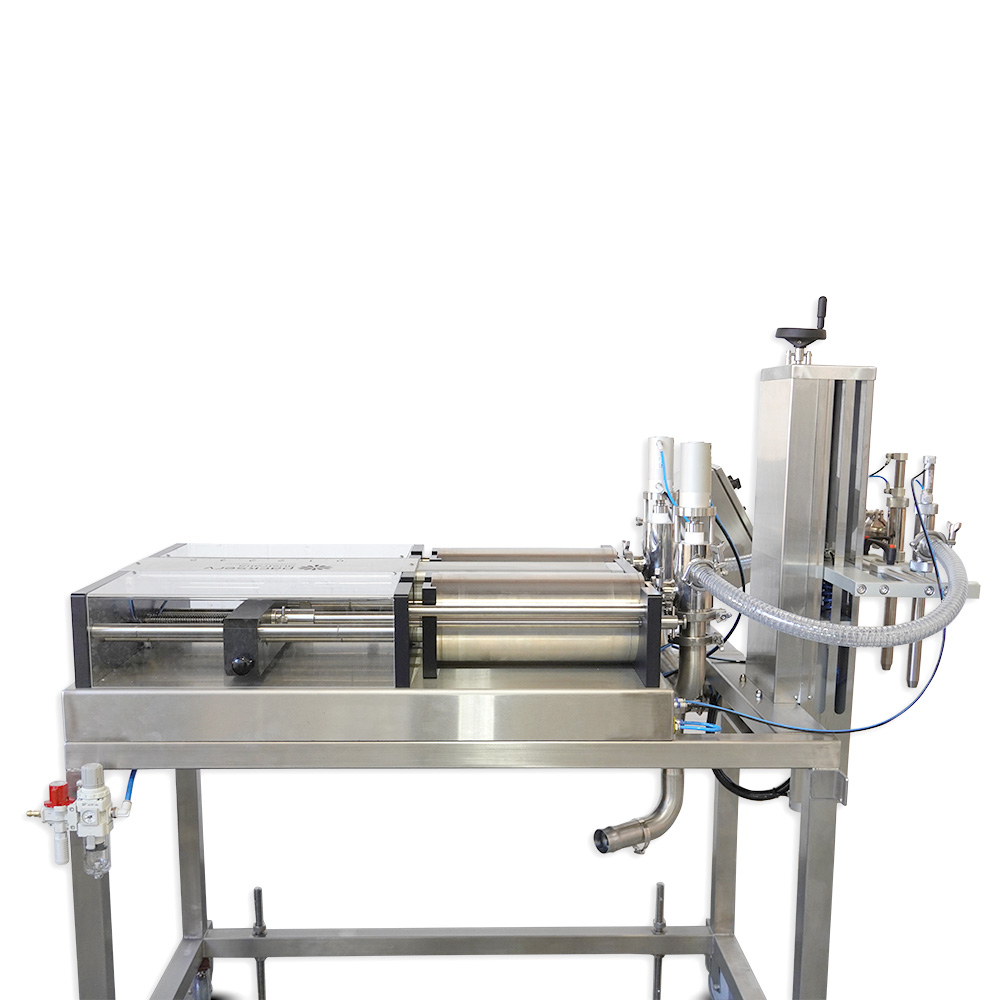

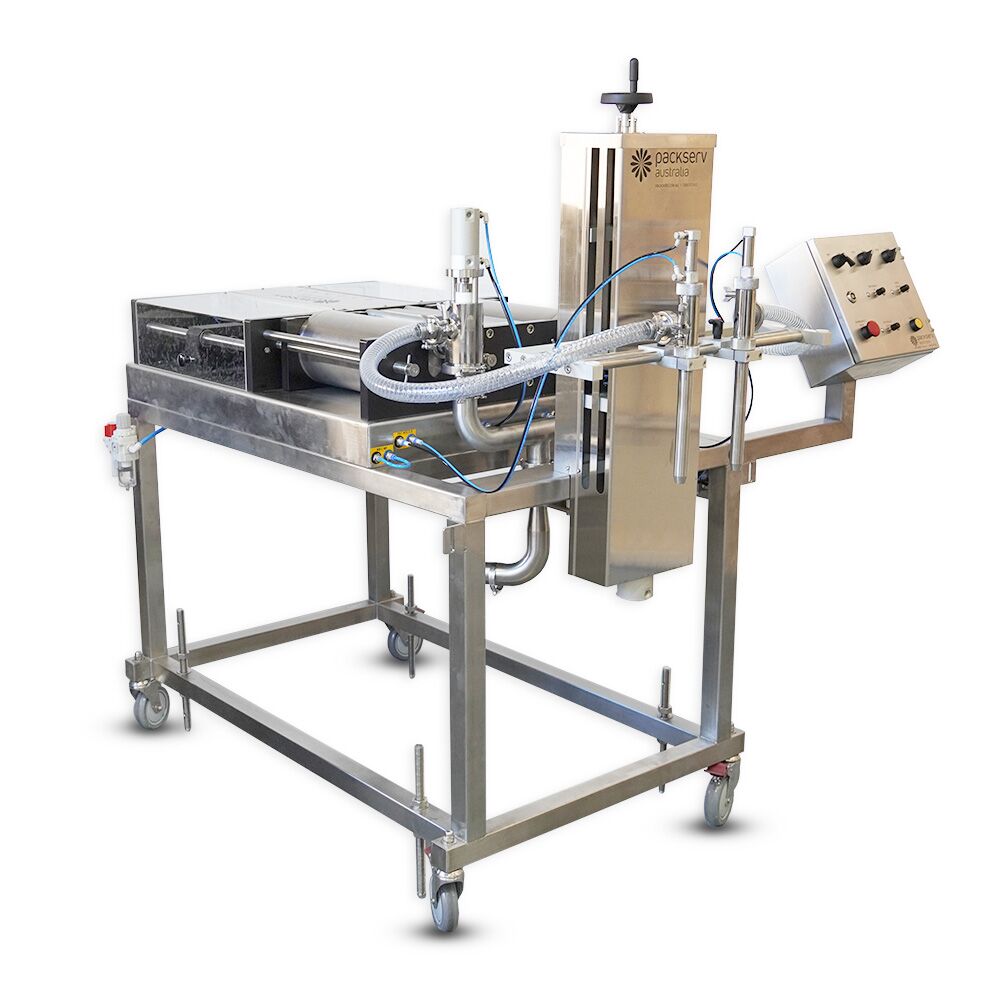

Our PFM-5-2C Twin Head 5L Auto Filler is a fully automatic liquid, paste and cream filling machine that is simple and versatile. The heavy duty, all pneumatic design of the PFM-5-2C is compact, reliable and easy to clean. This machine operates with fully automatic inline function. The filler incorporates two 5 litre product cylinders allowing for dual single-shot filling of containers from 500ml-5000ml.

The PFM-5-2C also comes standard with a pair of positive shut-off nozzles and a bottom up fill assembly. The spool-valve system of the filler handles all types of bottling products. It is capable of processing thin liquids, to creams and thick pastes as well as hot and cold filling. This equipment can handle temperatures of up to 95°C with ease. The PFM-5-2C also comes complete with “no bottle no fill” safety device and container gating system.

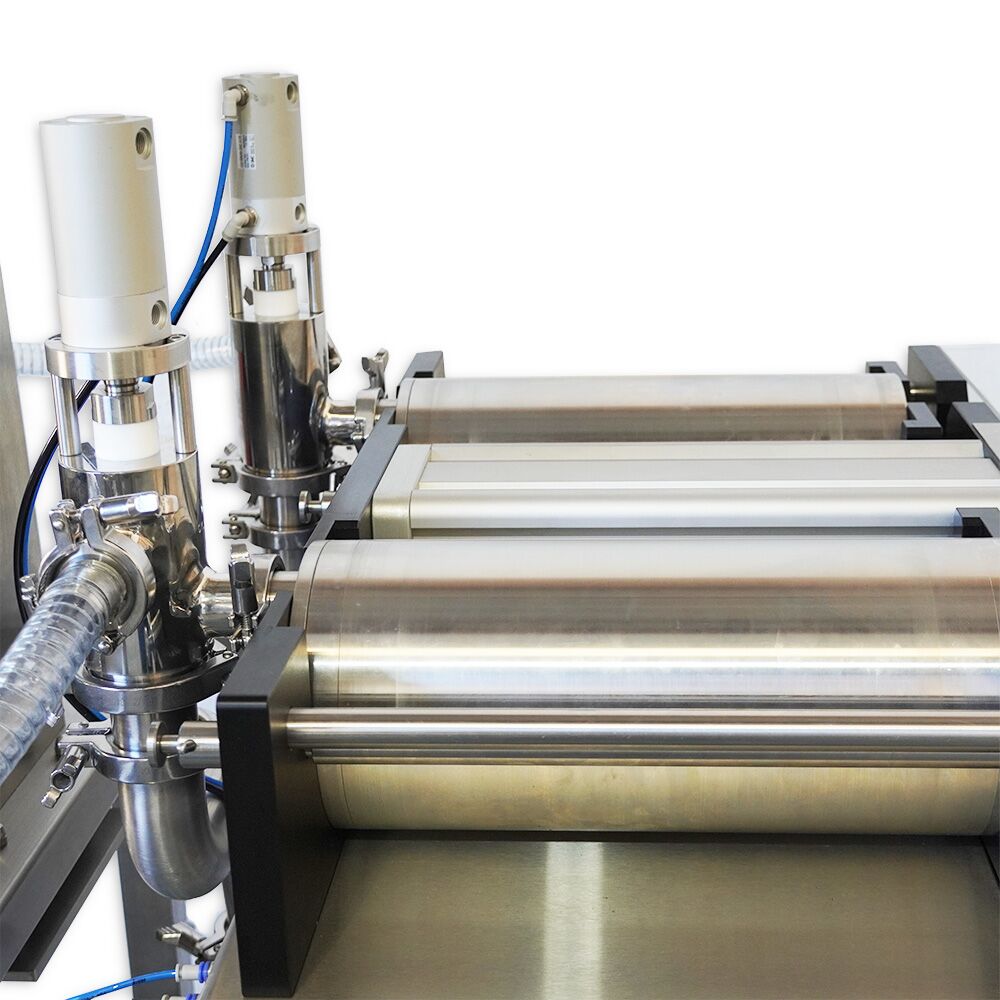

The cylinder design of the PFM-5-2C Twin Head 5L Auto Filler enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be utilised to suit the nature of our customers’ products such as hoppers and inlet assemblies. Hence, our Twin-Head 5L-BUF machinery is versatile in processing various goods.

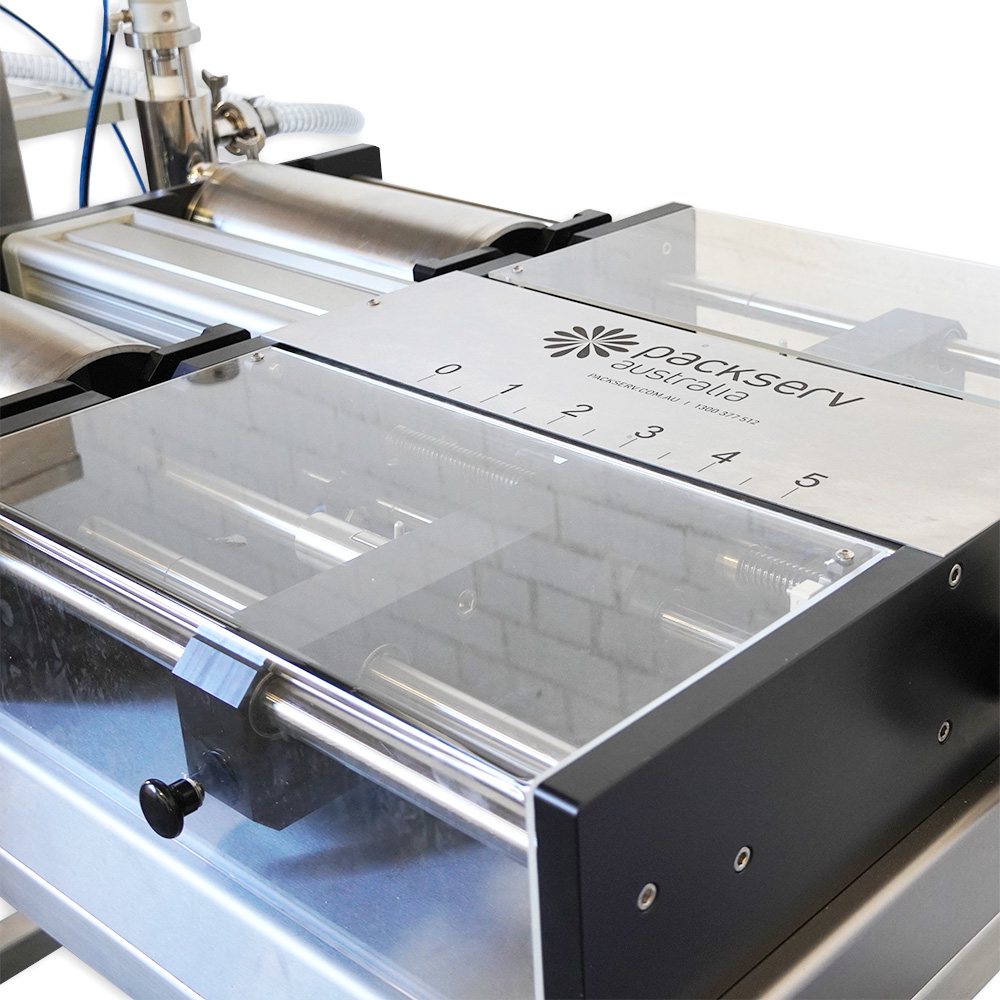

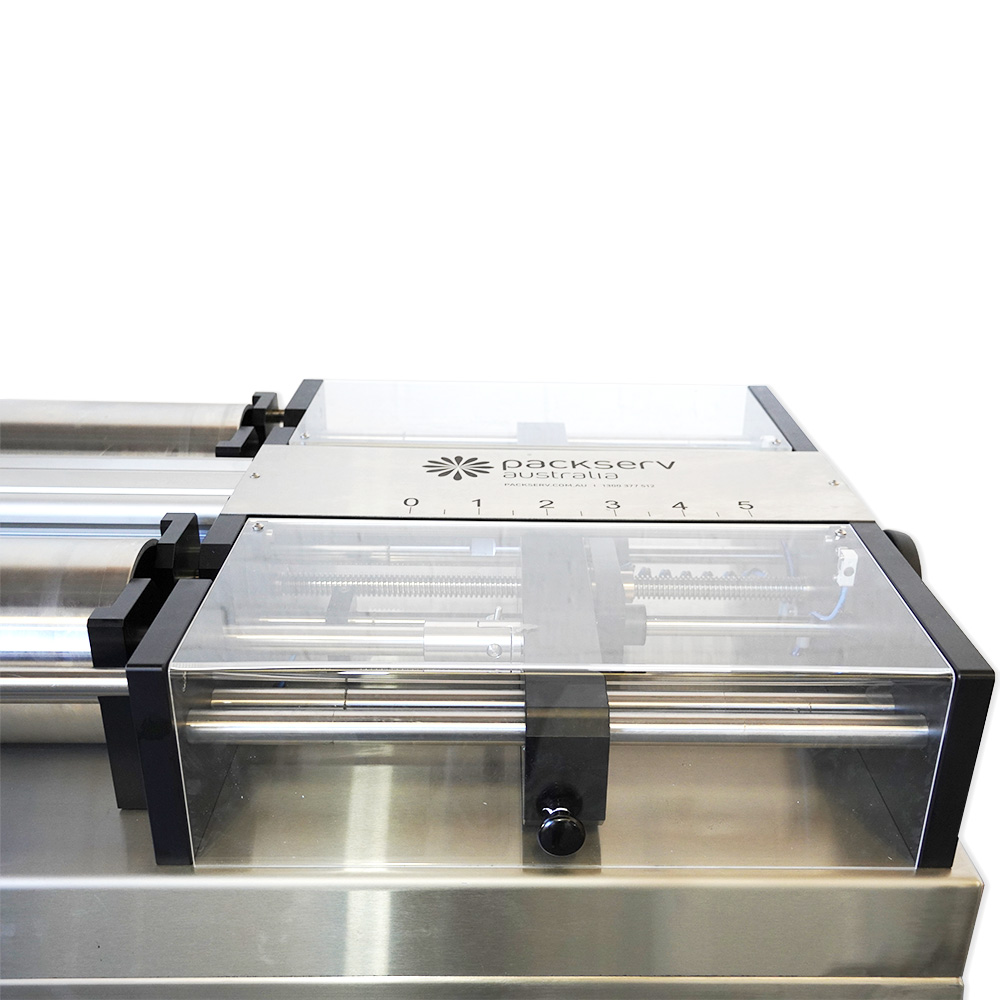

Finally, we enclosed the stroke adjuster and air/product cylinder drive assemblies with a safety interlocked poly-carbonate cover, stopping the machine if opened by operator.

*Rent: Brand and model may vary. The machine will be identical in function.

Weight	250 kilograms
Length	1400mm
Width	1100mm
Height	1700mm
Power Supply	Air compression
Construction Type	316 grade stainless steel wet parts
Container Type	Bottles, jars, tubs, containers that will stand on a conveyor
Mounting	Trolley mounted with lockable castors (mounts onto inline conveyor system)
Industries	Industrial, chemical, cleaning, agricultural, food, pharmaceutical
Air Pressure	600kpa (80psi)
Units Per Minute	20-30UPM (guide only)
Noise	Medium
Flameproof	Yes
Timer Control	Pneumatic
Speed	Totally speed adjustable for all functions
Fill Range	500ml – 5ltr
Fill Temperature	Cold and hot fill
Fill Type	Liquids, creams, lotions
Not Suitable Products	Dry powders and granules
Machine Cleaning	Fully washable
Volume	Fully adjustable
Filling Accuracy	+/- 0.5 to 1% variance
Cylinder Sizes	5000ml
Automatic Function	Yes, designed to be completely operator free

Make	Packserv
Automatic Function	Yes
Mounting	Frame featuring castors

Heavy duty pneumatic product cylinder drive system
All pneumatic flameproof operation suitable for use with flammable products
Easy volume adjustment while operating
Adjustable piston fill and recharge stroke speed
Simple tool-free dismantling makes for easier cleaning
Quick changeover of products and parts
Suitable for liquids, creams and pastes
Filler is suitable for food and pharmaceutical use
Suitable for warm water hose down
Quick connect tri-clover product inlet/outlet fittings
Various methods to feed product to machine available
Features bottom up fill (BUF) to reduce foam/froth/bubbling of products
Features a 5L product cylinder capable of filling anywhere from 500ml-5000ml in a single shot
316 Stainless Steel and anodised aluminium design.

1 x base machine
1 x installed bottom up fill assembly
1 x positive shut off nozzle kit (includes 2 x positive shut off nozzles)
1 x set of automatic attachments GDS-A (includes 2 x gates, 2 x sensors and all associated brackets)
1 x set of 4 castors and levelling jacks
2 x spool valve (includes seals)
2 x curved outlets
2 x hose barb
6 x triclover clamps (including seals)
2 x product cylinder (5000ml)
2 x 1 inch transfer hose & fittings
1 x height adjusting handle
