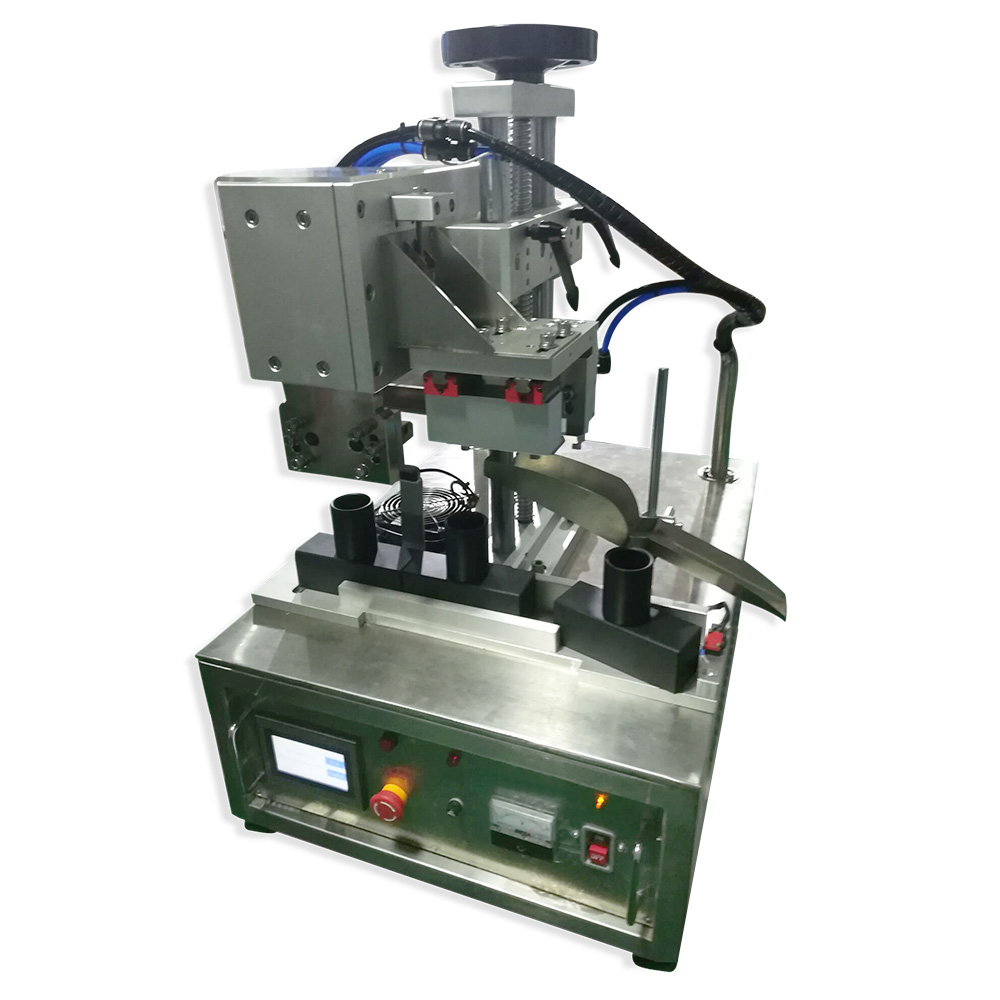

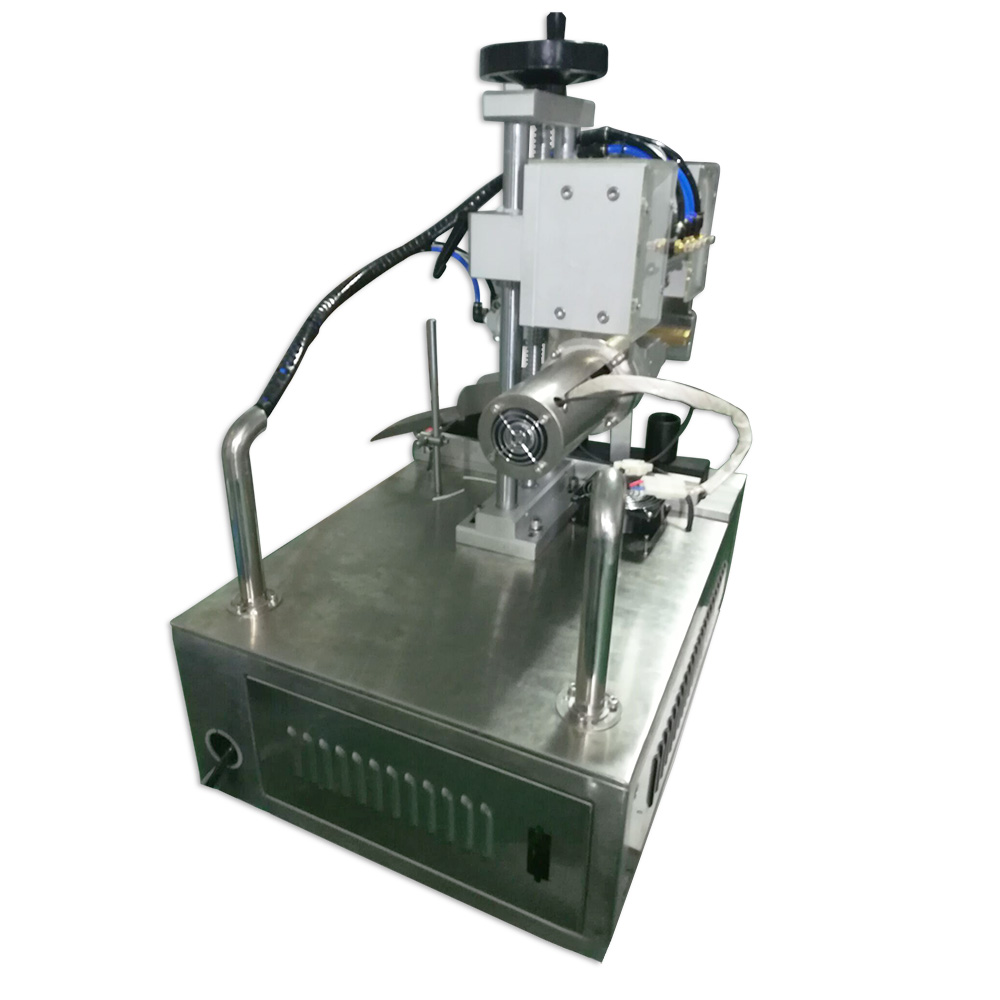

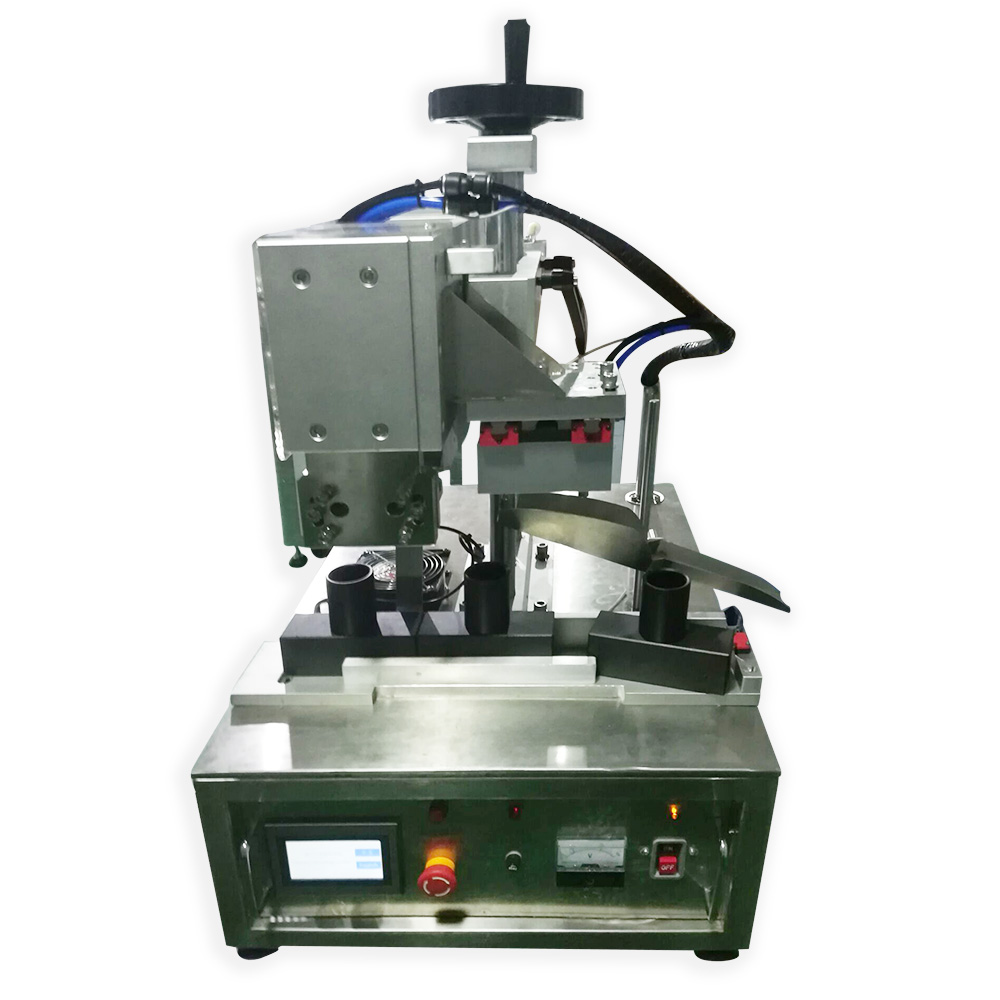

The YX-007 Semi-Automatic Tube Sealer is the latest technology in small to medium sized tube sealing. It combines ultra-sonic sealing, batch stamping, trimming and a corrugated cosmetic / pharmaceuticals grade finish. This machine requires an operator to load the tube pucks and move the tubes through the stations. Capable of running up to 15 units per minute this machine works perfectly with one of our bench top fillers and labellers.

This machine is designed to produce perfectly sealed tubes that look to have been manufactured on a much larger more expensive fully automatic machine. Featuring all the modern components and functions of state of the art automated machinery, this small portable tube sealer is all any SME business needs and can be operated by anyone with very basic instruction.

Manufactured from 316 stainless steel this machine is suitable for any food or pharmacutical application. Requiring a small air compressor and standard 10amp power point its easily connected and set up in any manufacturing location. This machine can seal any plastic and laminate tube material up to 57mm in diameter.

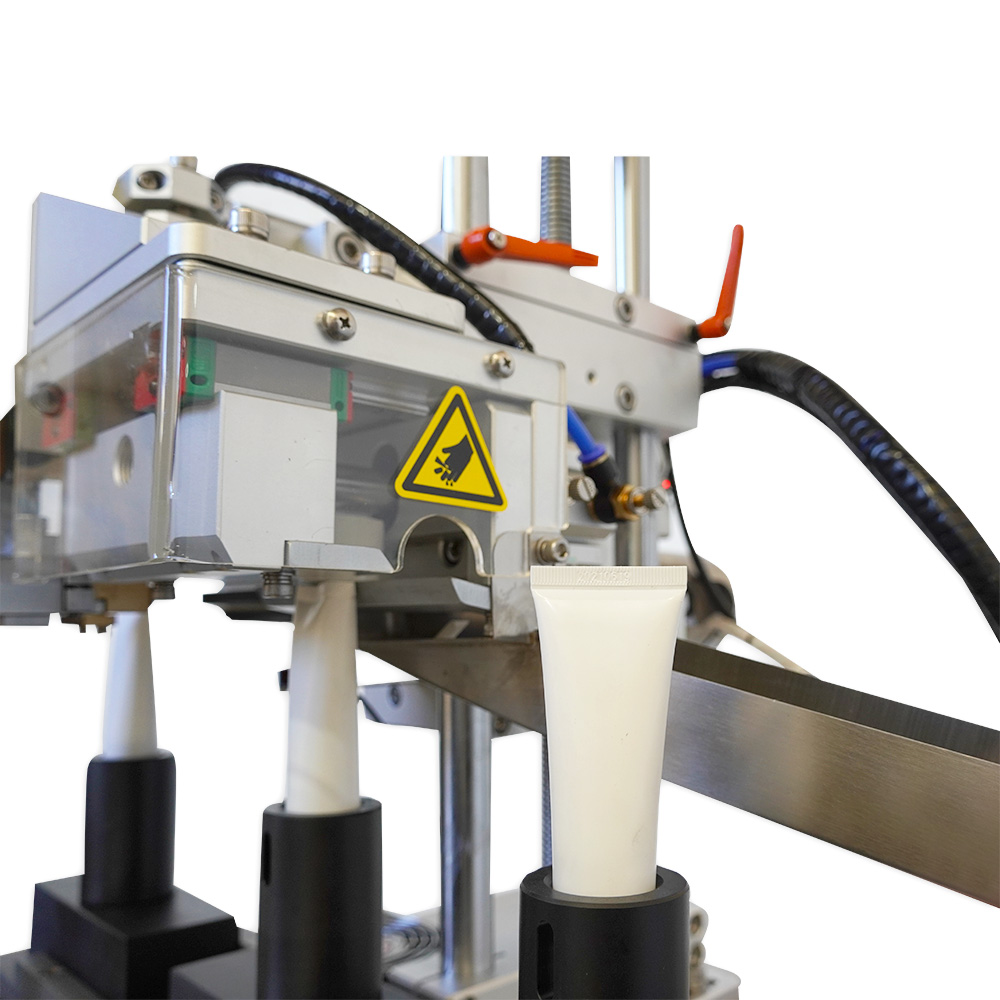

Special tube holding pucks can be supplied with the machine holding your tube perfectly straight during the sealing process, and a number/letter set can also be provided for batch stamping your unique batch number into your tubes.

Width	20″
Depth	25.5″
Height	35.5″
Weight	175lbs (79 kg)
Tube Length	1″ – 10″
Tube Diameter	10mm – 57mm
Electrical	110v, single-phase, 60 Hz
Power	1.6 KW
Air Requirement	0.7 – 0.8 Mpa
Ultrasonic Frequency	20 Khz

Make	Penglai
Automatic Function	Semi-Automatic
Mounting	Trolley (on wheels)

Seal All plastic and laminate tubes, ANY shape or size
Production speeds of up to 15 tubes per minute

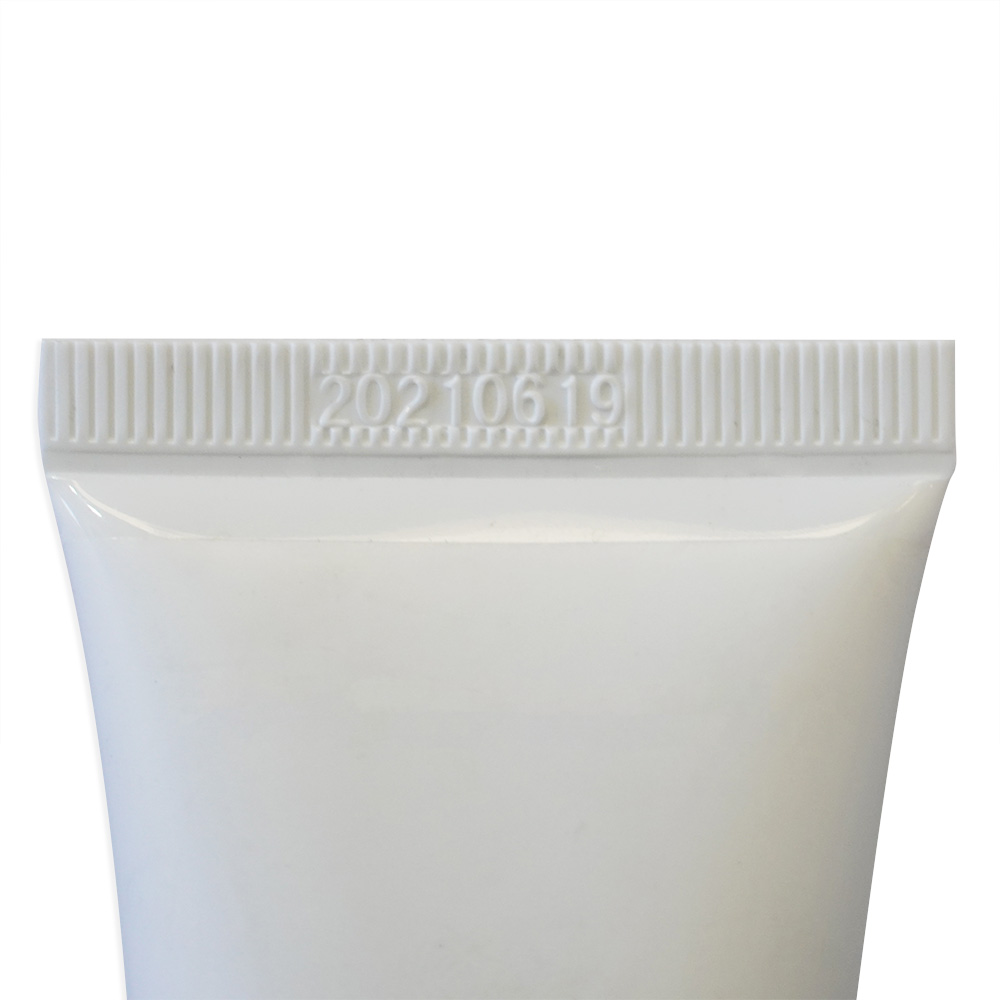

Date / Lot Coding of all tubes already built-in
Seals through product contamination
Very low reject rate, less than 1%
Ultrasonic sealing eliminates ‘flash’ and ‘ears’ versus hot-air sealing methods
Rotary cutting knife to cleanly cut even the thickest tube materials
Change-over time of less than 5 minutes
Virtually NO CHANGE PARTS
Line operators can setup and run machine, no mechanics required
Training new operators is literally a 10-minute procedure, extremely simple
Small footprint, table-top design
Perfect for small production runs and lab use
No warm-up time needed, plug in and it’s ready to seal tubes right away
No water requirement
Needs only a very small air compressor for air requirements
