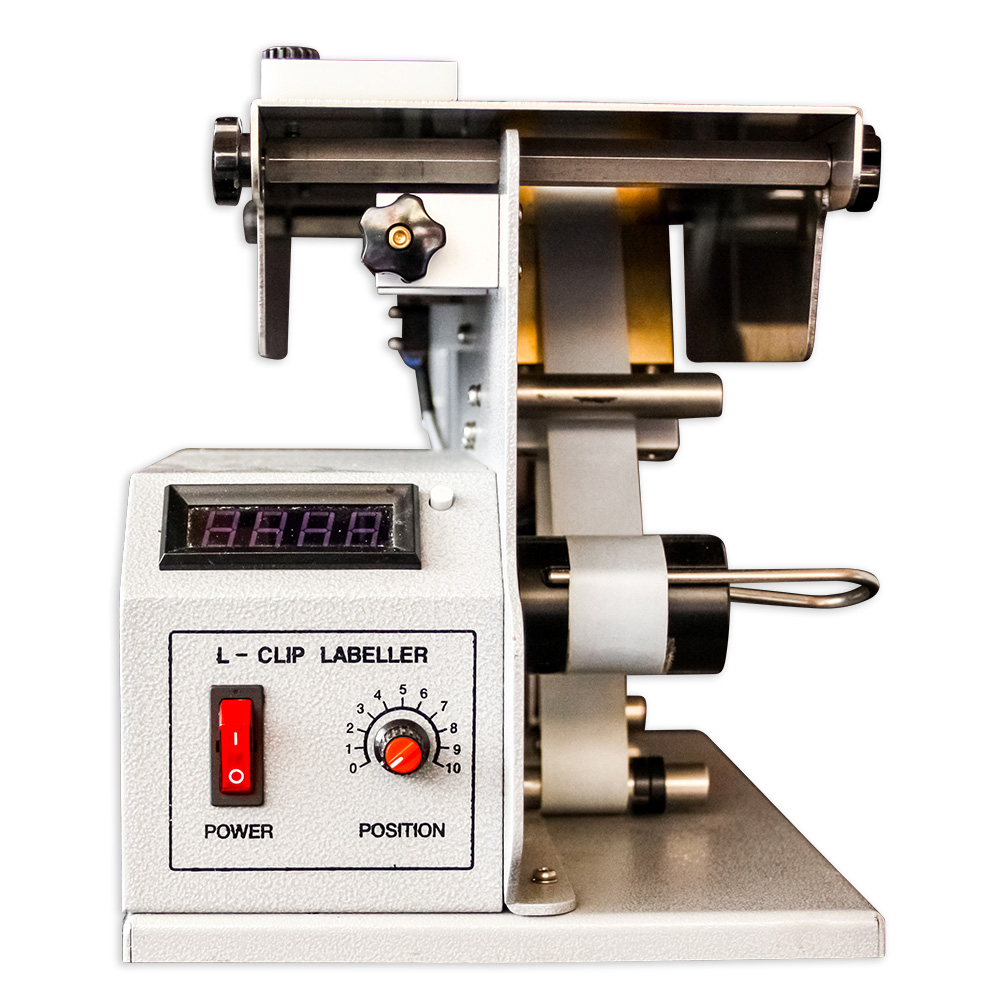

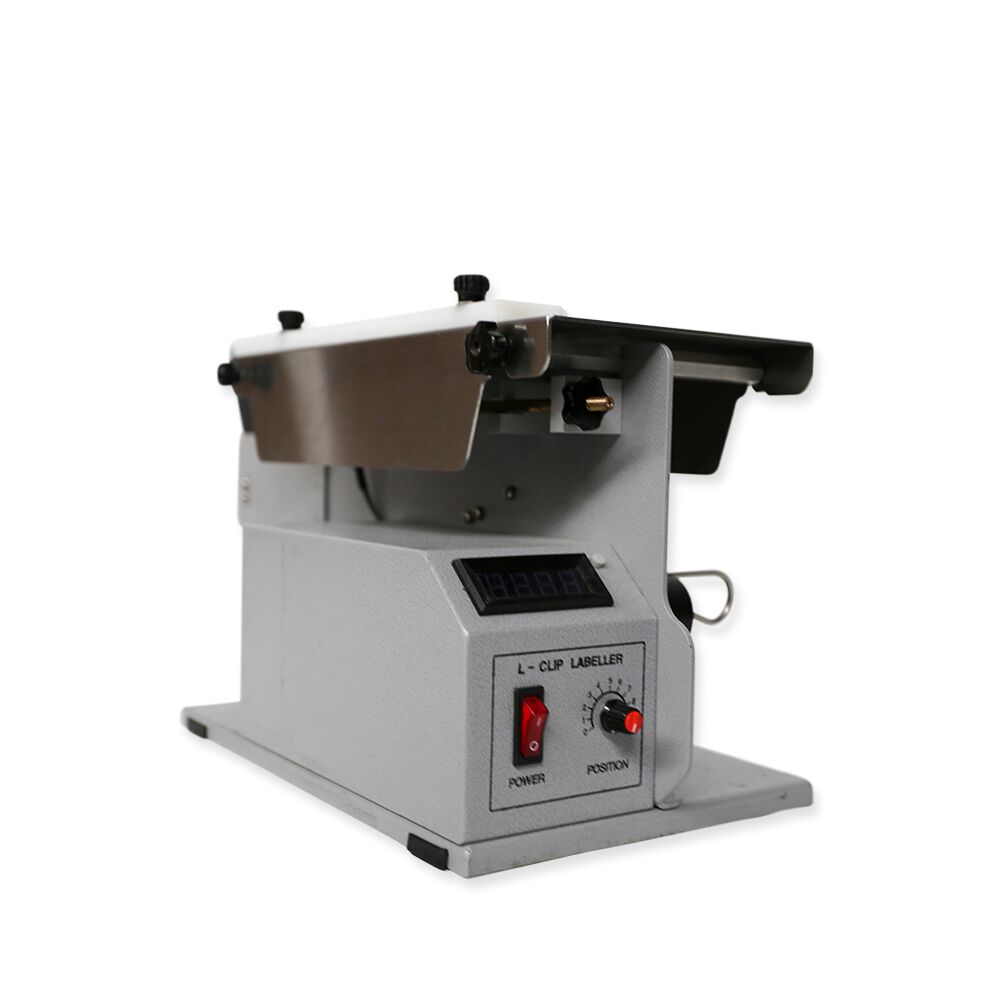

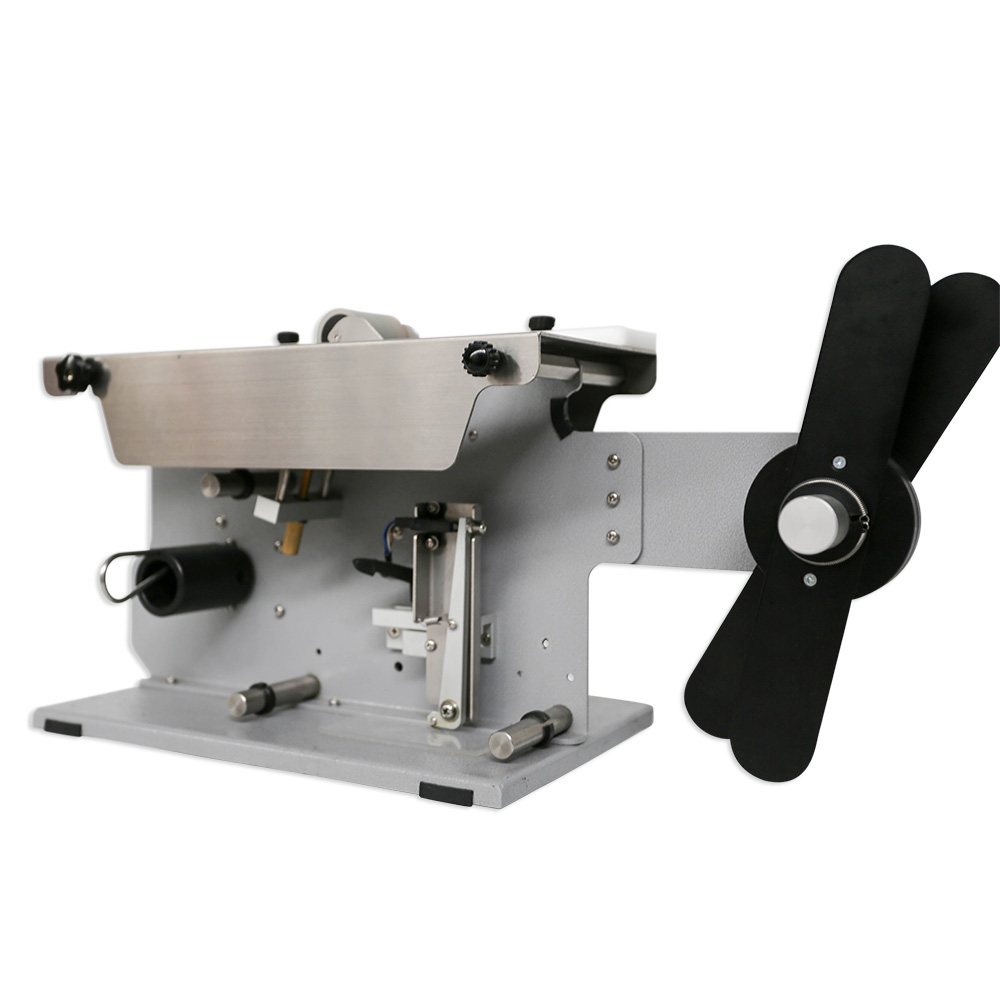

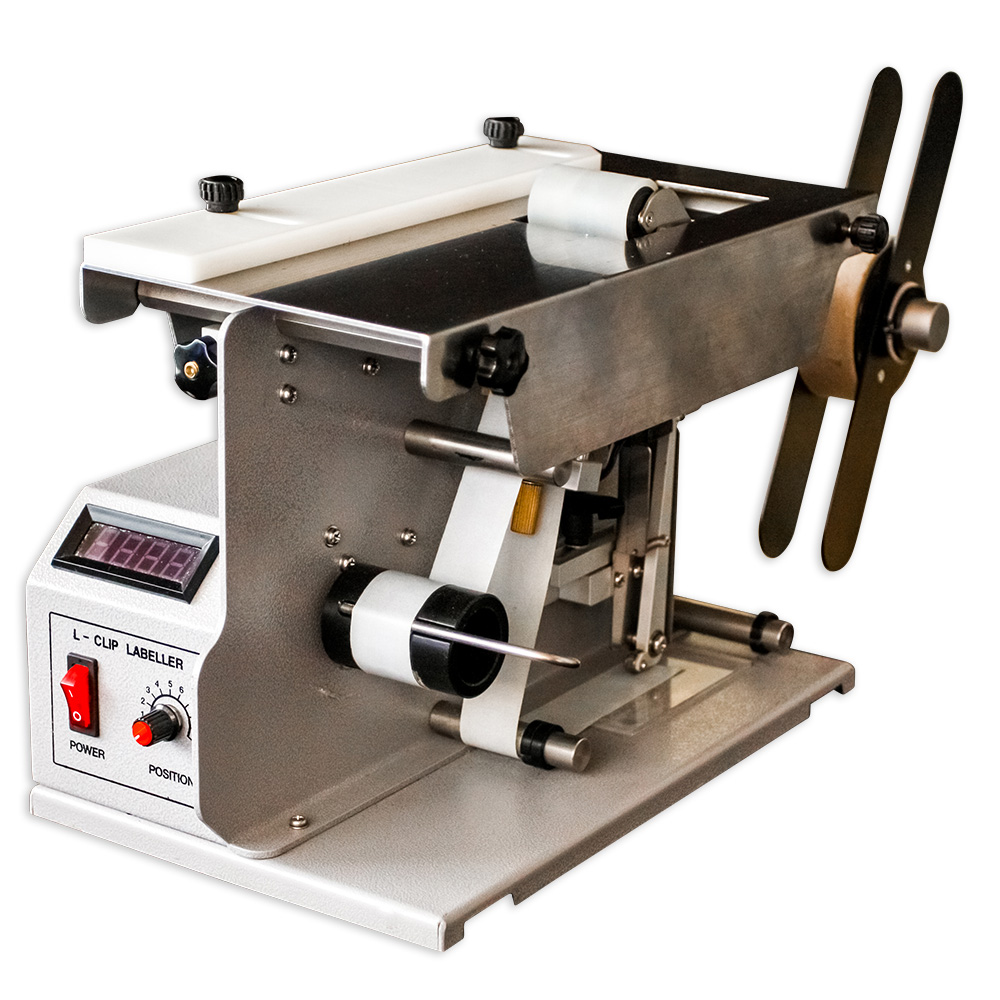

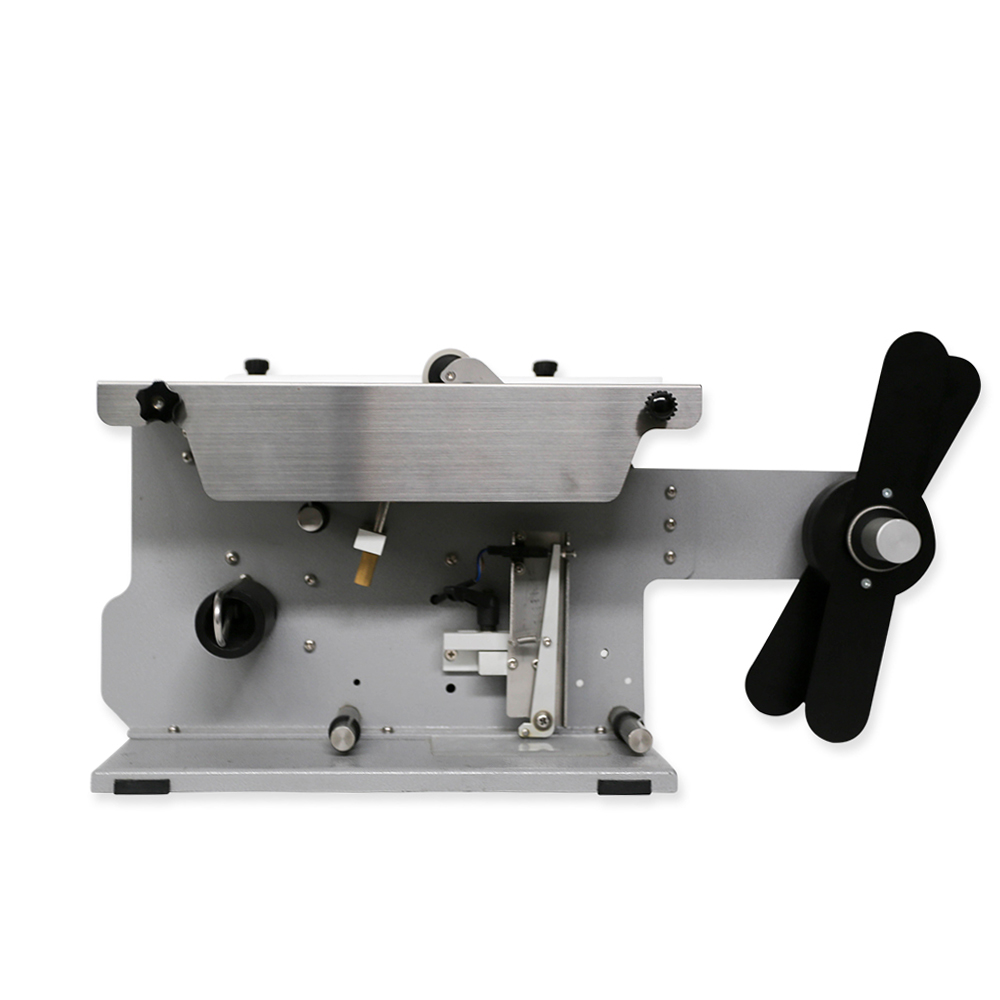

The CSL (Carton Security Labeller) is capable of increasing the tamper evident hand labelling of small cartons by at least 3 times.

This machine is manually operated by swiping the carton over the top plate whilst a white nylon guide provides positioning of the carton. The label is fed out electrically; when the carton comes in contact with the application roller the label is applied to the front face of the carton and the underside, while the backing paper is being rolled up automatically.

*Rent: Brand and model may vary. The machine will be identical in function.

Power Supply	Standard 240V 10Amp Electric
Acceptable Box Width	40mm-140mm
Machine Length	Machine Width
160mm	Machine Height
260mm	Weight
Weight	8kg
Label Width Range	10mm-30mm
Label Roll Diameter Range	39mm-250mm
Minimum Label Gap	3mm

Make	Sanho-Labelling
Automatic Function	Semi-Automatic
Mounting	Benchtop

Rewinds backing paper
Low voltage design – providing safety during operation
Designed for continuous trouble free operation
Eliminate RSI Risk
Mechanical star-wheel label sensor – for positive label sensing of paper or clear labels
Single motion label placement – for speed and efficiency
Accepts a wide range of carton sizes
Increase manual labelling productivity by 3 times
One second cycle time – per label (double ended cartons in 3 seconds)
Improves labelling quality and consistency
Industrially robust
Food Grade
Stainless Steel construction
Suitable for clear, opaque, metallic or regular labels
Tool-less operation & adjustment
Simple to operate – almost no skill or training is required to obtain an excellent result
Quick to set up – within a couple of minutes a new job can be set up and running, increasing productivity immediately

Reviews

There are no reviews yet.

Be the first to review “Carton Security Labeller”

You must be logged in to post a review.

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

Machine Category* (Please press CTRL to select more then one)

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

Machine Category* (Please press CTRL to select more than one)

How did you hear about us?*

Your Message or Enquiry*

First Name *	Last Name *

E-mail *

Phone Number *	Country *

State/Province *	Postcode *

Business Name*

Enquiry Type:*

Machine Category* (Please press CTRL to select more than one)

How did you hear about us?*

Your Message or Enquiry*

Purchase Option -

Make -

Automatic Function -

Product Label Type -

Product Sealer Type -

Carton Security Labeller

Reviews

Normally Used With

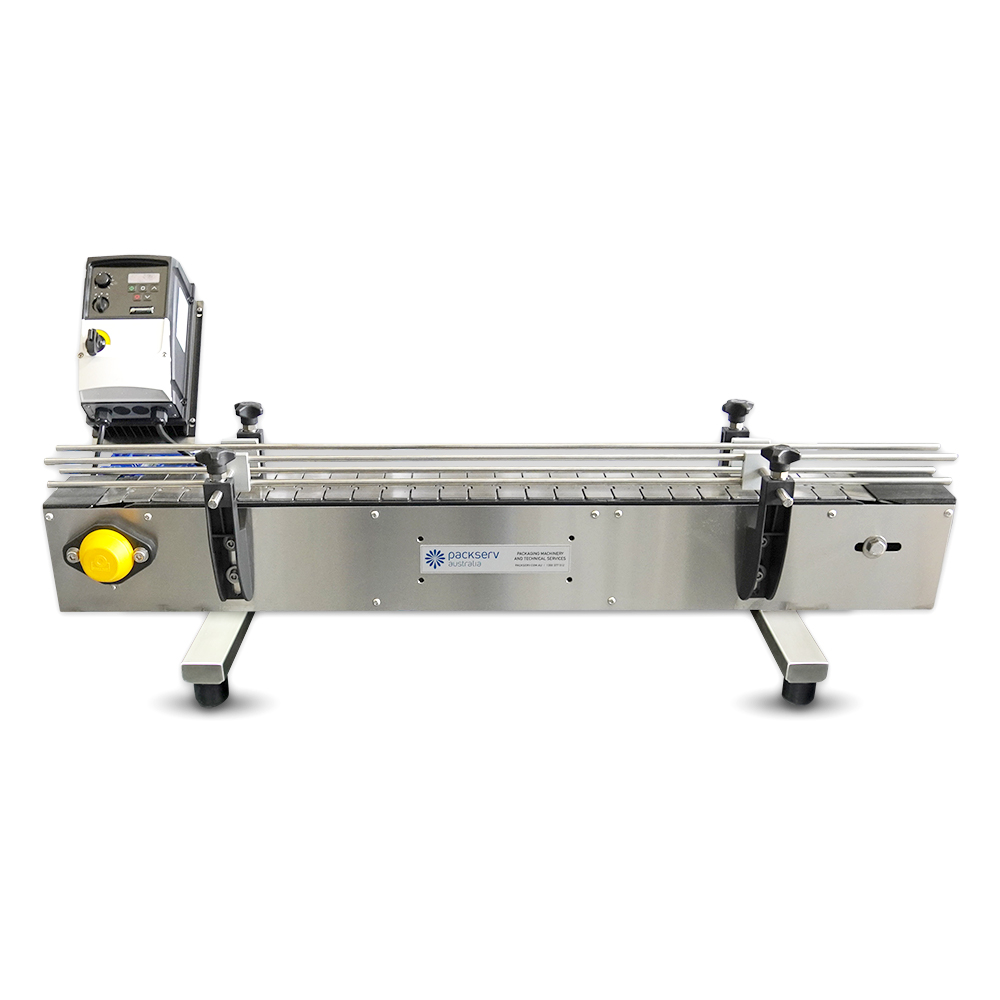

1.2m Bench Top Stainless Steel Slat Conveyor
