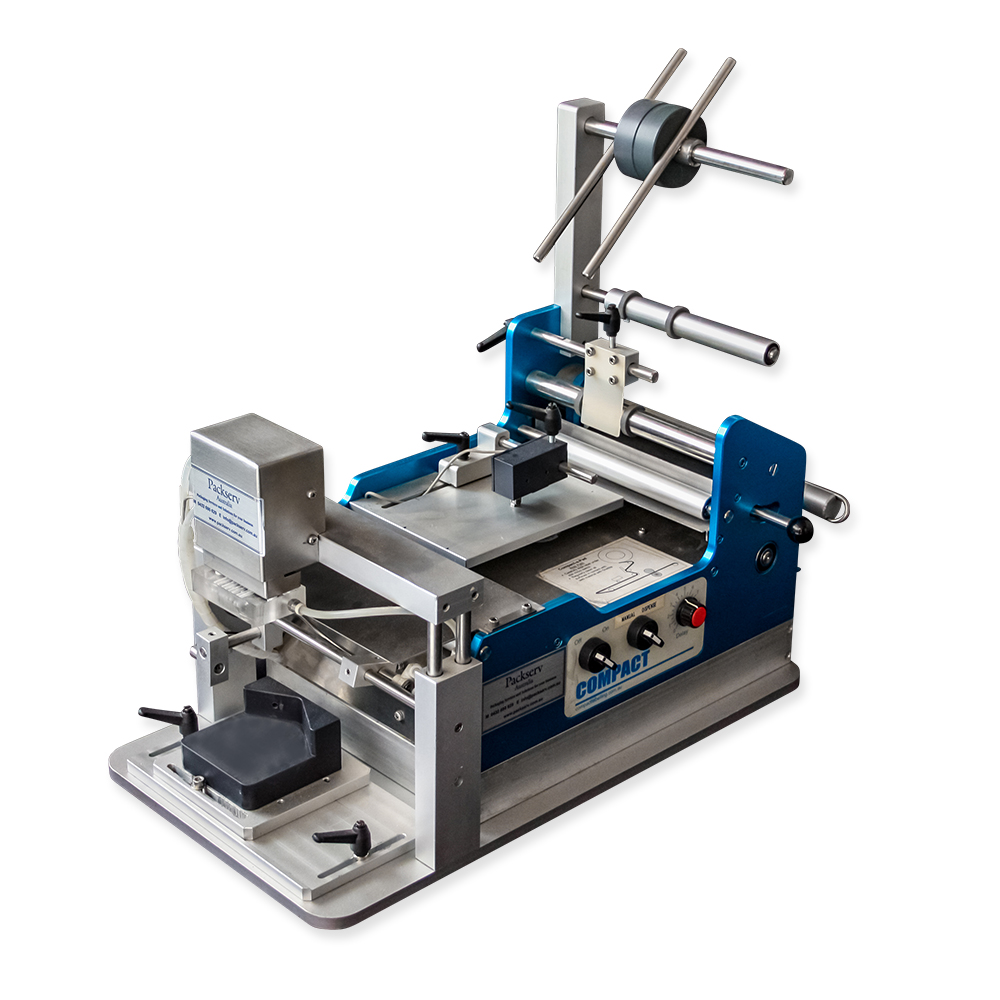

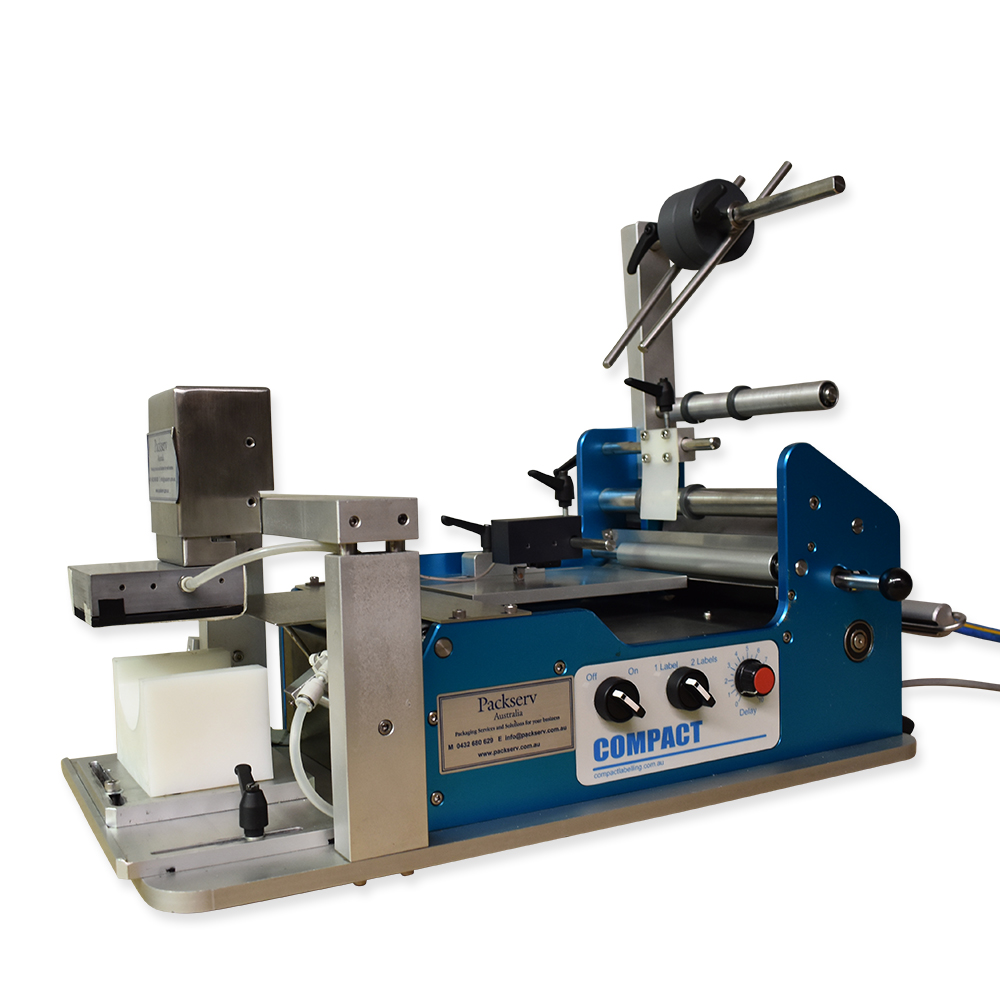

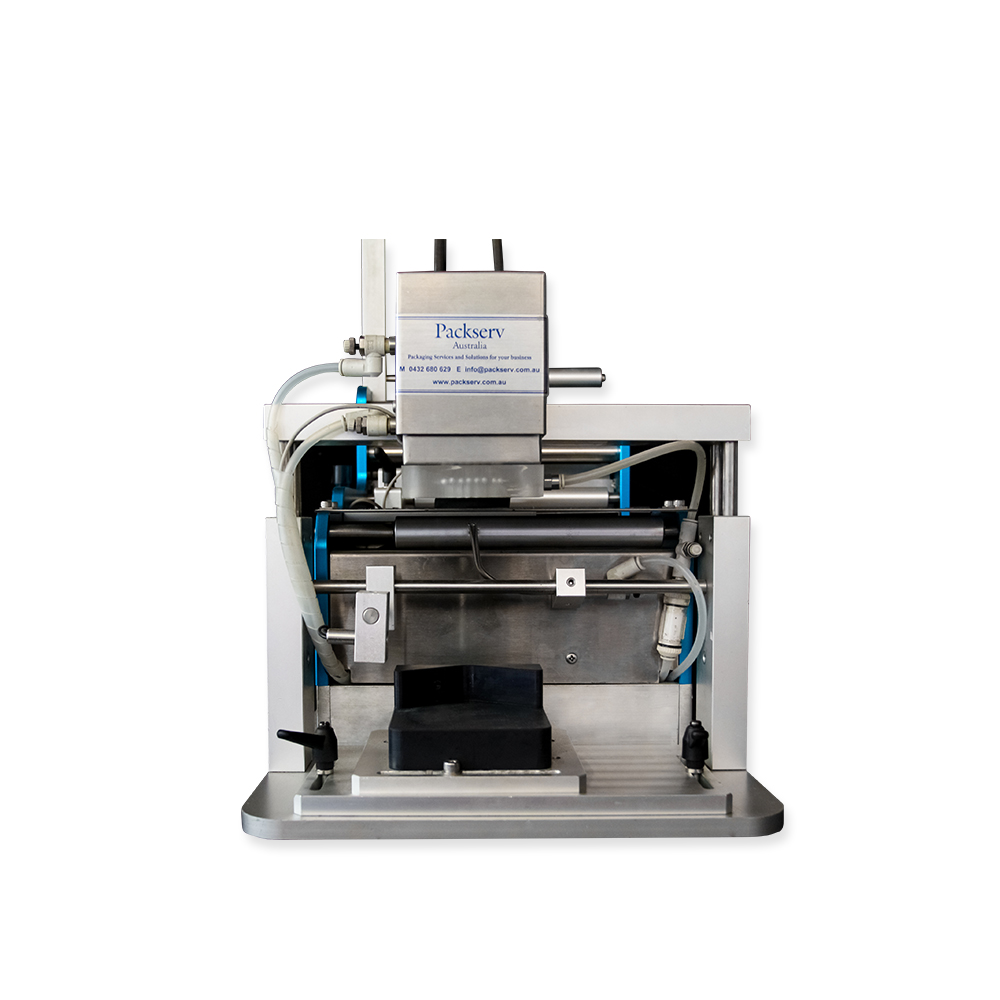

The CP-SAL-P is Compact’s semi-automatic pad labelling machine. It has been designed to be robust yet portable and offers the ability to label a flat-sided container.

For best results the surface which the label is being applied to should be flat however a very slight taper is permissable.

This machine is very simple to operate and set up and unlike other semi automatic labellers it rewinds the backing paper as you work – removing potential fire and safety hazards. All die cut labels, whether they are clear, opaque or metallic are able to be applied the CP-SAL-P.

This machine is semi-automatic so an operator must place a container onto the machine where a photoelectric sensor picks up the container and then automatically applies the label(s). Once this action is complete the operator removes the container and inserts another one.

The CP-SAL-P requires both electricity and compressed air to operate.

Machine Width	360mm
Machine Height	720mm
Machine Length	20Kgs approx
Maximum Label Height	180mm
Max Roll Diameter	300mm
Label Core Size	76mm
Standard Label Length Range	15mm – 220mm (Can be programmed for long labels)
Power Requirements	240V 10Amp & Compressed Air
Output	10-20 units per minute

Make	Compact-Labelling
Automatic Function	Semi-Automatic
Mounting	Benchtop
Label Type	Top and Bottom Label

Label Waste removal – Incorporating a backing paper take up roller, all the waste is accumulated in a tidy roll for easy disposal.
Easy to set up – within a couple of minutes a new job can be set up and running, increasing productivity immediately.
Simple to operate – almost no skill or training is required to obtain an excellent result.
Robust, heavy duty construction – The machine is designed for years of trouble free and maintenance free productivity.
Fully Adjustable – Tool-less adjustment accommodating a wide range of different container sizes including extra long and large containers.
Single label application.
Can be used in conjunction with an Ink Jet Coder to code labels pre-application.
Round and near-round containers.
No problem with clear, opaque and metallic labels.
Requires air and power.
Suitable for food and pharmaceutical use.
Quick change over of container or parts.
Stainless steel and aluminum construction.
Adjustable label position while running.
Each different sized tube requires a mandrel – these can be custom made.
Applies front and back labels in short two stop process.
Labels to be on a roll, self-adhesive, die-cut & weeded with left-hand edge lead strongly preferred.
