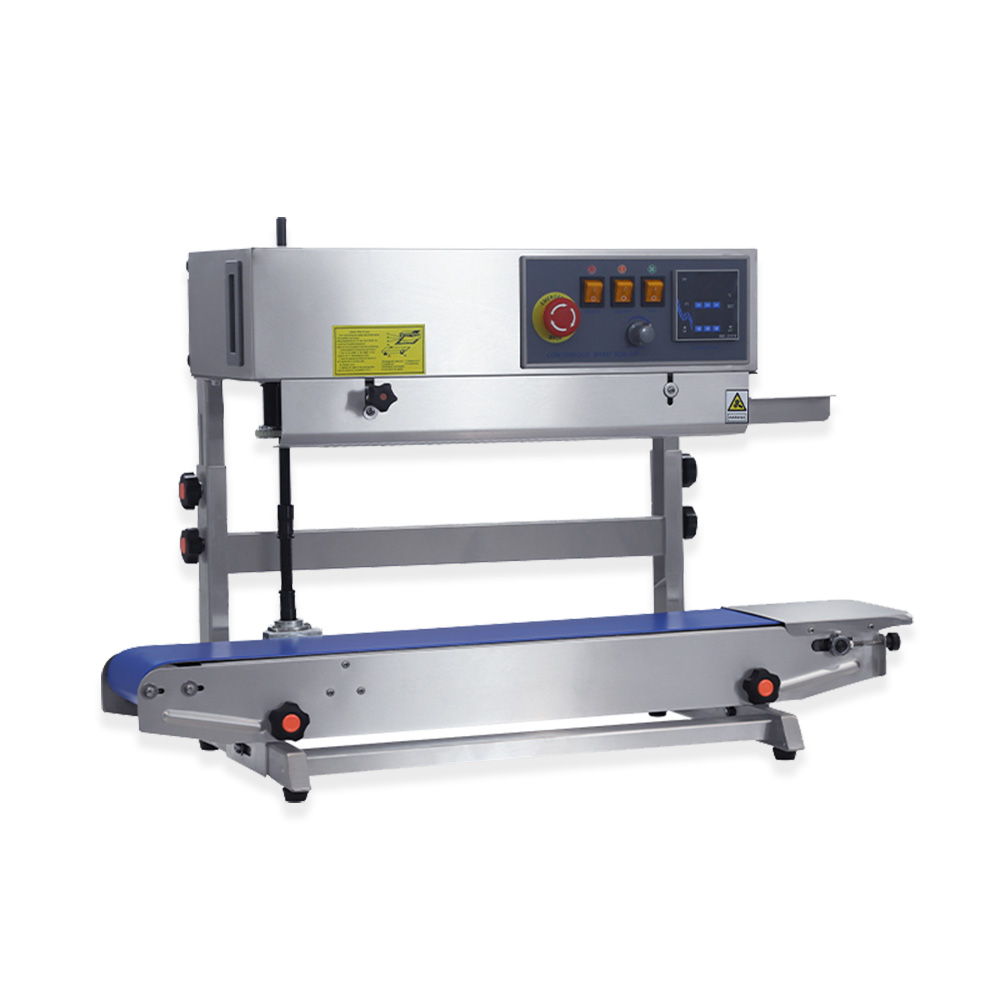

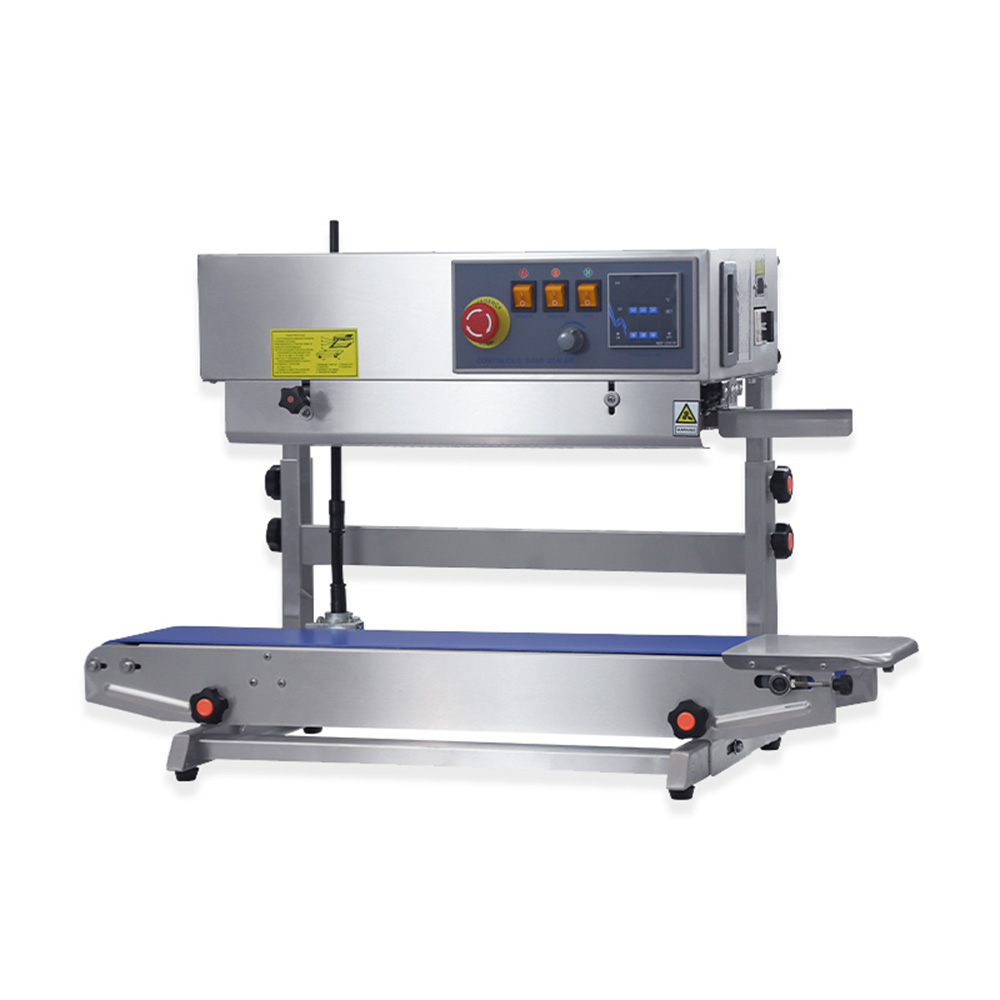

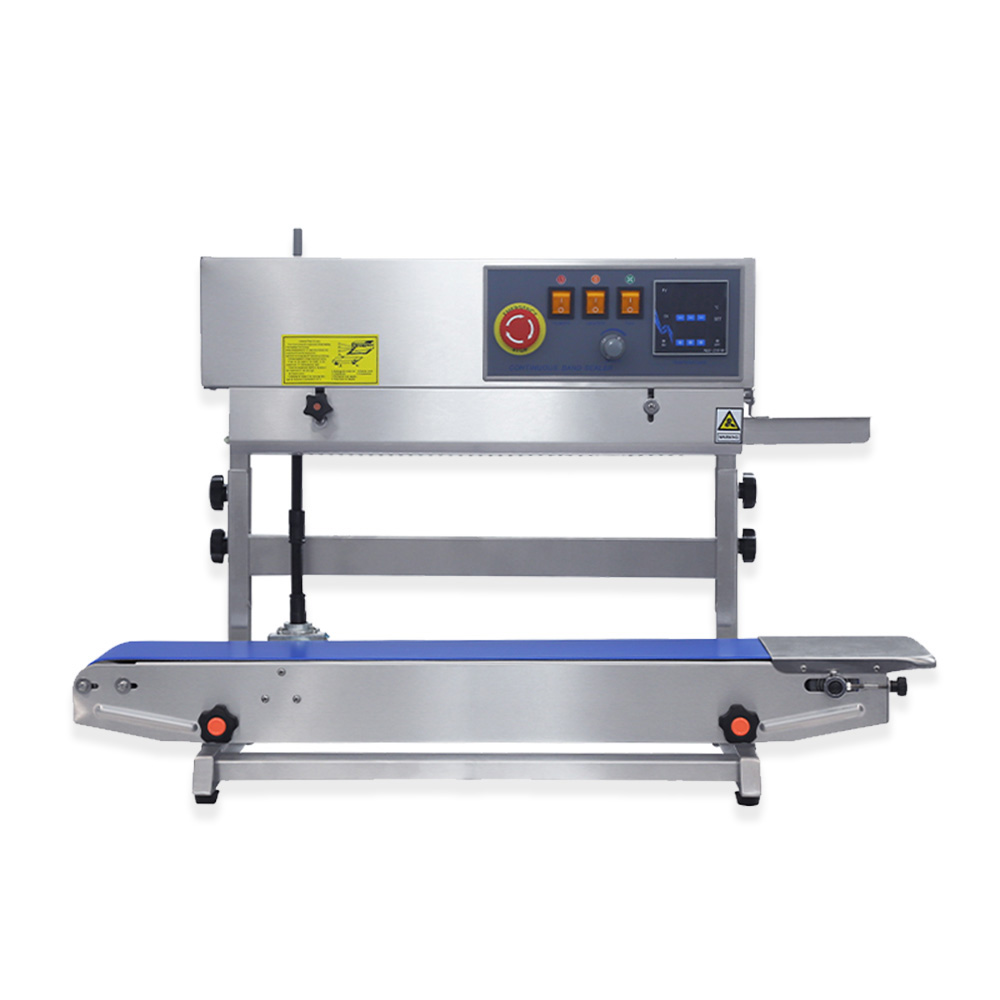

The Hualian Continuous Band Sealer FRB-770IISS is used for increasing production speeds in semi-automatic bag sealing applications where large scale automation is not possible.

Operators feed the bag into the machine by placing filled bags on a conveyor to be guided through the sealing.

Brackets can be supplied to change from horizontal to vertical sealing. Enabling bags to stand up or lie down during the sealing process.

This Continuous Band Sealer is designed to seal any thermoplastic material due to its variable thermostat. This includes Polyethylene, Polypropylene, and laminations containing foils.

The sealer is commonly used to seal coffee, sauces, marinades and grains.

See Also ; Sealers | Packserv Australia

Weight:	28 kilograms
Length:	840mm
Width:	380mm
Height:	450mm
Power supply:	Standard 240V 10Amp
Sealing speed:	0 – 12m/min
Sealing width:	10mm
Temperature range:	0 – 300° C
Conveyor loading:	3 kg
Printing Type:	Embossed Steel Wheel (Option)
Distance from Sealing centre to Conveyor Table:	150-270mm

Make	Hualian
Automatic Function	Yes
Mounting	Benchtop

Machine can be easily converted to seal vertically or horizontally.
Can seal wet and dry product types.
Variable thermostat with simple operator use.
Solid state temperature controller to ensure consistent sealing.
Adjustable conveyor height and positioning.
In-built conveyor belt with adjustable speed.
Adjustable knurled pressure rollers to alter seal look.
Unit feeds right to left.
Seals thermoplastic materials including Polyethylene (PE), Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).
Stainless steel construction.

1 x power cord
1 x thermostat cover
1 x bag guide
1 x parts for horizontal/vertical changeover
2 x replacement teflon tape
